Yamaha 60-90HP 2-Stroke Water Pump Kit with Housing 692-W0078
692-W0078-00-00
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 2 items left
- Backordered, shipping soon
Yamaha Water Pump Kit
With housing | 692-W0078 family | 60–90HP 2-stroke

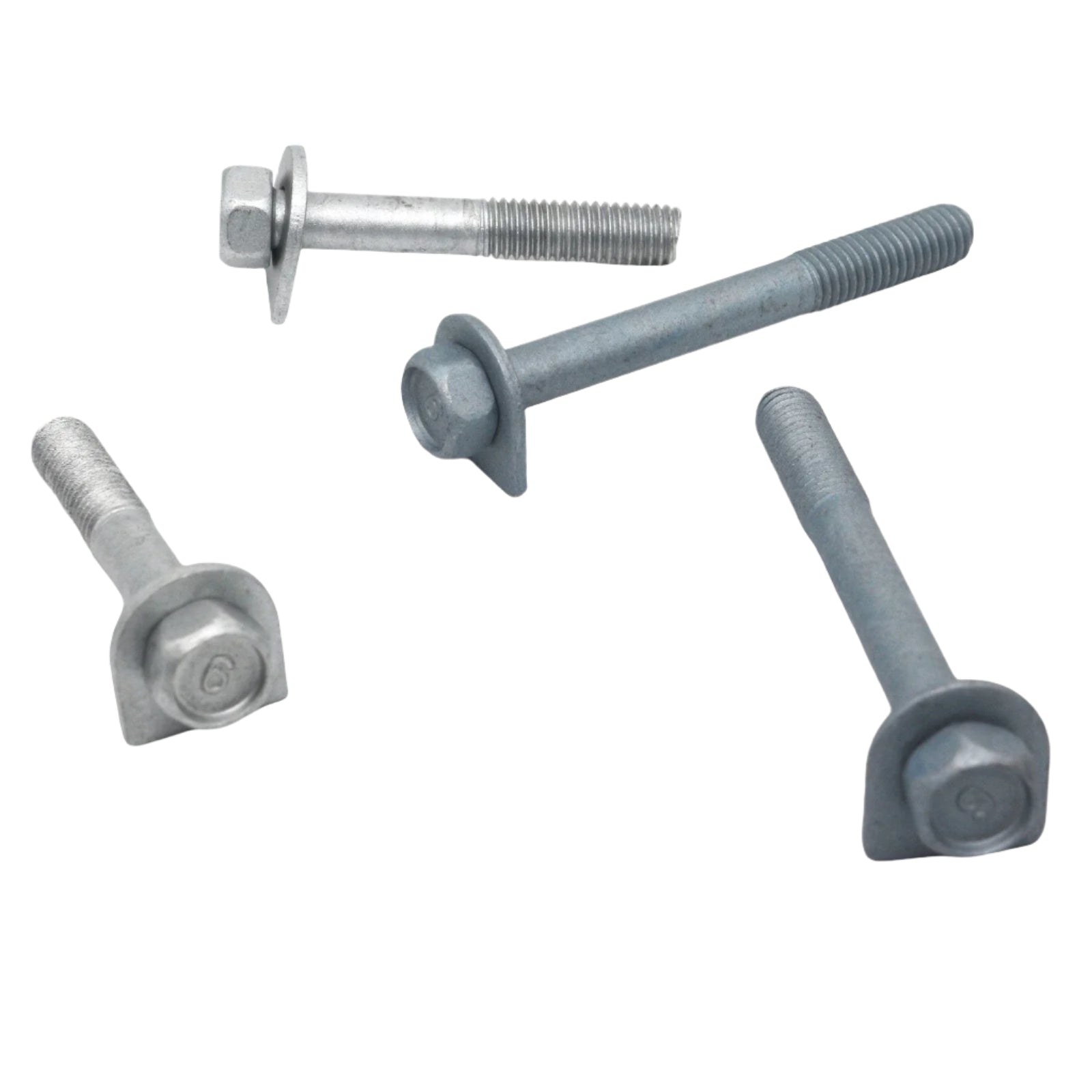

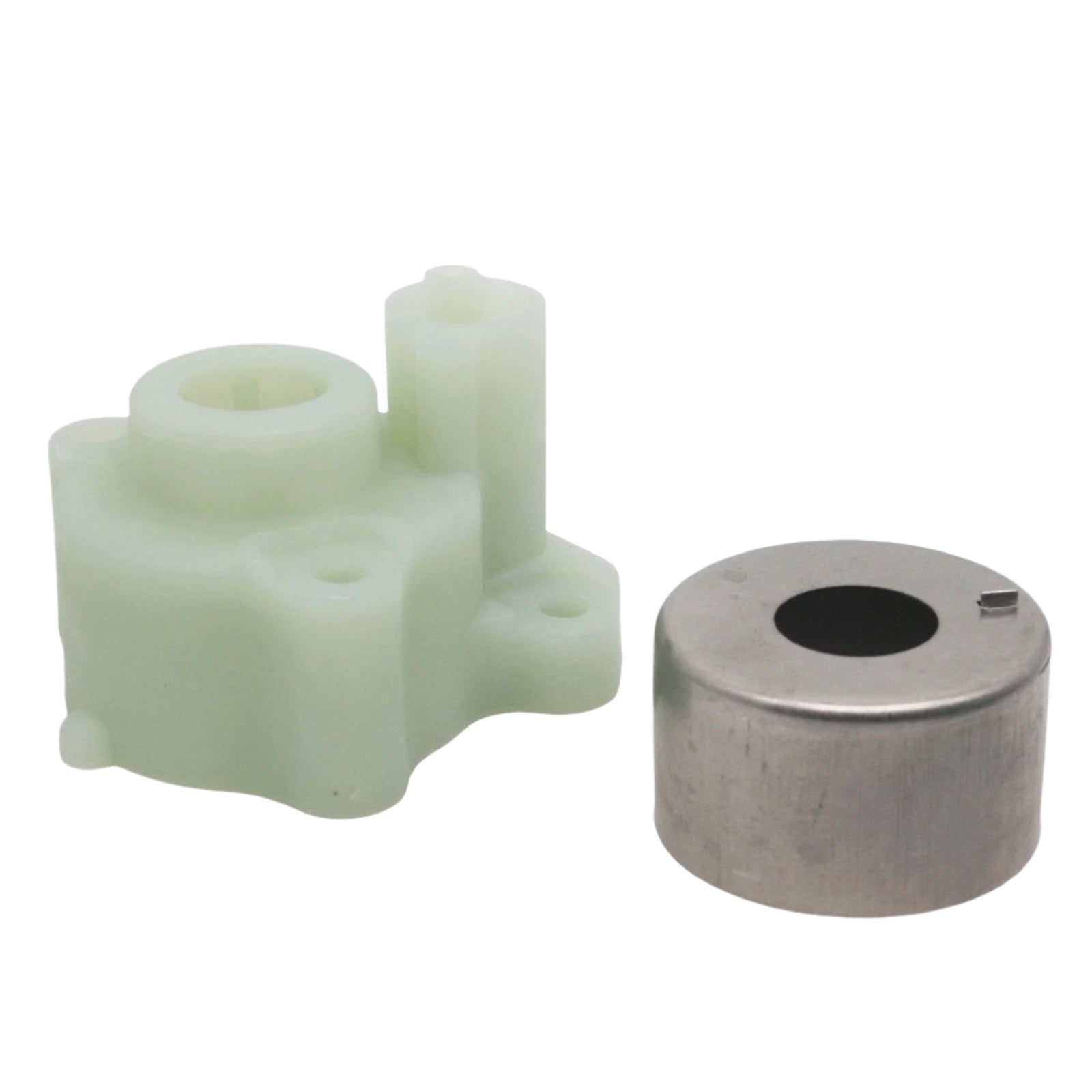

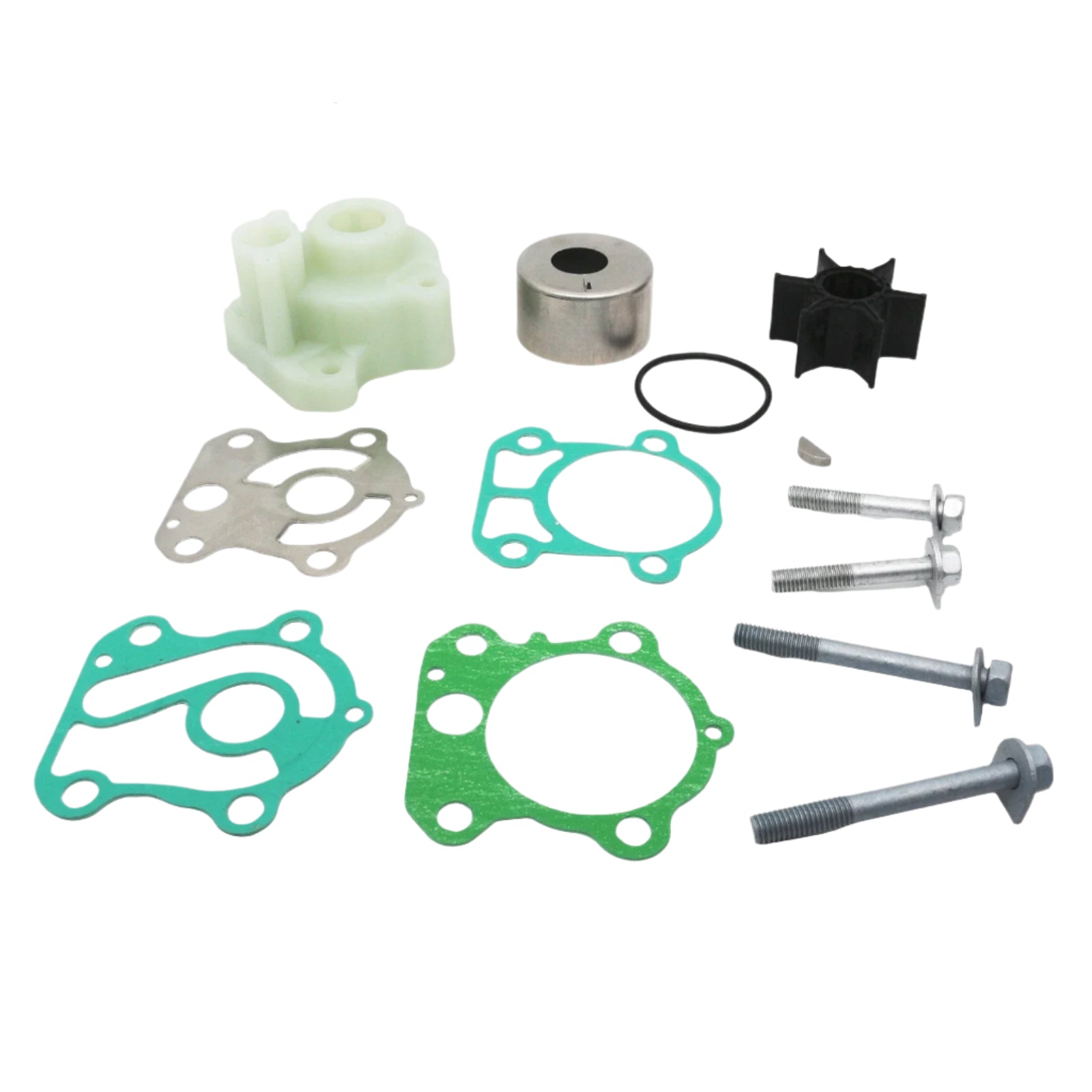

Aftermarket cooling-water pump rebuild kit with housing for selected Yamaha mid-range two-stroke outboards. The photographed kit includes the plastic housing, metal insert, impeller, wear plate, gaskets, O-ring, drive key and mounting bolts.
Key Features
- ✔ Expanded aftermarket kit with pump housing
- ✔ Impeller, metal cup/insert and wear plate included
- ✔ Gaskets, O-ring, Woodruff key and fasteners shown
- ✔ For selected Yamaha 60–90HP two-stroke families
- ✔ Replaces multiple supersessions in the 692-W0078 repair-kit line
Technical Specs
| Part type | Complete water-pump service kit with housing |
| Engine type | Yamaha 2-stroke outboard |
| Horsepower family | Selected 60–90HP models |
| Primary reference | 692-W0078-00-00 |
| Supply type | Aftermarket |
| Housing included | Yes, as pictured |
| 4Boats SKU | 692-W0078-00-00 |
Compatibility / Fitment Guide
| Yamaha model family | Verified application examples |
|---|---|
| C75 / P75 / E75 | C75 1994–1996; P75 1996; E75 1995–1996 within the 692-W0078 family |
| C85 / CV85 | C85 1991 and 1992–1996 families; CV85 1989–1990 |
| 90HP two-stroke | 1984–1996 90-family applications listed for 692-W0078-01/A0; later 90TLR applications must be checked by exact model code |
| 60 / 70 / 75 / 80 / 90 later service families | Only where the serial-specific parts diagram lists 692-W0078-00, -01, -02 or -A0 and the pictured housing pattern matches |
Positive fitment test: match the full Yamaha model code and repair-kit reference, then compare the housing shape, four-bolt pattern, water passages, impeller and every gasket with the removed assembly.
Exclusions: not for Yamaha four-strokes; not for all 60–90HP engines; and not an automatic fit where only the impeller diameter appears similar. Different gearcases use different housings and gasket layouts.
Part Number Cross Reference
| Yamaha repair-kit family | 692-W0078-00-00; 692-W0078-01-00; 692-W0078-02-00; 692-W0078-A0-00 |
| Aftermarket catalogue family | 69D-W0078-00-00 (verify housing pattern) |
| Sierra family | 18-3370 / 18-3371 (contents vary) |
| Mallory family | 9-48616 (verify contents) |
| 4Boats SKU | 692-W0078-00-00 |
Superseded and aftermarket kit numbers can contain different quantities or omit the housing. Compare the actual contents required, not only the family number.
Frequently Asked Questions
Is the housing included?
Yes. The aftermarket plastic housing is included in this listing as shown in the photographs.
Is this a genuine Yamaha kit?
No. It is an aftermarket expanded repair kit.
Will it fit every Yamaha 60–90HP outboard?
No. It is for selected two-stroke gearcases using the 692-W0078 family and matching housing/gasket pattern.
Can I order using horsepower only?
No. Confirm the complete model code and the serial-specific Yamaha parts diagram.
Note: Follow the Yamaha service manual for impeller-vane direction, seal installation and bolt torque, then verify a strong cooling-water tell-tale before normal operation.
