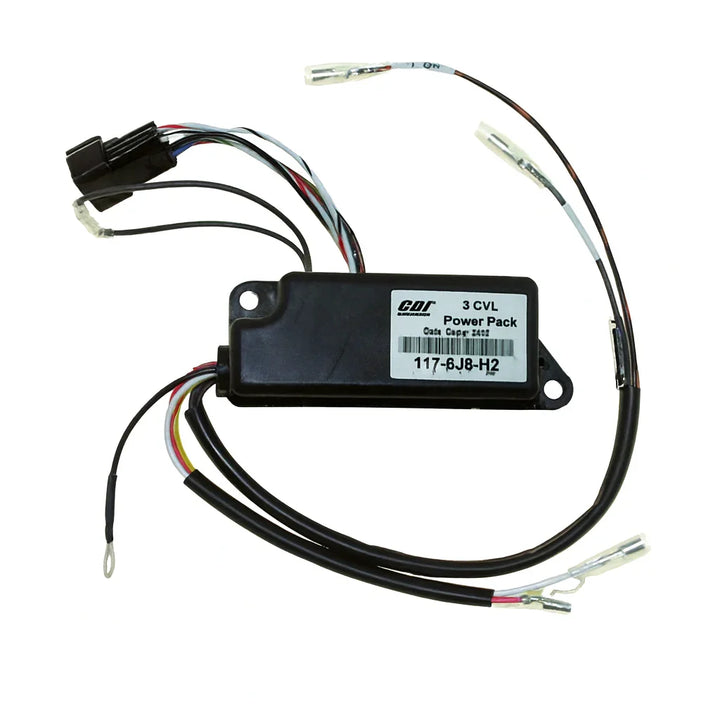

Yamaha CDI Module 6J8-85540-H2
Premium High-Performance Ignition Pack
Restore the reliable spark and peak performance of your Yamaha outboard with this high-grade replacement CDI module. Specifically engineered for 3-cylinder 2-stroke engines between 1999 and 2002, this unit serves as a direct replacement for Yamaha part number 6J8-85540-H2-00.
Key Features
- β Direct plug-and-play fitment
- β Precision ignition timing for optimal RPM
- β Correct color-coded wiring harness

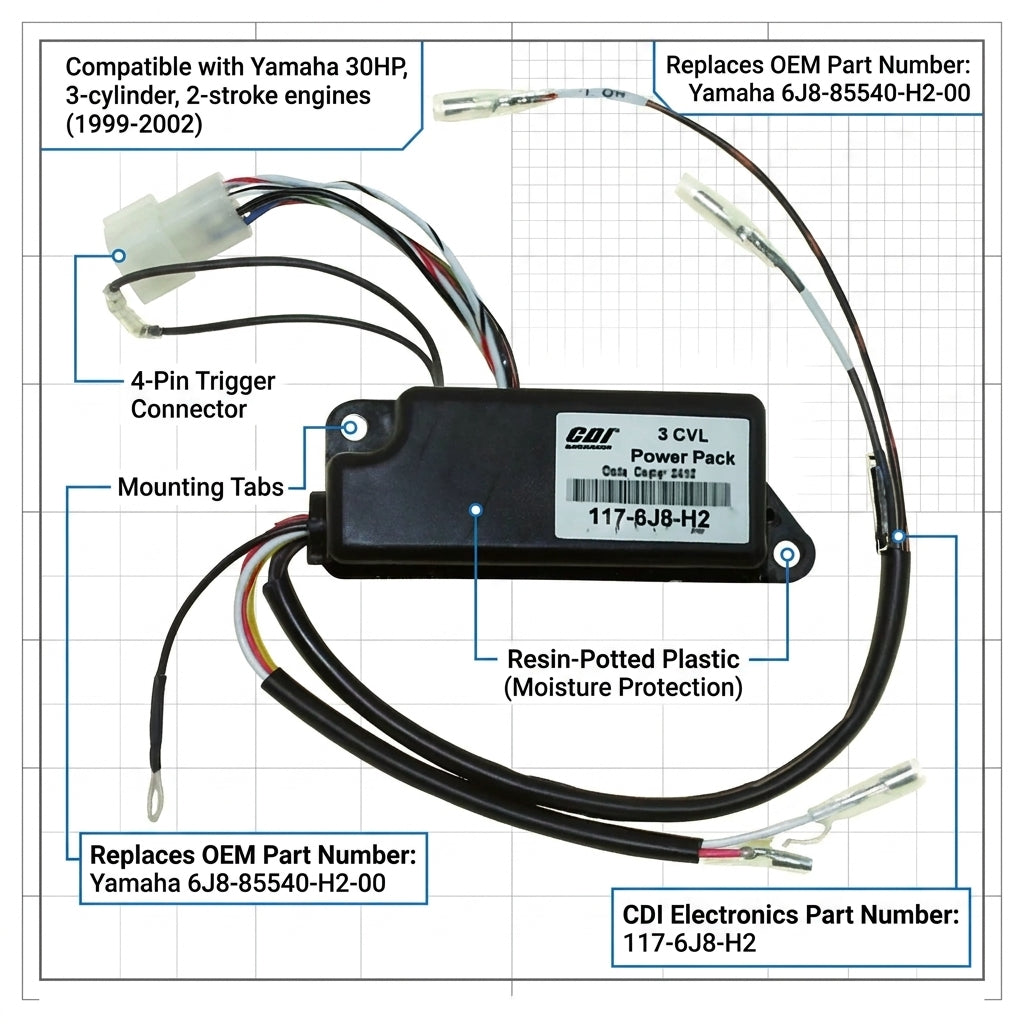

- β Integrated 4-pin trigger connector
Technical Specs
| Engine Type: | 2-Stroke / 3-Cyl |
| Horsepower: | 25HP / 30HP |
| Trigger Resistance: | 310 - 380 Ohms |
| Stator Resistance: | 185 - 225 Ohms |
| Stator DVA: | 175V Min (Connected) |
| Trigger DVA: | 4V Min |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Yamaha Outboard | 30HP (1999-2002) | 30ELRX, 30MLHX, 30MSHX |
| Yamaha Outboard | 30HP (2001) | 30ELHZ, 30ELRZ, 30MLHZ, 30MSHZ |
| Yamaha Outboard | 25HP (1999) | 3-Cylinder Models Only |
OEM Cross Reference
| Yamaha Part Number: | 6J8-85540-H2, 6J8-85540-H2-00 |
| CDI Electronics Number: | 117-6J8-H2 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number matches 6J8-85540-H2, it is a guaranteed fit.
Why is my engine limiting at 2000 RPM?
If the engine limits RPM, it may be the CDI entering safety mode due to an overheat or low oil signal. Disconnect the Pink warning wire to test; if the RPM remains limited, the CDI module may be failing.
Note: Professional installation by a qualified marine mechanic is recommended. Please verify your original part number against the references above before purchasing.
