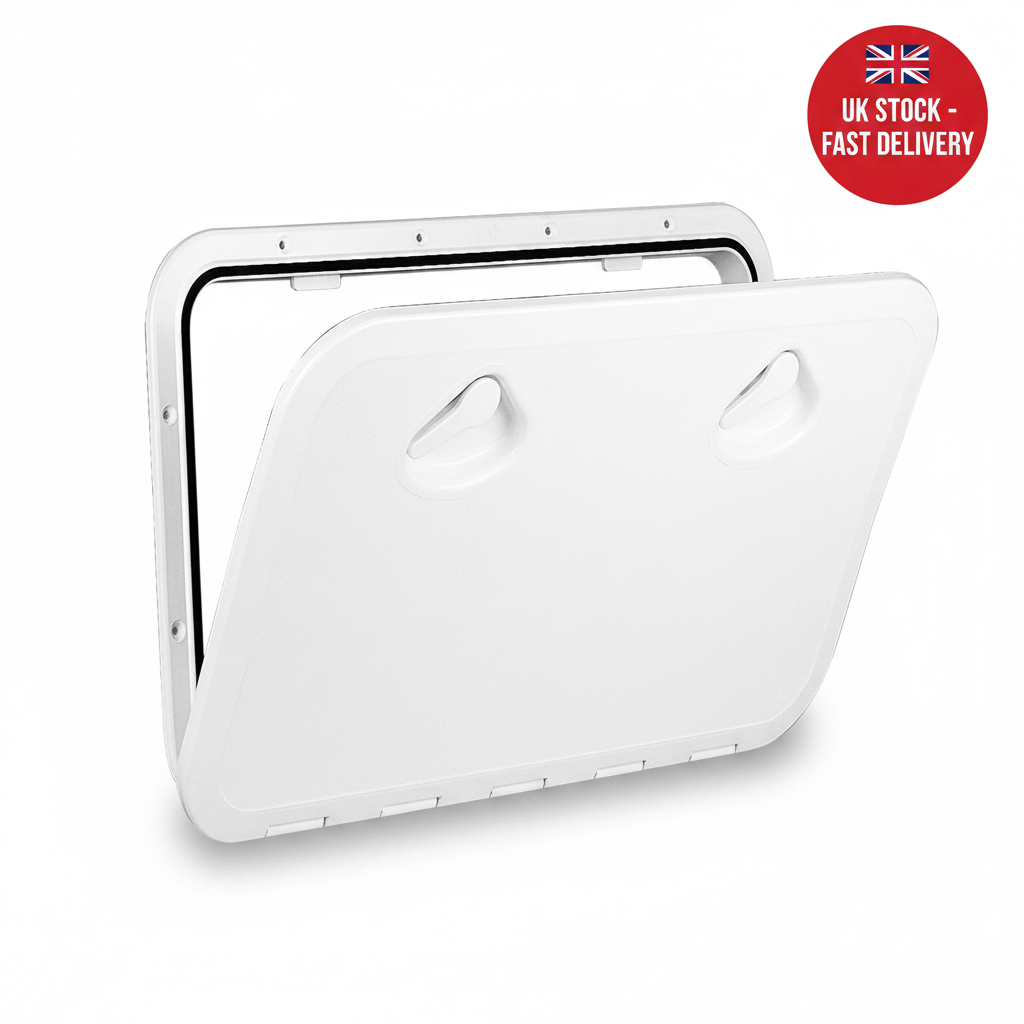

TOP LINE Hatch, White, 460x525mm, ISO12216 - UK Stock image 1

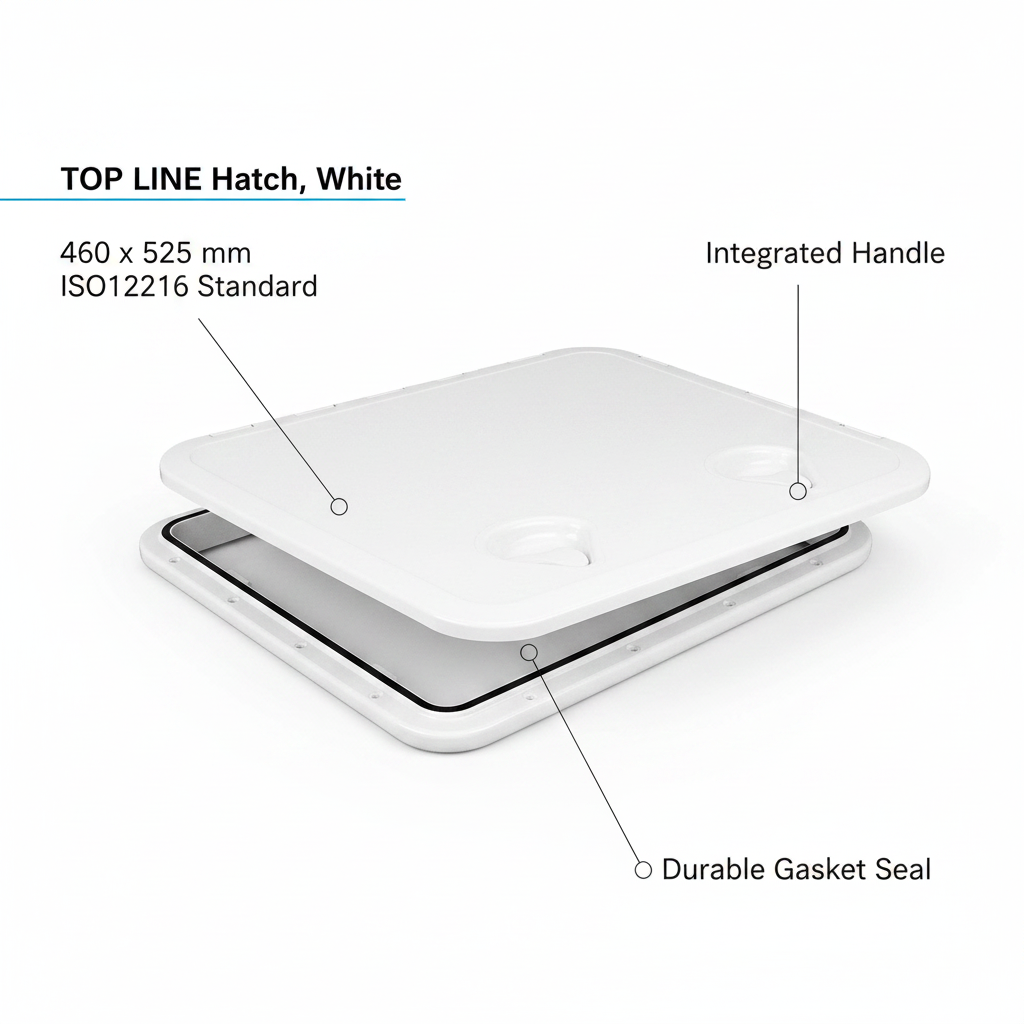

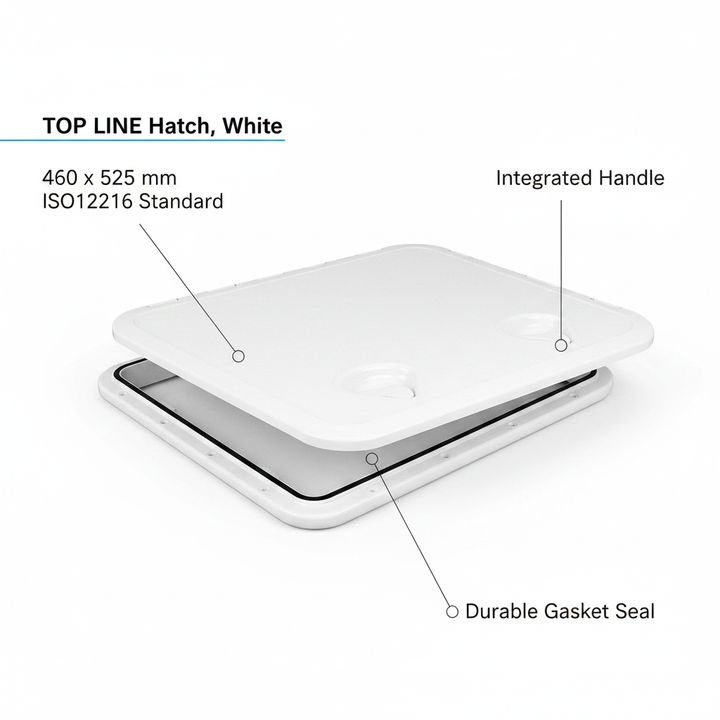

TOP LINE Hatch, White, 460x525mm, ISO12216 - Technical specification image 2
TOP LINE Hatch, White, 460x525mm, ISO12216 - Technical specification image 3

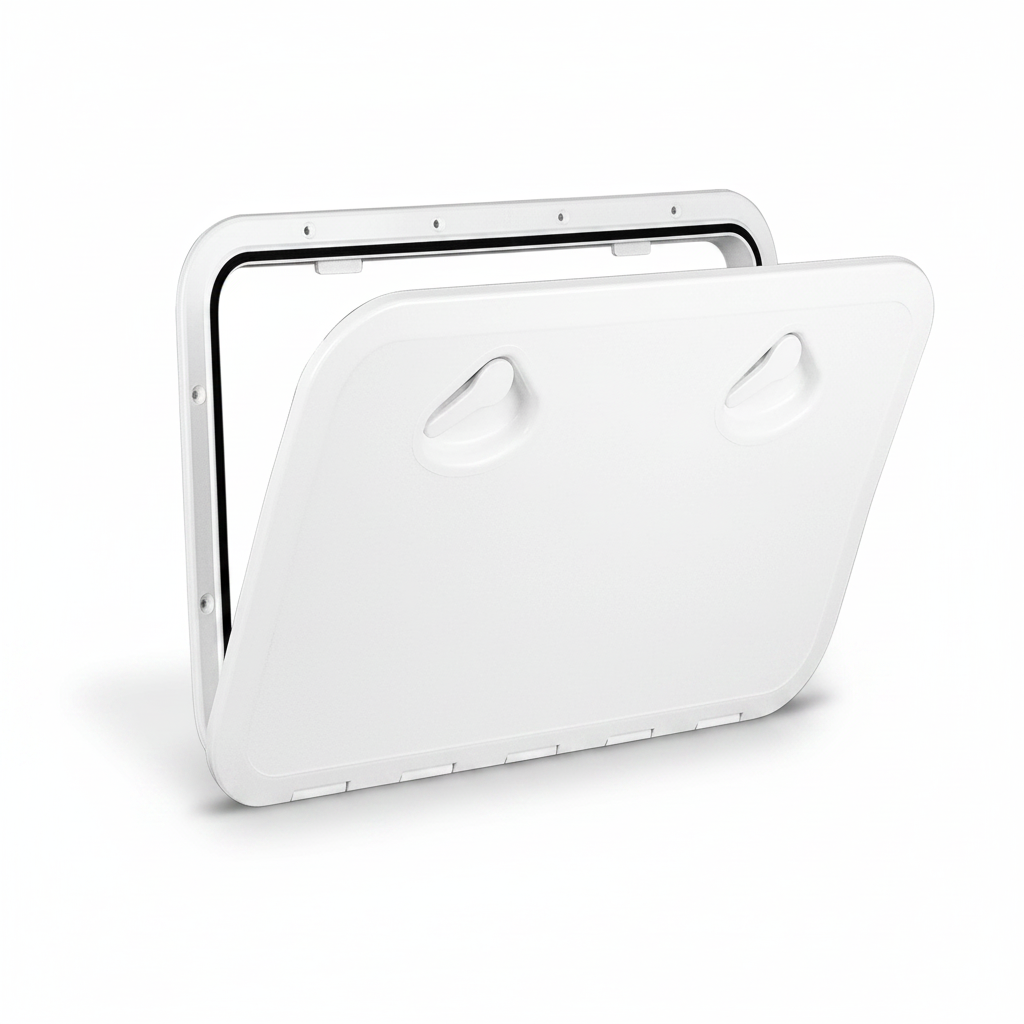

TOP LINE Hatch, White, 460x525mm, ISO12216 - Technical specification image 4
TOP LINE Hatch, White, 460x525mm, ISO12216 - 4Boats
TOP LINE Hatch, White, 460x525mm, ISO12216 - UK Stock image 1
TOP LINE Hatch, White, 460x525mm, ISO12216 - Technical specification image 2
TOP LINE Hatch, White, 460x525mm, ISO12216 - Technical specification image 3
TOP LINE Hatch, White, 460x525mm, ISO12216 - Technical specification image 4

TOP LINE Hatch, White, 460x525mm, ISO12216

196346

  • Dispatched in 2-3 days
  • 30 Day Return Policy
  • In stock, ready to ship
  • Backordered, shipping soon
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
£91.00
/
Tax included.

TOP LINE Hatch, White, 460x525mm, ISO12216

Nuova Rade marine equipment – UK stock

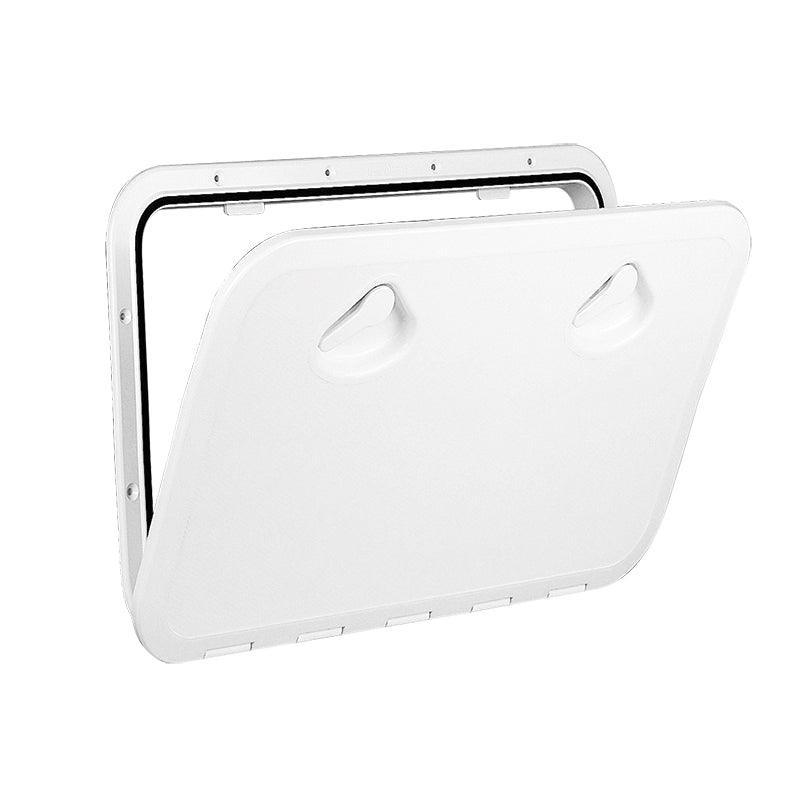

External marine access hatch from the Nuova Rade Top Line range.

White ISO 12216 hatch: 460 x 525mm overall, 390 x 445mm cut-out reference and 382 x 433mm clear opening. Non-locking door opens 180°. Measure the opening and available flange area before cutting.

Key Features

  • ✔ Nuova Rade Top Line series hatch
  • ✔ ISO 12216, white, 460 x 525mm overall
  • ✔ 382 x 433mm clear opening
  • ✔ Door opens 180°, non-locking version
  • ✔ Horizontal or vertical external installation

Technical Specs

Brand Nuova Rade
4Boats SKU 196346
Series Top Line
Standard ISO 12216
Colour White
Overall size 460 x 525mm
Clear opening 382 x 433mm
Installation/cut-out reference 390 x 445mm
Lock No
Door opening 180°

Compatibility / Fitment Guide

  • Horizontal or vertical external installation where the stated cut-out and flange dimensions are suitable.
  • When replacing an existing hatch, compare the cut-out, flange size, corner radii and manufacturer code 196346.
  • Do not cut from the nominal overall size; confirm the manufacturer's drawing against the actual hatch before cutting.
  • Water-resistant does not mean suitable for every submerged or pressure-wash location.

OEM Cross Reference

Lalizas code 196346
4Boats SKU 196346

Questions & Answers

What cut-out is required for this hatch?

The installation reference is 390 x 445mm. The outer flange is 460 x 525mm and the clear opening is 382 x 433mm. Verify the physical hatch and corner radii before cutting.

What is included?

One new Nuova Rade Top Line hatch, white, 460 x 525mm, ISO 12216, code 196346. No additional parts are included unless explicitly listed.

Does it lock?

No. This version is non-locking and the door opens 180°.

What should I send if I am unsure?

Send the existing hatch dimensions, any manufacturer number and clear photos of the installation before ordering.

Note: Please check the specifications and compatibility details above before ordering. For fitment questions, contact us via 4boats.co.uk.
