Name: Yamaha Tilt Trim Motor 40HP 50HP 60HP 4-Stroke 62Y-43880-02-00 69W-43880-00-00
Brand: waiglobal
SKU: 10834N
Price: 139.99 GBP
Availability: InStock

Yamaha Tilt Trim Motor 40HP 50HP 60HP 4-Stroke 62Y-43880-02-00 69W-43880-00-00

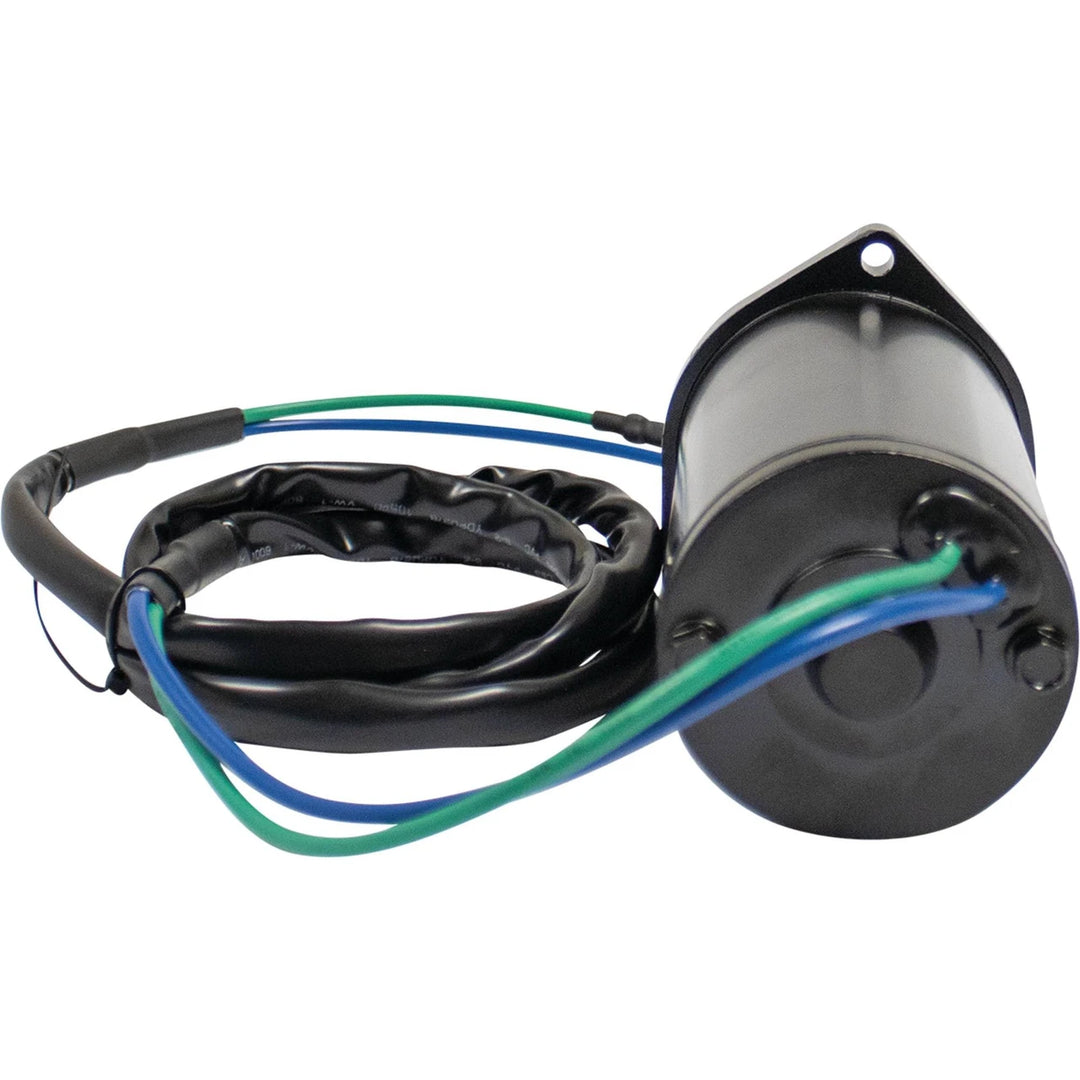

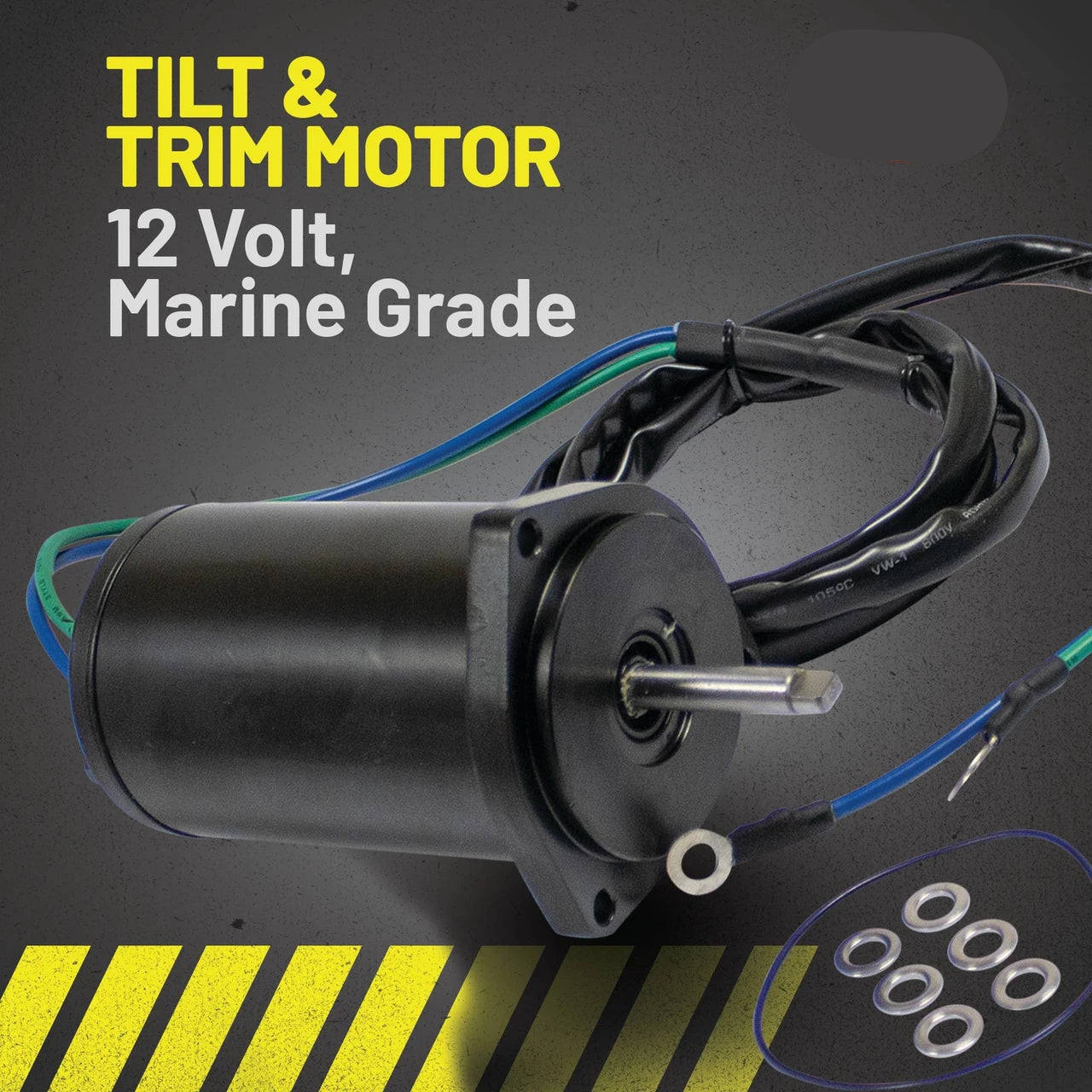

Yamaha outboard tilt trim motor with wiring, marine replacement part from 4Boats

Yamaha outboard tilt trim motor with black housing and wiring, 4Boats marine parts UK

Dispatched in 2-3 days

30 Day Return Policy

In stock, ready to ship
Backordered, shipping soon

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

£199.00 £139.99 Save £59.01

Tax included.

Yamaha Tilt Trim Motor 62Y-43880-02-00

Premium Quality Replacement for 40HP - 60HP Outboards

Restore the performance of your Yamaha outboard's power trim and tilt system with this heavy-duty 12V replacement motor. Designed to meet or exceed OEM specifications, this unit provides smooth, reliable operation in harsh marine environments. It features the "long shaft" design (37mm drive tang) required for specific early-to-mid 2000s 4-stroke and 2-stroke models.

RELIABILITY: Precision-engineered with high-grade copper windings and marine-grade seals to prevent water intrusion and corrosion.

Key Features

✔ Direct fit replacement for 3-bolt systems

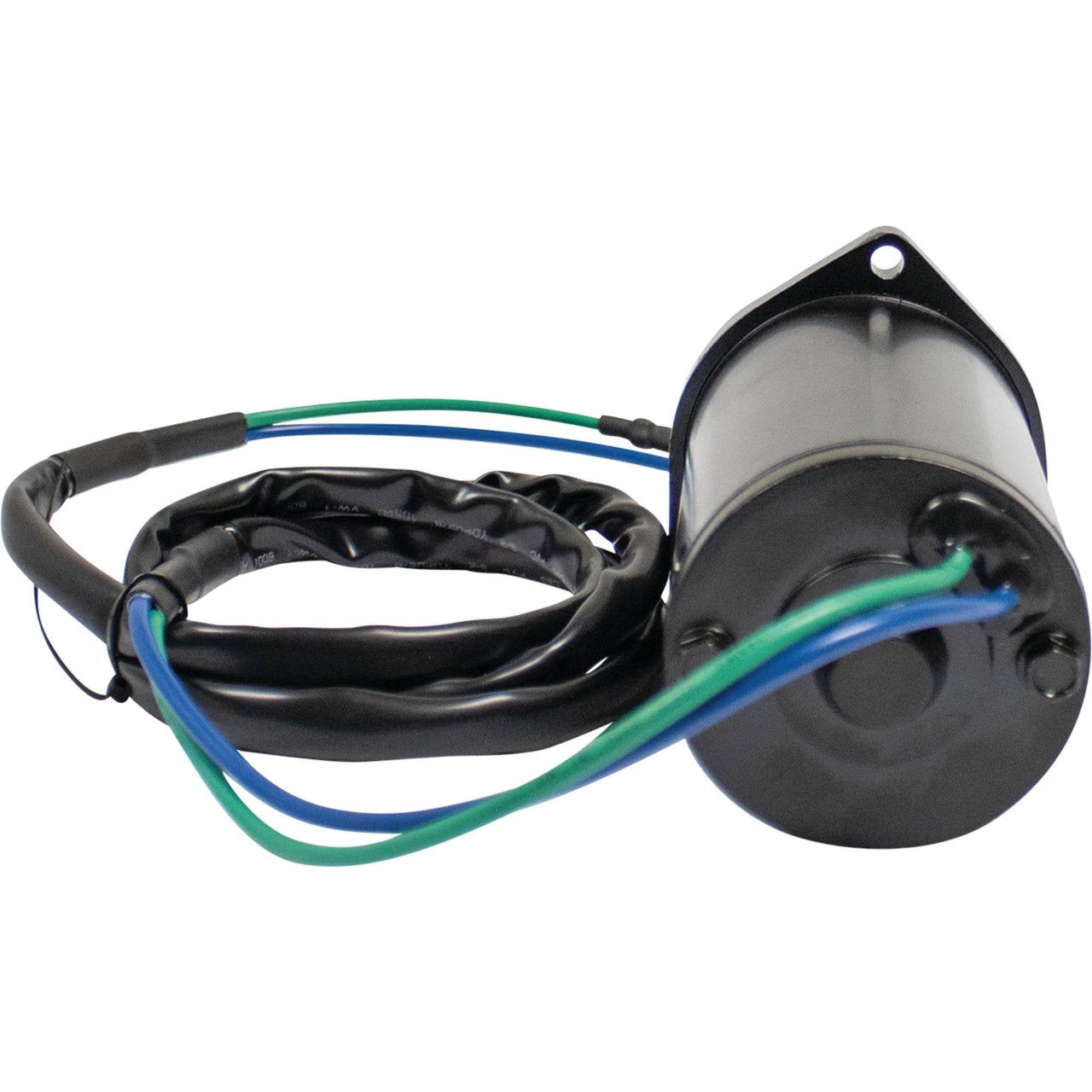

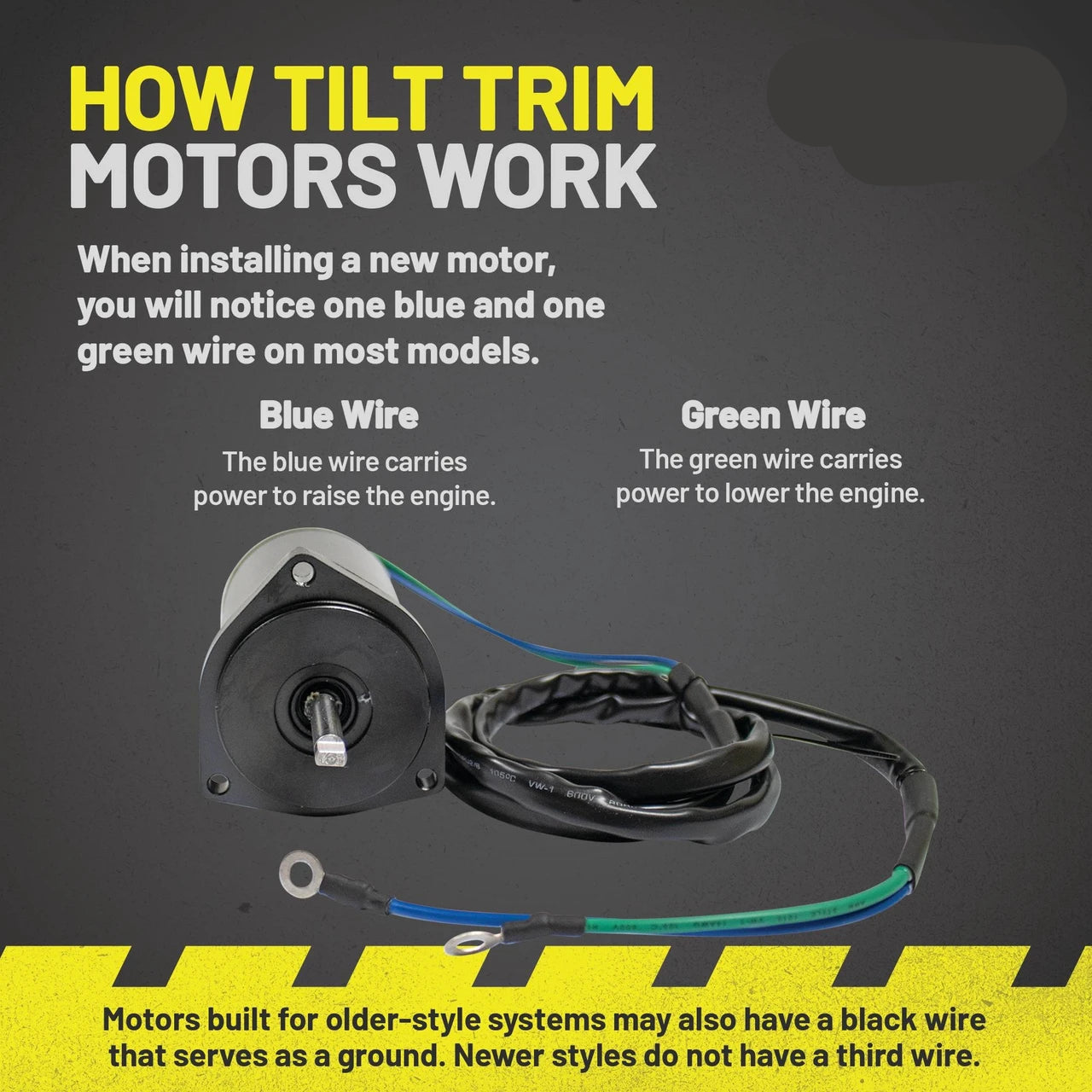

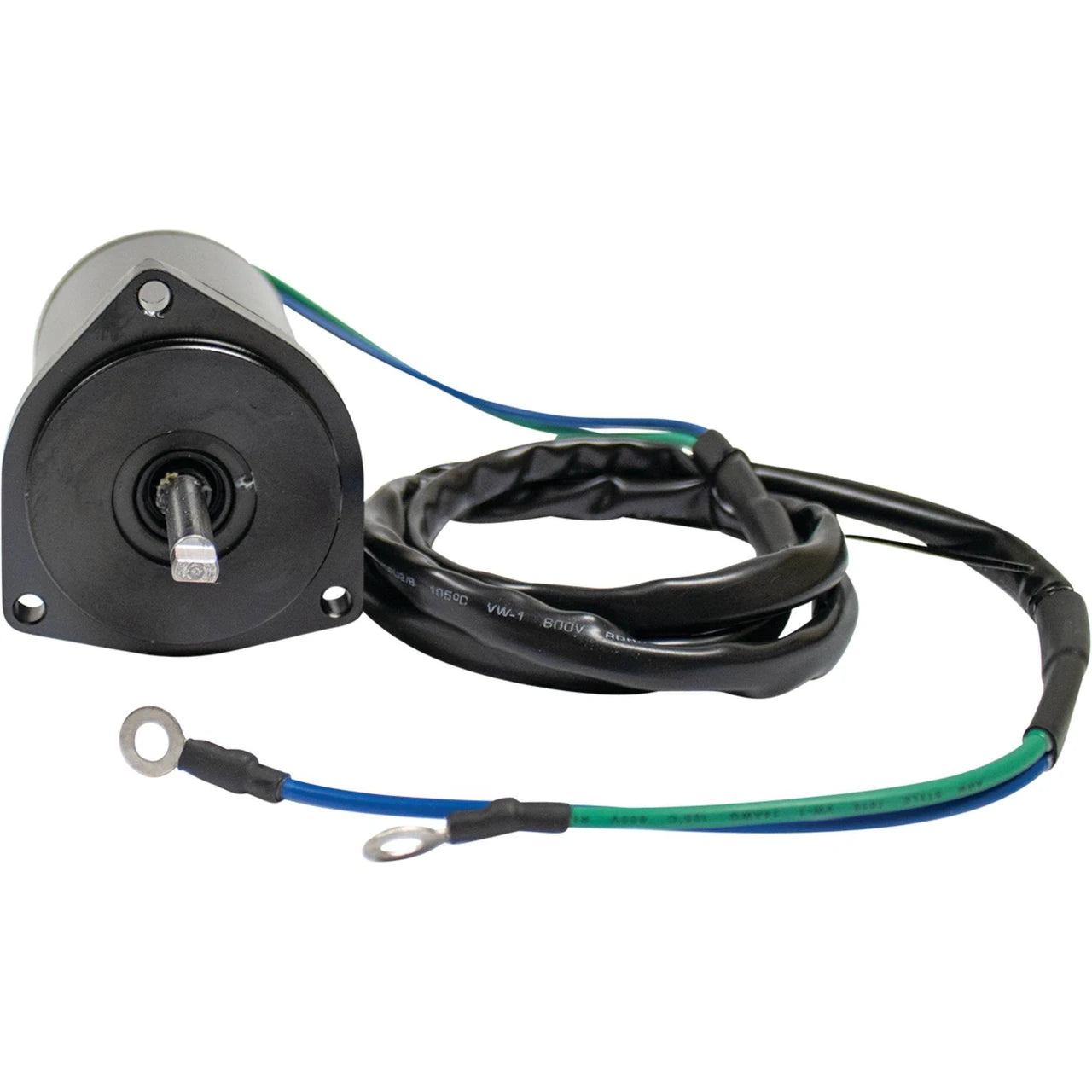

✔ 2-wire harness with ring terminal connectors
✔ Reversible rotation for full tilt/trim range

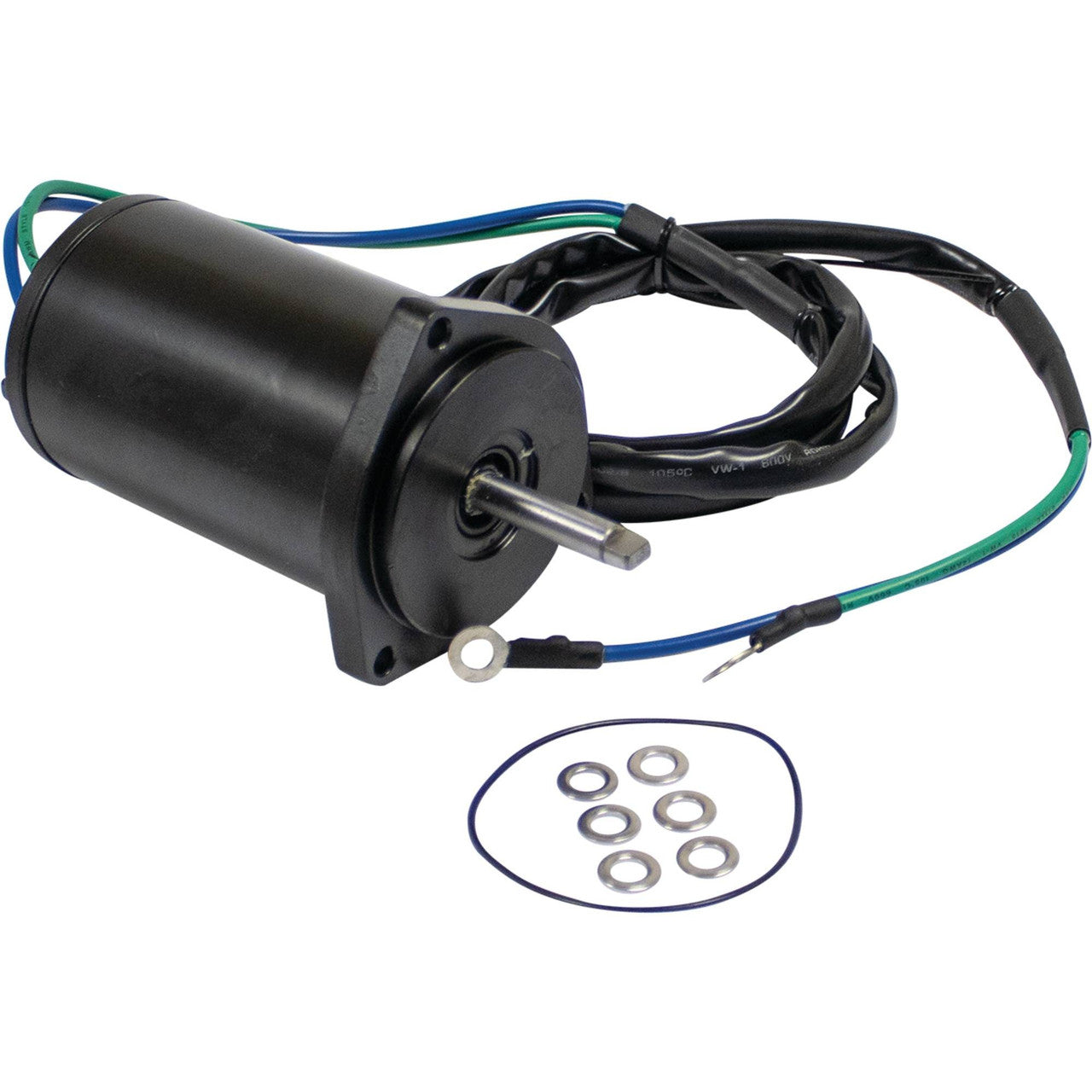

✔ Includes sealing O-ring for installation

Technical Specs

Voltage	12V DC
Rotation	Reversible (Bi-Directional)

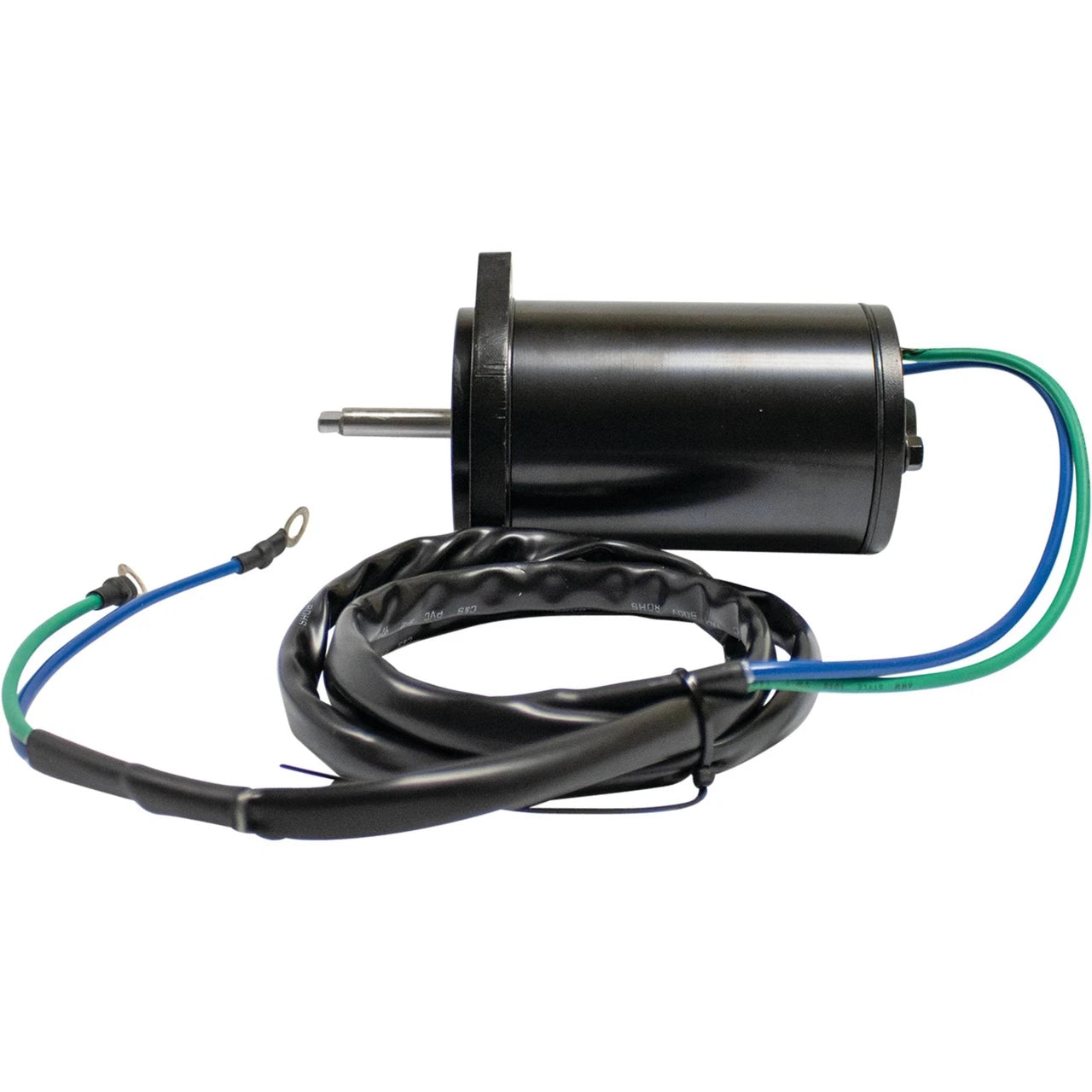

Shaft Style	37mm Flat Blade Tang
Mounting	3-Bolt Flange
Field Housing OD	63.6mm (2.5 in)

Compatibility / Fitment Guide

Make/System	Model/Application	Notes
Yamaha 4-Stroke	F40, F50, T50, F60, T60	Approx. 2001-2004
Yamaha 2-Stroke	40TLR, 50TLR (including 40TLRC, 50TLRC)	2001-2010 Models
Yamaha Hi-Thrust	T50TLR, T60TLR	2001-2004 Models

OEM Cross Reference

Yamaha	62Y-43880-01-00, 62Y-43880-02-00, 69W-43880-00-00, 69W-43880-01-00
Arco Marine	6259
Sierra	18-6811
Lester / Wilson	10834 / 74-35-10834
API Marine	PT614NM

Questions & Answers

Is this a genuine original part?

This is a premium quality aftermarket replacement part, manufactured by 4boats.co.uk suppliers to meet or exceed original equipment (OE) standards for fitment and performance.

How do I know if it is compatible?

We recommend checking your original part number against the cross-reference list above. This motor features the 37mm "drive tang" shaft; if your original motor has a 4-spline shaft or a shorter tang, this may not be the correct fit.

Does this unit include the sealing O-ring?

Yes, a heavy-duty installation O-ring is included to ensure a watertight seal upon mounting to the hydraulic pump base.

Note: Please verify your original part number against the references above before purchasing. For any technical queries, contact us at 4boats.co.uk.
