Talamex 6-Switch Marine Panel 12V 37A 30mm Glass Fuses Black
14.577.006
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon

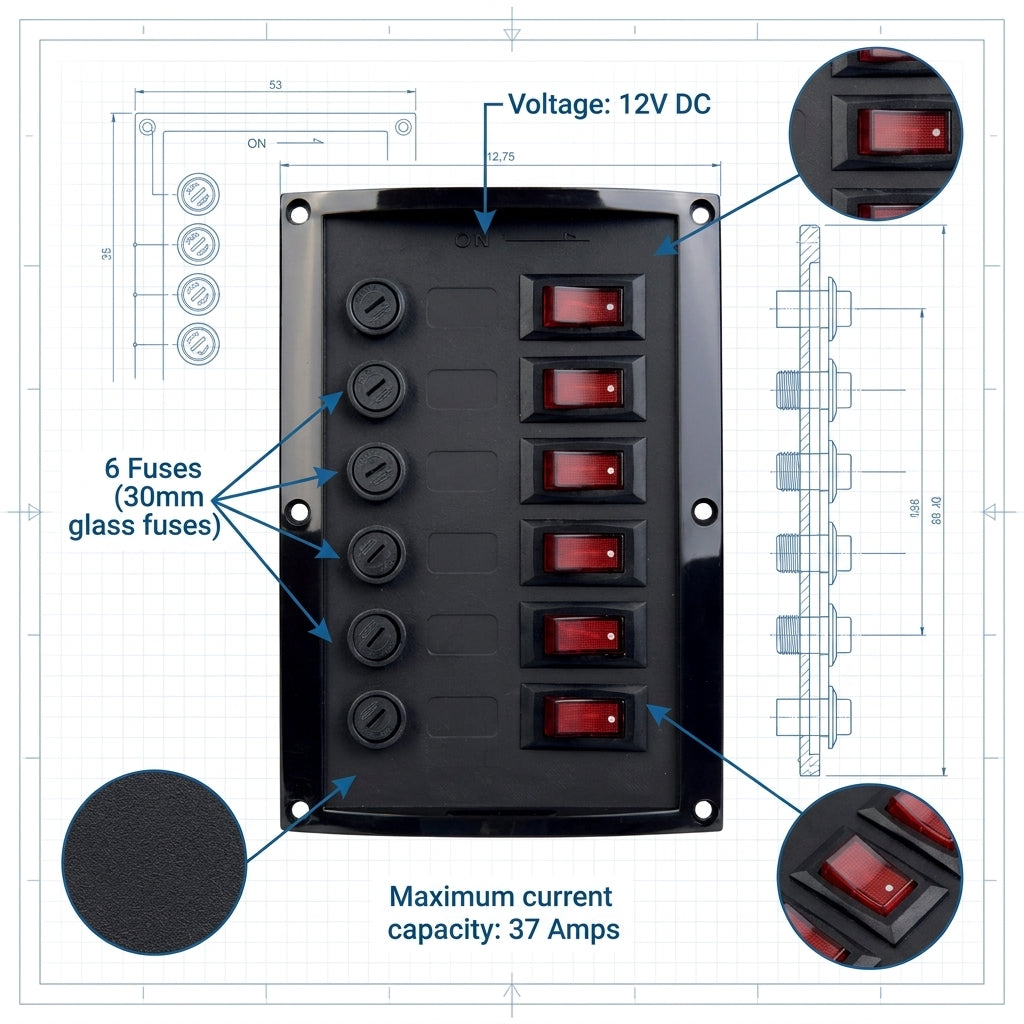

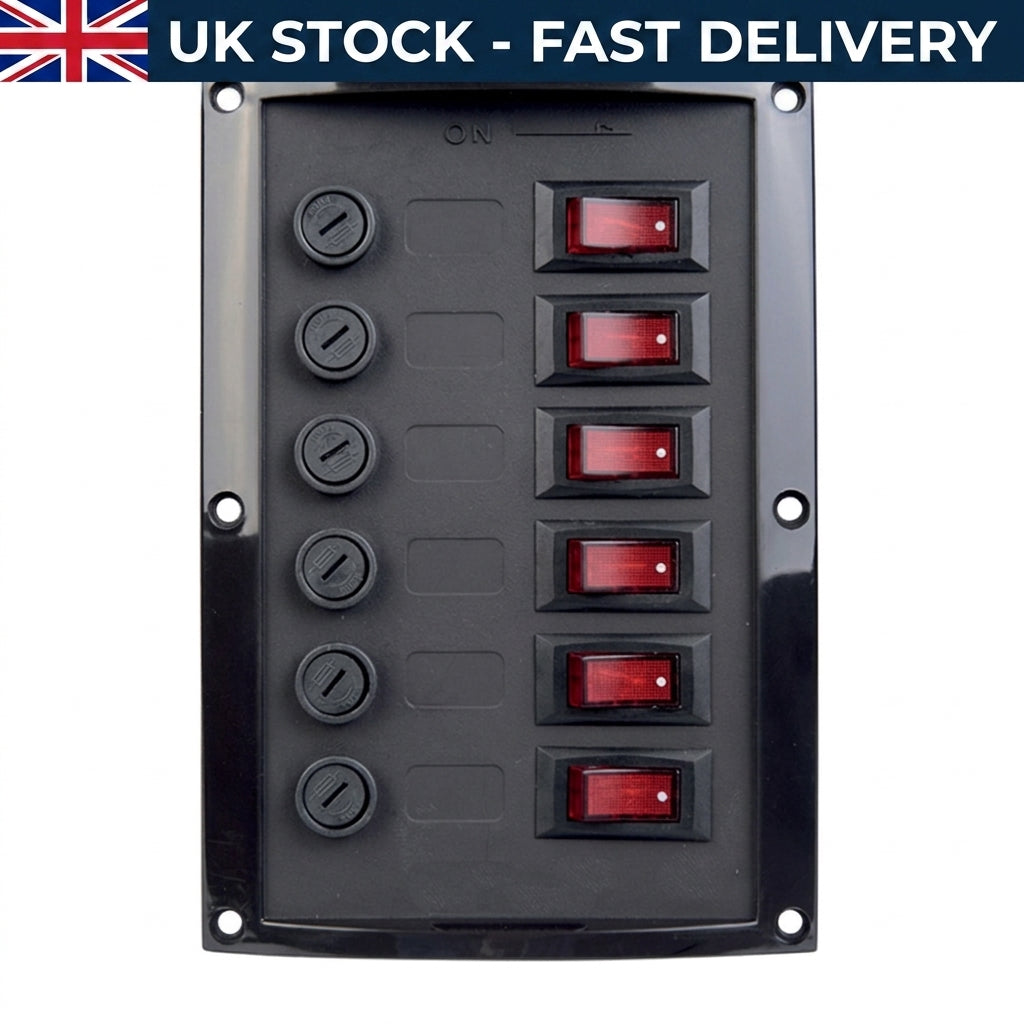

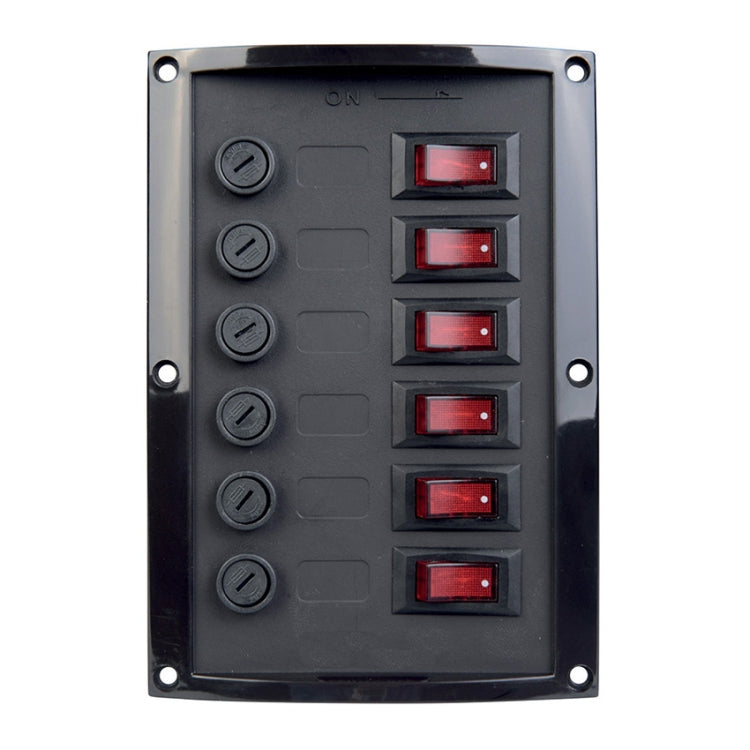

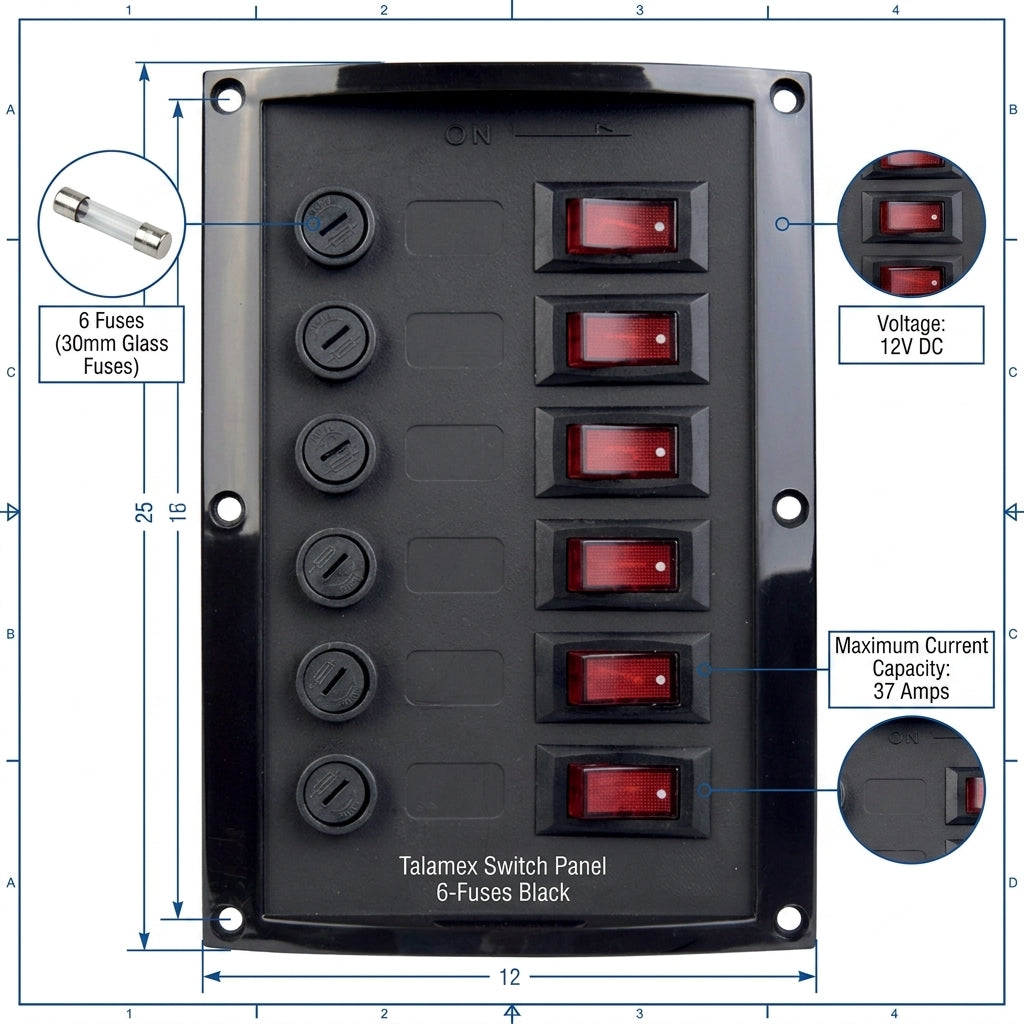

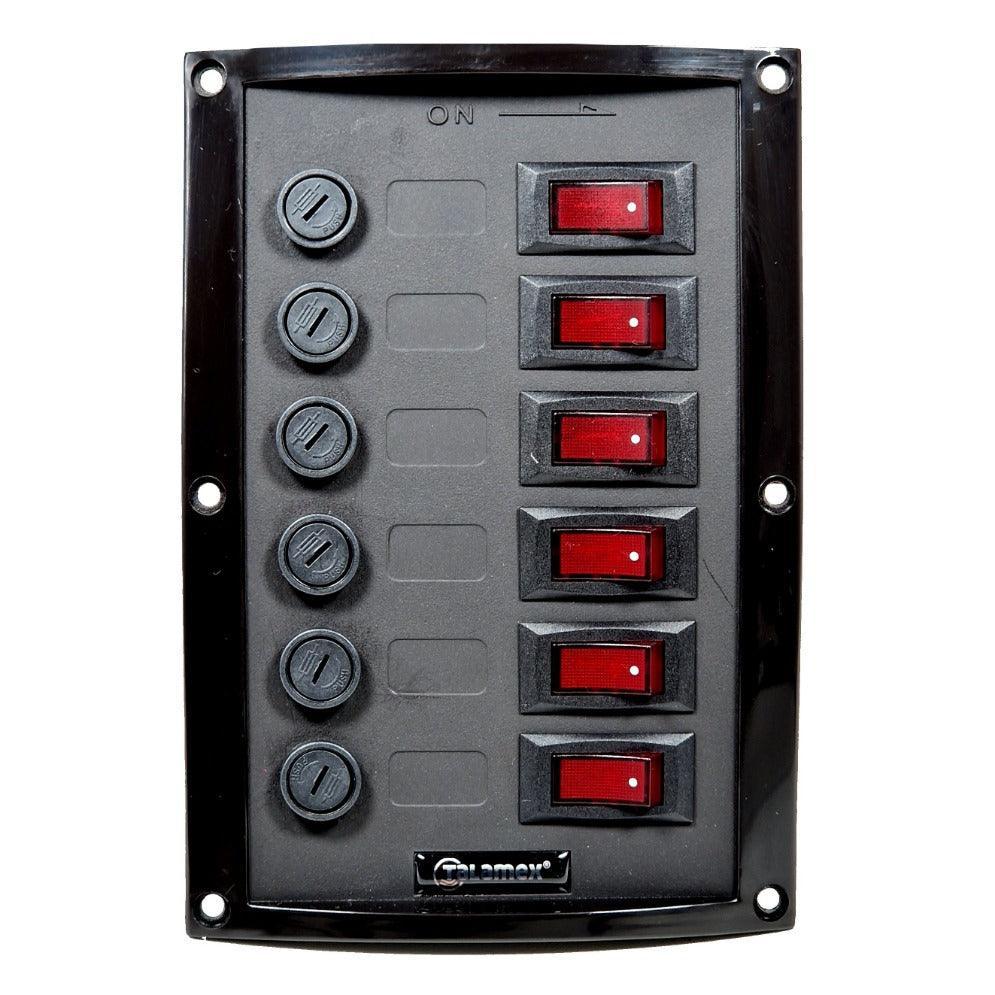

Talamex black six-switch fused marine panel – 12V
A compact black control panel with six rocker switches and individual 30mm glass-fuse protection. It provides organised switching for low-voltage onboard circuits while keeping each connected accessory separately fused.
Suitable for: 12V boats, yachts, RIBs, campervans and leisure vehicles where six modest DC accessory circuits need a single dashboard panel.
Technical specification
| Supply voltage | 12V DC |
| Switches | Six |
| Fuse positions | Six |
| Fuse format | 30mm glass fuses |
| Maximum cumulative current | 37A |
| Panel dimensions | Approximately 165 x 114mm |
| Material / colour | Black moulded panel |
| Circuit use | Low-voltage accessory distribution |
| Waterproof rating | Not stated for this exact panel; install in a protected location |
Compatibility and selection
- For 12V DC systems only unless the manufacturer specifically approves another voltage.
- Total current must not exceed 37A and each circuit must use a fuse sized to protect its cable and device.
- Measure the panel opening, rear clearance and approximately required wiring depth before cutting the dashboard.
- Use relays for loads whose current or start-up surge exceeds the switch/circuit rating.
- Not suitable as a battery main switch, starter isolator, shore-power panel or high-current distribution board.
Installation, use and package contents
- Disconnect the battery before wiring and label every circuit.
- Use tinned cable, insulated terminals and a negative bus sized for the combined loads.
- Fit the correct 30mm glass fuse for each device; never increase fuse size to mask a fault.
- Mount in a dry/protected dashboard area and provide strain relief behind the panel.
- Test polarity, switch operation, fuse protection and total current before returning the vessel to service.
Package contents: one Talamex black six-switch panel with six glass-fuse positions; confirm supplied fuses, labels and screws from the product images/package.
Frequently asked questions
Can it be used on 24V?
No. This panel is specified for 12V DC.
Can each switch carry 37A?
No. 37A is the stated cumulative panel maximum; individual circuits require their own lower fuse and load assessment.
Which fuses does it use?
Standard 30mm glass fuses, correctly rated for each connected circuit.
Is it waterproof?
No IP rating is confirmed for this exact product, so install it in a dry or suitably protected location.
Important: Marine electrical work must follow applicable standards. Incorrect cable or fuse selection creates fire and shock risks.
