Multiflex Black Steering Cable Grommet
Multiflex Marine Component | GR1609B

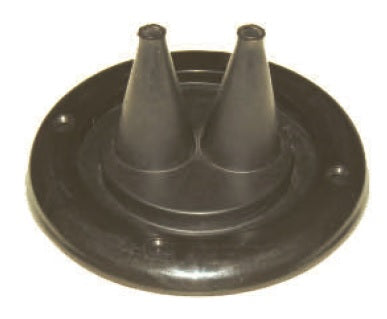

GR1609B is a black flexible steering-cable grommet with a nominal 105 mm outside diameter and 50 mm height. It covers and protects the cable pass-through at a console, bulkhead or splashwell while allowing controlled cable movement.
Key Features
- ✔ Flexible cover for steering-cable pass-through
- ✔ Helps reduce chafe at the panel opening
- ✔ Black marine finish
- ✔ Nominal 105 mm diameter footprint
- ✔ 50 mm nominal height
Technical Specs
| Component | Steering cable grommet |
| Colour | Black |
| Nominal outside diameter | 105 mm |
| Nominal height | 50 mm |
| Application | Cable pass-through / chafe protection |
| Part number | GR1609B |
Compatibility / Fitment Guide
Dimension-based fitment: suitable where the mounting surface accepts the GR1609B 105 mm outer footprint and the 50 mm raised profile provides sufficient flex and clearance for the cable.
Before cutting: measure the physical grommet’s panel opening, screw pattern and cable aperture. These are more important than boat or engine brand and are not inferred from the 105 mm outside diameter.
Cable routing: the steering cable must retain its specified minimum bend radius and must not be pinched by the grommet. Seal the panel appropriately for the hull location without bonding the moving cable rigidly.
Part Number Cross Reference
| Multiflex part | GR1609B |
| Size reference | 105 mm diameter × 50 mm height |
| Colour suffix | B / Black |
Frequently Asked Questions
Is 105 mm the panel cut-out?
No. It is the nominal outside diameter; measure the actual cut-out and holes from the part before drilling.
Will it fit any steering cable?
Only if the cable/bundle diameter and bend requirements suit the grommet.
Does it make the penetration watertight?
It helps cover the opening, but final sealing depends on the installation and sealant method.
Can it be selected by boat model?
No. Match the part number and physical dimensions.
Verify the exact part number, dimensions and complete installation before purchase. Steering and engine-control components should be installed and tested by a competent marine technician.
