68V8180001

  • Dispatched in 2-3 days
  • 30 Day Return Policy
  • In stock, ready to ship
  • Backordered, shipping soon
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
£229.00 £199.00 Save £30.00
/
Tax included.

Overview

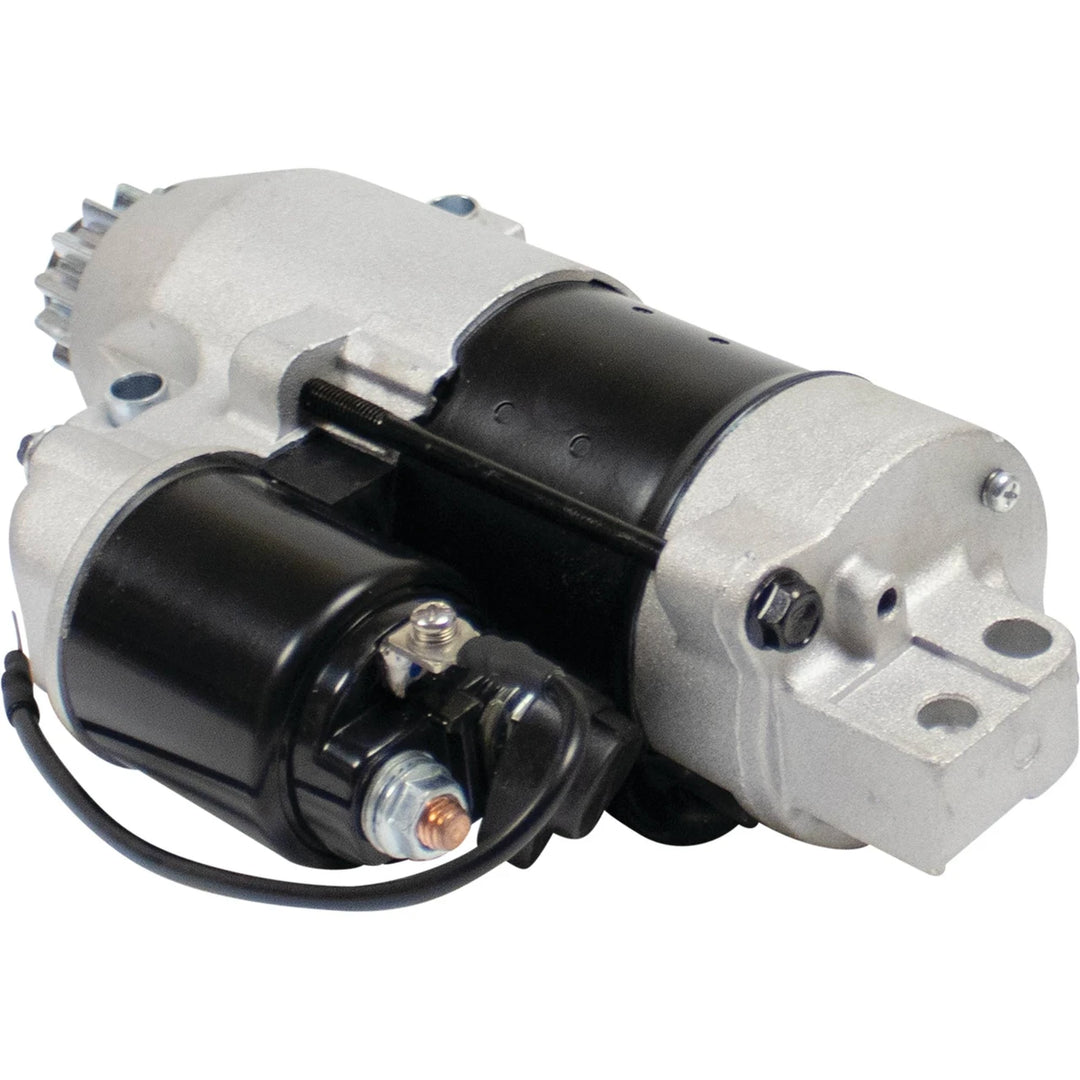

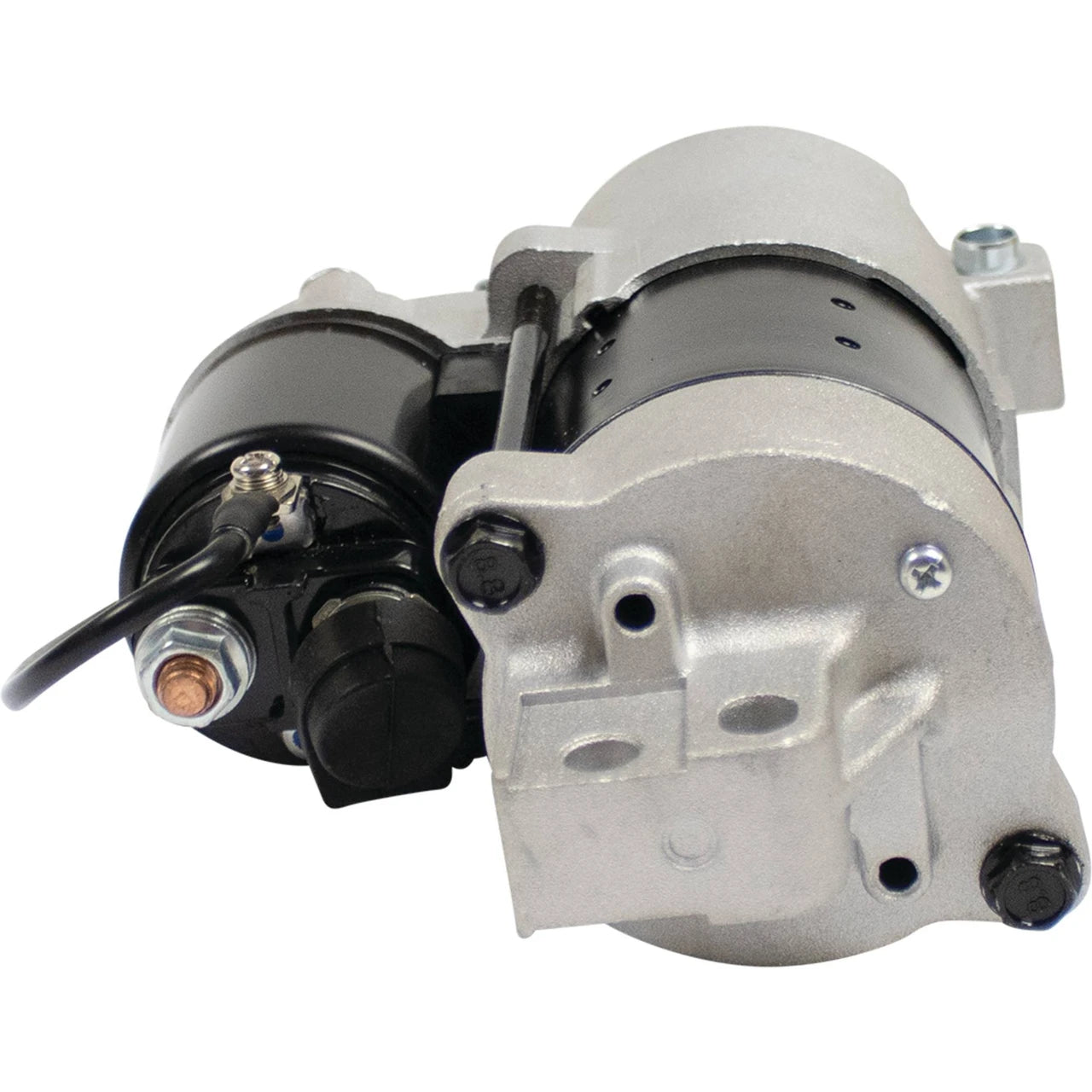

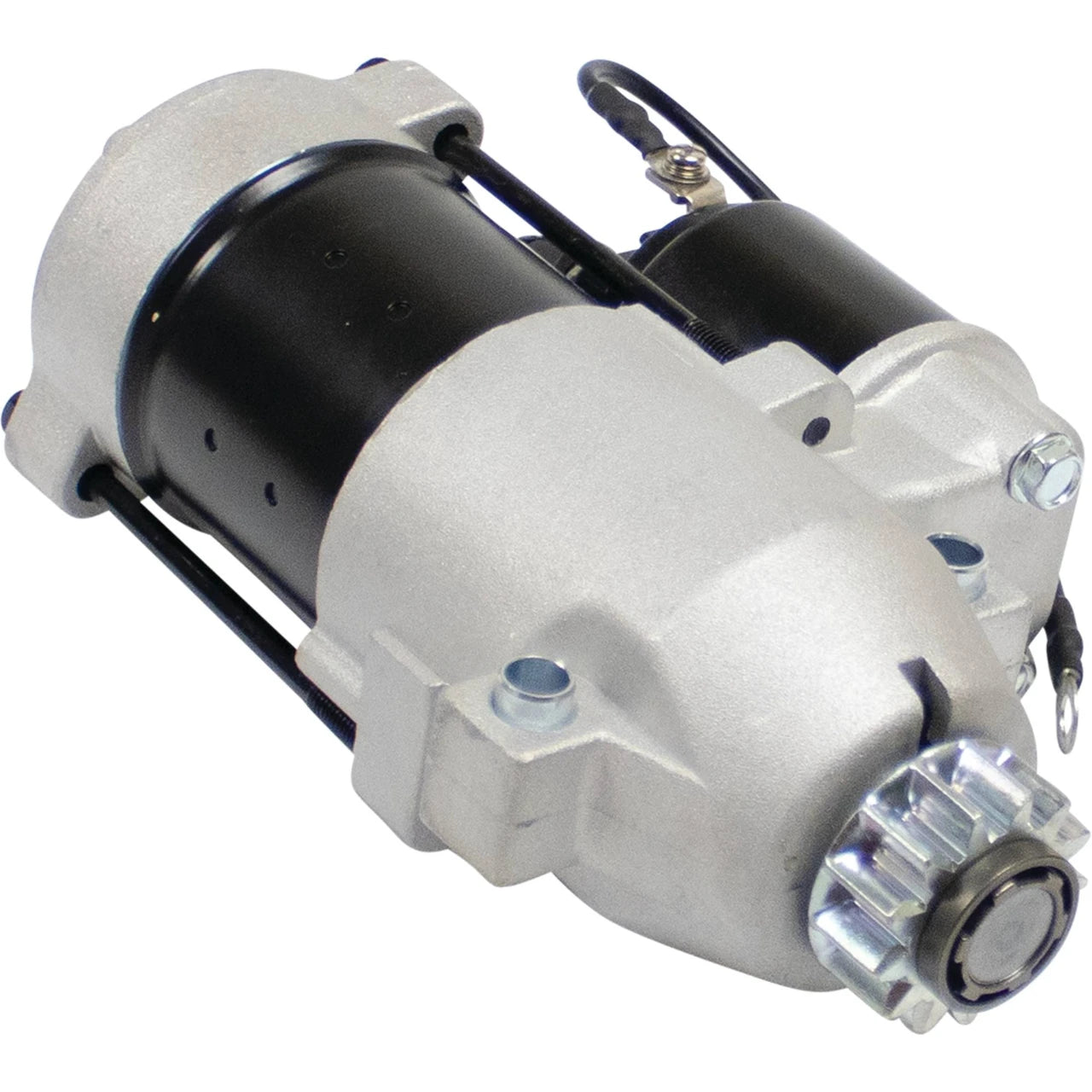

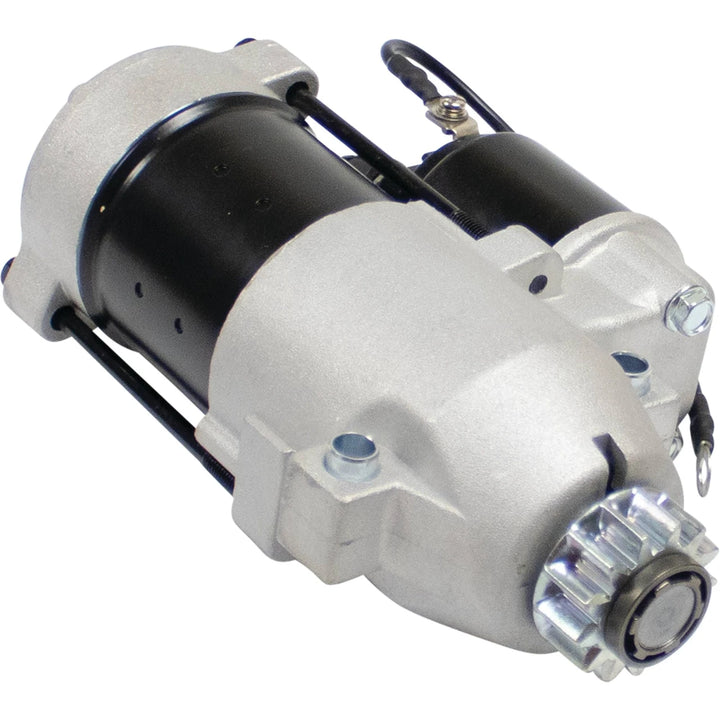

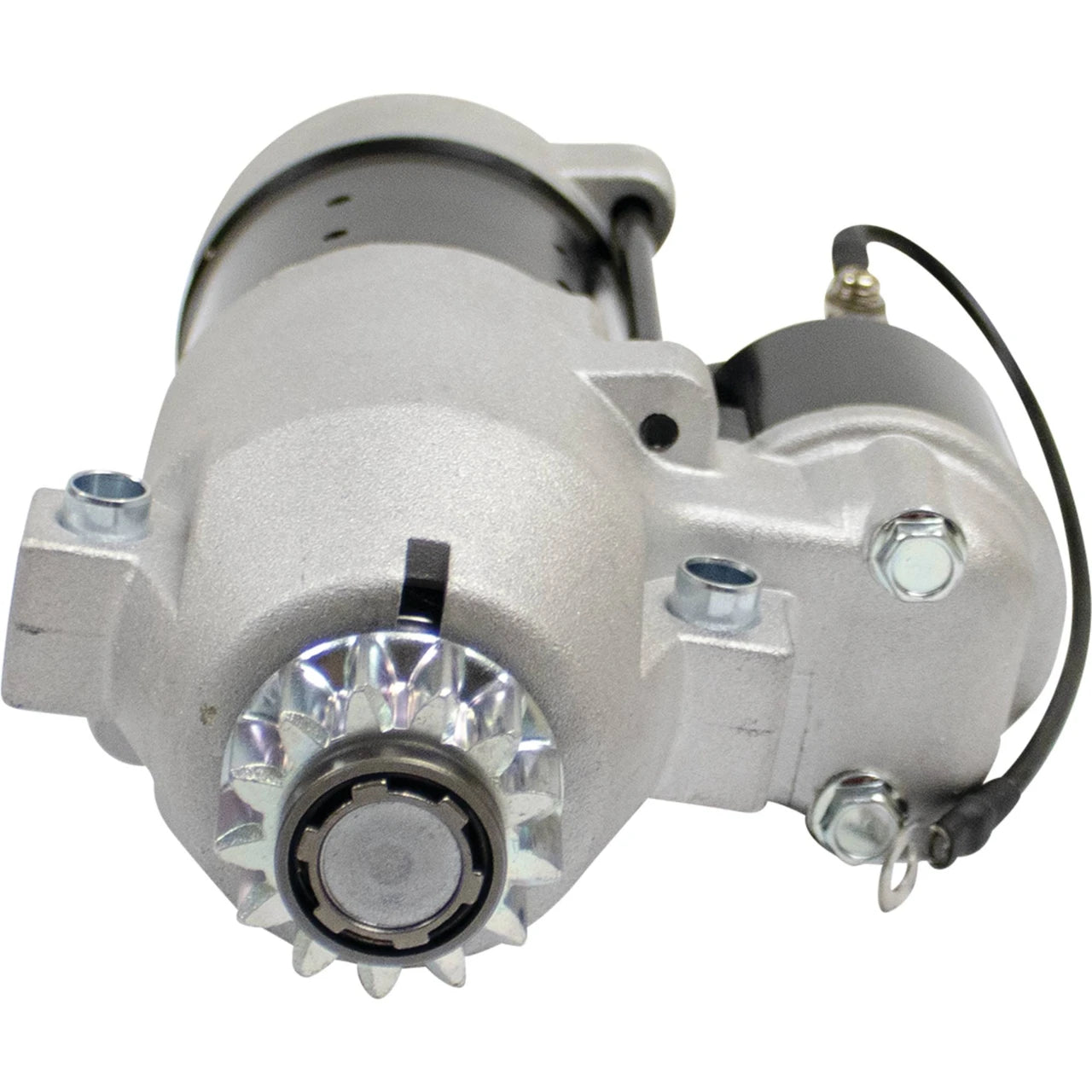

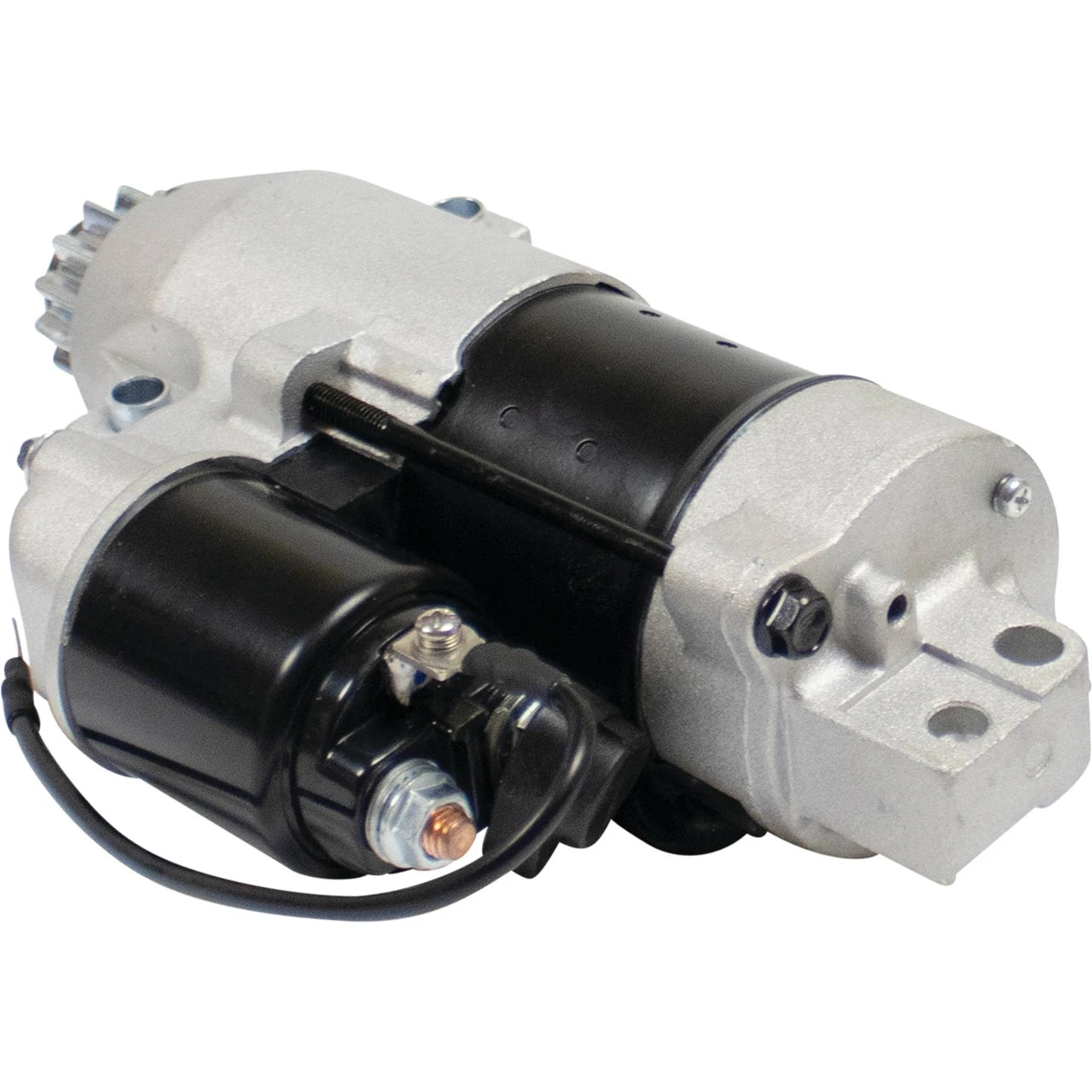

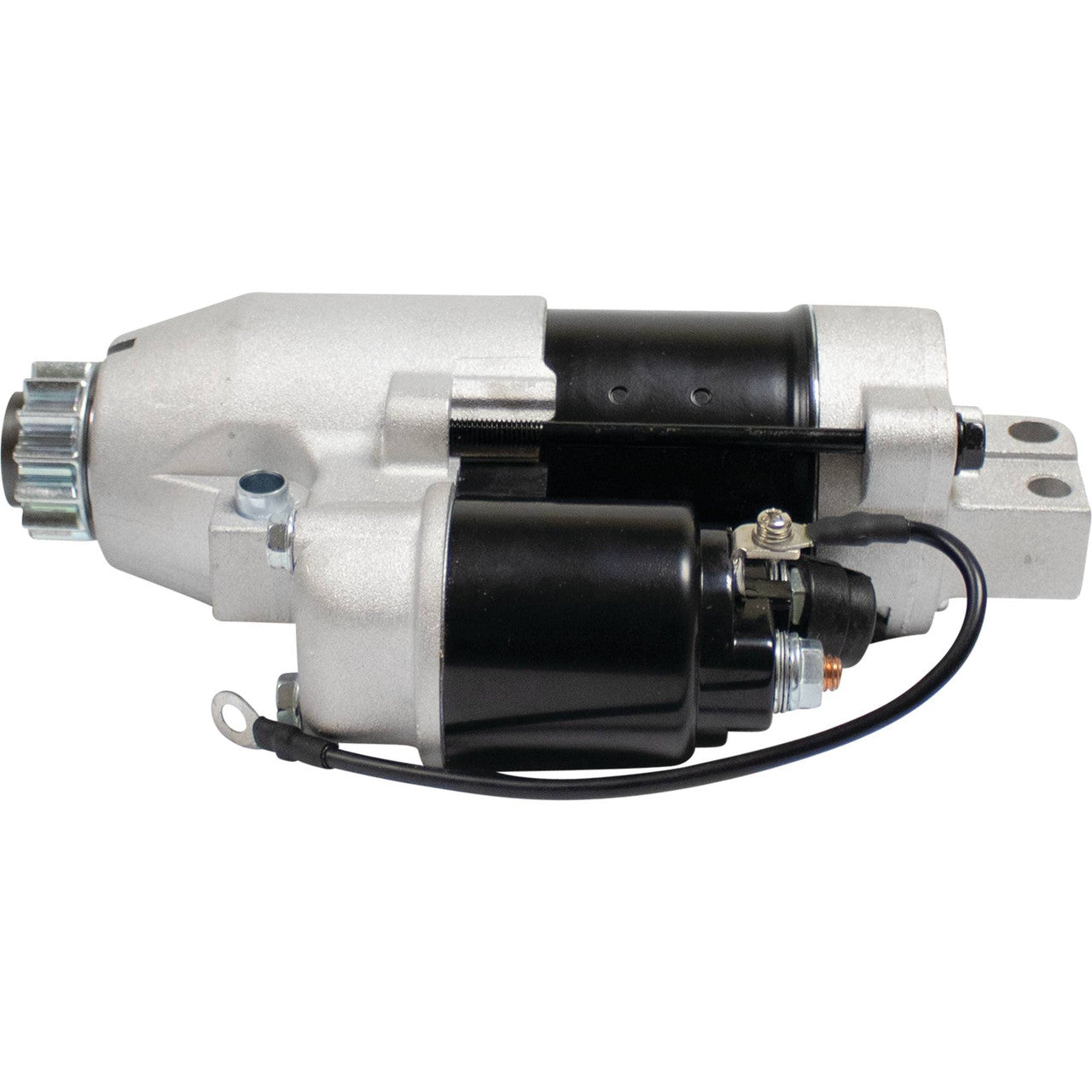

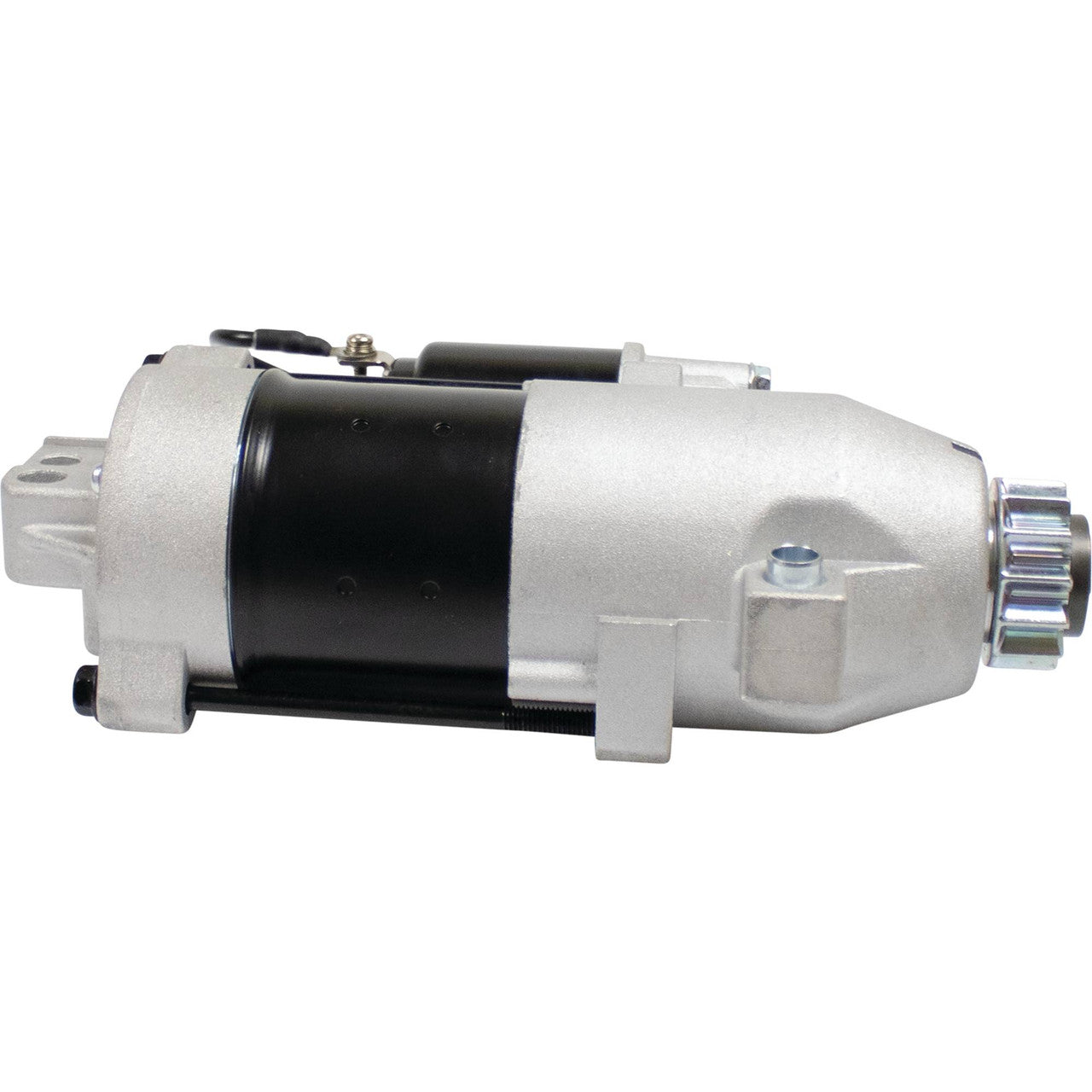

Marine starter motor for selected Mercury/Mariner 75-115HP four-strokes built on the related Yamaha powerhead family, plus corresponding Yamaha F75-F115 applications. The 12V PMGR unit uses a 13-tooth pinion and must be matched by engine serial and original part number.

Technical specifications

Engine type Selected 75-115HP four-stroke outboards
Voltage 12V DC
Rated output Approximately 1.4kW
Starter design Permanent-magnet gear reduction (PMGR)
Pinion 13 teeth; approximately 39.8mm outside diameter
Rotation Counter-clockwise to the replacement manufacturer's convention
Marine safety Ignition-protected marine design
Package One new aftermarket starter; external solenoid, cables and bolts not included unless expressly shown

Engine compatibility and OEM references

  • Mercury/Mariner 75HP, 80HP and 90HP four-stroke: selected approximately 2000-2014 applications.
  • Mercury/Mariner 100HP and 115HP four-stroke EFI or carburetted: selected approximately 2001-2014 applications.
  • Yamaha F75, F80, F90, F100 and F115: selected related applications, subject to original-part match.

References to compare: Mercury 50-881368T, 50-881368T1, 50-881368T2 and 8M0007971; Yamaha 68V-81800-00, 68V-81800-01, 68V-81800-02 and 6C5-81800-00; Hitachi S114-838 series.

Installation and pre-fit checks

  • Disconnect and isolate the battery before removal.
  • Compare voltage, tooth count, rotation convention, flange, nose length and terminal position with the original starter.
  • Load-test the battery and check positive and earth-cable voltage drop, solenoid output and flywheel ring-gear condition.
  • Clean the mounting face and tighten bolts and cable terminals to the engine manufacturer's specification.
  • Confirm smooth engagement and immediate disengagement. Avoid prolonged or repeated continuous cranking.

Frequently asked questions

Q1. Does it fit Mercury two-stroke outboards?
No. This listing is for selected four-stroke applications in the related Mercury/Mariner/Yamaha engine family.

Q2. Does EFI or carburettor determine fitment?
Not by itself. Confirm the complete model, serial, original reference, mounting and 13-tooth pinion.

Q3. Can it fit Yamaha outboards?
Yes, selected F75-F115 applications use the related unit, but the original Yamaha reference must match.

Q4. What should be tested before replacement?
Check the battery, cables, earth, solenoid and ring gear so an electrical fault is not mistaken for a failed starter.
