09-24653-01

  • Dispatched in 2-3 days
  • 30 Day Return Policy
  • Low stock - 1 item left
  • Backordered, shipping soon
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
£33.95
/
Tax included.

Johnson Pump 09-24653-01 Inlet Strainer

Premium PUMProtector™ 40 Mesh Filtration

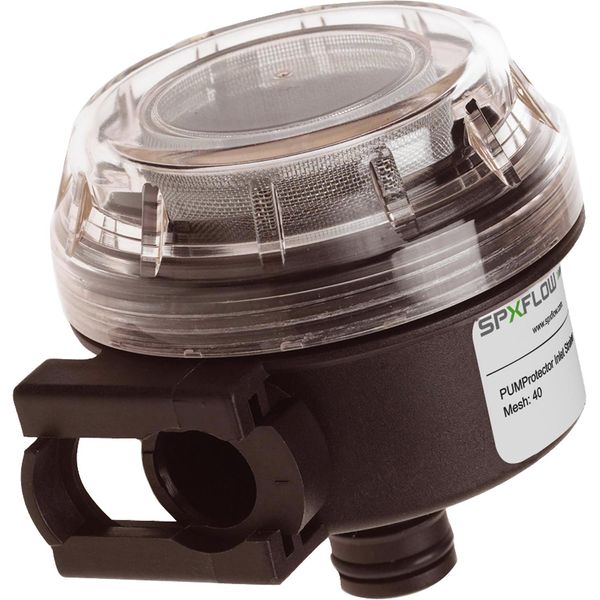

The Johnson Pump 09-24653-01 PUMProtector™ Inlet Strainer is a critical component for safeguarding your marine water pressure system. Designed specifically for the Aqua Jet series, this 40-mesh stainless steel strainer prevents debris and fine particles from entering your pump, significantly extending its lifespan and preventing costly internal damage.

RELIABILITY: Engineered by SPX FLOW Johnson Pump using high-grade Polyamide 66 and a transparent acrylic cover for instant visual maintenance checks.

Key Features

  • ✔ KlickTite™ Technology: Snap-in connectors for rapid installation.
  • ✔ Tool-Free Cleaning: Transparent screw-off lid for easy inspection.
  • ✔ Durable Build: Marine-grade stainless steel 40µm mesh screen.
  • ✔ Versatile Porting: Includes multiple hose barb/BSP adapter options.

Technical Specs

Mesh Rating 40 Mesh (Stainless Steel)
Max Liquid Temp +50°C (120°F)
Max Water Temp +30°C (Drinking Water)
Body Material Polyamide 66 (Black)
Dimensions 80mm (D) x 60mm (H)
Weight 0.15 kg

Compatibility / Fitment Guide

Pump Series Model Application Connection Type
Aqua Jet WPS 2.4, 2.9, 3.5, 5.2 GPM Models Direct KlickTite Snap-in
Aqua Jet WD Wash Down Pumps 2.9, 3.5, 5.2 Direct KlickTite Snap-in
WPS Pump Systems Uno, Duo, and Flow Master 5.0 Inline Installation

OEM Cross Reference

Johnson Part Number 09-24653-01
Johnson USA / Alternative 09-24653-02-CN
EAN Number 8719182046127 / 7330717008819

Questions & Answers

Is this a genuine original part?

Yes, this is an authentic SPX FLOW Johnson Pump PUMProtector™ component, ensuring 100% compatibility with the Aqua Jet pump series.

How do I know if it is compatible?

This strainer is designed for the inlet side of Johnson Aqua Jet WPS and WD pumps. It uses the KlickTite snap-in system, allowing it to click directly into the pump inlet port.

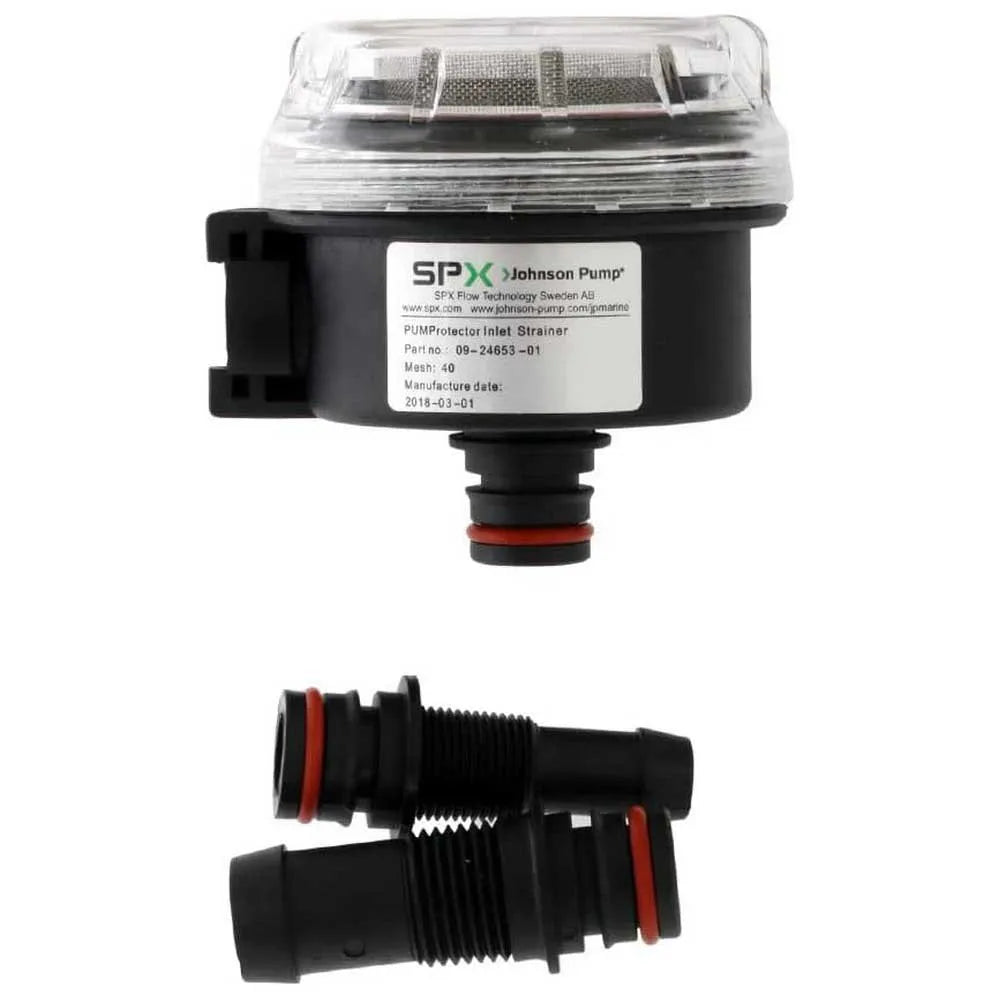

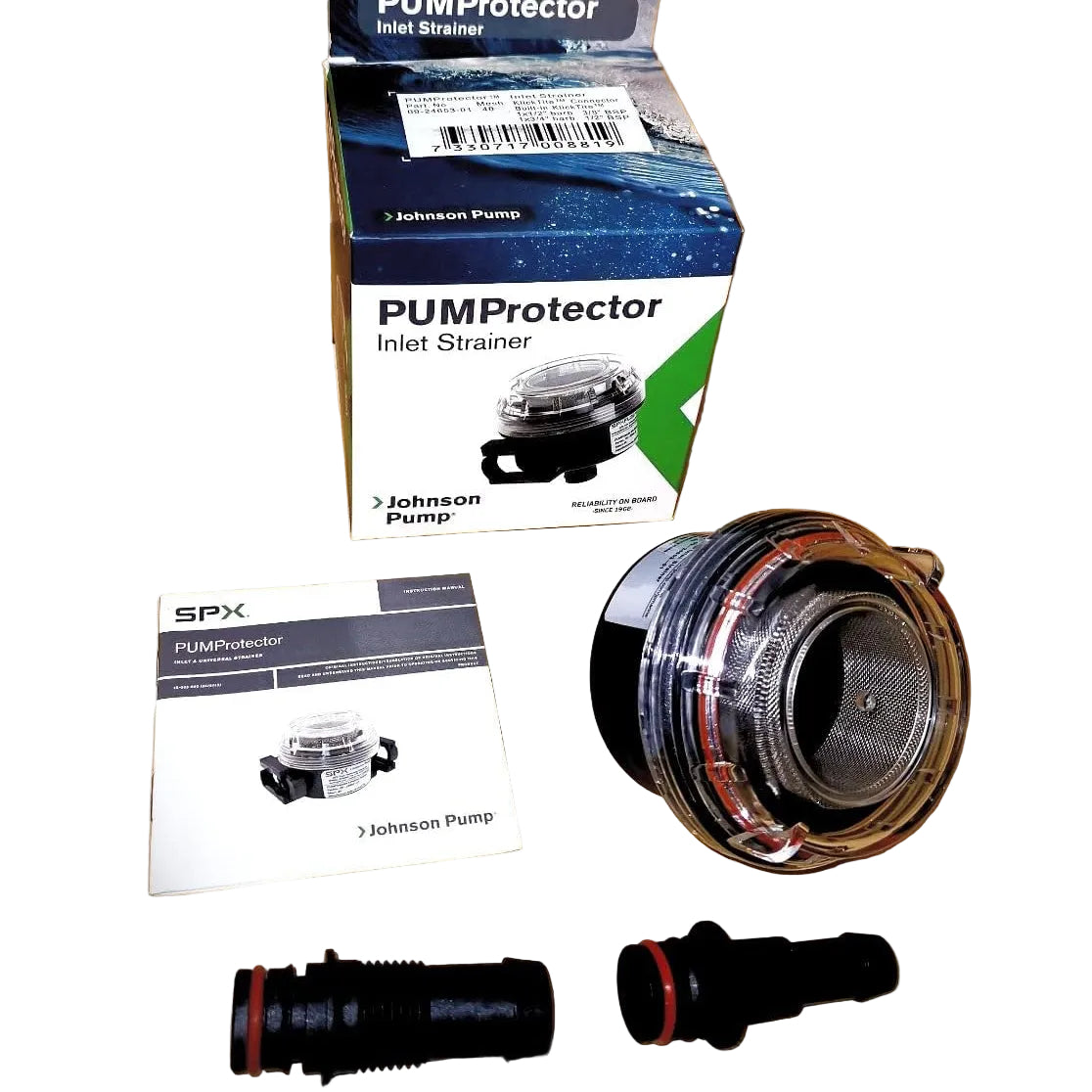

What size hose connectors are included?

This kit typically includes KlickTite adapters for 1/2" (13mm) hose barb/3/8" BSP and 3/4" (19mm) hose barb/1/2" BSP, offering flexibility for your plumbing setup.

Note: Please verify your original part number against the references above at 4boats.co.uk before purchasing.
