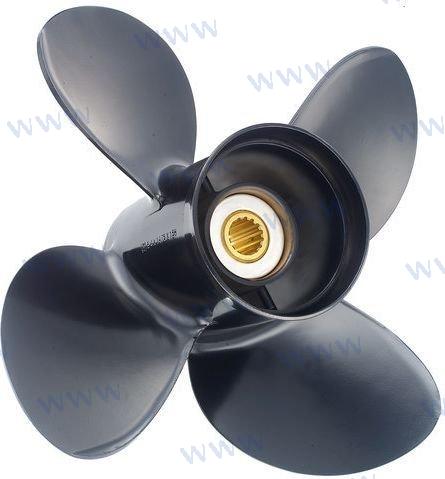

Volvo Penta SX Sterndrive Propeller 14.5 x 17 4-Blade RH Aluminium Solas 8613-145-17
SOL8613-145-17
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 3 items left
- Backordered, shipping soon
Solas Amita 4 Propeller 8613-145-17
Aluminium 14.5" x 17" 4-Blade Right Hand Propeller
The Amita 4 14.5" × 17" is a 4-blade right-hand aluminium propeller for Volvo Penta SX sterndrive engines (Volvo SX drive gearcase, 19 tooth spline), Solas part 8613-145-17. For this engine we list 3 pitches from 15" to 19". 17" is a mid-range pitch – balanced all-round performance and the usual starting point.
Key Features
- ✔ Pressed-in rubber hub – no hub kit needed
- ✔ Thru-hub exhaust for optimal flow
- ✔ 4-blade aluminium design for extra grip and hole-shot
- ✔ Anti-corrosion paint finish
Technical Specs
| Diameter: | 14.5" |
| Pitch: | 17" |
| Blades: | 4 |
| Rotation: | Right Hand (RH) |
| Gearcase / Drive: | Volvo SX drive |
| Spline Count: | 19 Tooth Spline |
| Material: | Aluminium |
| Solas Part No.: | 8613-145-17 |
Is 17" the Right Pitch for Your Boat?
A 17" pitch means this propeller would, in theory, move the boat 17" forward for every full turn. The right pitch lets your Volvo Penta SX sterndrive reach the full-throttle RPM range given in its owner's manual with a normal load on board.
- ✔ Engine over-revs at full throttle? Go up in pitch – the next size up for this engine is 19".
- ✔ Engine can't reach its rated RPM, or the boat is slow to plane? Go down in pitch – the next size down for this engine is 15".
- ✔ Rule of thumb: a change of 1" in pitch moves full-throttle engine speed by roughly 150–200 RPM.
Other pitches for your Volvo Penta SX sterndrive:
- 15" pitch (14.8" diameter) – the lowest pitch in the range – maximum thrust for heavily loaded boats, pontoons, workboats or towing; roughly 300–400 RPM more at full throttle than 17".
- 19" pitch (14.3" diameter) – the highest pitch in the range – maximum top speed for light, fast hulls running lightly loaded; roughly 300–400 RPM less at full throttle than 17".
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Volvo Penta SX Sterndrive | See Solas part number – Volvo SX drive | 19-tooth spline |
OEM Cross Reference
| Solas | 8613-145-17 |
Questions & Answers
Will this propeller fit my Volvo Penta SX sterndrive?
It fits Volvo Penta SX sterndrive engines with a Volvo SX drive gearcase, 19 tooth spline. Check the fitment table above and compare the size stamped on your current propeller (14.5" × 17") before ordering.
Should I choose 17" or a different pitch?
Keep the same pitch as your current propeller if the engine reaches its rated full-throttle RPM. If it over-revs, 19" is the next step up. If it struggles to reach rated RPM, 15" is the next step down.
Is this a genuine original part?
This is a genuine Solas propeller – a premium aftermarket replacement made to meet or exceed original equipment (OE) fitment and performance.
How do I know if it is compatible?
Check the Solas part number (8613-145-17) or OEM number on your current propeller, plus your gearcase size and spline count. If you are unsure, send us your engine make, model and year and we will confirm fitment before you order.
Does this propeller require a separate hub kit?
No. This propeller has a traditional pressed-in rubber hub and fits straight onto your propeller shaft with your existing thrust washer and nut.
Note: Please verify your engine's gearcase size, spline count and propeller size against the references above before purchasing. Domain: 4boats.co.uk
