Multiflex Sigma Black 280mm Marine Steering Wheel 3/4in Taper LM-W-10B
LM-W-10B
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon

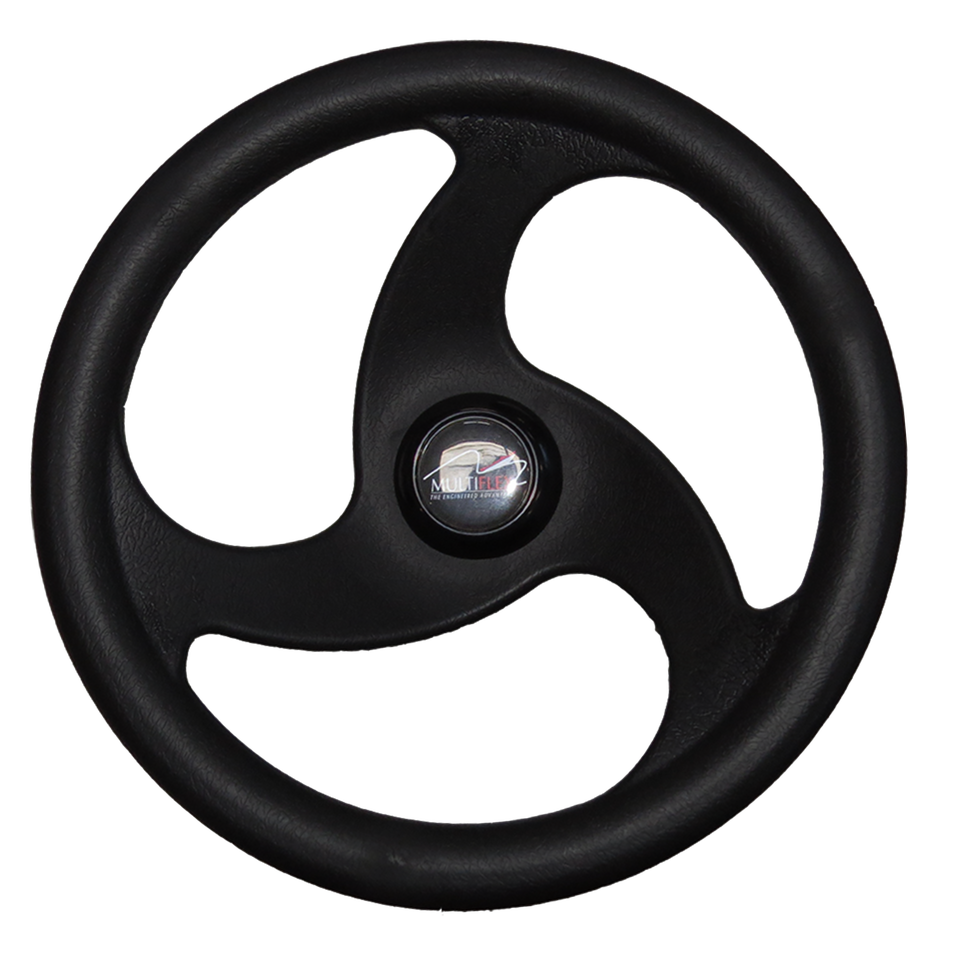

Multiflex Sigma Black 280mm Steering Wheel
Multiflex Marine Component | LM-W-10B
The compact Multiflex Sigma is a 280 mm, three-spoke steering wheel moulded from engineering plastic. Its built-in marine hub fits a standard 3/4 inch tapered helm shaft.
Key Features
- ✔ Compact 280 mm diameter
- ✔ Three-spoke Sigma design in black
- ✔ Engineering-plastic structure
- ✔ Built-in hub for standard marine taper
- ✔ Non-magnetic wheel construction
Technical Specs
| Diameter | 280 mm |
| Spokes | 3 |
| Colour | Black |
| Material | Engineering plastic |
| Hub | Built in |
| Shaft interface | 3/4 in tapered marine helm |
| Part number | LM-W-10B |
Compatibility / Fitment Guide
Direct interface: standard 3/4 inch tapered steering shaft used on many Multiflex and compatible marine helms.
Steering effort: a 280 mm wheel offers less leverage than a 350–400 mm wheel. Confirm the steering-system manufacturer permits this diameter and that steering effort remains acceptable throughout the operating range.
Clearance: check console, throttle lever, windscreen and knee clearance through the full wheel rotation. Not a direct fit for splined automotive columns, straight keyed shafts or proprietary hubs.
Part Number Cross Reference
| Multiflex part | LM-W-10B |
| Model / colour | Sigma / Black |
| Interface | 3/4 in tapered shaft |
Frequently Asked Questions
Is the hub included?
Yes. Sigma has a built-in hub for the stated taper.
Will it fit every Multiflex helm?
Only helms with the standard 3/4 inch tapered shaft.
Why check steering effort?
The compact 280 mm diameter gives less leverage than a larger wheel.
Is a shaft key included?
Do not assume so; retain or source the correct key, washer and nut for the helm.
Verify the exact part number, dimensions and complete installation before purchase. Steering and engine-control components should be installed and tested by a competent marine technician.
