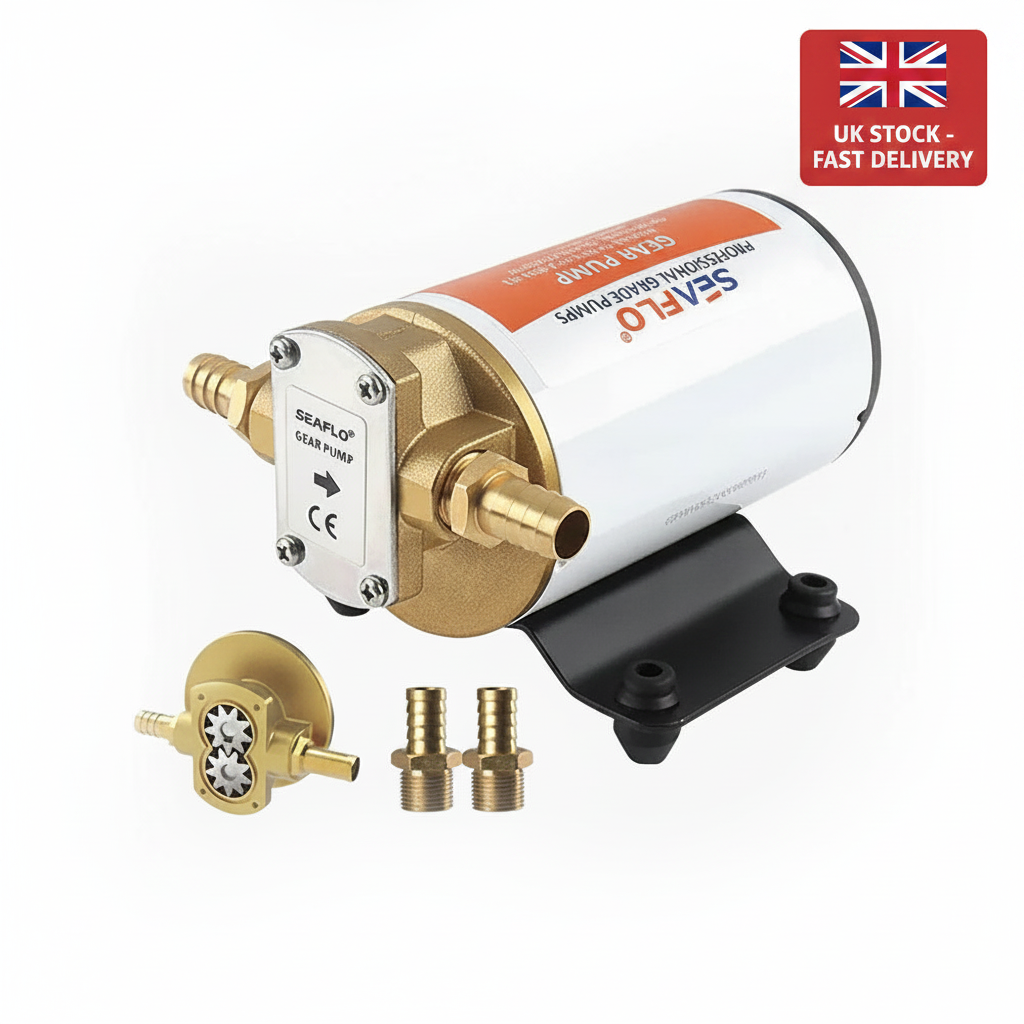

Seaflo Oil Gear Pump 12V 12.0 LPM (3.2 GPM) | 4Boats - UK Stock image 1

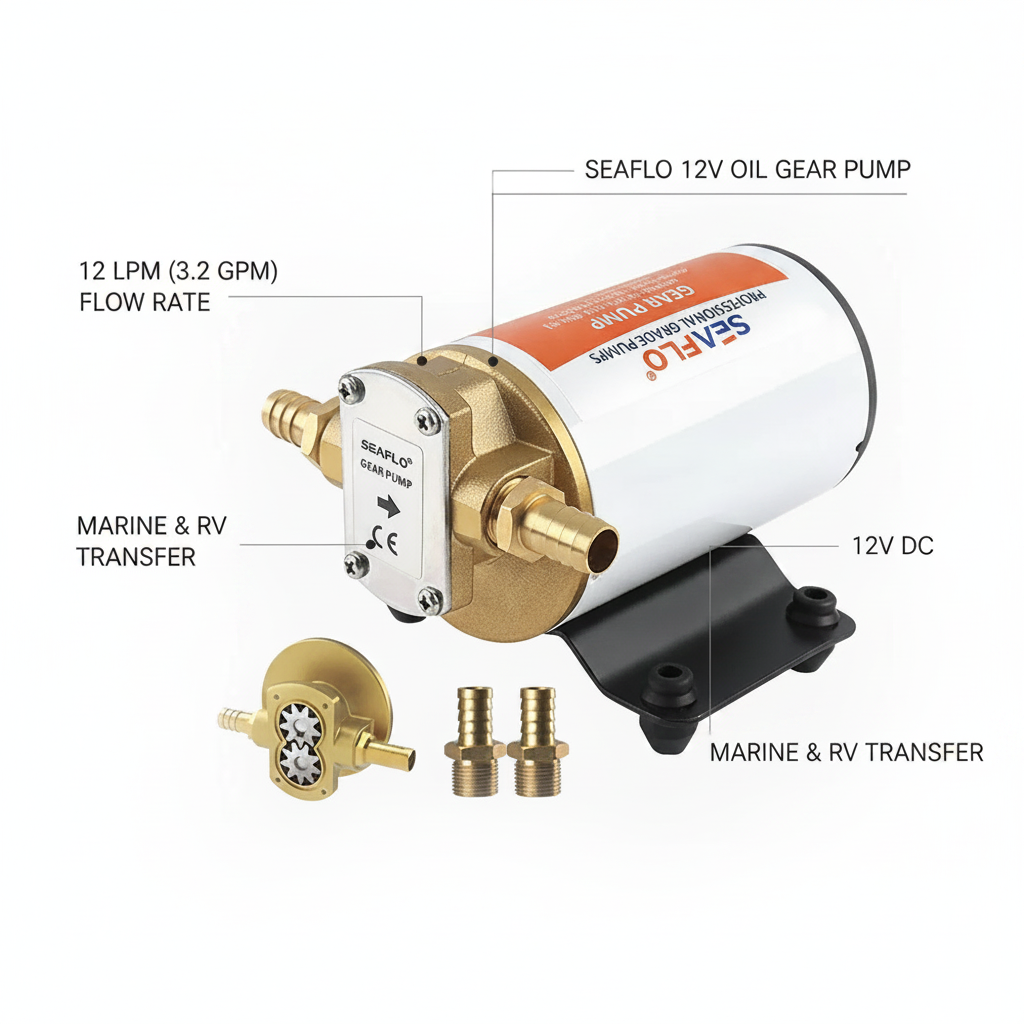

Seaflo Oil Gear Pump 12V 12.0 LPM (3.2 GPM) | 4Boats - Technical specification image 2

Seaflo Oil Gear Pump 12V 12.0 LPM (3.2 GPM) | 4Boats - Technical specification image 3

Seaflo Oil Gear Pump 12V 12.0 LPM (3.2 GPM) | 4Boats - Technical specification image 4

Dispatched in 2-3 days

30 Day Return Policy

In stock, ready to ship
Backordered, shipping soon

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

£198.85

Tax included.

SEAFLO Oil Gear Pump 12V | GP103200301

Name: SEAFLO 12V Oil Gear Pump 12LPM 3.2GPM Marine RV Engine Oil Transfer GP103200301
Price: 198.85 GBP
Rating: 5 (1 reviews)

Premium High-Viscosity Fluid Transfer Solution

The SEAFLO GP103200301 is a professional-grade positive displacement gear pump engineered specifically for the transfer of lubricating oils and viscous liquids. Built with a rugged bronze pump head and a high-strength stainless steel shaft, this pump is the ideal solution for marine oil changes, RV diesel transfer, and industrial lubrication maintenance.

DURABILITY: Features a sealed motor design and thermally protected components to ensure reliable operation under demanding conditions.

Key Features

✔ Self-Priming: Up to 1.0m (3.3 ft) vertical lift
✔ Dual Direction: Capable of pumping in either direction
✔ Heavy Duty: Metal gears and rugged bronze head
✔ Safety: Built-in thermal overload protection

Technical Specs

Voltage	12V DC
Flow Rate	12.0 LPM (3.2 GPM)
Max Draw	10.0 Amps
Port Size	3/8" FNPT
Net Weight	2.48 kg (5.47 lbs)

Compatibility / Fitment Guide

Application	Compatible Fluids	Notes
Marine & Yacht	Engine Oil, Gear Oil	Perfect for sump pump-out kits
RV & Caravan	Diesel, Fresh Water	Auxiliary fuel transfer
Industrial	Hydraulic Fluid, Coolants	Machinery fluid exchange

OEM Cross Reference

Seaflo MPN	GP103200301 / SFGP1-032-003-01
Jabsco Equivalent	23870-1200
Marco Equivalent	UP3/Oil

Questions & Answers

Is this a genuine original part?

Yes, this is an authentic SEAFLO product, precision-manufactured for high-performance fluid transfer in marine and industrial environments.

How do I know if it is compatible?

Verify that your existing system requires a 12V DC power source and matches the 3/8" FNPT port specifications. This pump is a standard replacement for most 3.2GPM marine gear pumps.

Can this pump be used to transfer gasoline (petrol)?

No. This pump is strictly for use with diesel, lubricating oils, and water. It is not ignition-protected and must never be used with gasoline or other flammable liquids with low flash points.

Note: Professional installation is recommended. Ensure all electrical connections are fused and protected from moisture at 4boats.co.uk.
