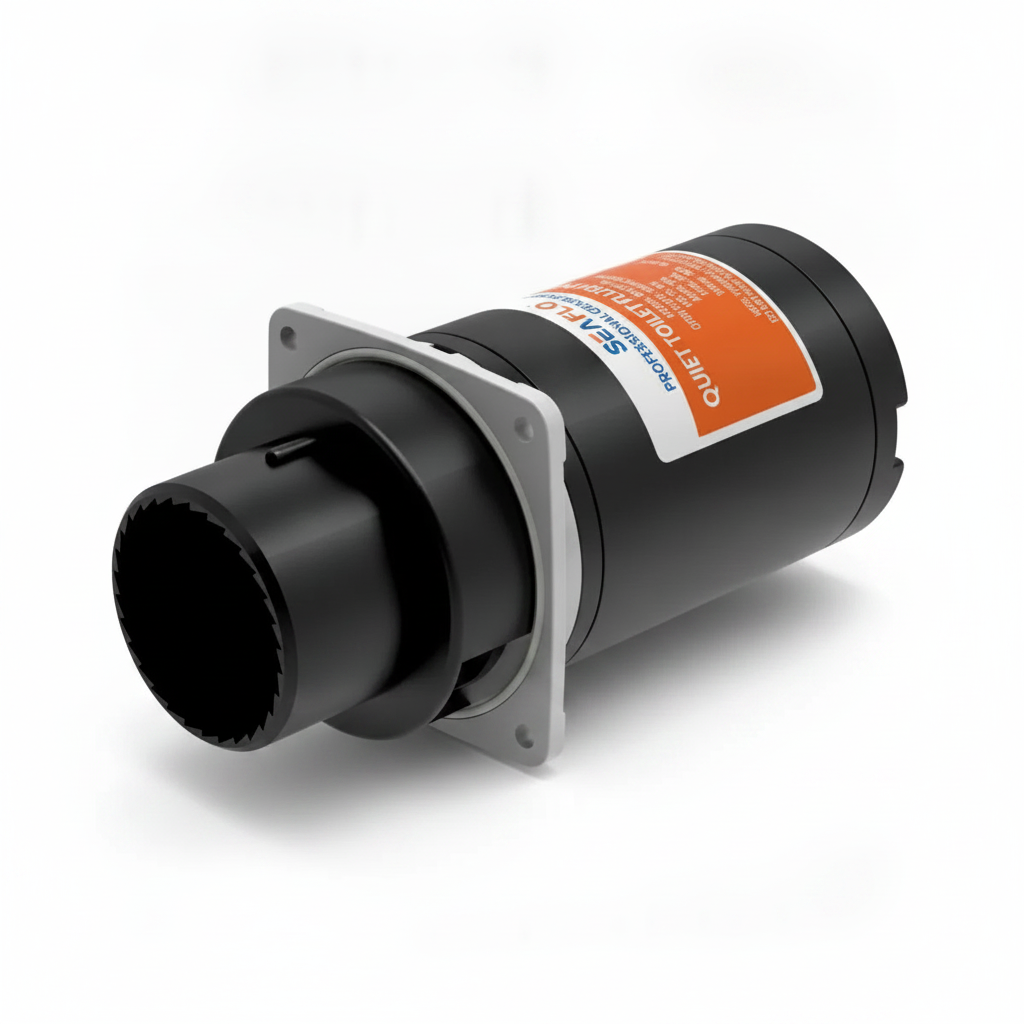

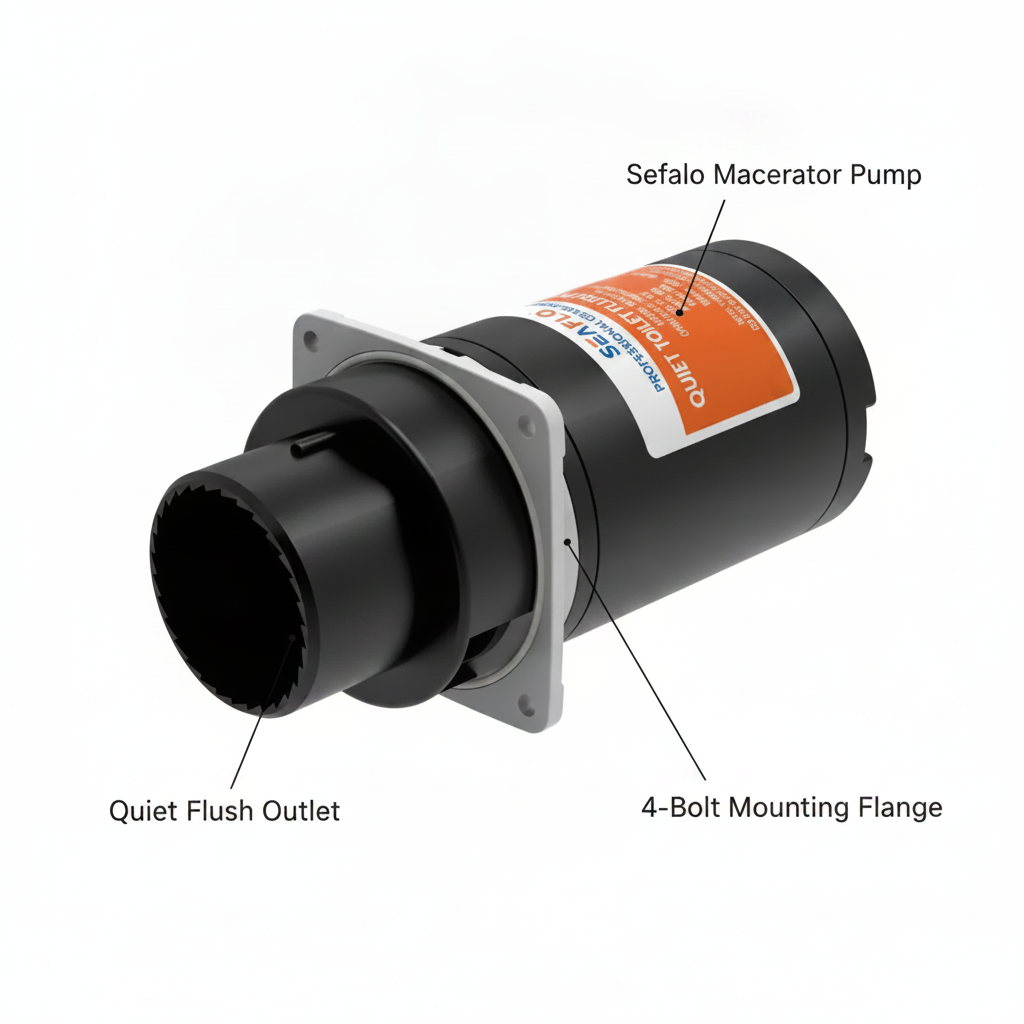

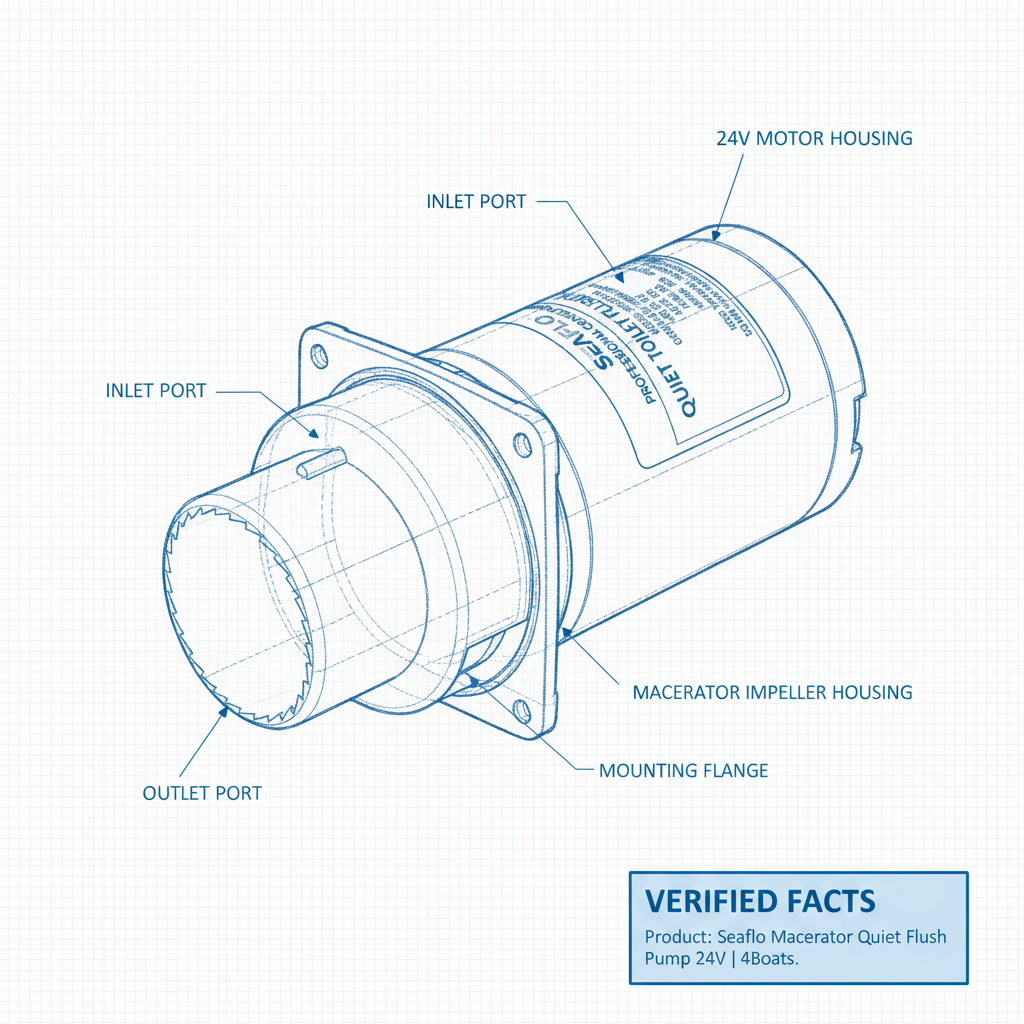

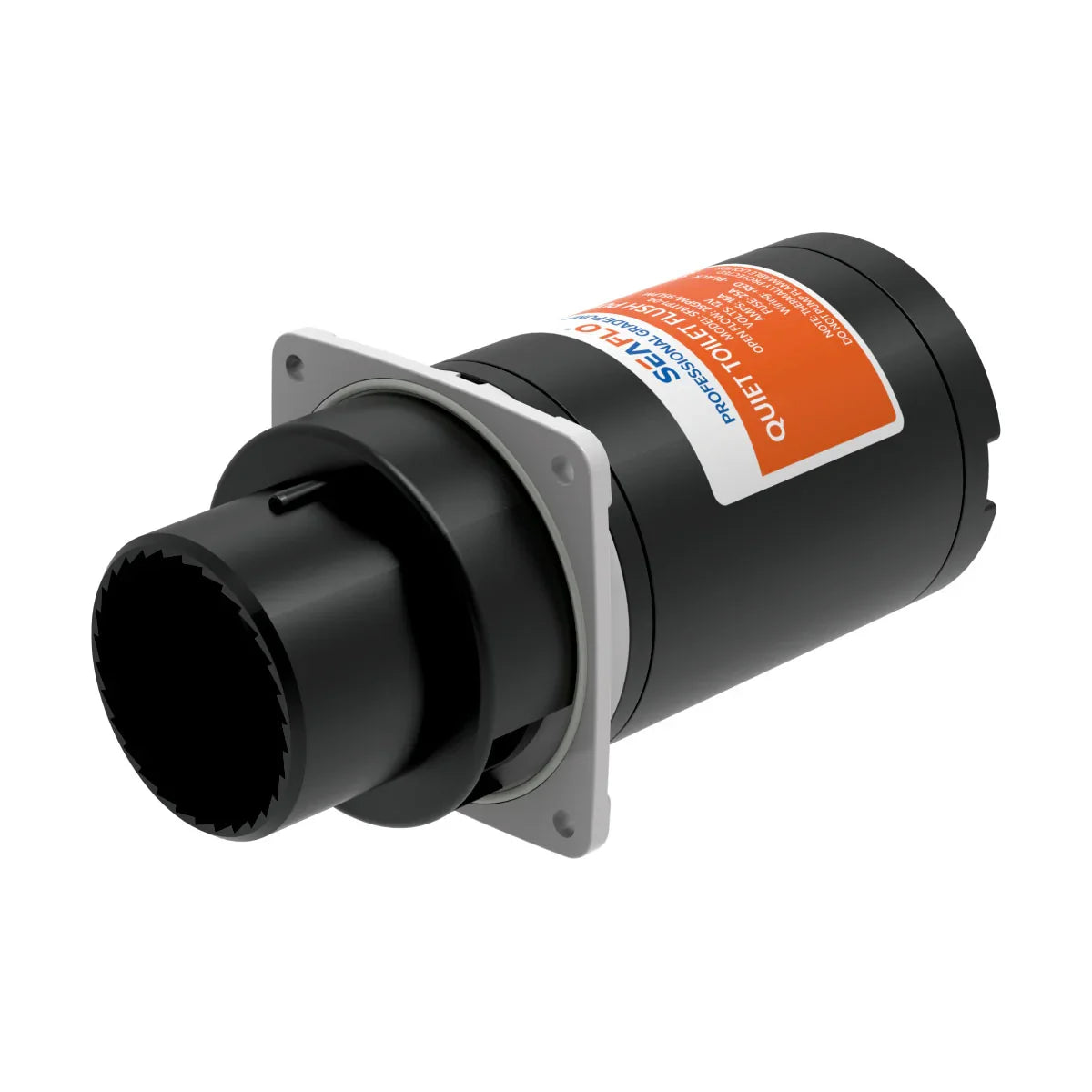

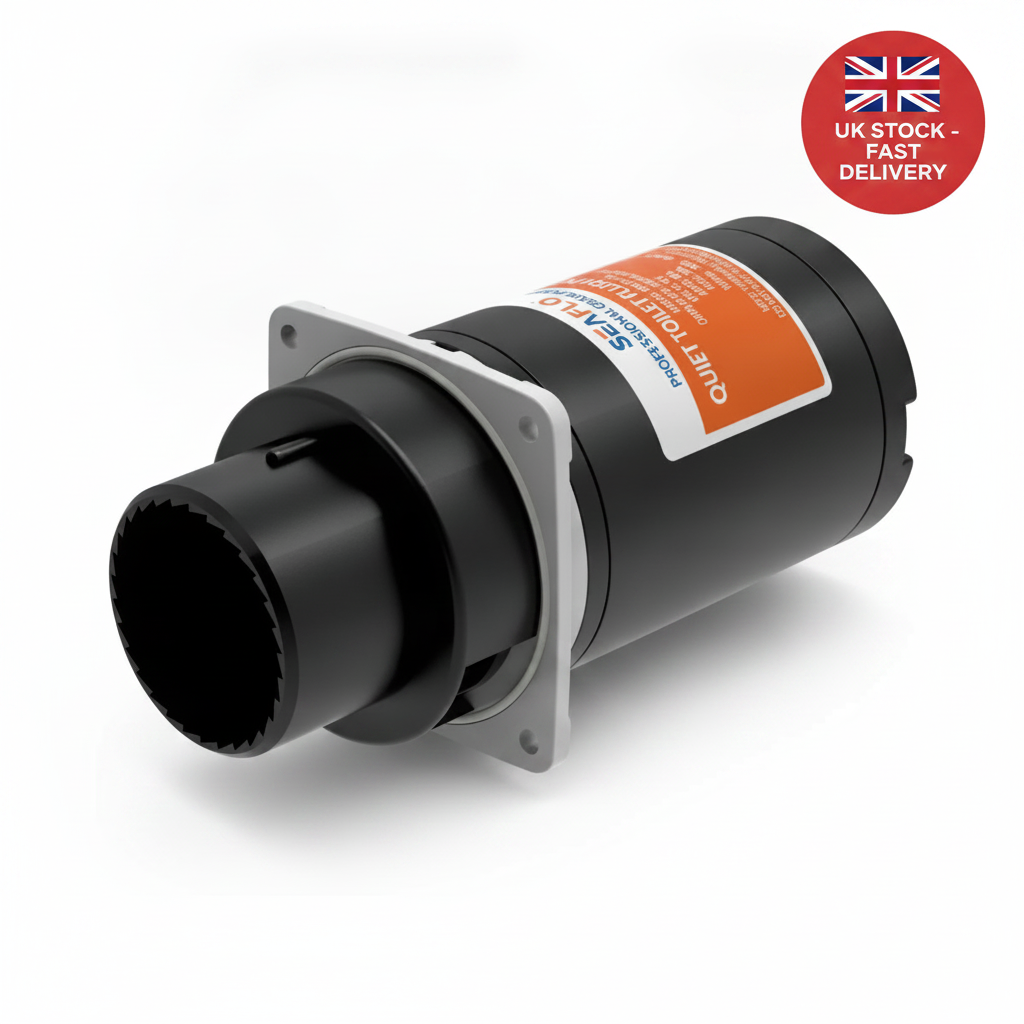

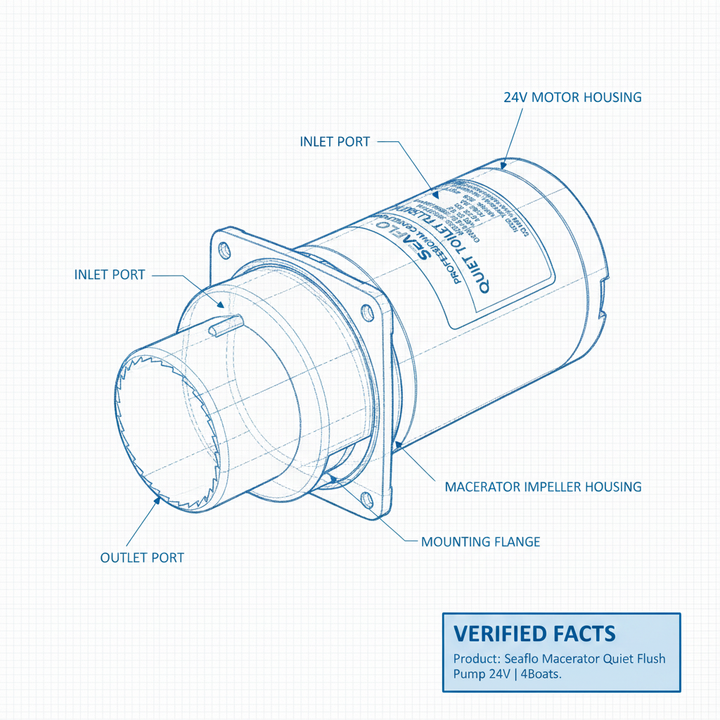

Seaflo 24V Macerator Pump (MTP204)
Premium Waste Pump for Quiet Flush Toilet Systems
The Seaflo MTP204 is a specialized 24-volt macerator pump assembly engineered specifically for "Quiet Flush" marine toilet systems. Designed as a high-performance replacement for original equipment, this unit combines a powerful motor with a high-capacity scavenger pump and a four-blade stainless steel chopper to ensure efficient waste breakdown and discharge.
Key Features
- ✔ Seamless Motor Shell: Superior corrosion resistance.
- ✔ Four-Blade Chopper: 316 Stainless steel for clog-free use.
- ✔ Self-Priming: Up to 1.2m (4ft) vertical lift.
- ✔ Direct Bolt-On: Compatible with common Quiet Flush bases.
Technical Specs
| Voltage: | 24V DC |
| Flow Rate: | 12 GPM (45 LPM) |
| Max Amp Draw: | 8.0 Amps |
| Inlet Port: | 1-1/2" (38mm) Hose Barb |
| Outlet Port: | 1" (25mm) Hose Barb |
| Duty Cycle: | Intermittent |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Seaflo | Quiet Flush Freshwater/Seawater Toilets | Standard for SFMTE2-04 series |
| Jabsco | Quiet Flush 37045, 37245 Series | Direct assembly replacement |
| Jabsco | Quiet Flush 37055, 37255 Series | 24V Systems only |
| Jabsco | Quiet Flush 37075, 37275 Series | Fits standard 4-bolt base |
OEM Cross Reference
| Jabsco Part Number: | 37072-0094 |
| Replaces: | 37072-0024 |
| Seaflo ID: | MTP204 / SFMTP2-04 |
Questions & Answers
Is this a genuine original part?
This is a premium quality Seaflo brand replacement part, designed to meet or exceed original equipment (OE) standards for Jabsco Quiet Flush toilet assemblies.
How do I know if it is compatible?
Check the voltage of your current system (this is 24V) and your toilet model. If you are replacing a Jabsco 37072-0094 or 37072-0024 waste pump assembly, this is a direct fit.
Can this pump run dry?
This pump has short-term run-dry capability, but for the longest service life, it should only be operated when fluid is present to lubricate the flexible impeller.
Note: 4boats.co.uk - Please verify your original part number and system voltage against the references above before purchasing.
