SEAFLO 4700 GPH 24V BILGE PUMP
Heavy-Duty Submersible Marine Pump | SKU: SFBP2-G4700-01

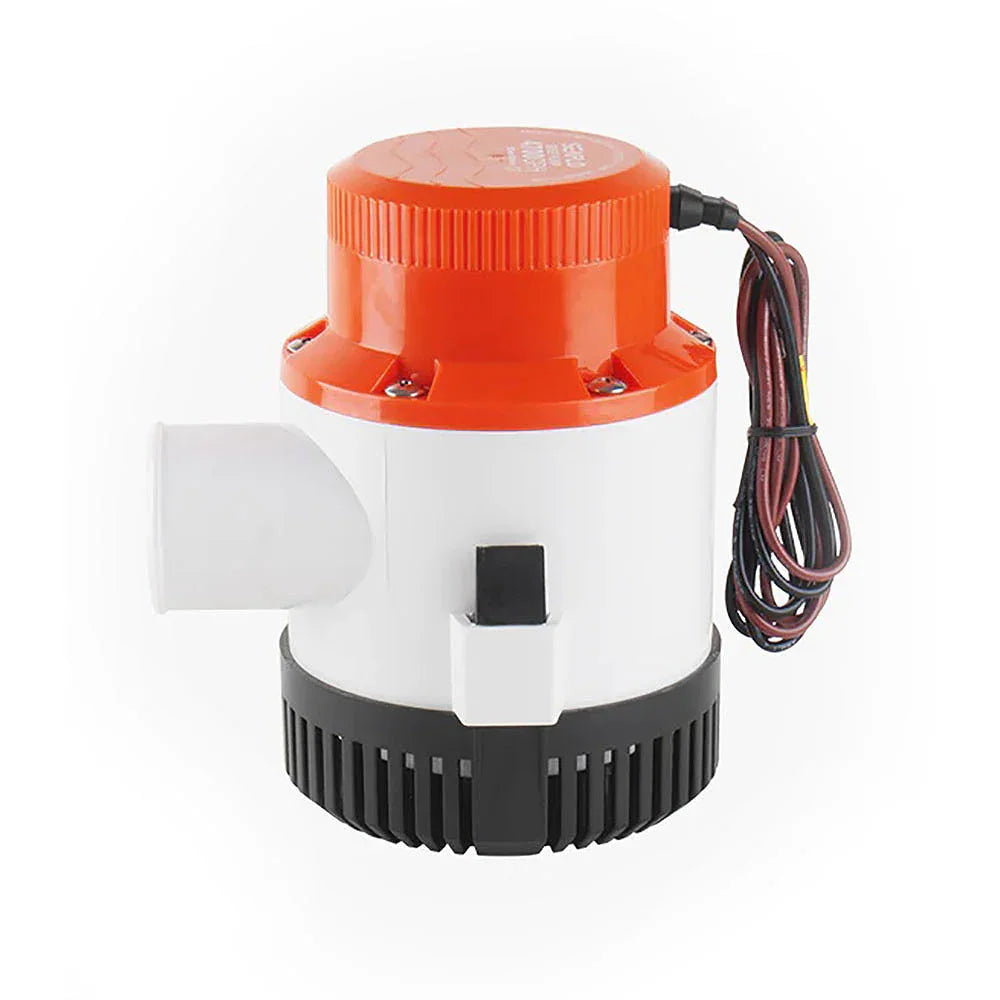

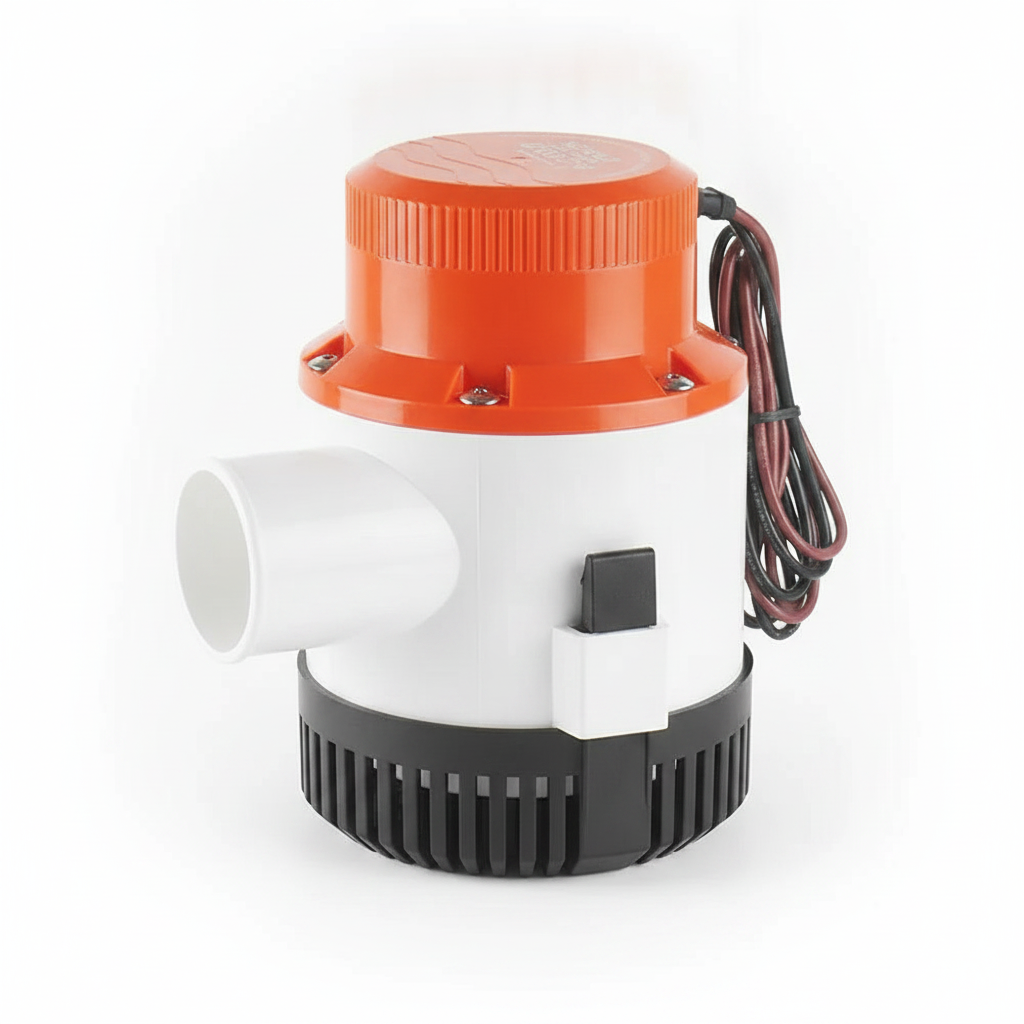

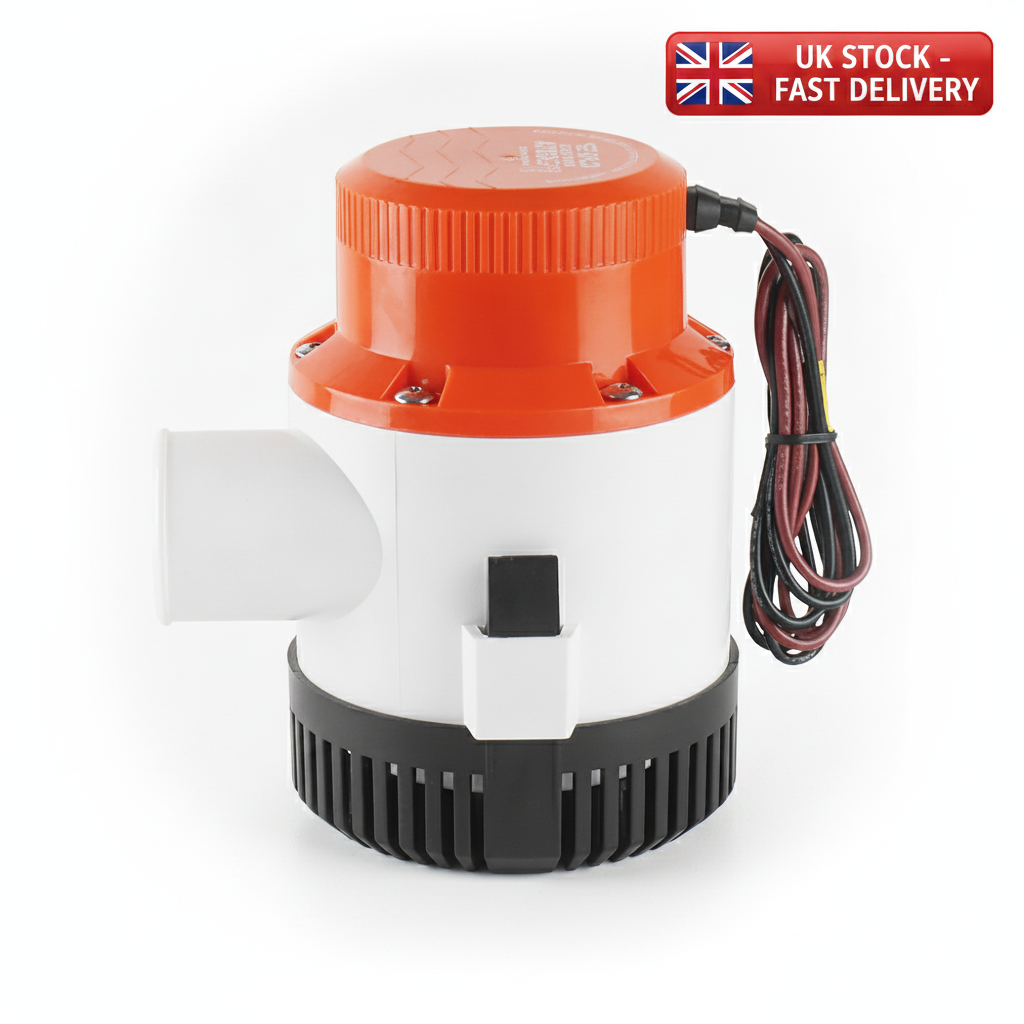

The SEAFLO SFBP2-G4700-01 is a high-performance, non-automatic bilge pump designed for demanding marine environments. Engineered with a powerful 24V water-cooled motor, this pump delivers an industry-leading flow rate of 4700 GPH (approx. 296 LPM). It is the ideal choice for large yachts, commercial fishing vessels, and high-volume liquid transfer applications where reliability is critical.
Key Features
- β Anti-Airlock Protection: Prevents air buildup for consistent flow.
- β Entirely Submersible: Sealed, moisture-tight wiring and housing.
- β Easy Maintenance: Snap-off strainer base for quick cleaning.
- β Quiet Operation: Vibrationless and low-noise performance.
- β Run-Dry Capable: Designed for standard marine workloads.
Technical Specs
| Voltage: | 24V DC |
| Flow Rate: | 4700 GPH (17,791 LPH) |
| Max Head: | 8m (26 ft) |
| Current Draw: | 8.5A |
| Max Draw: | 16.0A |
| Outlet Dia: | 2" (50mm) |
| Wire Lead: | 1m (18 AWG) |
Compatibility / Fitment Guide
| Application | Vessel Size | Notes |
|---|---|---|
| Marine Bilge Systems | Up to 24m (80ft) | Requires float or panel switch |
| Commercial Fishing | Heavy-Duty | High capacity water evacuation |
| Industrial Water Transfer | N/A | Suitable for fountains and reservoirs |
OEM Cross Reference
| Manufacturer | Reference Part Number |
| SEAFLO SKU | SFBP2-G4700-01 |
| SEAFLO MPN | BP2G470001 |
| Rule Equivalent (24V) | Rule 16A / Rule 4000 (Comparable Capacity) |
Questions & Answers
Is this a genuine original part?
This is a genuine SEAFLO 01 Series heavy-duty bilge pump, recognized for its efficiency and durability in marine applications.
Does this pump turn on automatically?
No, this is a manual (non-automatic) pump. It must be operated by a separate float switch or a manual control panel switch.
What size hose do I need for this pump?
This pump requires a 2-inch (50mm) inside diameter hose to handle the high volume flow of 4700 GPH.
Note: Always ensure the 24V power supply and fuse rating (15A recommended) match the pump specifications before installation.
