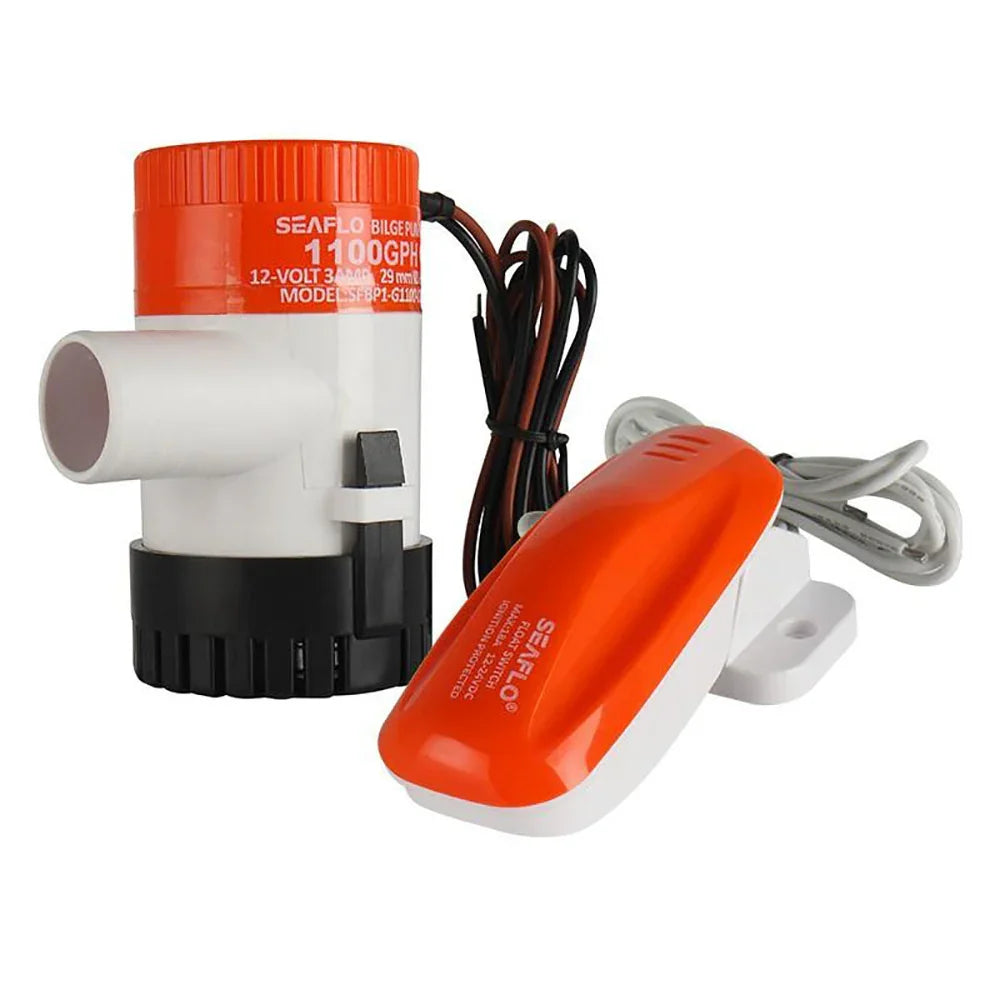

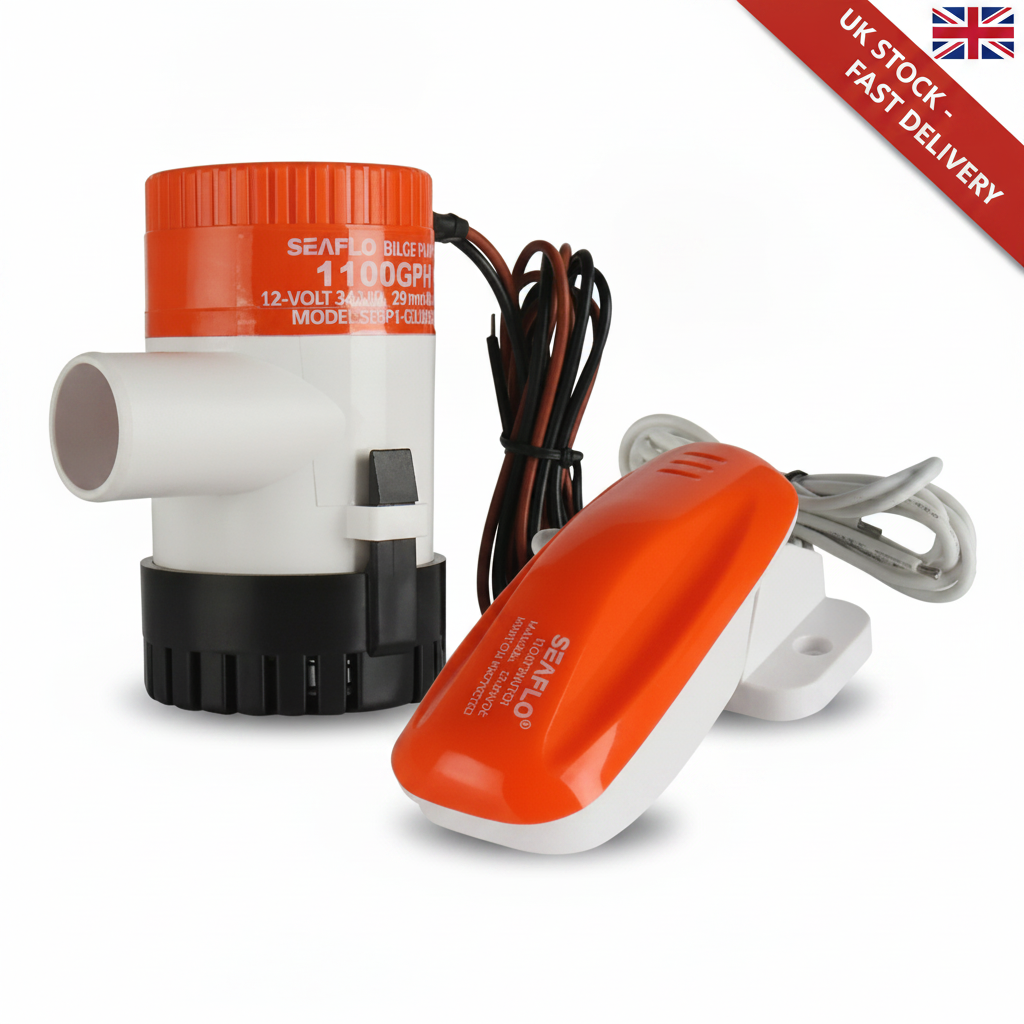

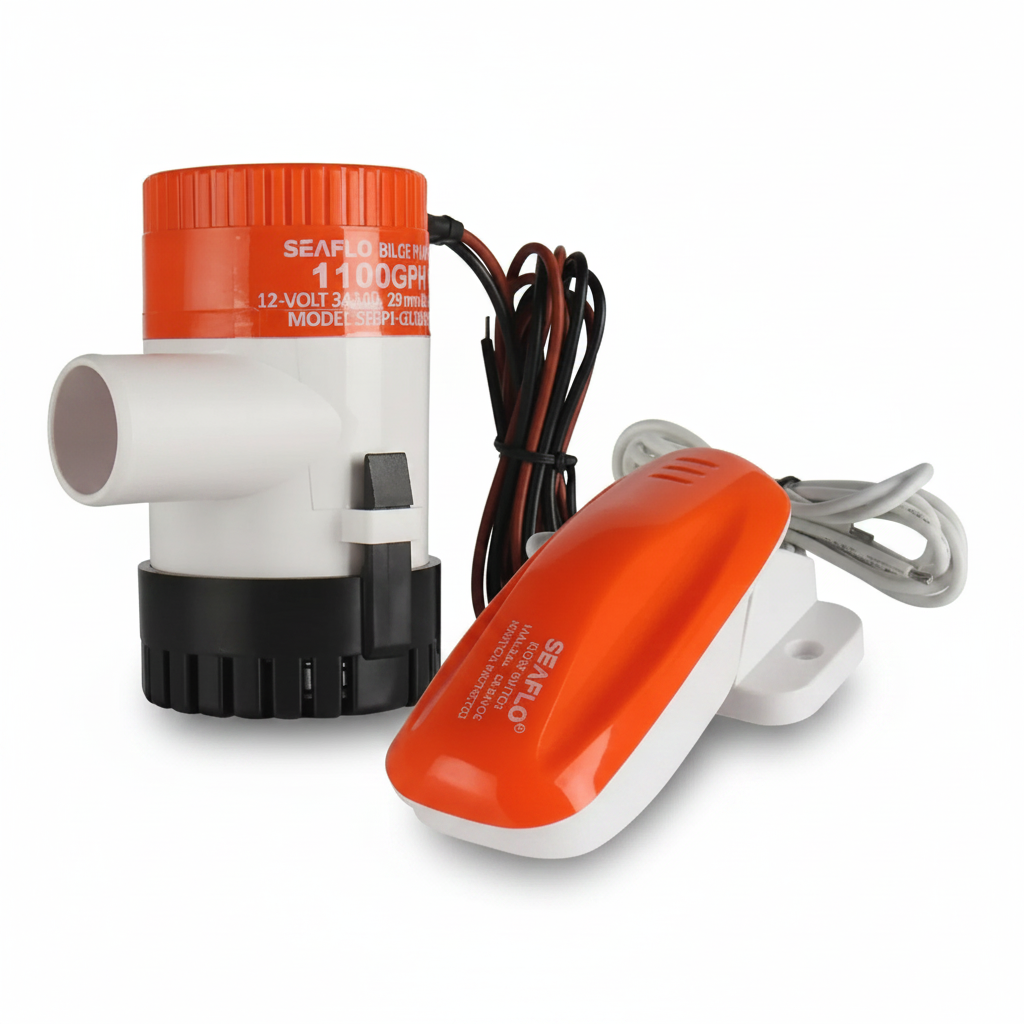

Seaflo 1100GPH Bilge Pump Kit BP1G110016
Complete 12V Automatic Submersible Pumping Solution

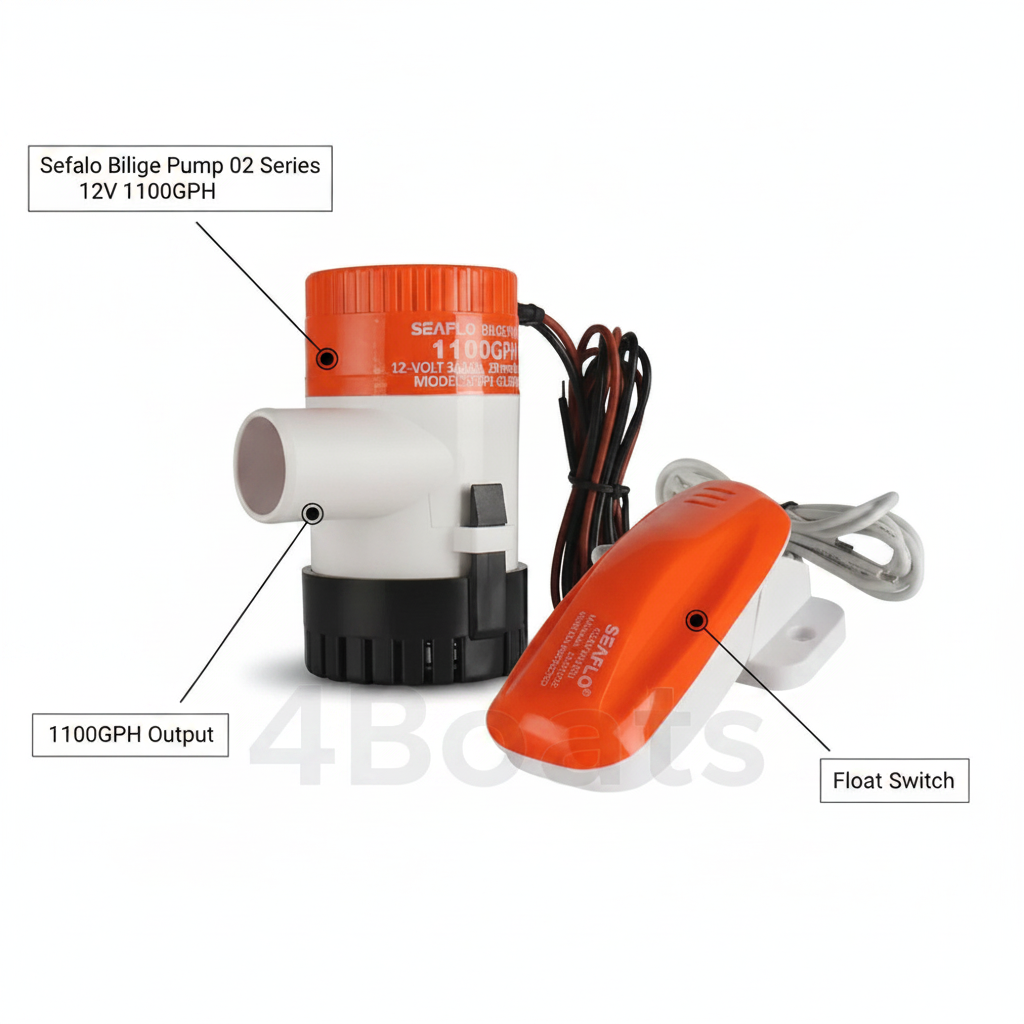

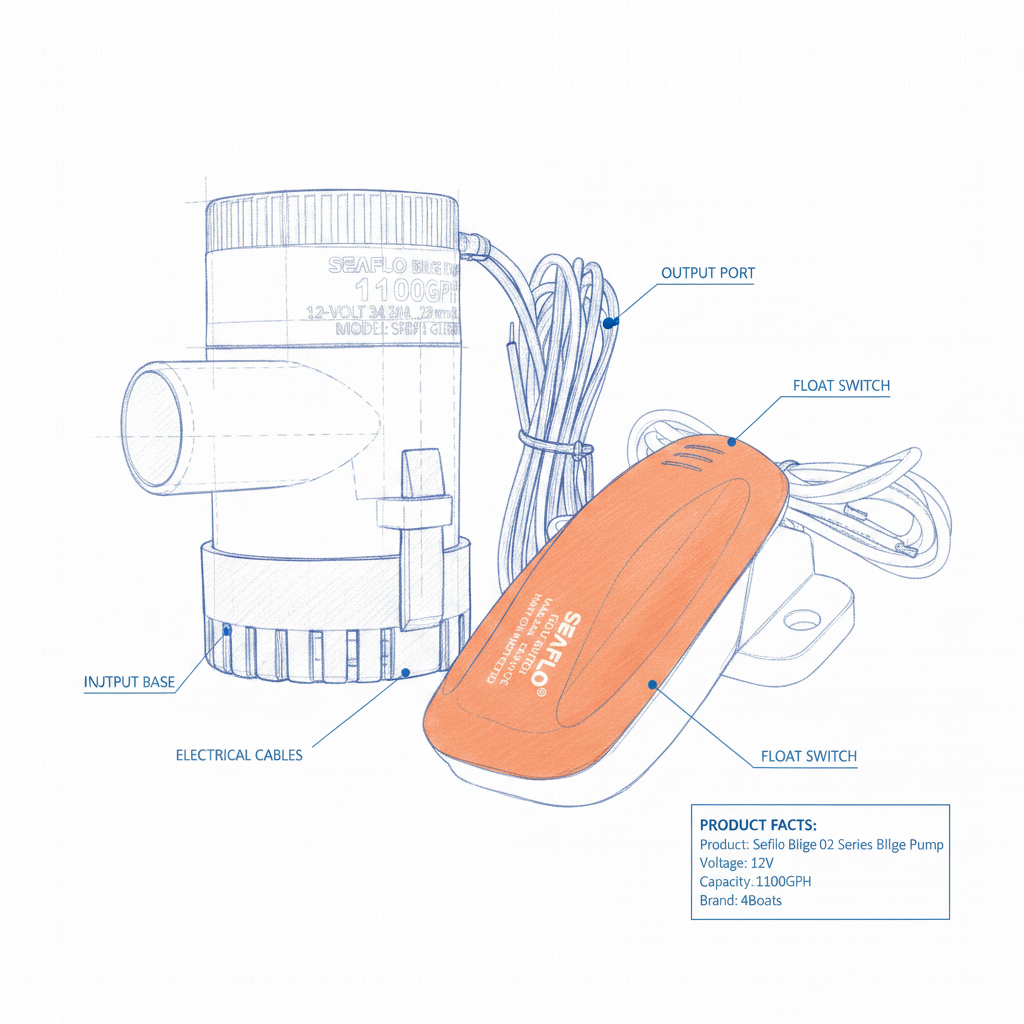

The Seaflo BP1G110016 is a comprehensive bilge management kit designed for vessels requiring reliable, high-volume water evacuation. This package pairs the powerful 01-Series 1100GPH submersible pump with the robust 02-Series float switch, providing an automatic system that activates when water levels reach 61mm (2.4") and deactivates at 19mm (0.75").
Key Features
- ✔ Anti-Airlock Protection: Prevents pump burnout.
- ✔ Snap-Off Strainer: Quick cleaning & maintenance.
- ✔ Ignition Protected: Safe for petrol engine compartments.
- ✔ Silent Operation: Vibration-free performance.
Technical Specs
| Flow Rate: | 1100 GPH (4164 LPH) |
| Voltage: | 12V DC |
| Current Draw: | 3.0 Amps |
| Fuse Size: | 5.0 Amps |
| Outlet Dia: | 29mm (1-1/8") |
| Max Head: | 3.0 Metres (10ft) |
| Wire Lead: | 18 AWG x 1m |
Compatibility / Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Marine Vessels | 12V DC Systems | Ideal for hulls up to 25ft |
| Plumbing | 29mm (1-1/8") Hose | Use reinforced smooth-bore hose |
| Mounting | Industry Standard | Base matches most standard patterns |
OEM & Cross Reference
| Seaflo Kit MPN: | BP1G110016 |
| Pump Model: | SFBP1-G1100-01 |
| Switch Model: | SFBS-18-02 / BS1802 |
| EAN: | 6971170933198 |
Questions & Answers
Is this a genuine original part?
This is a genuine Seaflo manufactured kit. Seaflo is a world-renowned brand for marine and RV pump systems, offering performance that meets or exceeds ISO 8846 standards.
How do I know if it is compatible?
If your current system uses a 12V power supply and an 1-1/8" (29mm) outlet hose, this kit is a direct fit replacement. It is designed to replace most Rule, Johnson, and Attwood pumps of similar capacity.
Can I use this with a manual switch panel?
Yes. While the float switch provides automatic operation, you can wire this to a 3-way switch (Auto/Off/Manual) for manual override control from your dashboard.
Note: Ensure all wire connections are kept above the water line and sealed with marine-grade sealant. Visit 4boats.co.uk for more premium marine equipment.
