Seaflo MTM01R Manual Marine Toilet
Regular Household Size | Twist 'n' Lock Safety System
The Seaflo MTM01R is a premium manually operated marine toilet designed for both powerboats and sailing craft. This "Regular" model features a larger, residential-style ceramic bowl for enhanced comfort compared to compact versions. Engineered for versatility, it can be installed above or below the waterline and is compatible with overboard discharge or holding tank systems.

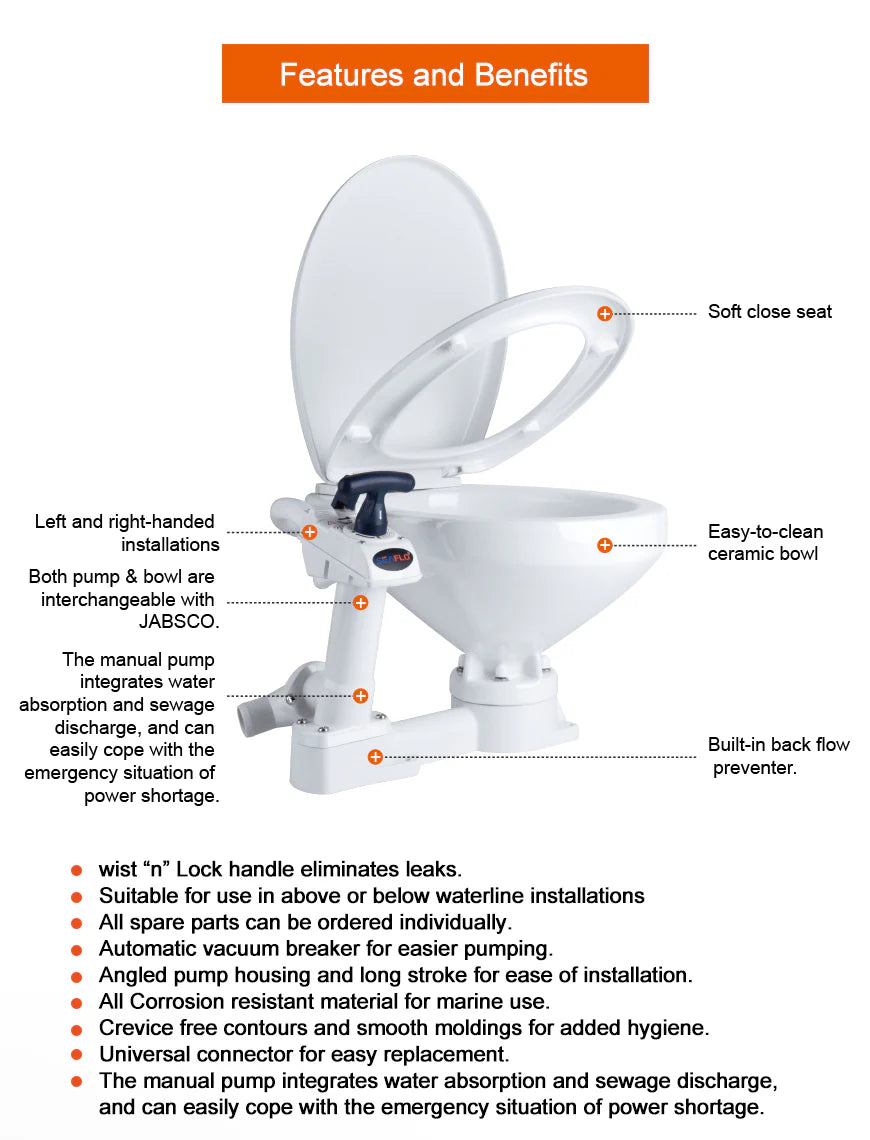

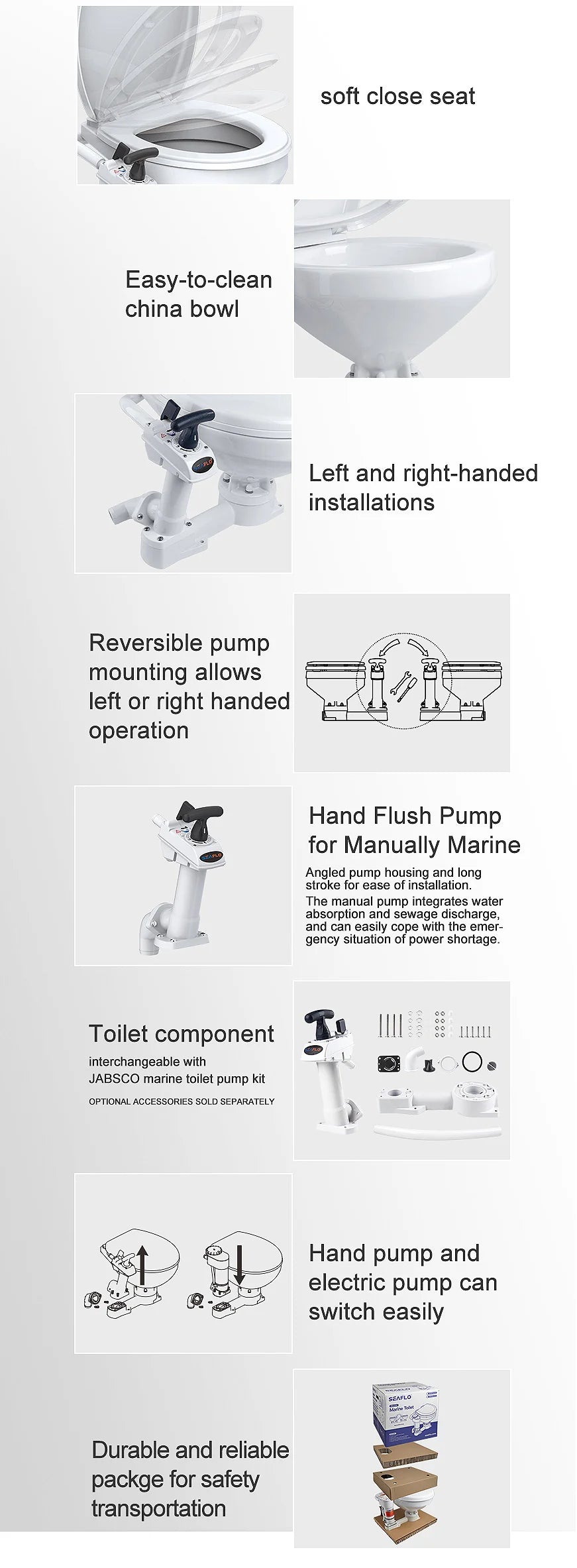

Key Features
- β Household Size: Large ceramic bowl for residential comfort.
- β Reversible Pump: Can be mounted on the left or right side.
- β Soft-Close Seat: Durable lid with silent closing mechanism.
- β Self-Priming: Powerful double-acting piston pump.
- β Corrosion Resistant: 316 stainless steel fastenings.

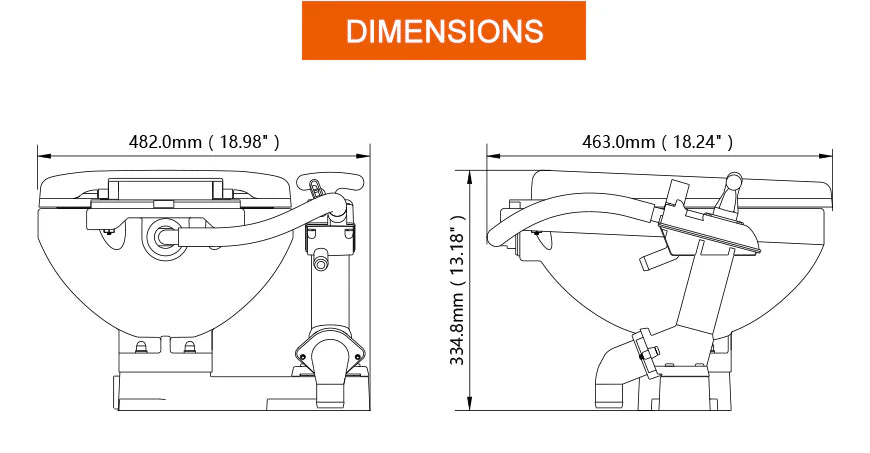

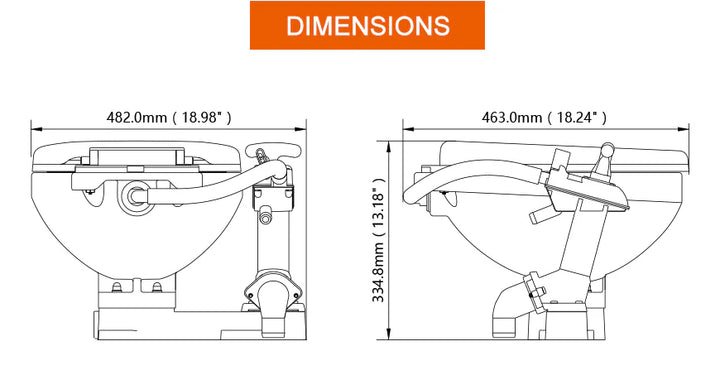

Technical Specs
| Model: | MTM01R (SFMTM-01-R) |
| Inlet Size: | 19mm (3/4") |
| Discharge Size: | 38mm (1-1/2") |
| Width: | 482mm (18.98") |
| Depth: | 463mm (18.24") |
| Height: | 335mm (13.18") |
| Weight: | 14.56 kg (32.1 lbs) |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| Marine Vessels | Yachts, Cruisers, Canal Boats | Fits standard 4-bolt footprint. |
| Off-Grid / RV | Caravans, Motorhomes | Requires external water intake. |
| Waterline | Above or Below waterline | Use vented loops for below-waterline installs. |
OEM Cross Reference
| Jabsco | 29120-3000 (Manual Regular) |
| Jabsco (Pump only) | 29040-3000 / 29090-3000 Series |
| TMC | Regular Manual Series |
| Nuova Rade | LT-1 Manual |
Questions & Answers
Is this a genuine original part?
This is a premium quality Seaflo original part, designed to be a direct replacement for other leading brands like Jabsco using standard marine footprints.
How do I know if it is compatible?
The MTM01R uses standard 3/4" (19mm) inlet and 1-1/2" (38mm) discharge connections. If your existing plumbing matches these sizes, this toilet will fit. It also matches the mounting hole patterns of most Jabsco manual toilets.
Can the pump handle be swapped to the other side?
Yes, the pump assembly is reversible. It is delivered assembled for right-handed operation but can be re-assembled by the installer for left-handed use if space is limited.
Note: Professional installation is recommended. For below-waterline installations, ensure appropriate vented loops and seacocks are used. Visit 4boats.co.uk for more marine plumbing accessories.
