SEAFLO 12V Electric Marine Toilet Conversion Kit Pump MTP102 SFMTE1-02 Jabsco Fit
MTP102
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship

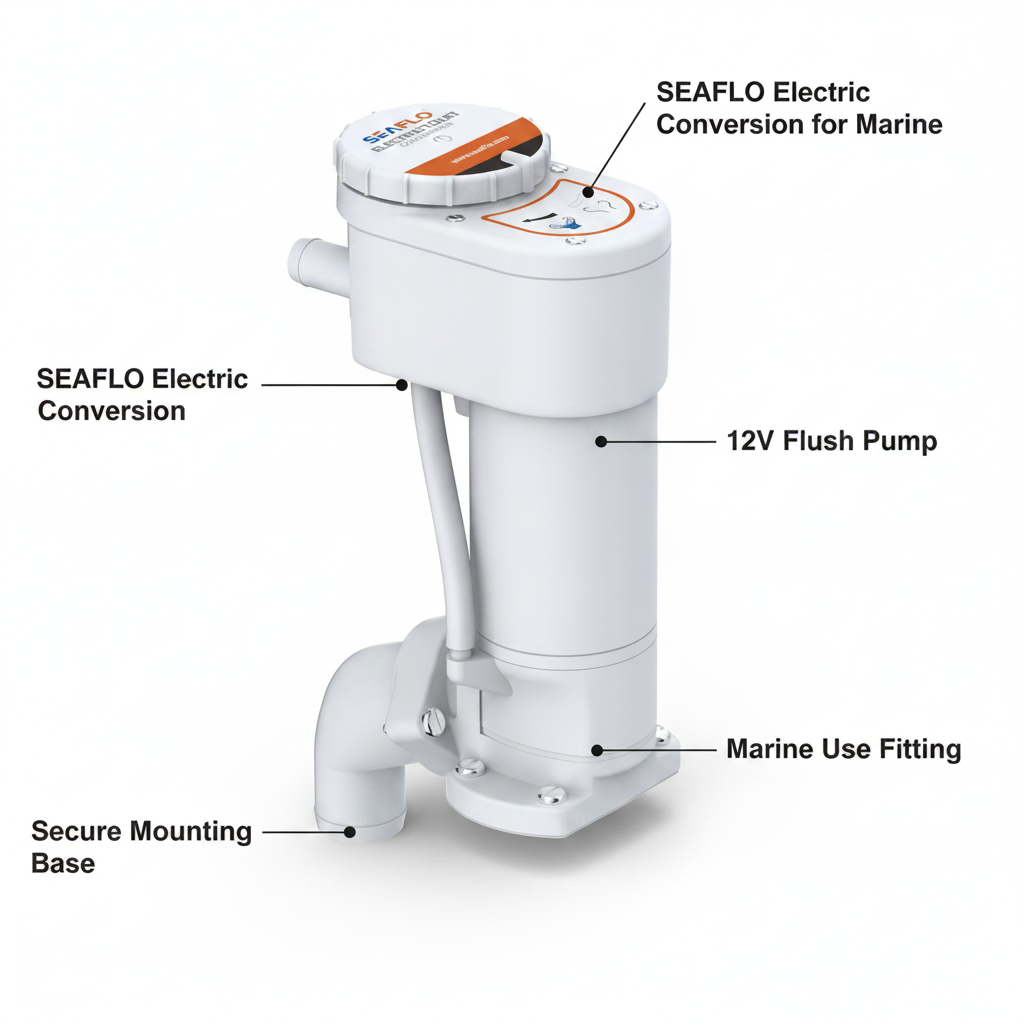

SEAFLO 12V ELECTRIC CONVERSION PUMP (MTP102)
Upgrade Your Manual Marine Toilet to Electric Flush
The SEAFLO SFMTE1-02 (MTP102) Electric Conversion Kit provides a cost-effective and straightforward way to add the luxury of an electric flush to your vessel. This unit replaces the entire manual pump assembly on your existing toilet, eliminating the need for manual pumping. Its integrated dual-function design uses a self-priming pump to rinse the bowl while a heavy-duty macerator grinds waste and evacuates it in one seamless operation.
Key Features
- ✔ Simple Conversion: Replaces manual T-handle pump assembly
- ✔ Built-in Macerator: Stainless steel blade for efficient waste breakdown
- ✔ Self-Priming: Up to 1.2m (4ft) vertical lift capability
- ✔ Rotary Control: Easy-to-use "Flush & Discharge" or "Discharge Only" switch
- ✔ Universal Fit: Compatible with major marine toilet brands
Technical Specs
| Voltage: | 12V DC |
| Max Amp Draw: | 24A |
| Flow Rate: | 18.9 LPM / 5.0 GPM |
| Inlet Port: | 3/4" (19mm) |
| Discharge Port: | 1" to 1-1/2" Adapter |
| Weight: | 2.75 kg (6.06 lbs) |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Jabsco | Manual Toilets (Compact & Regular) | Direct replacement for manual pump unit |
| Seaflo | 01-Series Manual Toilets | Standard conversion for Seaflo heads |
| TMC | TMC 999 Models | Compatible bolt pattern |
| Raritan / RM | RM69 / Sealand 751 | Verified fitment for base mounting |
OEM Cross Reference
| Seaflo MPN: | SFMTE1-02 / SFMTE1-02-R / MTP102 |
| Jabsco Series: | 37010-Series (Conversion Equivalent) |
| EAN: | 6971170931699 |
Watch installation and demo: SEAFLO 12V Electric Conversion Marine Toilet video.
Questions & Answers
Is this a genuine original part?
This is a premium quality Seaflo aftermarket replacement part, manufactured to meet or exceed original equipment standards for Jabsco and other major marine toilet brands.
How do I know if it is compatible?
This unit is designed to replace the standard manual pump found on Seaflo 01-series and Jabsco manual toilets. If your current manual pump has a similar 4-bolt base pattern, this conversion kit will bolt directly in its place.
Does it make a lot of noise?
As it includes a high-speed macerator, the pump runs with a characteristic "buzz" or humming sound during the flushing cycle. This is normal and indicates the waste is being properly processed by the stainless steel chopper blades.
Note: Please verify your vessel's electrical capacity (12V) and fuse requirements (approx 25A) before installation. Visit 4boats.co.uk for further technical documentation.
