Seaflo 24V 1500GPH Marine Bilge Pump BP2G150013A 13A Series Submersible Boat
BP2G150013A
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship

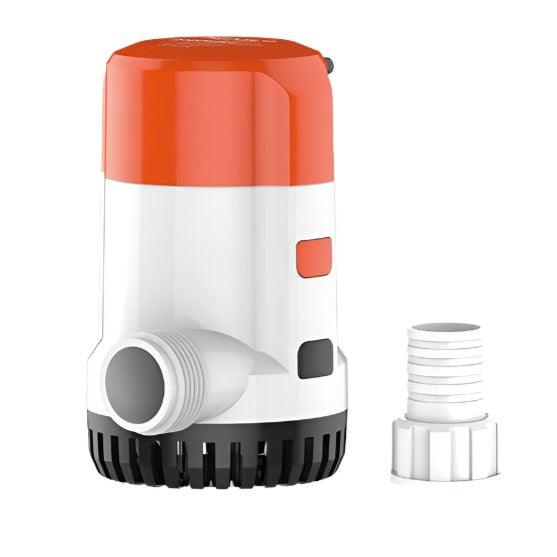

Seaflo BP2G150013A Bilge Pump
13A Series | 24V | 1500 GPH High-Performance Marine Pump
The Seaflo 13A Series BP2G150013A is a heavy-duty, non-automatic submersible bilge pump designed for demanding marine environments. This "New Generation" 13A model features a revolutionary split quick-connect joint design, allowing you to replace the motor cartridge or service the pump in seconds without having to dismantle your plumbing or base. Engineered for efficiency and durability, it provides a powerful 1500 GPH flow rate specifically for 24V systems.
Key Features
- β Quick-Connect Design: Snap-off motor for easy maintenance.
- β Anti-Airlock: Prevents air pockets from stalling the pump.
- β Submersible: Exclusive moisture-tight seals and SS shaft.
- β Ignition Protected: Safe for use near fuel/gas fumes.
Technical Specs
| Model | BP2G150013A |
| Voltage | 24V DC |
| Flow Rate | 1500 GPH (5678 LPH) |
| Current Draw | 2.5 Amps |
| Fuse Size | 5.0 Amps |
| Max Lift (Head) | 5.0m (16.4 ft) |
| Outlet Dia. | 29mm (1-1/8") |
| Wire Lead | 1m (18 AWG) |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Marine Vessels | Boats up to 24 meters | Standard bilge evacuation |
| 24V DC Systems | Solar or Industrial Sump | Requires 24V power source |
| Livewells | Large Bait Tanks | High flow circulation |
OEM Cross Reference
| Seaflo MPN: | SFBP2-G1500-13A / BP2G150013A |
| Rule Equivalent: | Rule 1500 (24V Model 02-24) |
| Johnson Equivalent: | Johnson L1600 (24V) |
| Attwood Equivalent: | Sahara/Tsunami 1200+ (24V Models) |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine SEAFLO 13A Series product, a premium marine-grade component designed for long-term submersible use.
How do I know if it is compatible?
Check your current pump's voltage (must be 24V) and hose size. This pump uses a standard 1-1/8" (29mm) outlet. If your current system matches these, it is a direct replacement.
Does this pump turn on automatically when water is present?
No, the 13A series is a non-automatic manual pump. It must be operated via a dash panel switch or a separate float switch (like the Seaflo SFS-20-01).
Note: 4boats.co.uk recommends verifying your vessel's electrical system voltage (24V) before purchase. 12V systems will require a different model.
