Seaflo BP1G60013A 12V 600 GPH Submersible Marine Bilge Pump 13A Series
BP1G60013A
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship

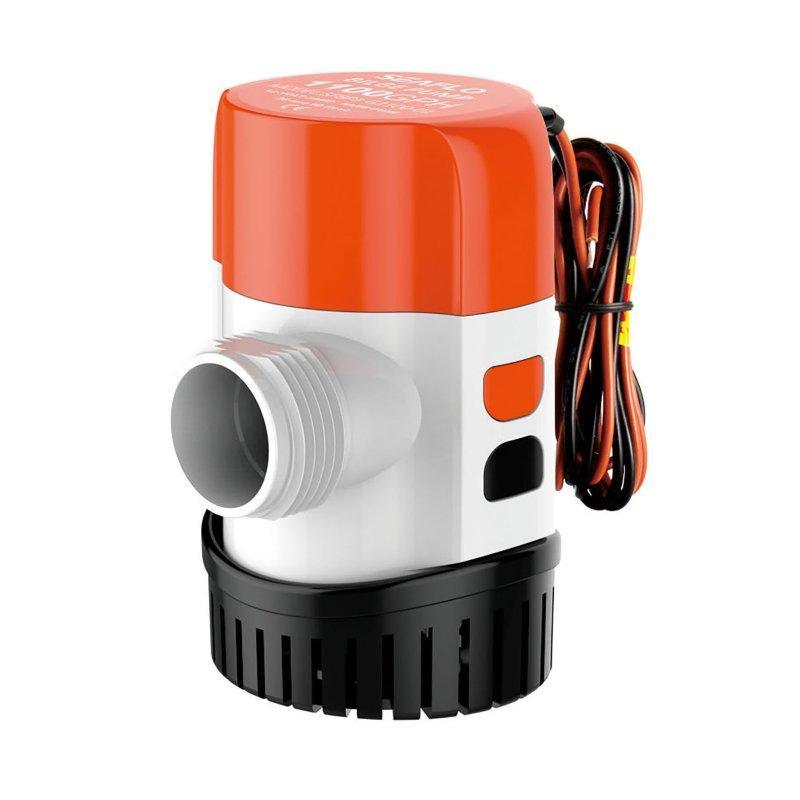

Seaflo BP1G60013A Bilge Pump
13A Series | 12V | 600 GPH Submersible Performance
The Seaflo 13A Series (Model BP1G60013A) represents the next generation of non-automatic submersible bilge pumps. Engineered for reliability in harsh marine environments, this 600 GPH pump features a revolutionary split quick-connect joint design. This allows the motor to be removed or replaced in seconds without disconnecting your plumbing or base, significantly reducing maintenance time on your vessel.
Key Features
- β Quick-Connect Joint: Replace motor without dismantling pipes.
- β Anti-Airlock Protection: Ensures consistent priming.
- β Integrated Check Valve: Prevents water backflow into the bilge.
- β Snap-Off Strainer: Easy access for cleaning debris.
- β Marine Grade Wiring: Silicon blocked, tin-coated 18 AWG wire.
Technical Specs
| Model: | BP1G60013A |
| Flow Rate: | 600 GPH / 2271 LPH |
| Voltage: | 12V DC |
| Amp Draw: | 2.5A |
| Fuse Size: | 4.0A |
| Max Lift (Head): | 2.5m (7.5') |

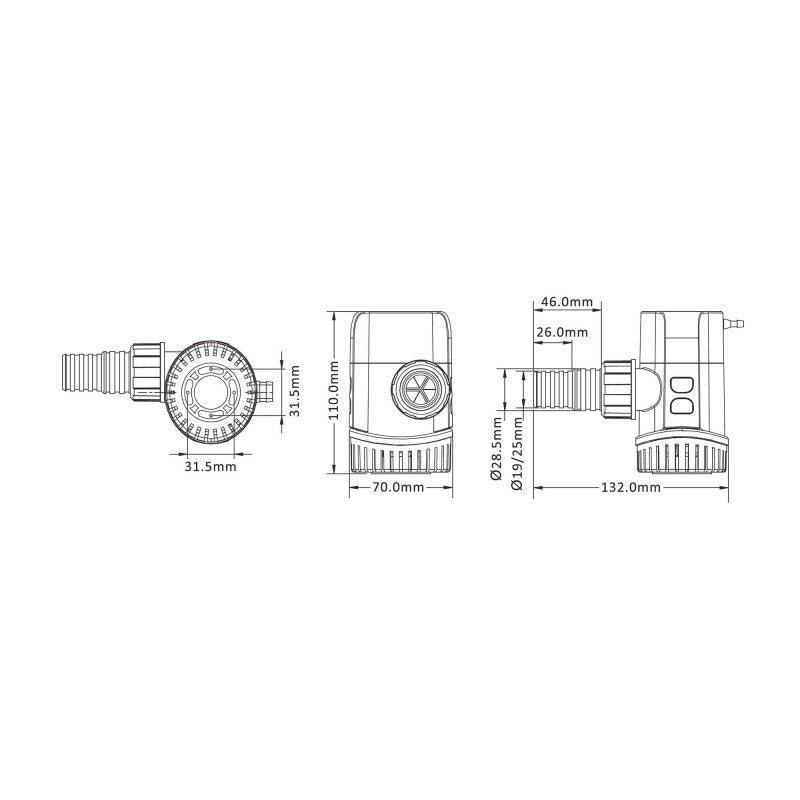

| Outlet Dia: | 19mm (3/4") & 29mm (1 1/8") |
| Wire Lead: | 1m (18 AWG) |
Compatibility / Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Marine Bilge | Small Craft / Yachts | Hull length up to 24m |
| Livewells / Baitwells | Water Circulation | Threaded discharge for easy hose fitment |
| Ponds / RV | Water Transfer | Intermittent duty only |
OEM Cross Reference
| Seaflo PN: | BP1G60013A, SFBP1-G600-13A |
| Rule Equivalent: | Rule 25D (360/500/800 Performance Class) |
| EAN/Barcode: | 6971170932016 |
Questions & Answers
Is this an automatic pump?
No, this is a non-automatic pump. It requires a separate float switch or a manual panel switch for operation.
Can I replace the motor without removing the water pipe?
Yes. The 13A series features a split quick-connect joint with a lock nut design. You can swap the motor cartridge in seconds without dismantling the plumbing or the base.
Does it come with different outlet sizes?

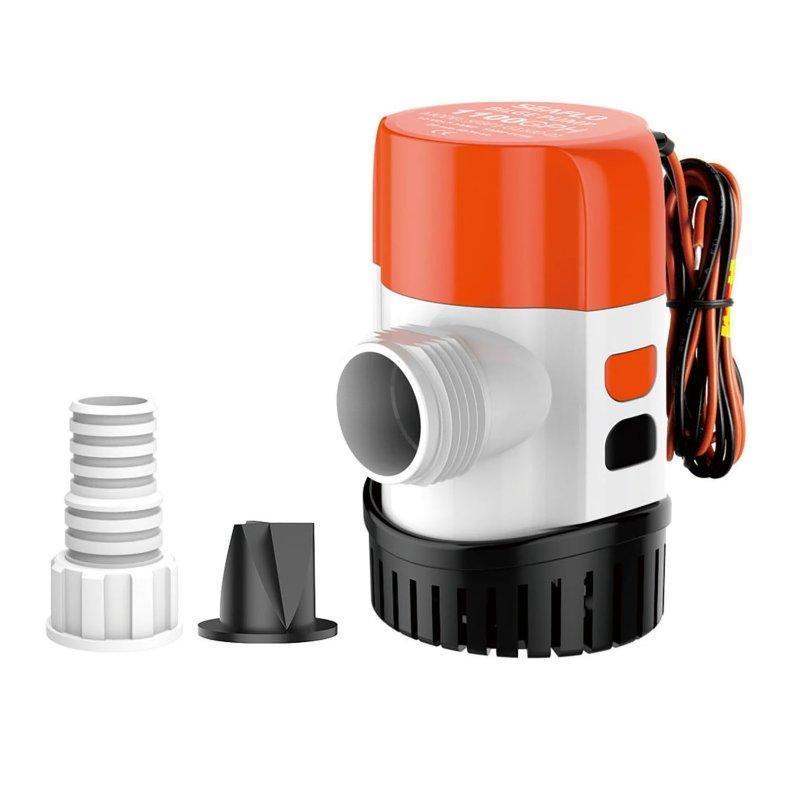

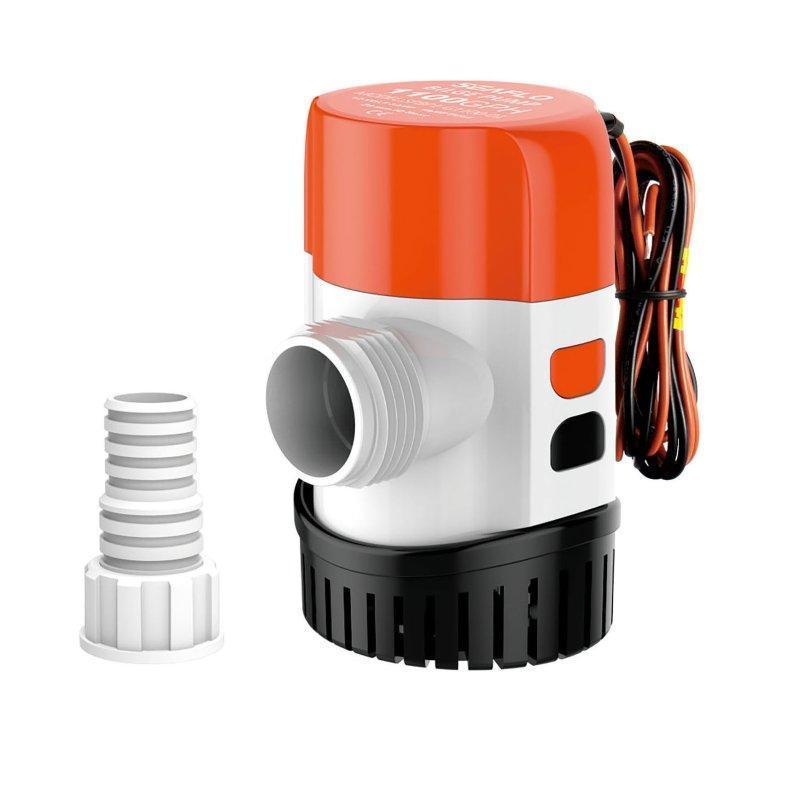

Yes, it includes a removable threaded discharge straight fitting compatible with both 19mm (3/4") and 29mm (1-1/8") hoses.
Note: 4boats.co.uk recommends verifying your existing setup and fuse ratings before installation. Do not run the pump dry.
