SEAFLO Bilge Pump 12V 500 gph Non-Auto Bilge Pump 01 Series
BP1G50001
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon
Seaflo 01 Series 500 GPH Submersible Bilge Pump – 12V / 24V
Ensure safe and reliable water evacuation with the Seaflo 01 Series 500 GPH Non-Automatic Bilge Pump. Designed for marine environments, this submersible pump features a stainless steel shaft, moisture-tight seals, and quiet long-life operation. Ideal for boats of all sizes, it operates via a panel or float switch (sold separately) and fits industry-standard mounting bases for easy replacement.
✅ Key Features:
-
Flow Rate: 500 GPH (Gallons Per Hour)
-
Voltage Options: 12V or 24V
-
Outlet Diameter: 3/4" (19mm)
-
Submersible: Yes – Fully waterproof and safe for continuous use
-
Motor: Sealed, efficient, long-life motor
-
Mounting: Snap-off strainer base – fits standard installations
-
Anti-Airlock Protection for uninterrupted pumping
-
Stainless Steel Shaft and corrosion-resistant body
-
Ignition Protected – safe for marine engine compartments
-
Run Dry Capable for normal workloads
-
Quiet Operation with high flow performance
-
Marine Grade Blocked Wiring ensures safe, reliable connections
-
Operating Temperature Limit: 43°C (110°F)
-
Standards: CE, RoHS, ISO 8846, ISO 8849 compliant
-
Warranty: 2 Years
📦 Model Options:
Model | Voltage | Current | Max Draw | Max Head | Wire Lead |
---|---|---|---|---|---|
SFBP1-G500-01 | 12V | 1.6 A | 4.0 A | 2 m | 1 m |
SFBP2-G500-01 | 24V | 1.2 A | 3.0 A | 2 m | 1 m |
Please select your preferred voltage option from the dropdown menu.
⚠️ Note:
-
This is a non-automatic pump and must be operated via a panel switch or float switch (sold separately).
-
Snap-off base allows for quick cleaning and maintenance.

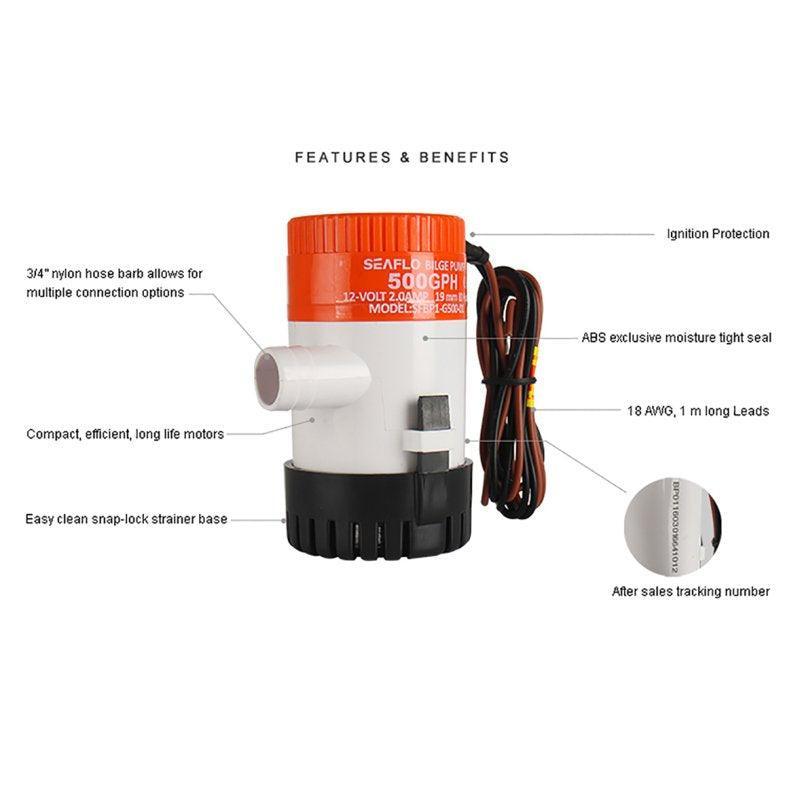

MORE FEATURES & BENEFITS
• CE, RoHS, ISO 8846, ISO 8849 standards
• Traditional operation by switch or float switch
• Pump and switch are stand alone products
• Snap-off strainer base for easy maintenance
• Sealed efficient, long life motors, quiet operation
• Entirely Submersible
• Stainless steel shaft
• Anti-Airlock protection
• Exclusive moisture tight seals
• Marine grade blocked wiring
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
Model | Flow Rate |
Voltage |
Current |
Max Draw |
Head |
Wire Lead |
SFBP1-G500-01 | 500 GPH | 12 V | 1.6 A | 4.0 A | 6.56' (2 m) | 1m /3.0' |
SFBP2-G500-01 | 500 GPH | 24 V | 1.2 A | 3.0 A | 6.56' (2 m) | 1m /3.0' |
12V |
24V |
||||||
Current(A) |
Flow |
Head(M) |
Current(A) |
Flow |
Head(M) |
||
GPH |
LPH |
GPH |
LPH |
||||
2.16 |
618 |
2339 |
0 |
1.05 |
623 |
2358 |
0 |
2.58 |
523 |
1979 |
0.5 |
1.56 |
528 |
1998 |
0.5 |
3.04 |
386 |
1461 |
1 |
2.12 | 399 | 1510 |
1 |
3.62 |
167 |
632 |
1.5 |
2.66 | 178 | 674 | 1.5 |
4 |
0 |
0 |
2 |
3 |
