SEAFLO 24V 1100GPH Automatic Bilge Pump 06 Series Float Switch

Integrated automatic bilge pump for 24V boats

A 24V submersible bilge pump combining an 1100GPH pump and internal float switch in one compact unit. It activates as bilge water rises, avoiding a separate external float switch and reducing the space needed in the pump well.

Technical specifications

Applications and compatibility

• For automatic drainage of 24V bilges on motorboats, yachts, RIBs, fishing boats and workboats.
• Useful where a compact combined pump and switch is preferred over two separate components.
• Capacity must be checked against vessel size, expected ingress and actual discharge head.
• The integrated float must have unobstructed movement; contaminated bilges require regular inspection and cleaning.

Installation and package contents

• Install at the lowest practical point on a level surface, clear of hoses and cables that could obstruct the float.
• Route a suitable discharge hose with minimal restriction and provide a safe above-waterline outlet arrangement.
• Connect to a protected 24V marine circuit using correctly sized cable and the manufacturer’s wiring guidance.
• Package contains one SEAFLO 06 Series automatic pump with integrated float, strainer/base and 1m leads. Hose, through-hull and panel controls are not stated as included.

Frequently asked questions

Does it require an external float switch?

No. The float switch is built into the pump housing.

Can it be used on a 12V boat?

No. This version requires 24V DC.

Is 1100GPH guaranteed at the through-hull?

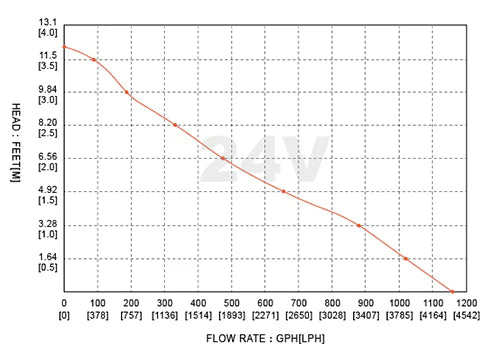

No. The rating is measured at open flow; installation head and hose resistance reduce delivery.

How should I test the automatic function?

With the circuit safely energised, raise the internal float manually and confirm reliable start and stop before launch.
