Rugged Heavy Duty Launching Wheels Retractable Aluminium Inflatable Boat Dinghy
mms-4983
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon

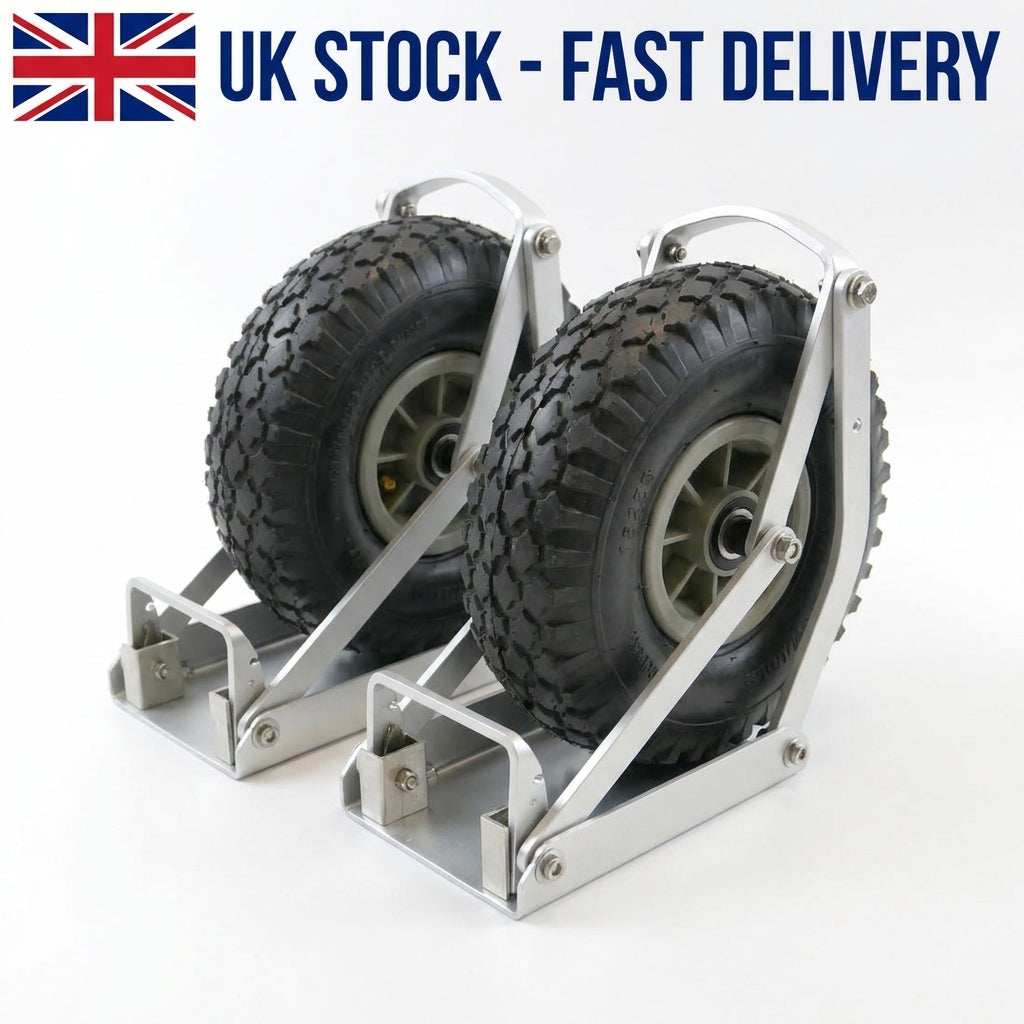

Rugged Heavy Duty Launching Wheels (mms-4983)
Retractable Aluminium-Framed Transom Wheels
Launch and retrieve your boat with ease using these Rugged Heavy Duty Launching Wheels. Designed for rough and cobbled launch sites, this set of retracting wheels has an aluminium frame and pneumatic tyres, making it easy to move the boat to the launch site with the outboard and other equipment still on board. The low-profile design means the wheels do not hinder operation of your outboard motor.

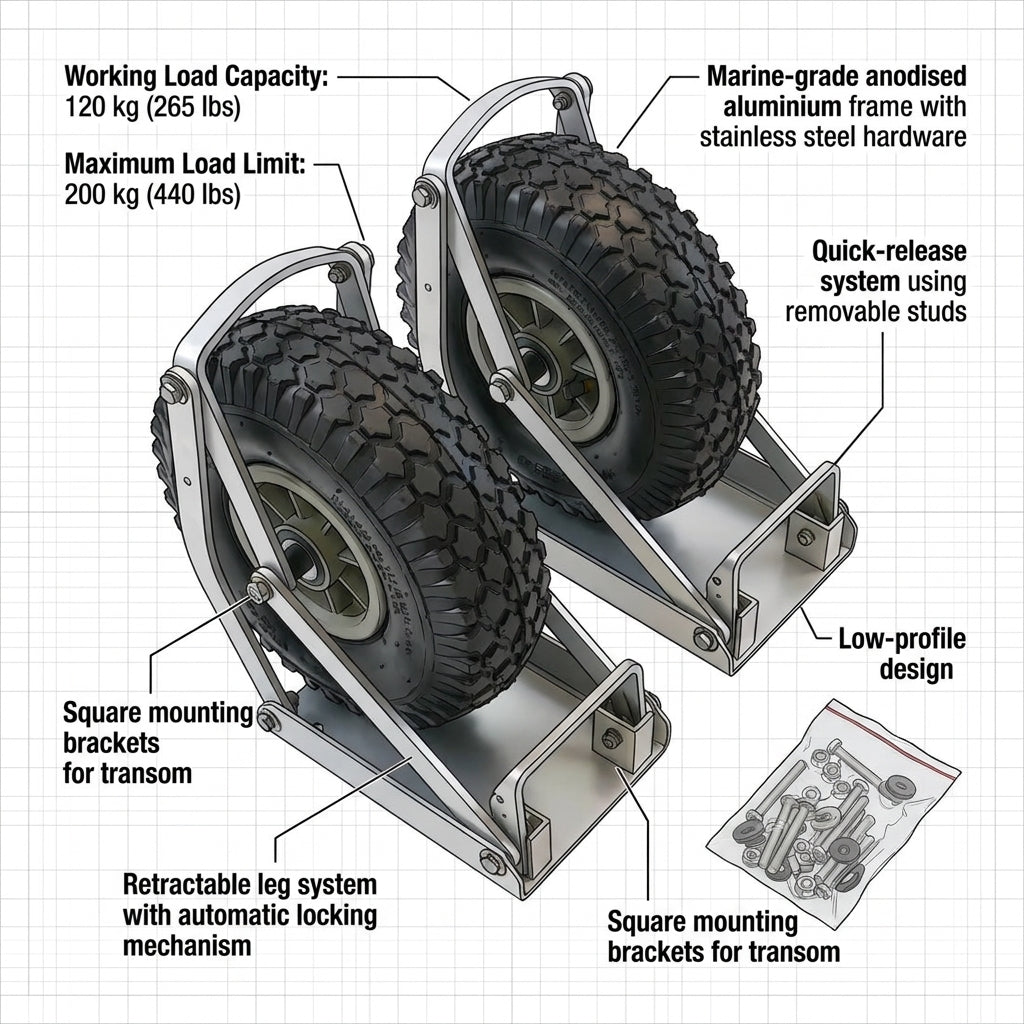

Key Features
- ✔ Retractable design with automatic locking
- ✔ Aluminium frame
- ✔ Pneumatic tyres for rough and cobbled terrain
- ✔ Low-profile, unhindered outboard operation
- ✔ Includes 6mm fixing bolts, nylon nuts and SS washers

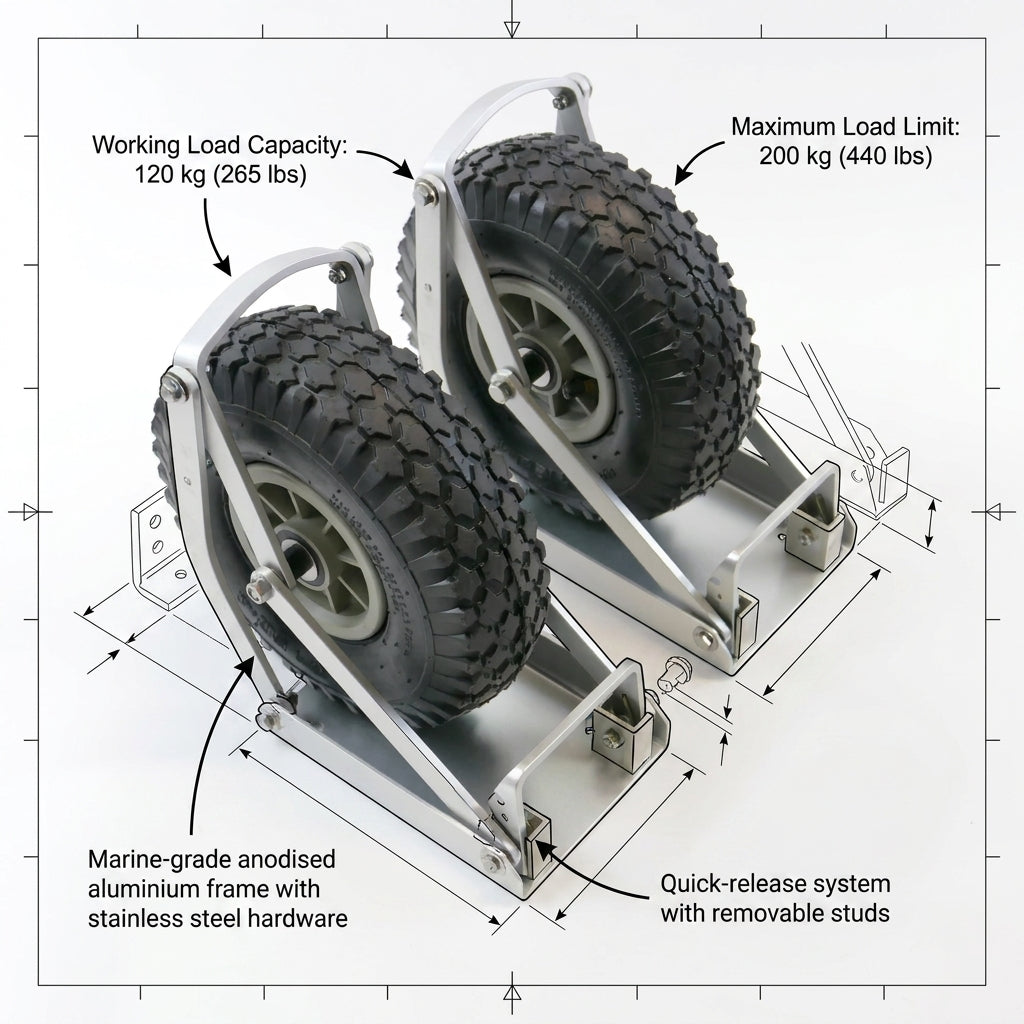

Technical Specs
| Working Load | 120 kg (265 lbs) |
| Max Load Limit | 200 kg (440 lbs) |
| Wheel Size | 4.10 / 3.50-4 Pneumatic |
| Max Tyre Pressure | 25 PSI (1.7 Bar) |
| Extended Reach | 30 cm below bottom of fixing plate |
| Retracted Position | 11 cm above fixing plate |
| Bracket Size | 14 cm x 20 cm |
| Hole Spacing | 6.5mm holes, 10 cm x 13 cm centres |
Compatibility / Fitment Guide
| Application Type | Recommended Use | Notes |
|---|---|---|
| Inflatable Boats (SIB) | Within 120kg working load | Ideal for rough or cobbled launch sites |
| Rigid Inflatables (RIB) | Lightweight RIBs | Ensure transom allows 6mm bolts |
| Dinghy / Tenders | Transom plate fitting | 10 x 13cm bolt pattern, 14 x 20cm bracket |
OEM Cross Reference
| 4Boats SKU | mms-4983 |
| MPN | MD1390 |
Questions & Answers
Is this a genuine original part?
This is a quality aftermarket launching wheel set, not a branded original-equipment part.
How do I know if it is compatible?
Check your transom can take the 14 x 20cm bracket, with 6.5mm holes on 10 x 13cm centres, and that your loaded boat stays within the 120kg working load.
How should I maintain them?
Apply marine grease to the wheel axle regularly for smooth operation and longer service life, and keep tyre pressure at no more than 25 psi.
Note: Not for highway towing. Please verify your transom dimensions against the specifications above before purchasing. Domain: 4boats.co.uk
