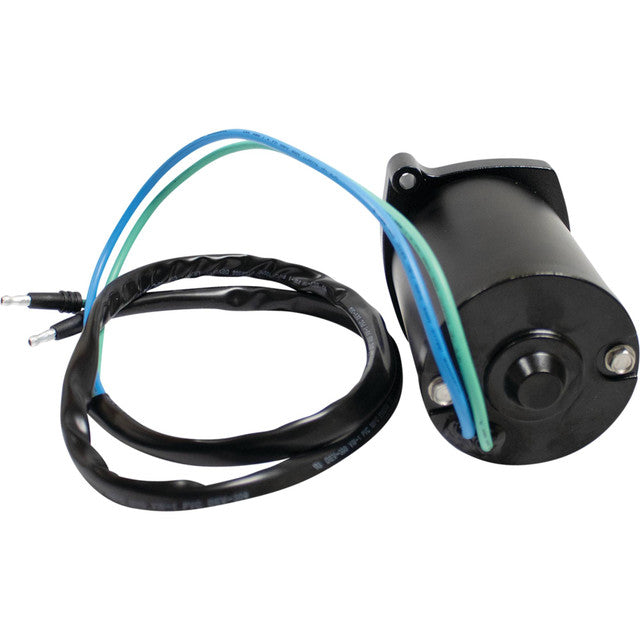

Tilt Trim Motor Mercury Mariner 135-250HP 828708 878265A1 8M0031551 12V 2-Wire
10826N
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon

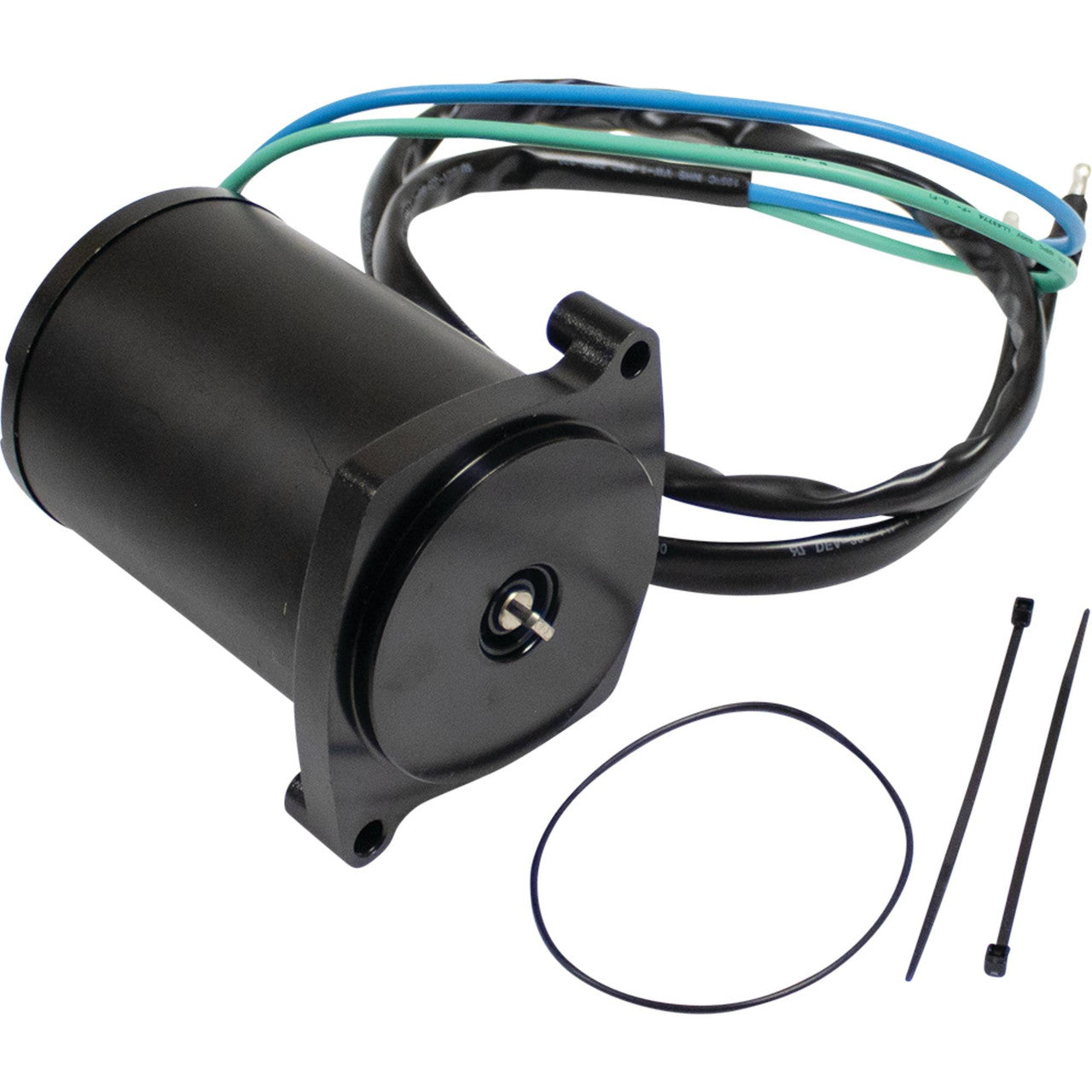

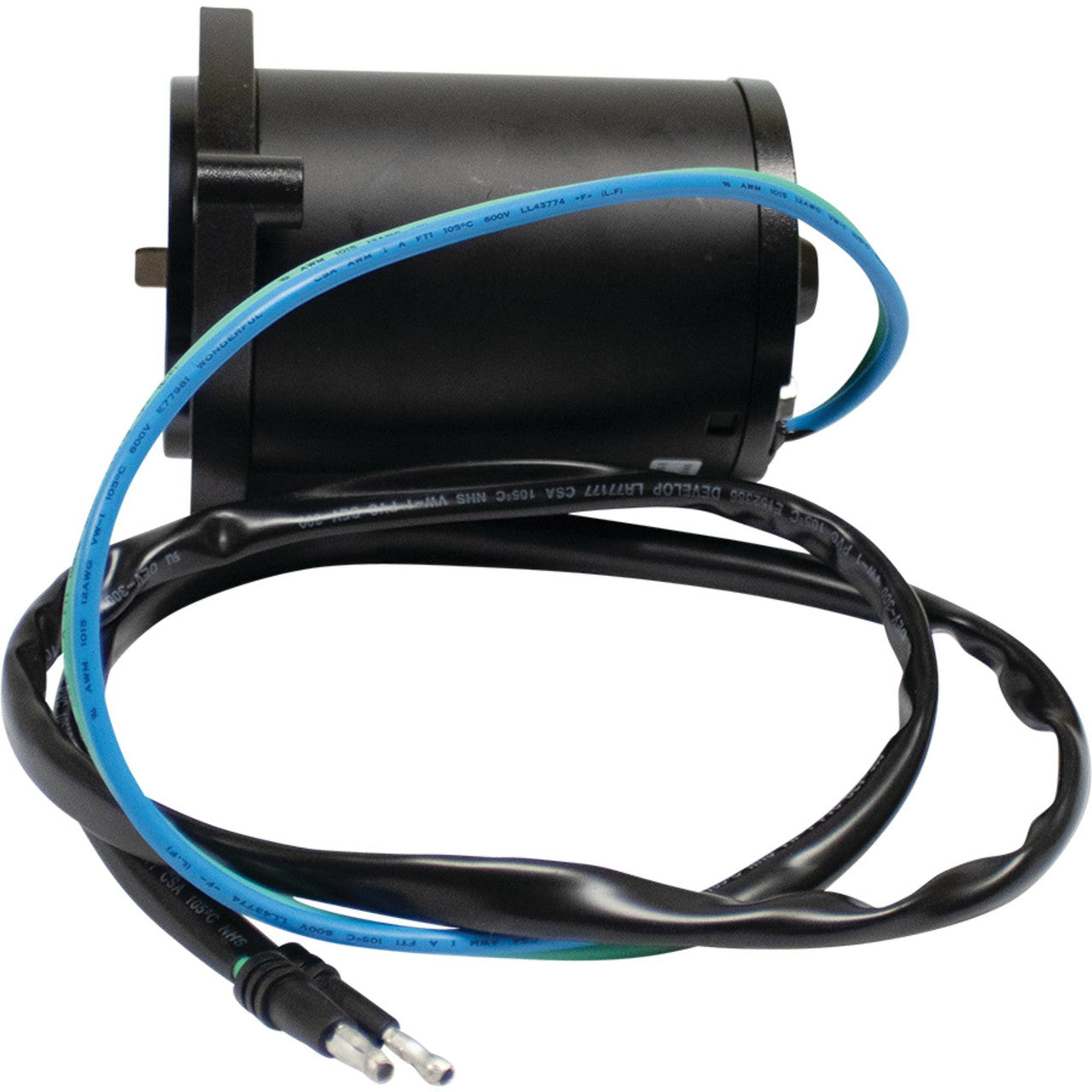

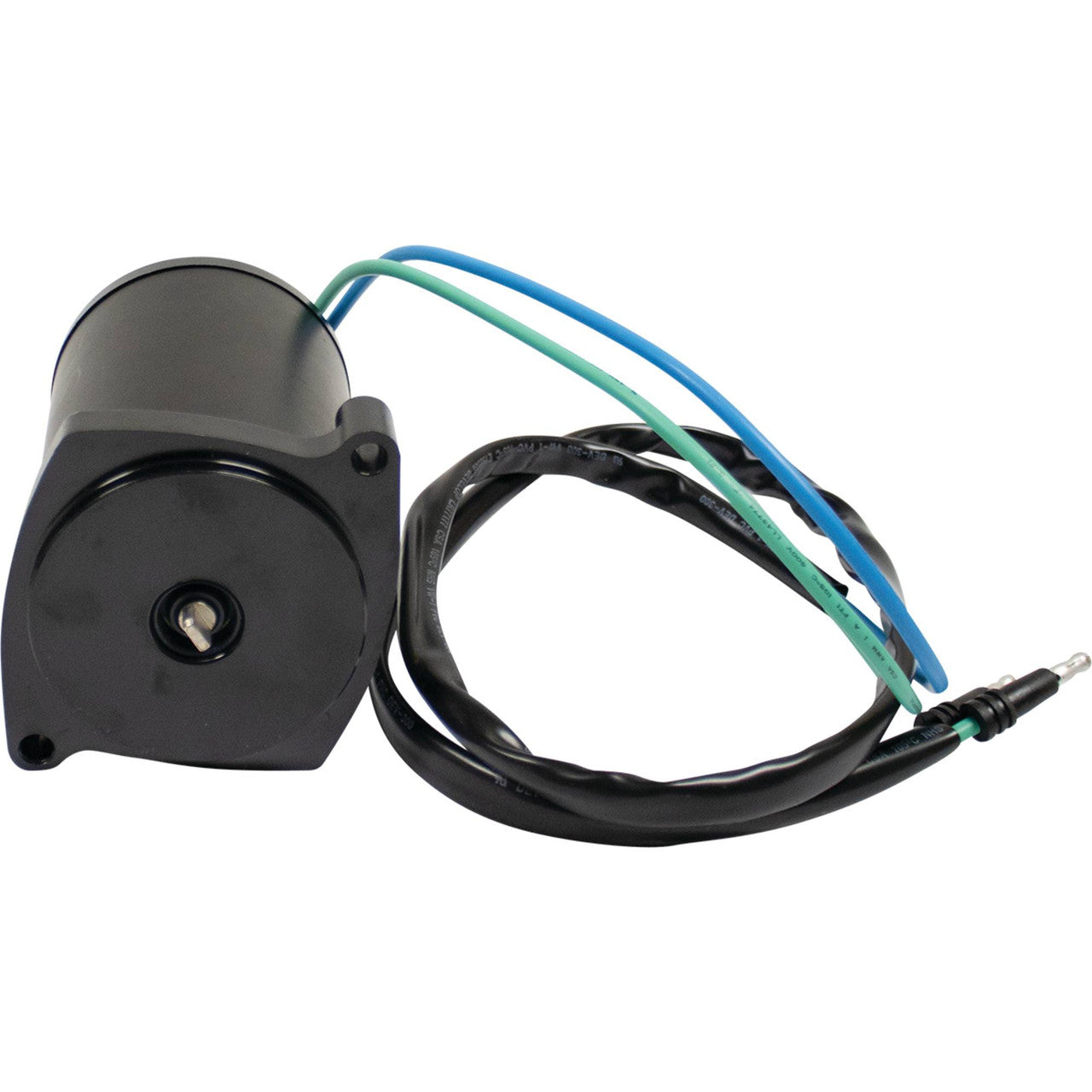

Tilt Trim Motor | Mercury 135-250HP
Premium Replacement Part: 828708 & 878265A1
Restore the smooth operation of your outboard's hydraulic lift system with this high-performance tilt trim motor. Specifically engineered for late-model Mercury and Mariner V6 engines, this 2-wire reversing motor delivers the precise torque required for effortless engine positioning, ensuring optimal trim angles and easier trailering.
Key Features
- β Direct fit for 2-bolt mount systems
- β Marine-grade epoxy powder coating
- β Includes sealing O-ring
- β Reversible 12V operation
Technical Specs
| Voltage | 12V DC |
| Rotation | Reversible |
| Wire Count | 2-Wire |
| Shaft Type | Tanged / Flat Blade |
| OD | 75mm (2.95") |
| Overall Length | 124.7mm |
Compatibility / Fitment Guide
| Make | Application | Year Range |
|---|---|---|
| Mercury / Mariner | 135 HP V6 | 1995 & Up |
| Mercury / Mariner | 150 HP (incl. XR6 / Mag III) | 1995 & Up |
| Mercury / Mariner | 175 HP V6 | 1995 & Up |
| Mercury / Mariner | 200 HP V6 | 1995 & Up |
| Mercury / Mariner | 225 HP V6 | 1995 & Up |
| Mercury / Mariner | 250 HP V6 | 1995 & Up |
OEM Cross Reference
| Mercury / Quicksilver | 828708, 828708T, 878265A1, 878265A4, 8M0031551, 8M0060140, 8M0028763 |
| Sierra Marine | 18-6773 |
| Arco Marine | 6250 |
| Lester / Wilson | 10826 / 94-35-1019 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number matches any of these, it is a guaranteed fit.
Does this motor fit the older 3-wire systems?
No, this motor is specifically designed for 2-wire reversing systems. If your current setup uses 3 wires (Black, Green, Blue), this part is not a direct fit.
Note: Please verify your engine serial number or original part number against the references above before purchasing. Distributed by 4boats.co.uk.
