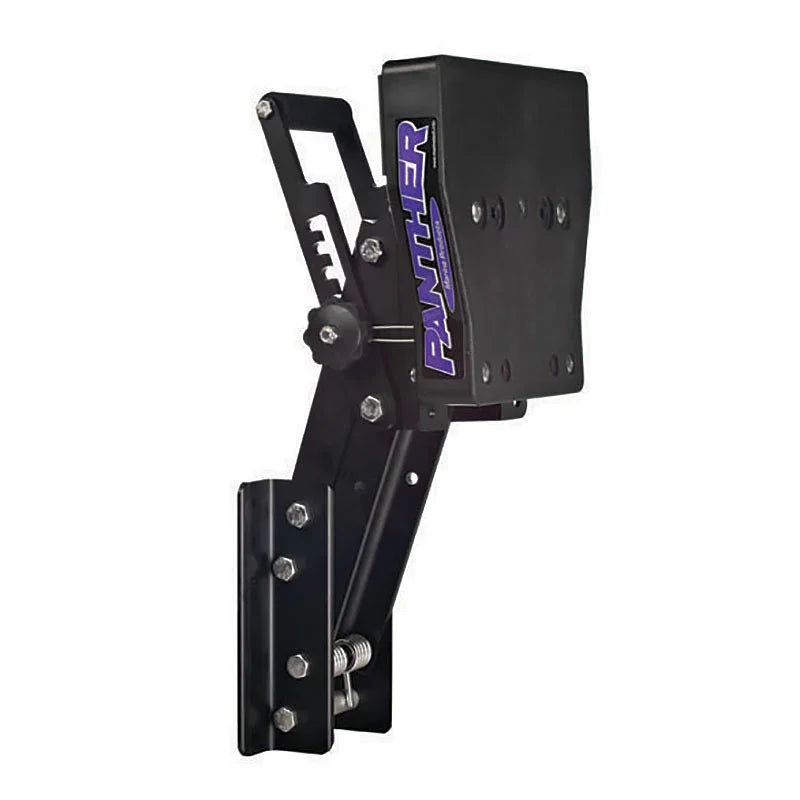

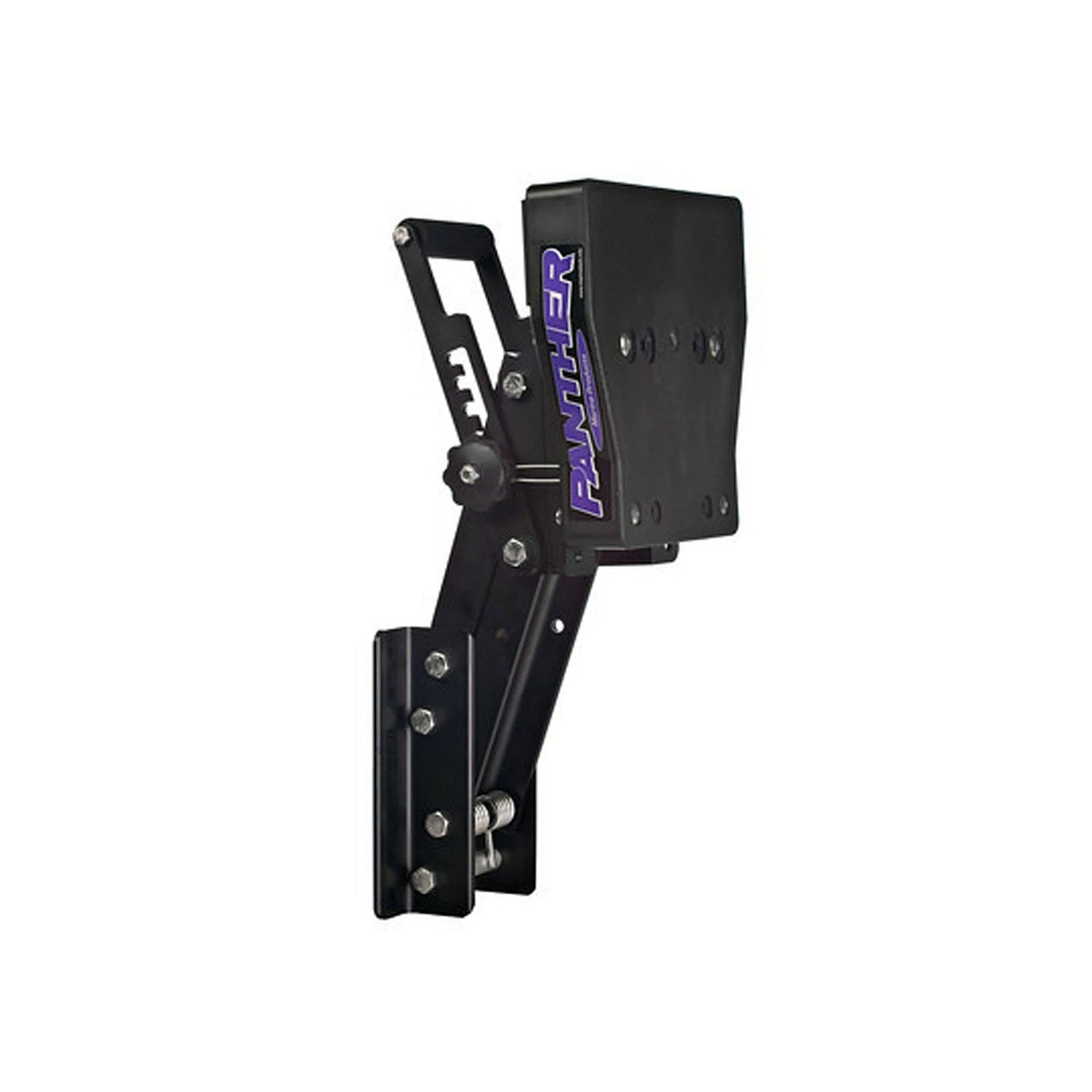

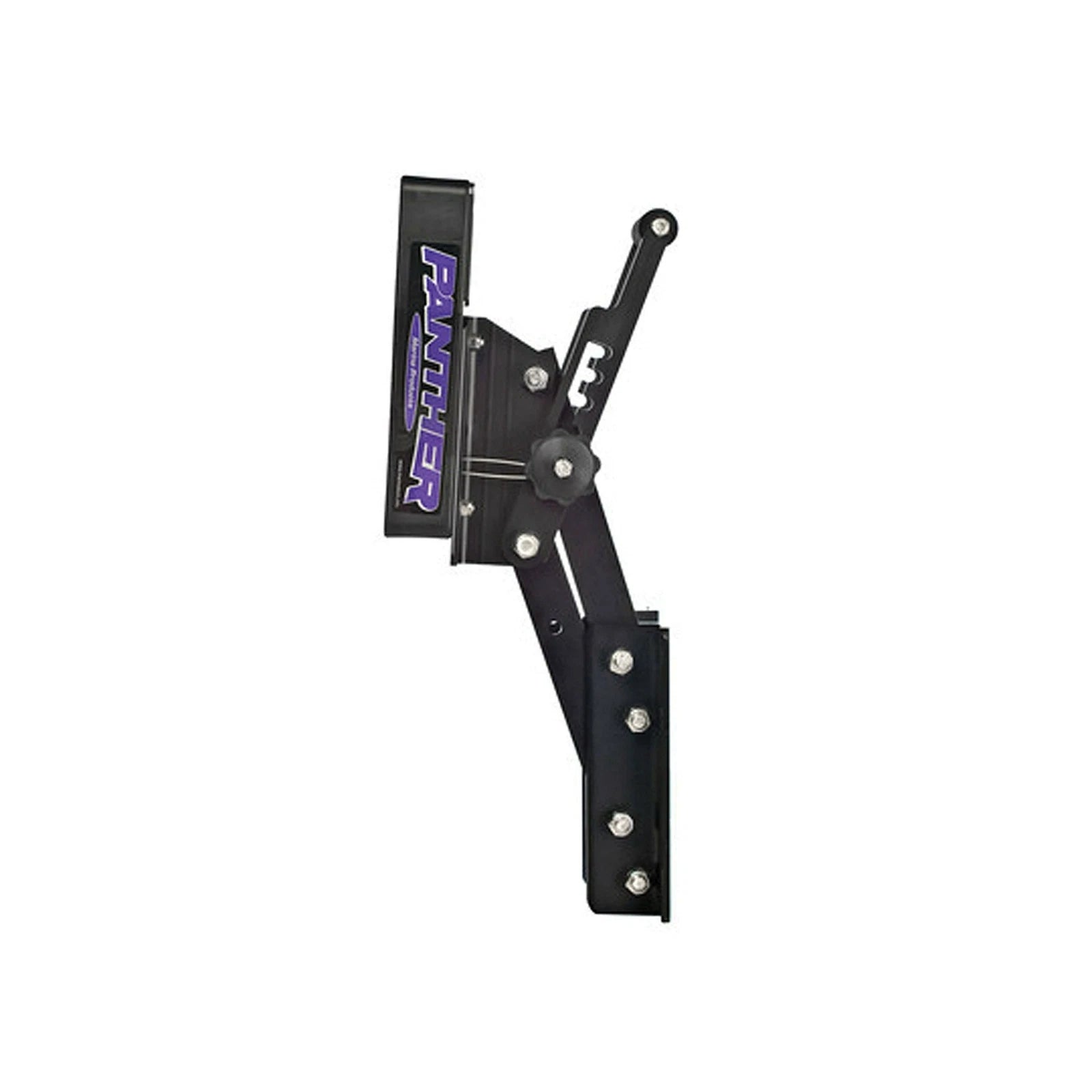

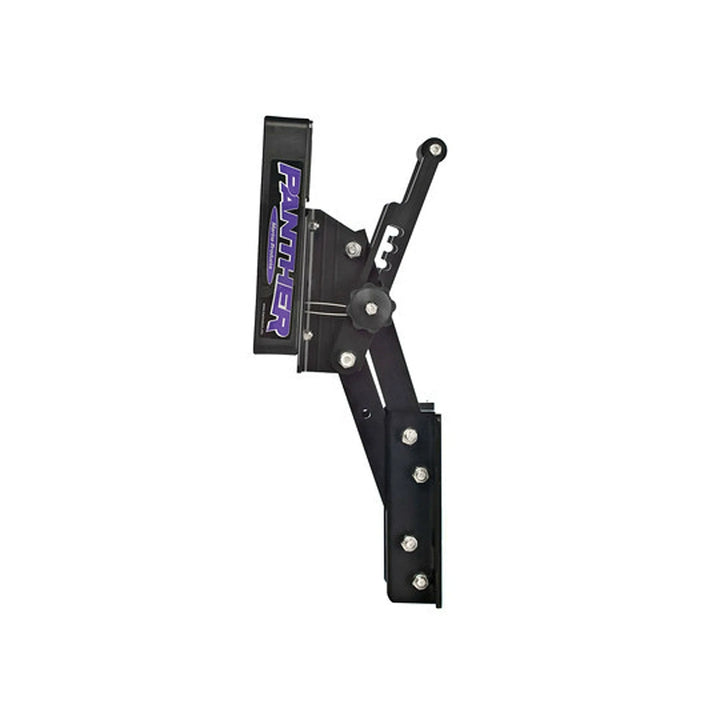

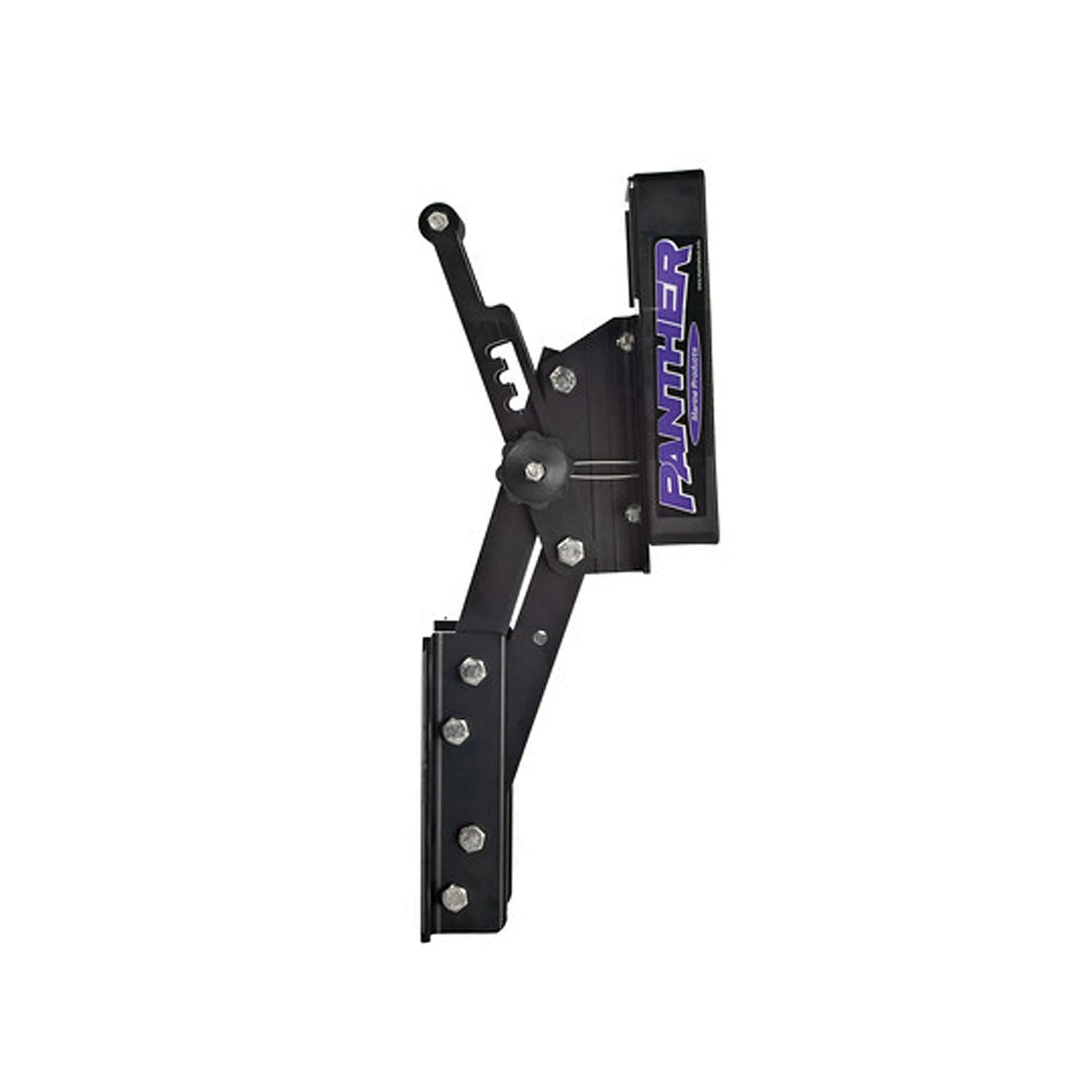

Panther 55-0410 Engine Bracket

Heavy-Duty 4-Stroke Rated Auxiliary Mount - 35HP Capacity

The Panther 55-0410 is a premium-grade adjustable outboard motor bracket specifically engineered to handle the increased weight and torque of modern 4-stroke auxiliary engines. Constructed from high-strength hard-coat black anodized aluminum, this bracket provides a stable and secure mounting solution for kicker motors up to 35 HP.

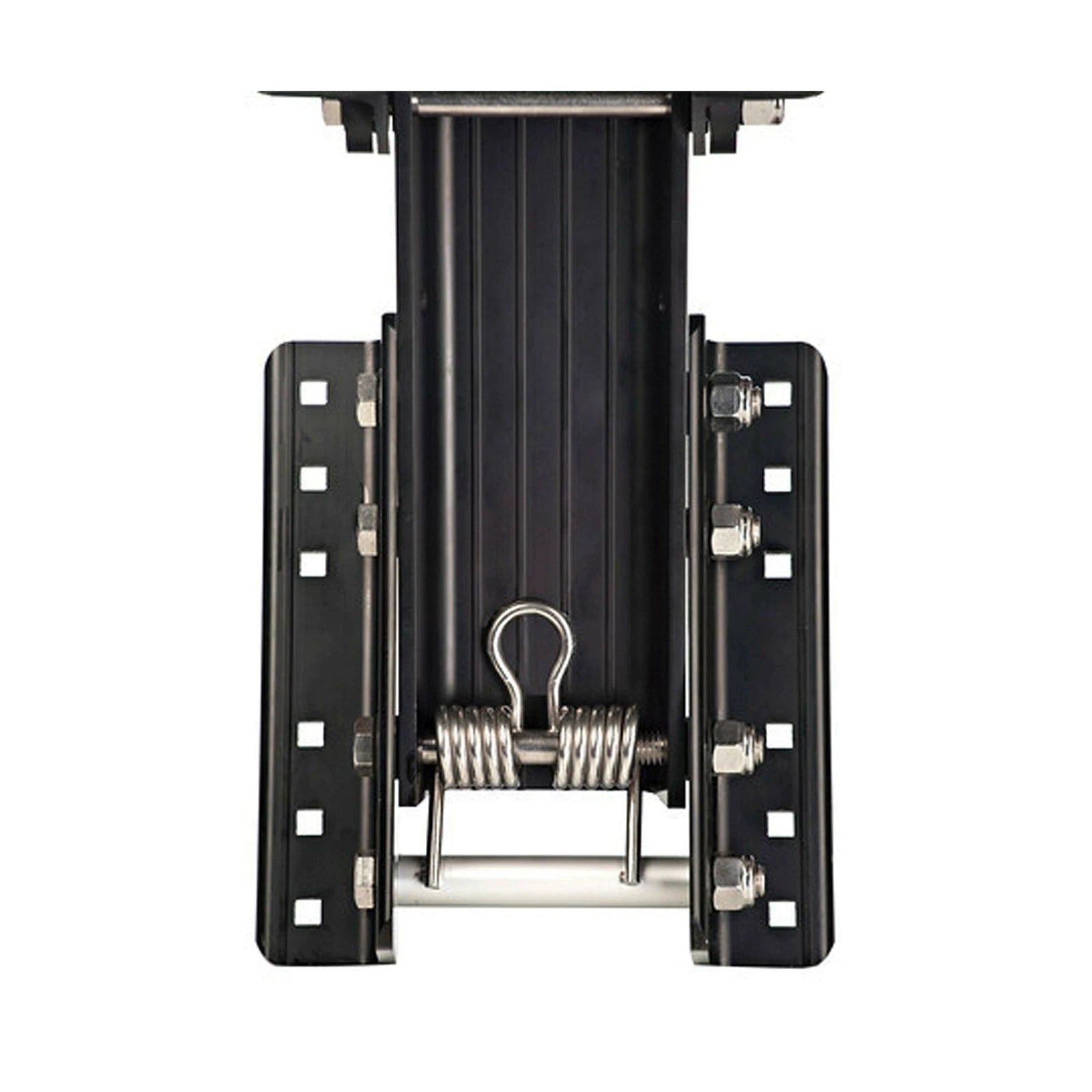

RELIABILITY: Built with heavy-duty stainless steel torsion springs to counterbalance motor weight, making vertical adjustments effortless even with heavy 4-stroke outboards.

Key Features

  • ✔ 5-Position vertical locking mechanism
  • ✔ Hard-coat black anodized aluminum finish
  • ✔ 2" thick extra-wide polypropylene board
  • ✔ Aircraft-type stainless steel hardware
  • ✔ Includes 55-0415 safety cable

Technical Specs

Max HP Rating: 35 HP
Max Motor Weight: 263 lbs (120 kg)
Vertical Travel: 10 Inches
Setback (Up): 8.75 Inches
Setback (Down): 14 Inches
Board Dimensions: 11.5" x 12"

Compatibility / Fitment Guide

Engine Type Max Capacity Application Notes
4-Stroke Outboard Up to 35 HP Designed for modern high-torque auxiliary motors.
2-Stroke Outboard Up to 35 HP Universal fit for standard transom-mount clamps.
Shaft Length Short or Long Adjustable positions allow for fine-tuning prop depth.

Reference Information

Manufacturer Panther Marine Products
MPN / SKU 55-0410 (550410)
Certification Meets ABYC Standards

Questions & Answers

Is this a genuine original part?

Yes, this is an authentic Panther Marine product, engineered to the highest marine standards for auxiliary engine mounting.

How do I know if it is compatible?

This bracket is compatible with any outboard motor up to 35HP and 263lbs that uses a standard transom-style screw clamp mount. Verify your engine weight before purchase.

Can the springs be adjusted or replaced?

The heavy-duty torsion springs are factory-set to counterbalance the weight of 4-stroke motors. For safety reasons, you should not attempt to remove or replace the springs manually.

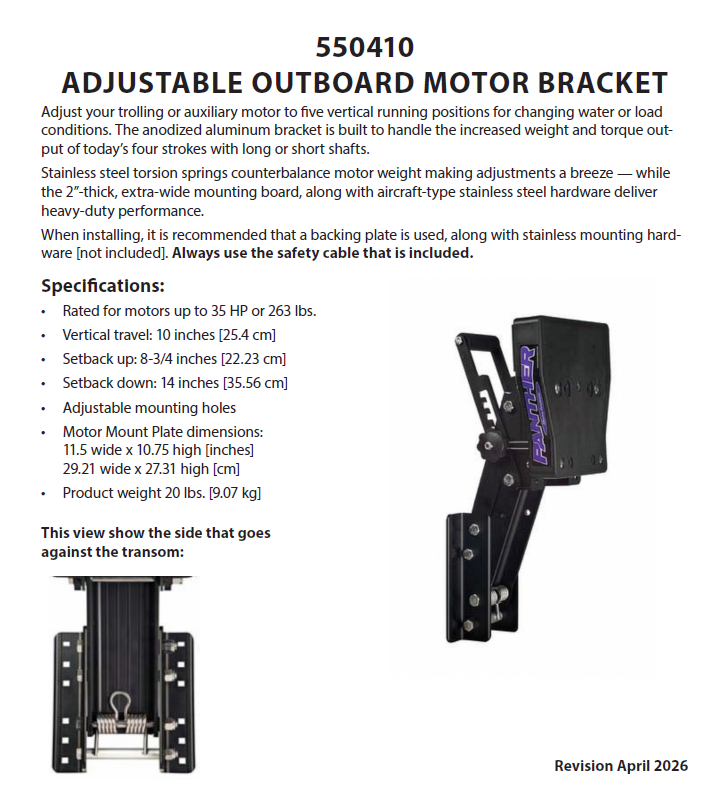

Owner Manual

Note: Always use the included safety cable (55-0415) during operation to comply with safety standards at 4boats.co.uk.
