Panther 55-0416 Auxiliary Outboard Motor Bracket 4-Stroke 35HP 263lb 16" Travel
550416s
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 1 item left
- Backordered, shipping soon

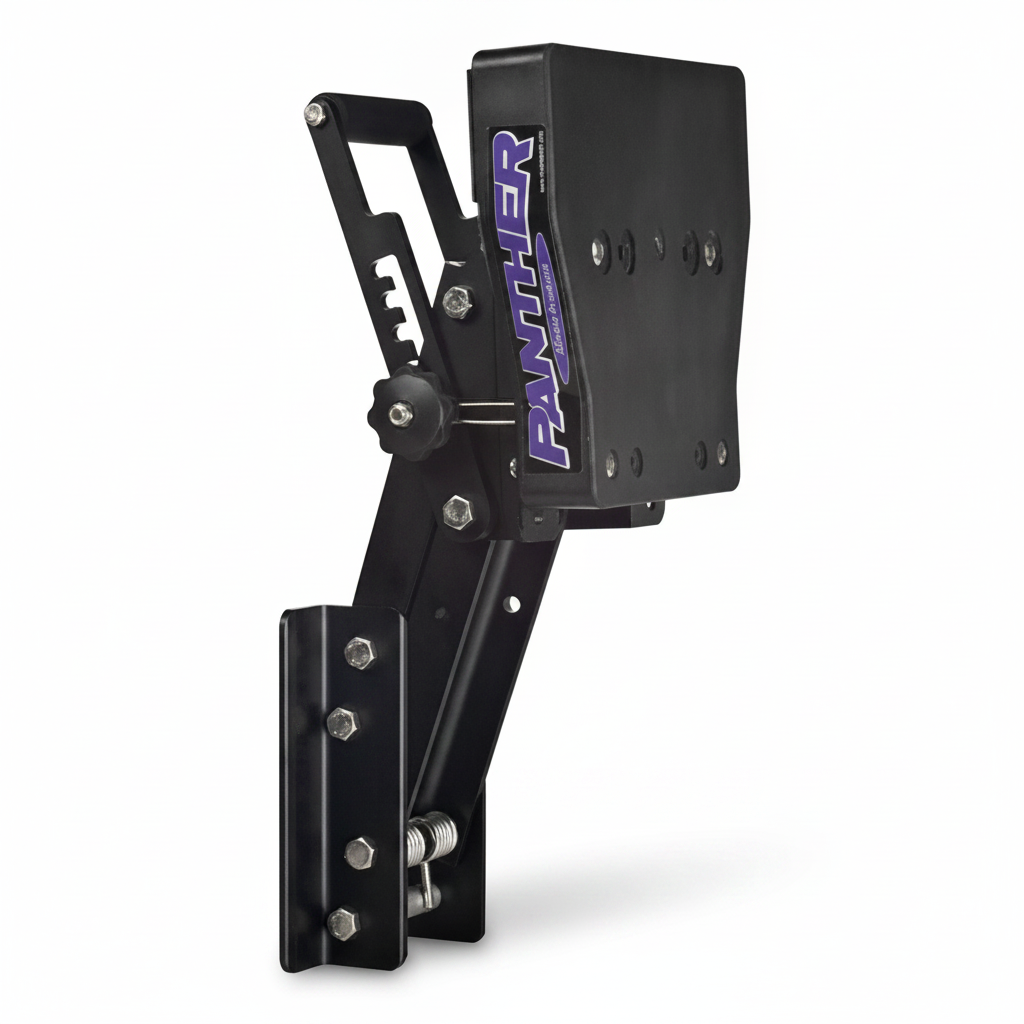

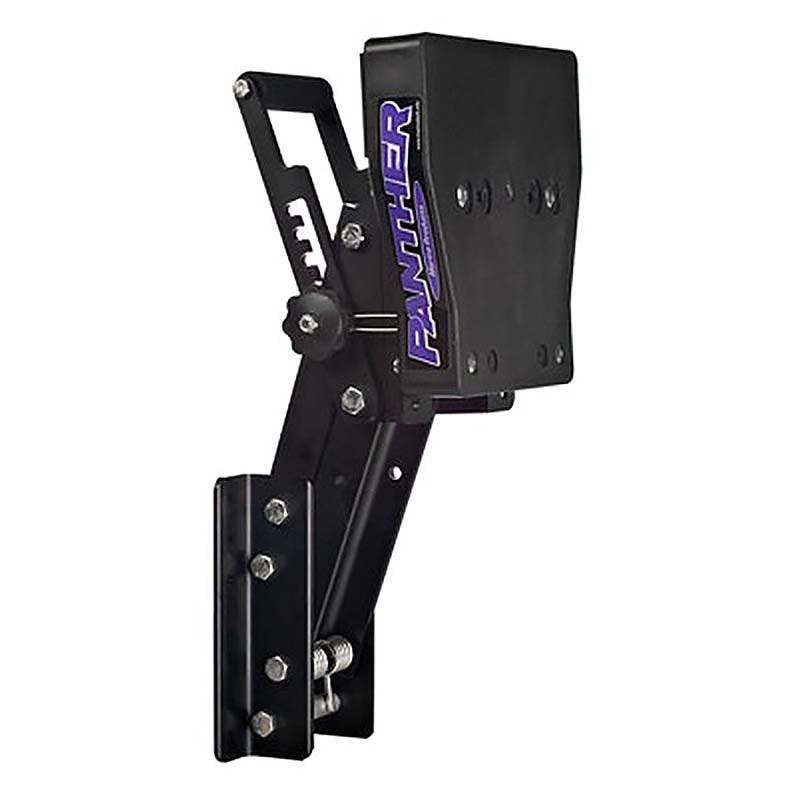

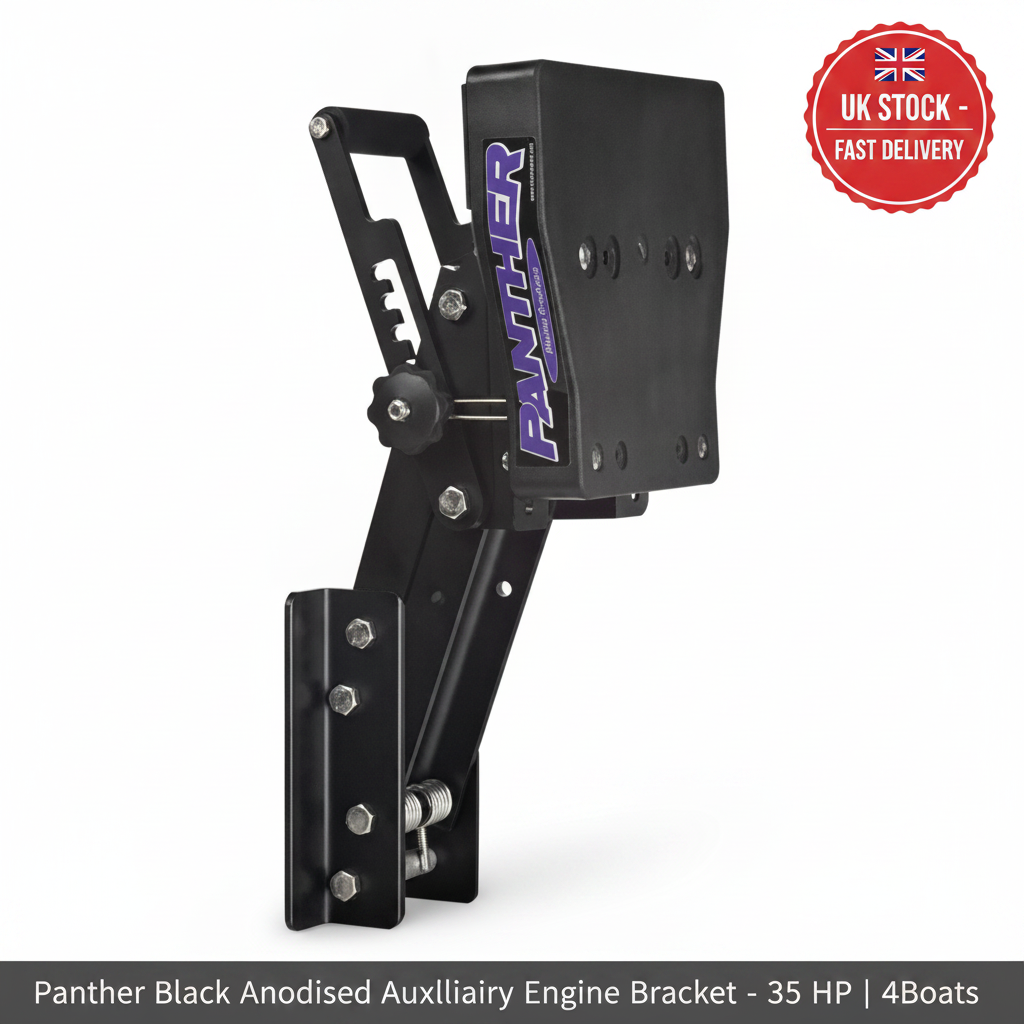

Panther 55-0416 Motor Bracket
Heavy-Duty 4-Stroke Auxiliary Support (Up to 35HP)
The Panther 55-0416 is a premium black anodised auxiliary engine bracket specifically engineered to handle the increased weight and high-torque output of modern 4-stroke outboard motors. Designed for durability and ease of use, this bracket is the ideal solution for mounting kicker or trolling motors on sailboats, fishing boats, and cruisers.

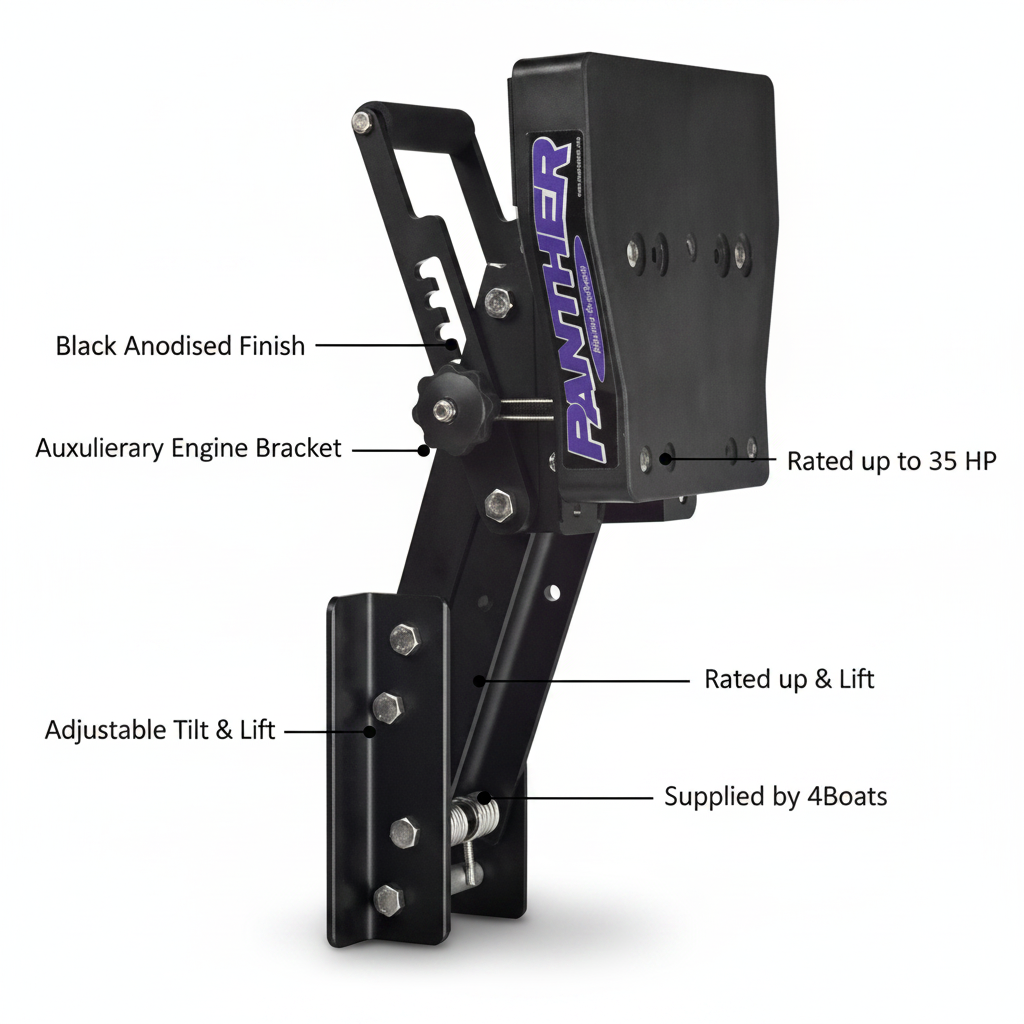

Key Features
- ✔ 4 Vertical Positions: Adjust height easily for changing water or load conditions.
- ✔ Torsion Springs: Integrated stainless steel springs counterbalance motor weight for effortless lifting.
- ✔ 2" Thick Mounting Board: Extra-wide, weather-resistant board provides a secure grip for motor clamps.
- ✔ Safety First: Includes a mandatory Panther safety cable for secure operation.
Technical Specs
| Max Horsepower | 35 HP (4-Stroke) |
| Max Weight Capacity | 263 lbs (119 kg) |
| Vertical Travel | 16 inches (40.64 cm) |
| Setback (Up) | 8-3/4 inches |
| Setback (Down) | 18 inches |
| Mounting Plate Size | 11.5" W x 12.5" H |
Compatibility / Fitment Guide
| Engine Type | Specifications | Notes |
|---|---|---|
| 4-Stroke Outboards | Up to 35HP / 263 lbs | Specifically reinforced for 4-stroke torque. |
| 2-Stroke Outboards | Within weight/HP limits | Universal fit for auxiliary kicker motors. |
| Shaft Lengths | Long or Short Shaft | 16" travel accommodates varying transom heights. |
OEM Cross Reference
| Panther Part Number | 55-0416 |
| CMP Group SKU | 550416 |
| MarineTech SKU | MT-550416 |
Questions & Answers
Is this a genuine original part?
This is a genuine Panther Marine product, part of the CMP Group of brands, known for professional-grade outboard motor accessories.
How do I know if it is compatible?
Check your motor's weight and HP rating. If it is 35HP or less and weighs under 263 lbs, this bracket is a compatible heavy-duty solution.
Can I leave the motor on the bracket while trailering?
No. Per the manufacturer's guidelines, you should always remove the motor from the bracket when trailering to prevent damage to the boat, motor, or bracket.
Note: Always use the included safety cable (55-0415) during operation. Performance data provided by 4boats.co.uk based on technical research.
