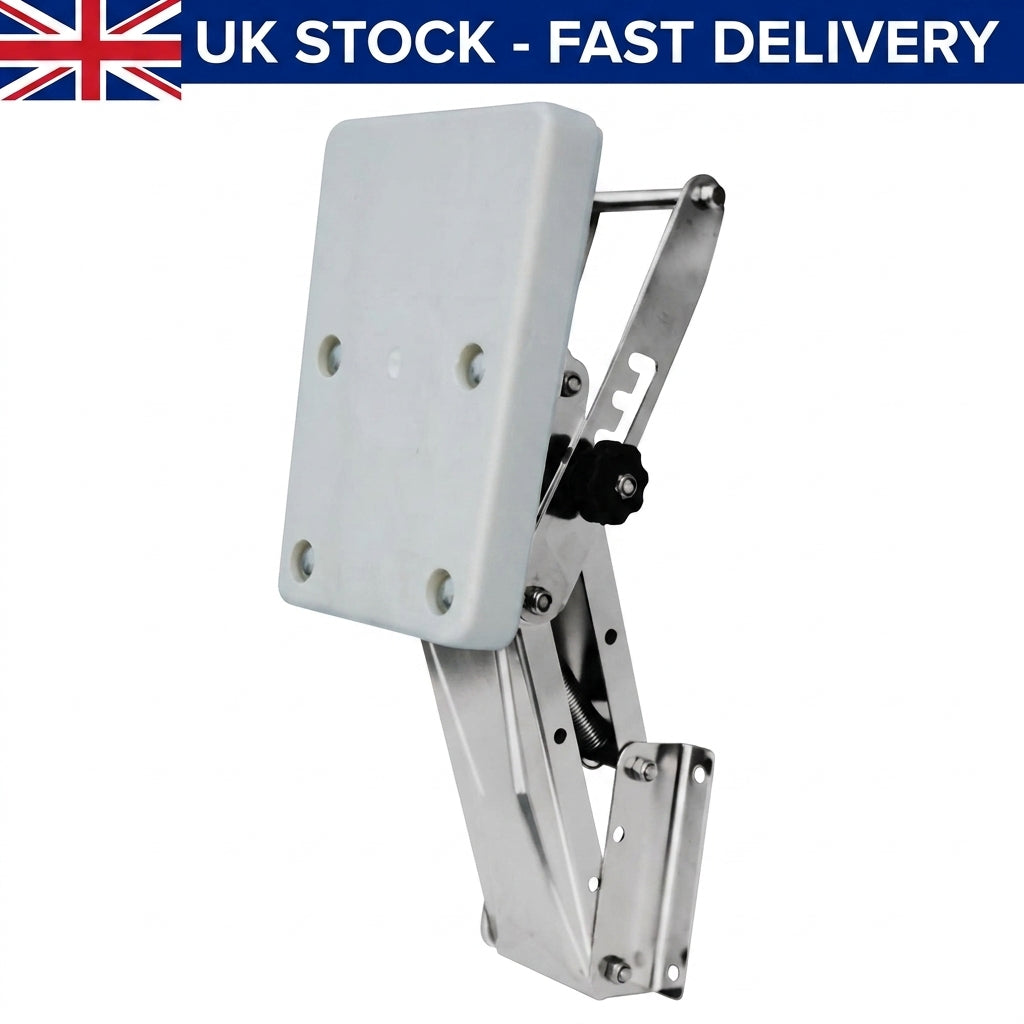

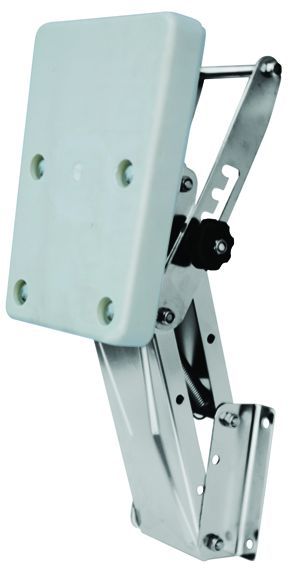

Outboard Motor Bracket Stainless Steel 316 Adjustable Aux Engine Mount Pad 40kg
WL-01004
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon
Outboard Engine Bracket (S/S) 40kg Capacity
Marine Grade AISI 316 Stainless Steel & Polypropylene Pad
This heavy-duty adjustable outboard motor bracket is designed for the secure mounting of auxiliary engines on cruisers, sailing yachts, and powerboats. Engineered from mirror-polished AISI 316 stainless steel, it provides superior corrosion resistance in harsh saltwater environments compared to standard aluminium alternatives.

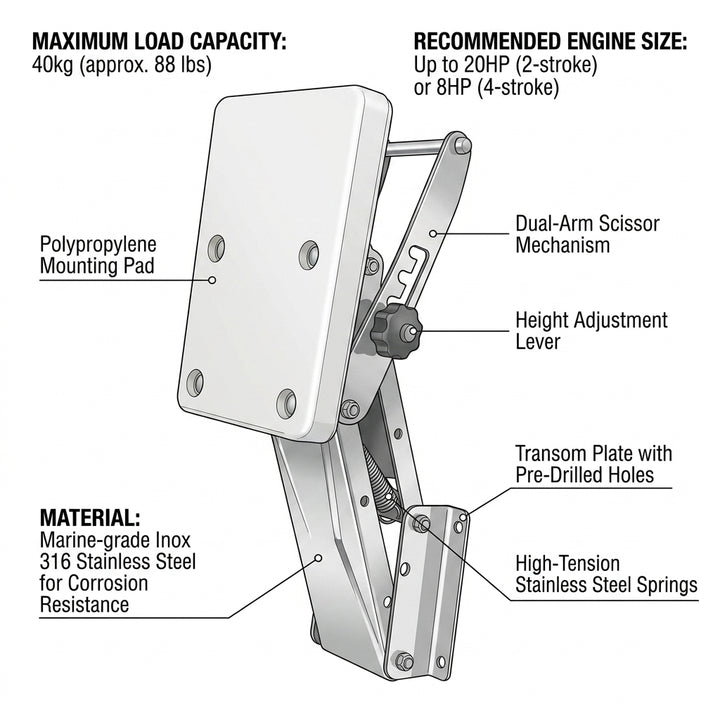

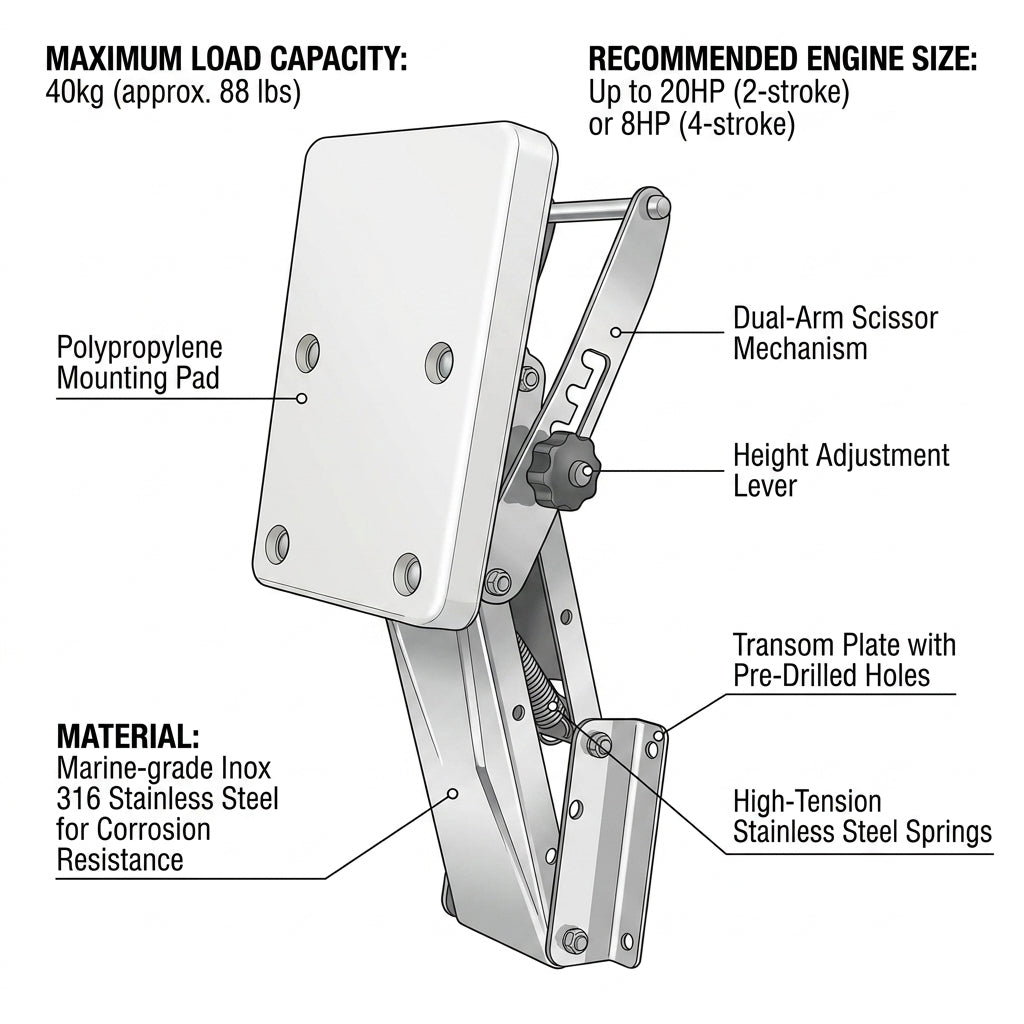

Key Features
- β 316 Stainless Steel: Maximum rust protection.
- β Spring-Assisted: Easy vertical adjustment.
- β Polypropylene Pad: Weatherproof; won't rot or crack.
- β Multi-Position: 5 settings for optimal trim.

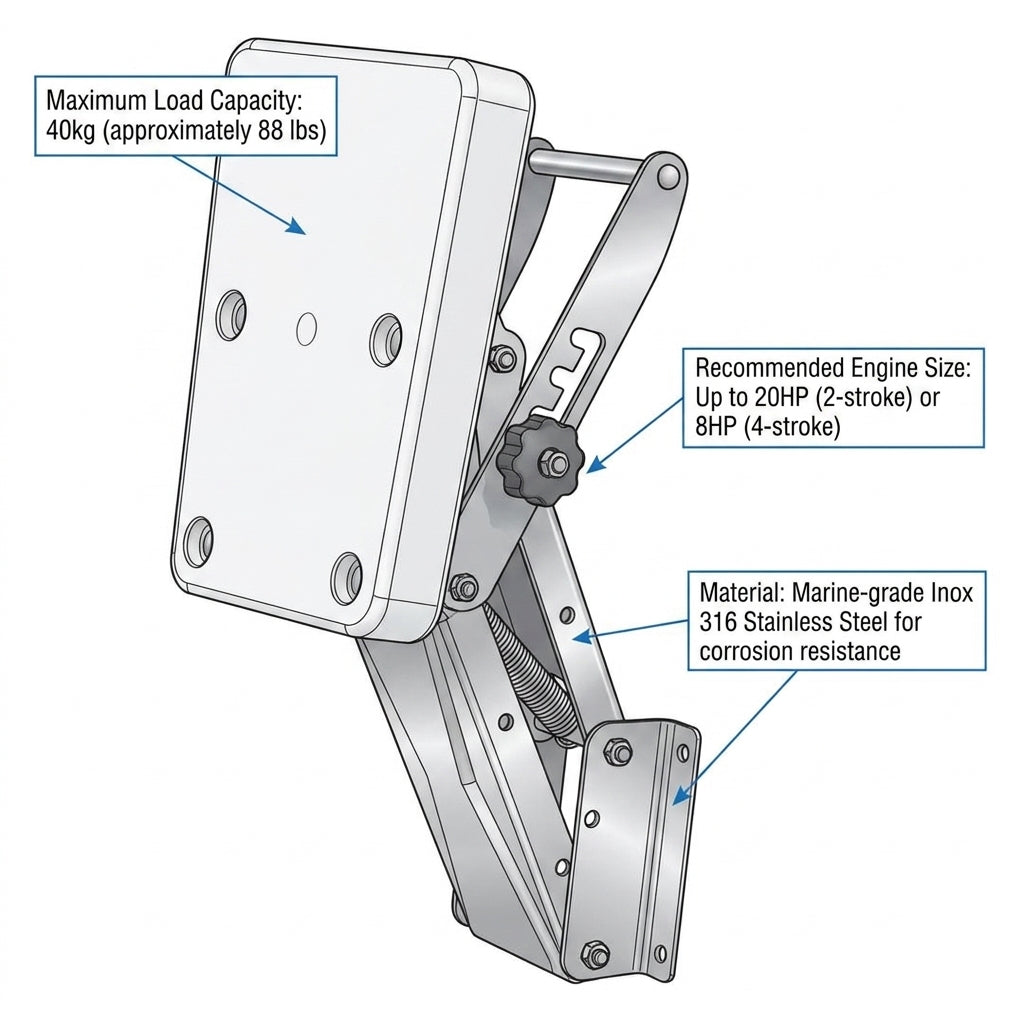

Technical Specs
| Max Weight: | 40kg (88lbs) |
| Max Power (2-Stroke): | Up to 20 HP |
| Max Power (4-Stroke): | Up to 8 HP |
| Vertical Travel: | Approx. 290mm |
| Pad Dimensions: | 265 x 210 x 45 mm |
| Mount Plate: | 190 x 200 mm |
Compatibility / Fitment Guide
| Engine Type | Recommended Use | Notes |
|---|---|---|
| Auxiliary Outboards | Emergency/Backup | Suits small/medium transoms |
| Long-Shaft Engines | Sailboats | Allows engine to be stowed high |
| Trolling Motors | Fishing/Lakes | Adjustable angle for trim |
OEM Cross Reference
| Osculati Ref: | 47.376.28 / 47.376.10 |
| TREM Ref: | O0810479 |
| Sowester Ref: | SOW6105 |
| Marathon/Midland: | WL-01003S / WL-01006 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance using high-grade AISI 316 stainless steel.
How do I know if it is compatible?
We recommend checking the weight of your outboard. This bracket is rated for a maximum of 40kg. If your engine is within this limit, the universal transom mount pattern will typically fit most flat-backed hulls.
Does it include mounting hardware?
Mounting bolts for the transom are typically not included as the required length varies by boat thickness. It is recommended to use 8mm A4 stainless steel bolts and large backing washers for installation.
Note: Please verify your engine weight and transom space against the dimensions above before purchasing. Distributed by 4boats.co.uk.
