Name: Multiflex H1N Non-Feedback Steering Helm for SC-16 Cable LM-H-101-NR
Brand: Multiflex
SKU: LM-H-101-NR
Price: 114.99 GBP
Availability: InStock

Multiflex H1N Non-Feedback Steering Helm for SC-16 Cable LM-H-101-NR

Dispatched in 2-3 days

30 Day Return Policy

Low stock - 3 items left
Backordered, shipping soon

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

£114.99

Tax included.

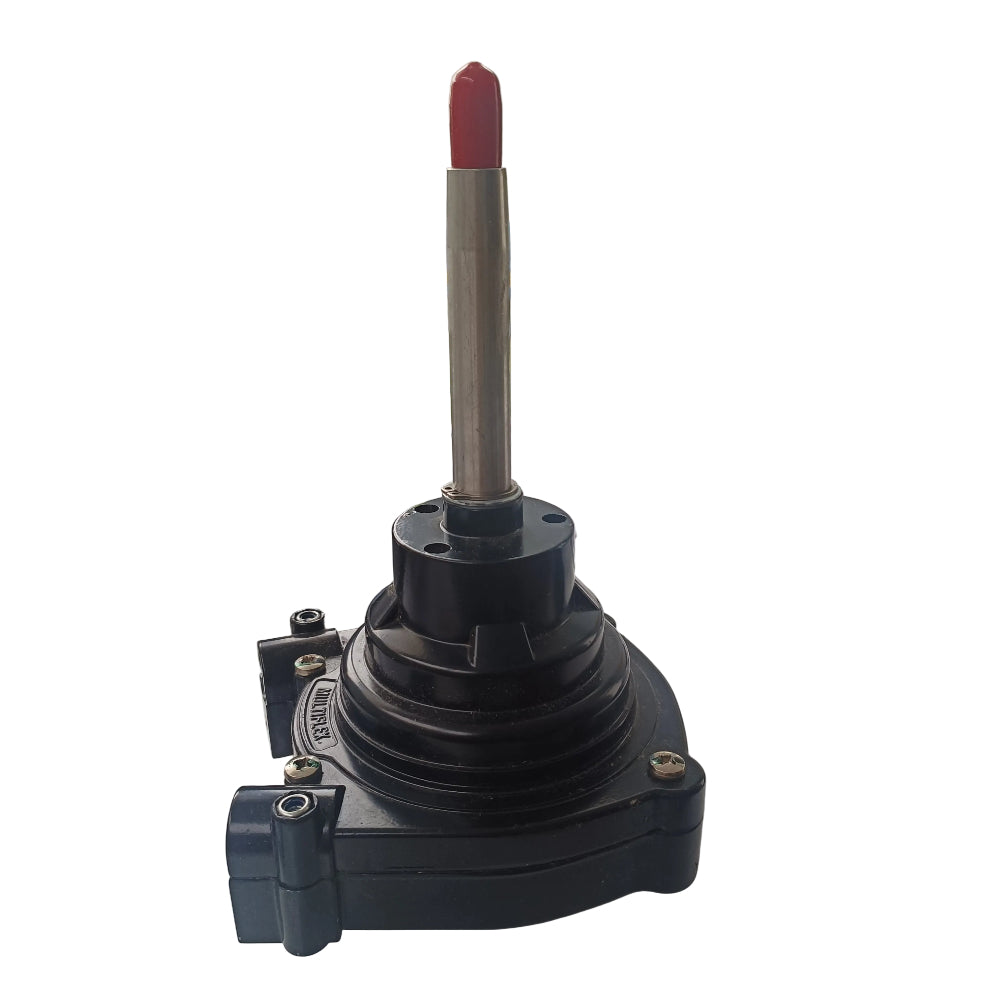

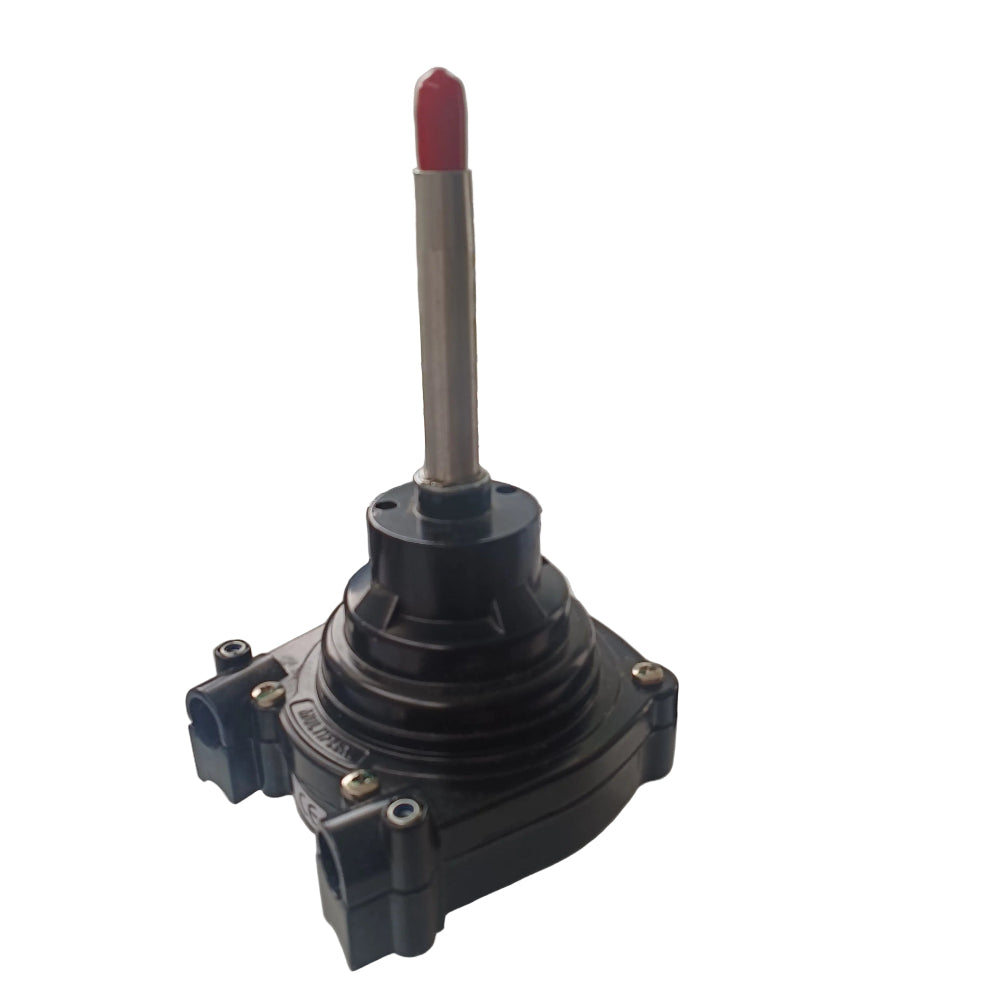

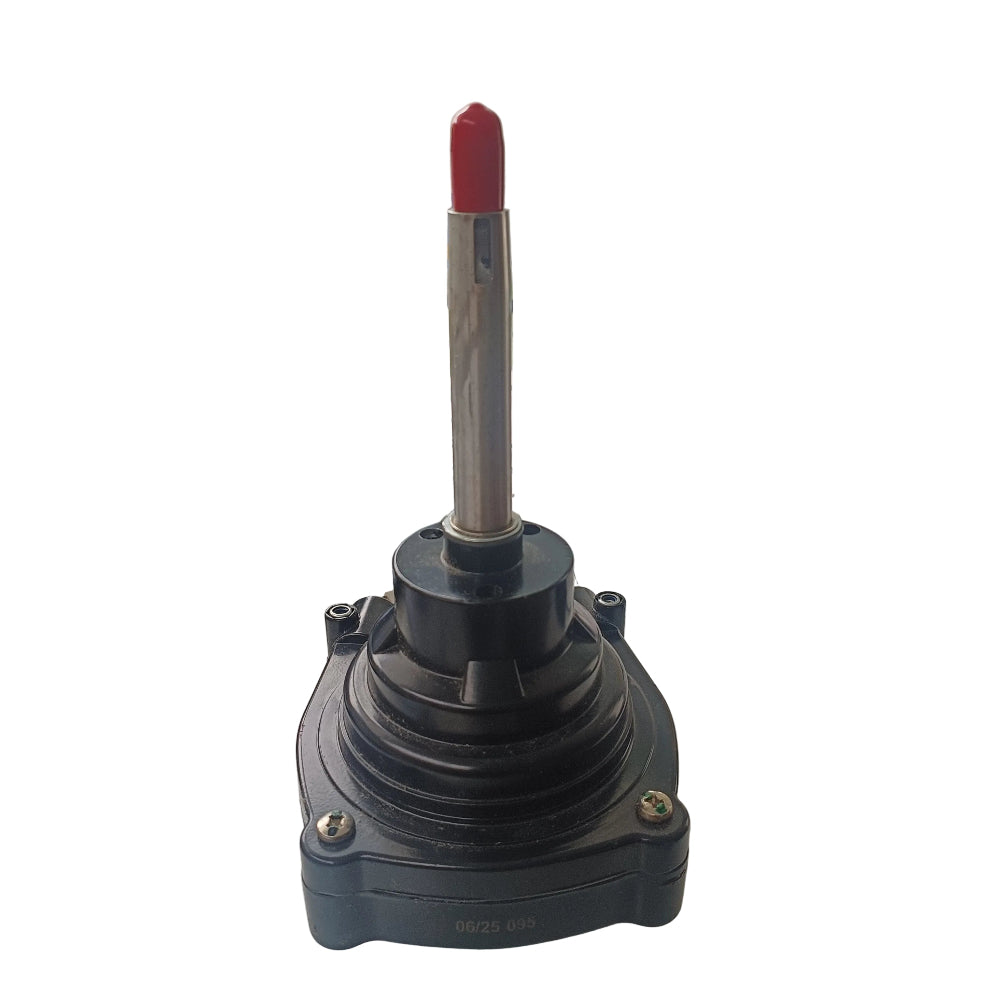

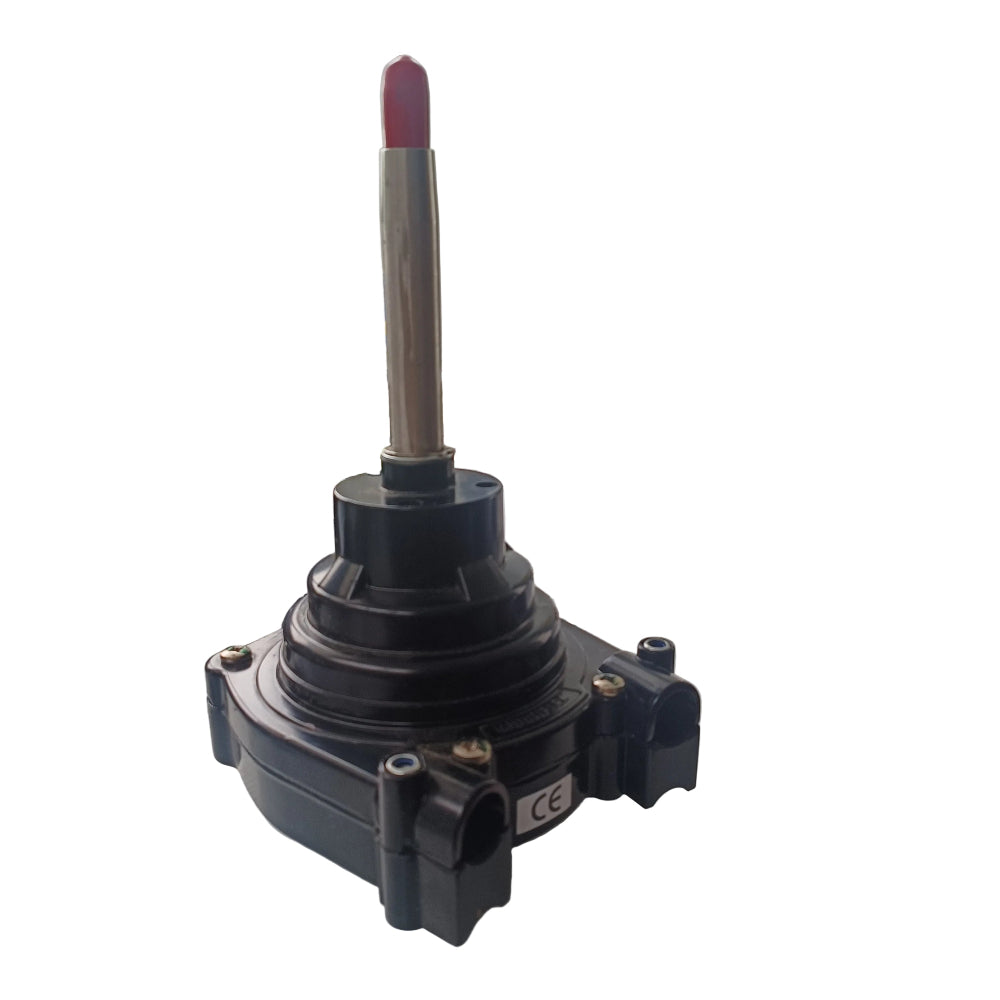

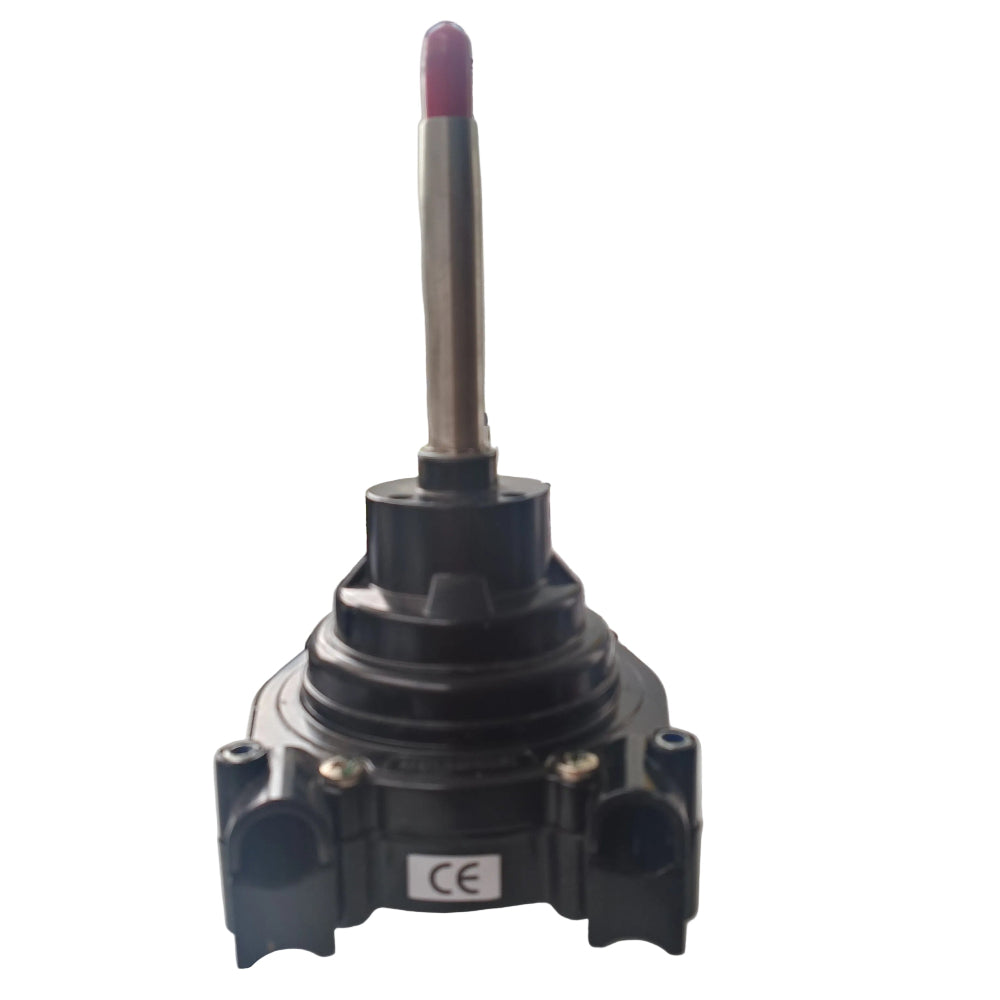

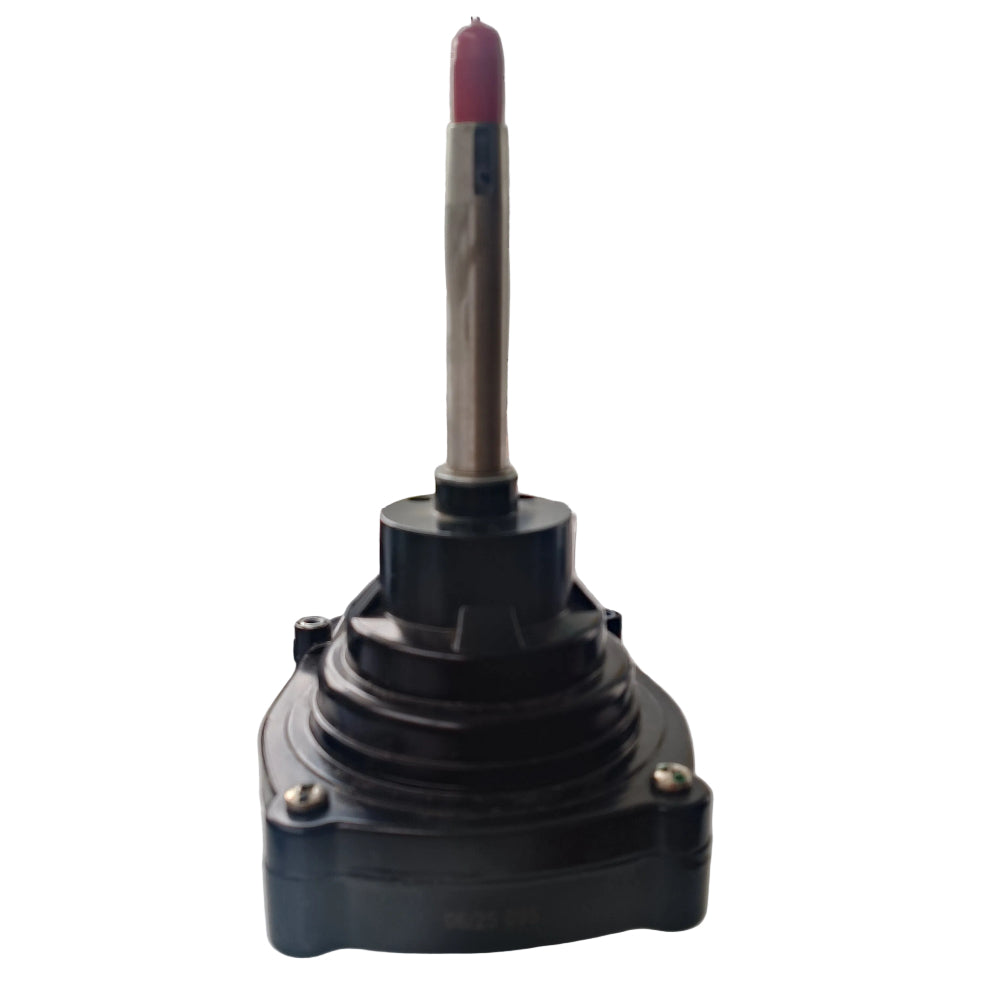

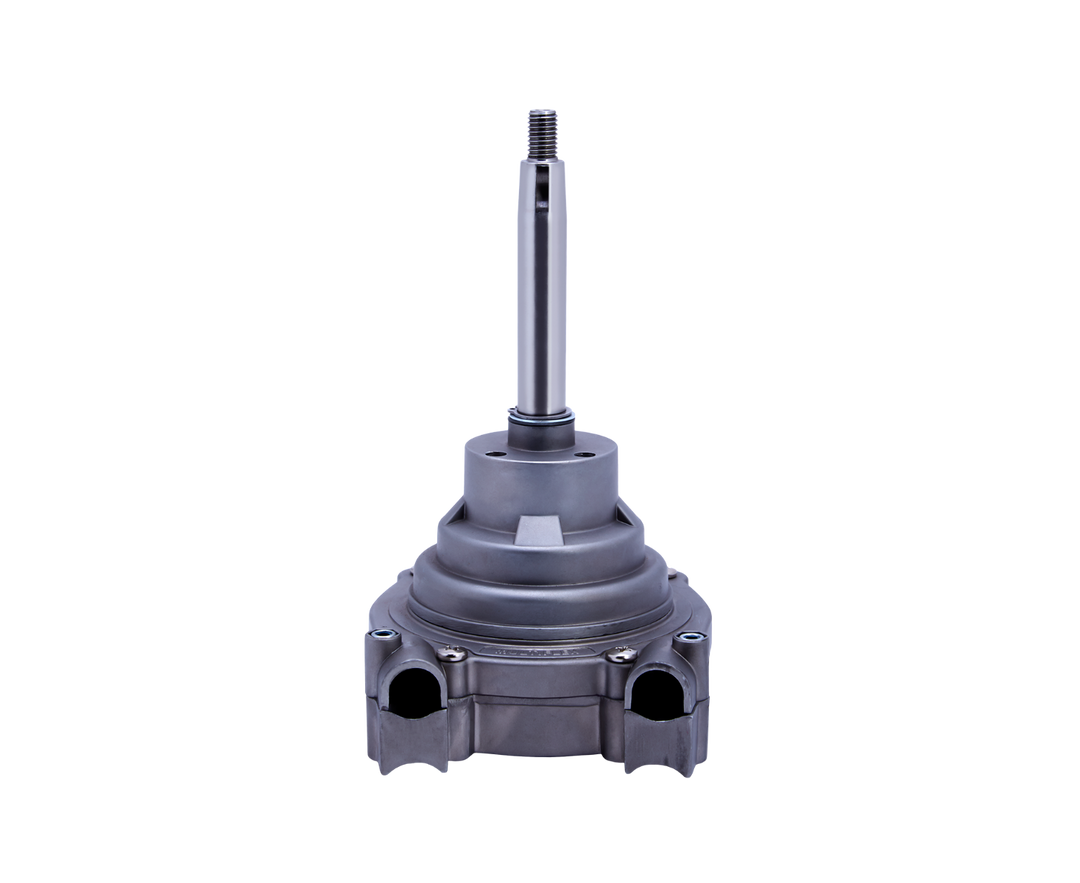

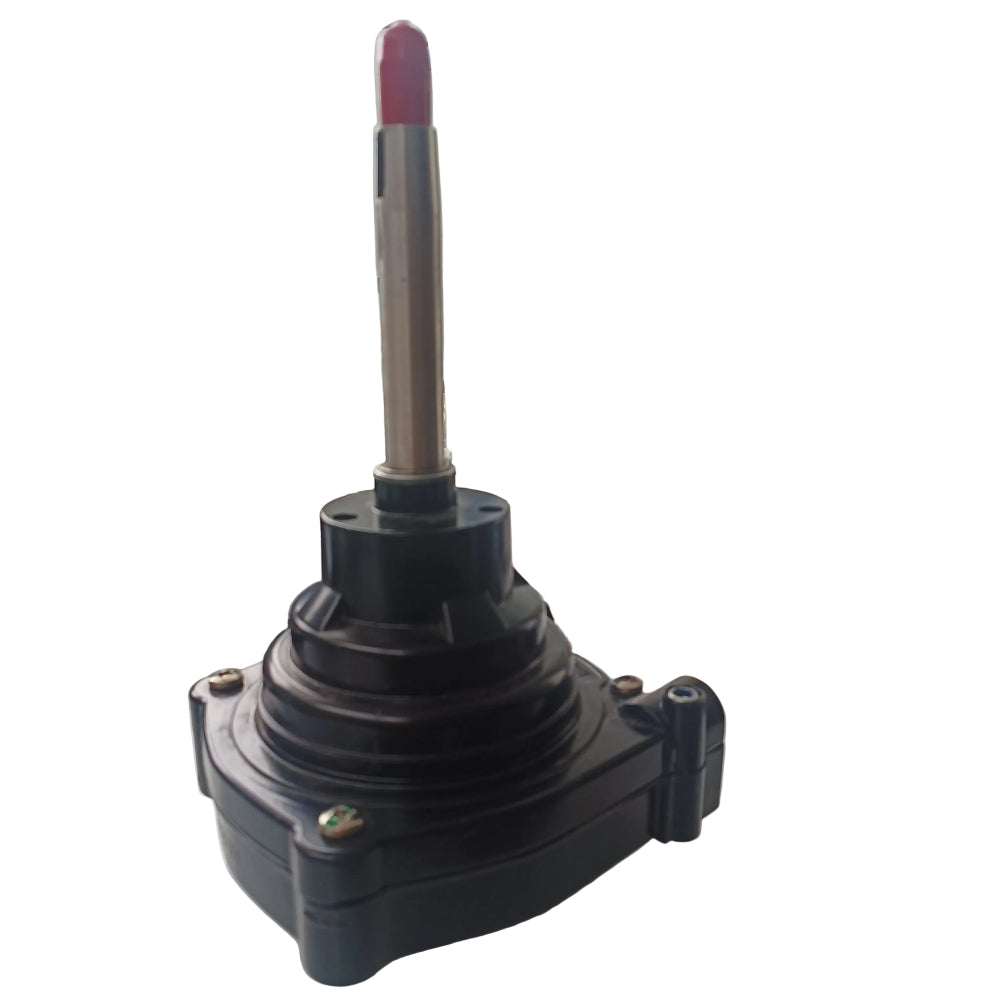

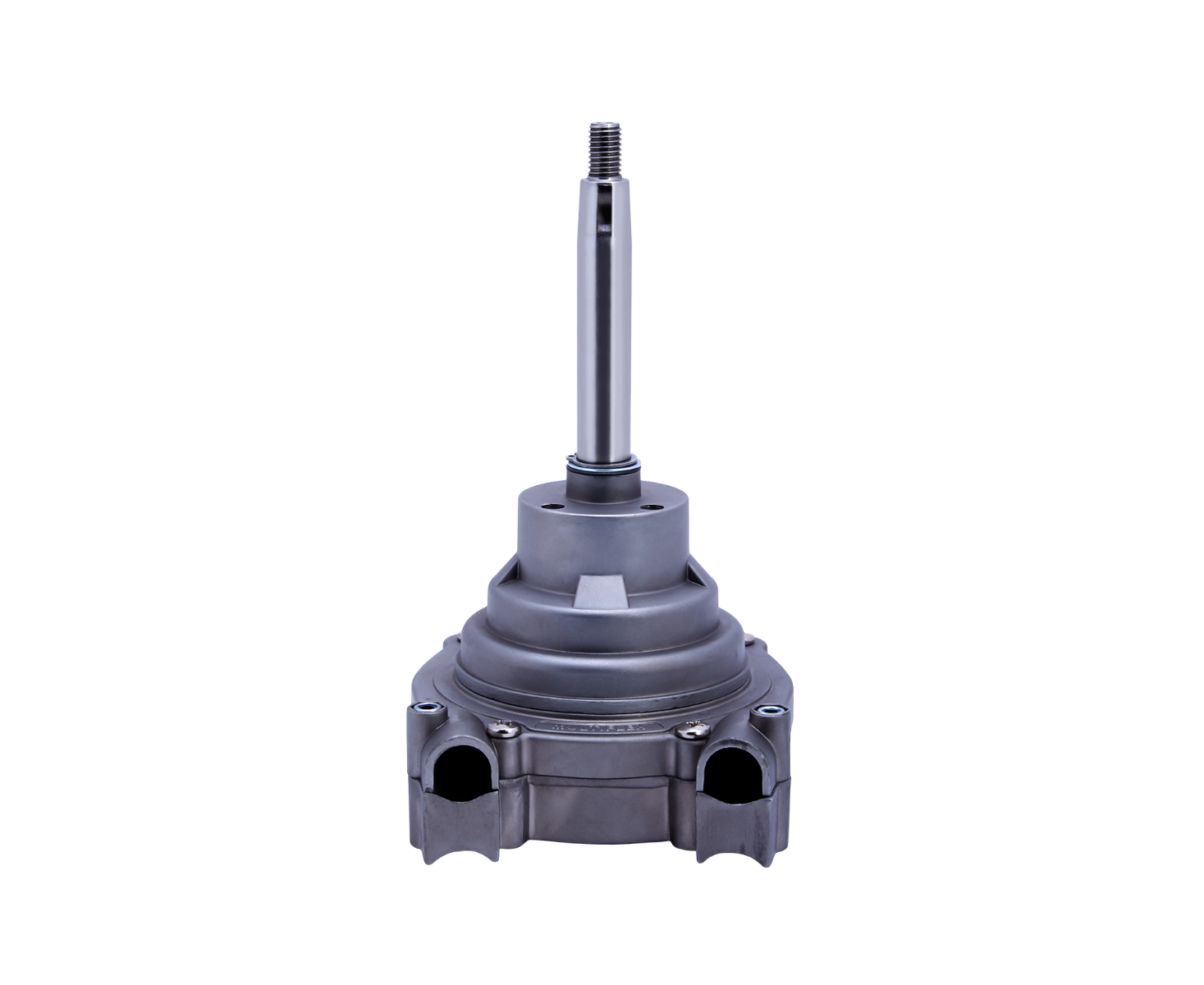

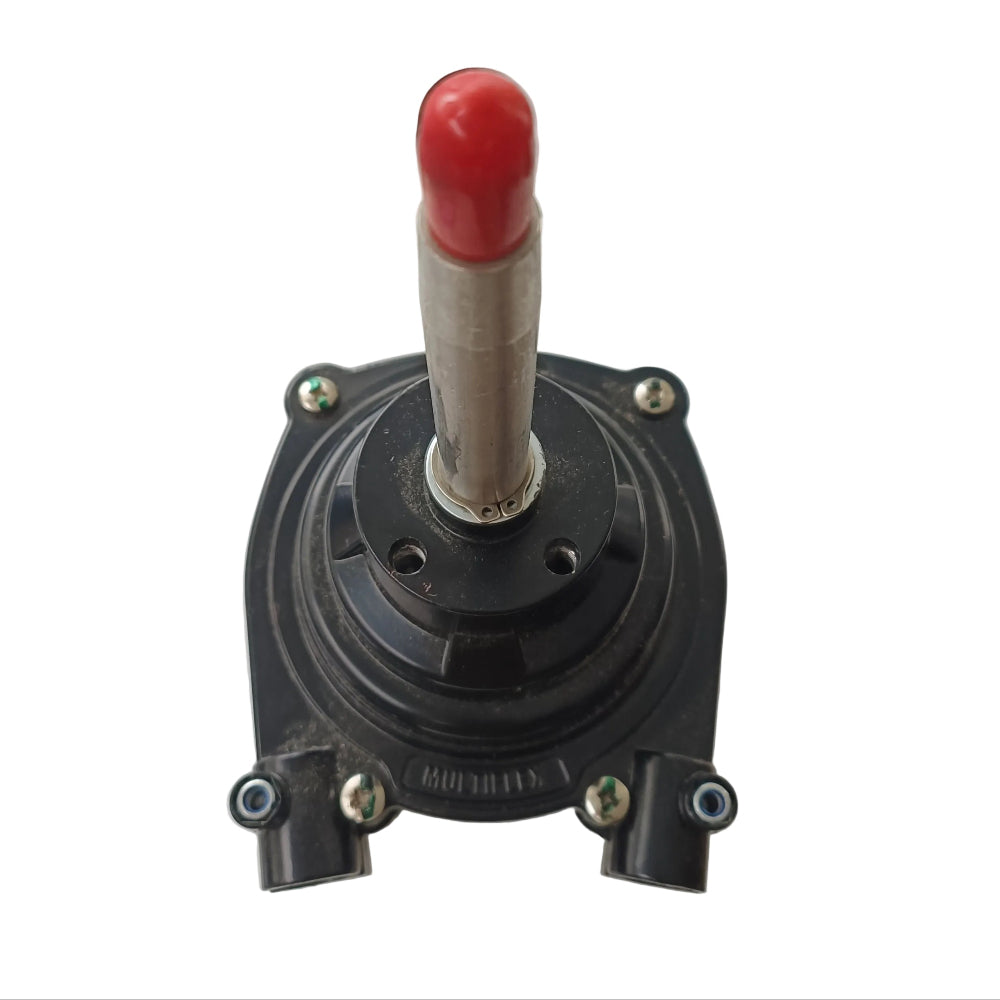

Multiflex H1N Non-Reaction Steering Helm

Multiflex Marine Component | LM-H-101-NR

The Multiflex H1N is a planetary mechanical helm with non-reaction steering. Its internal mechanism reduces propeller-torque feedback at the wheel, helping the operator hold course with less continuous steering effort.

FITMENT FIRST: Use one Multiflex SC-16 Easy Connect steering cable. Non-reaction is not power assistance and does not override the complete system limits for engine power, boat speed or steering load.

Key Features

✔ Non-reaction mechanism reduces steering-wheel feedback
✔ Planetary gear design with low backlash
✔ Approximately four turns lock-to-lock
✔ Easy Connect interface for one SC-16 cable
✔ 3/4 in tapered steering-wheel shaft
✔ Maximum steering-wheel diameter 400 mm

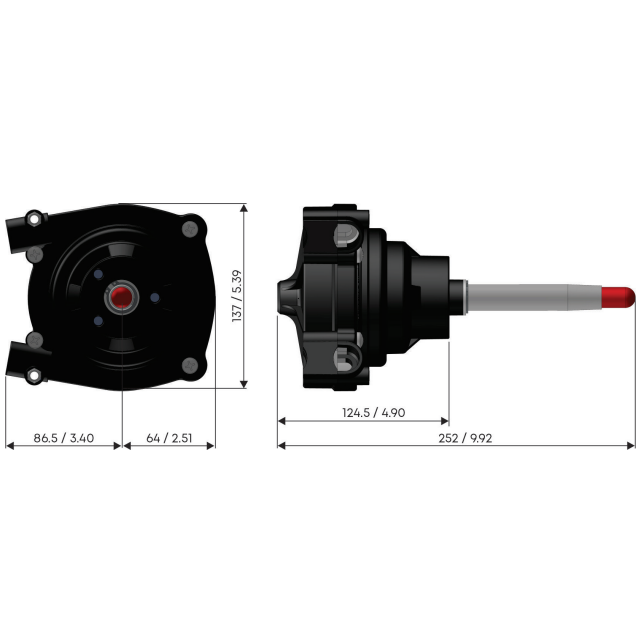

Technical Specs

Helm type	Mechanical planetary, non-reaction
Cable	1 × SC-16 Easy Connect
Turns	Approx. 4 lock-to-lock
Maximum wheel	400 mm
Wheel shaft	3/4 in tapered
Shaft length	Approx. 80 mm
Cover	High-pressure die-cast aluminium
Part number	LM-H-101-NR

Compatibility / Fitment Guide

Confirmed interface: one Multiflex SC-16 Easy Connect steering cable. Choose cable length from the actual routing and maintain broad bends with unrestricted engine movement.

System suitability: intended for compatible single-engine mechanical steering installations. Verify engine power, hull speed/type, propeller torque, steering geometry and the manufacturer’s full system rating. The non-reaction clutch reduces feedback but does not make an overloaded mechanical system safe.

Not compatible: SC-11 thread-connect, SC-18 Lite 55, rack or unrelated quick-connect cables. Use a wheel with a 3/4 in tapered hub, maximum 400 mm diameter.

Part Number Cross Reference

Multiflex part	LM-H-101-NR
Model reference	H1N / H101 NR
Required cable	SC-16 Easy Connect

Frequently Asked Questions

Does non-reaction mean power steering?
No. It reduces torque feedback through the wheel but does not add hydraulic or electric assistance.

Can I use an SC-11 cable?
No. This helm is specified for SC-16 Easy Connect.

Will it fit any 150HP outboard?
No. Complete-system approval depends on boat speed, engine torque, steering geometry and cable installation—not horsepower alone.

What is normally separate?
The bezel, wheel, SC-16 cable and engine connection hardware are separate unless specifically shown.

Compare the exact part number, interface and installation geometry before purchase. Steering and control components should be installed and checked by a competent marine technician.
