Mercury Mariner 5HP 2-Stroke Full Service Kit – Model 1005201EK

Mercury Mariner 5HP 2-Stroke Full Service Kit

Exact application: Mercury 5 MH • Model 1005201EK • Serial 2B300585

This annual-service package has been selected specifically for the Mercury 5 MH 102cc single-cylinder two-stroke identified above. Every service part below is listed under its Mercury or Quicksilver reference.

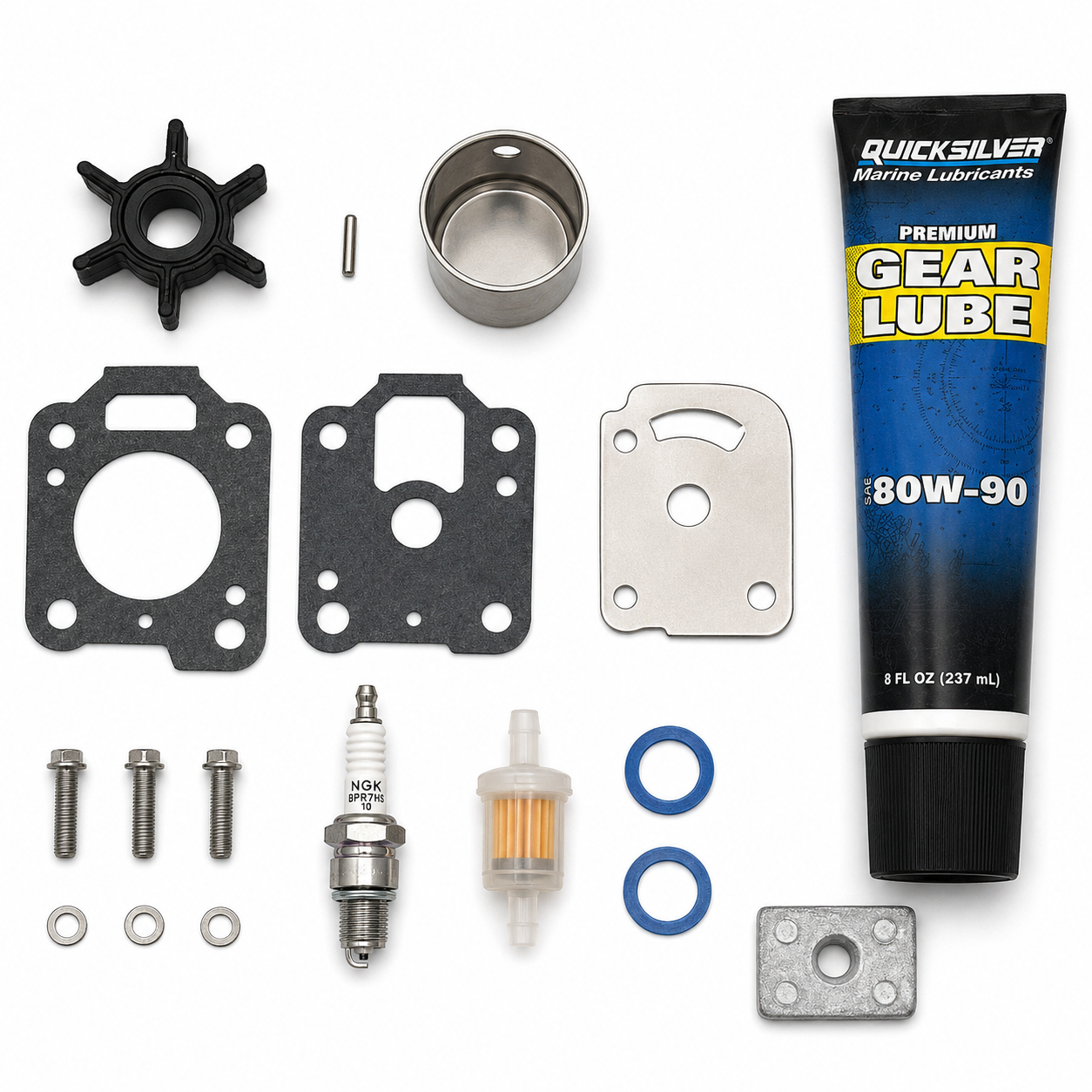

Kit contents

• 1 × complete Mercury water-pump repair kit 16159A1 (current functional supersession 8M0155395)
• Water-pump kit includes impeller, impeller key, stainless cup/liner, wear plate, pump gaskets, washers and fitting hardware
• Impeller reference: Mercury 47-16154-3 / 47-161543 / 8M0204676
• 1 × NGK BPR7HS-10 resistor spark plug, Mercury 33-17719547
• 1 × Mercury/Quicksilver in-line fuel filter 35-16248, superseded by 35-8M0157133
• 2 × gearbox drain/fill seals, Mercury 27-95220, current replacement 8M0082880

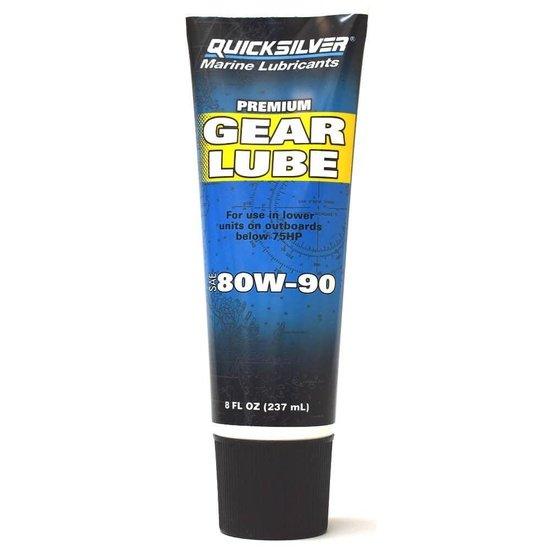

• 237 ml marine gear lubricant
• 1 × Mercury lower-unit sacrificial anode 875208

Confirmed Mercury application

Fitment restriction: supplied for the model and serial shown. Other Mercury 4–6HP engines must be checked by serial number before ordering.

FAQ

Is the complete water-pump repair set included?
Yes. This is the full Mercury 16159A1 repair-kit specification, not an impeller-only package.

Does the kit include two-stroke premix oil?
No. The included lubricant is for the lower-unit gearbox. TC-W3 two-stroke oil is sold separately.

Is the anode included?
Yes, Mercury lower-unit anode 875208 is included.

Are specialist tools included?
No. Installation must follow the Mercury workshop procedure and torque settings.
