Multiflex Mechanical Steering Kit 55HP 19ft Cable SC-18-19KIT Boat Helm Wheel
SC-18-19KIT
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 4 items left
- Backordered, shipping soon
Multiflex Steering Kit SC-18-19KIT
Premium Lite 55 Mechanical Steering System - 19ft
The Multiflex SC-18-19KIT is a comprehensive mechanical rotary steering system specifically designed for small outboard-powered boats. Engineered for engines up to 55HP, this kit provides a smooth and responsive steering experience with a quick-connect installation process. It is a perfect replacement for aging or stiff steering systems on fishing boats, small speedboats, and ribs.

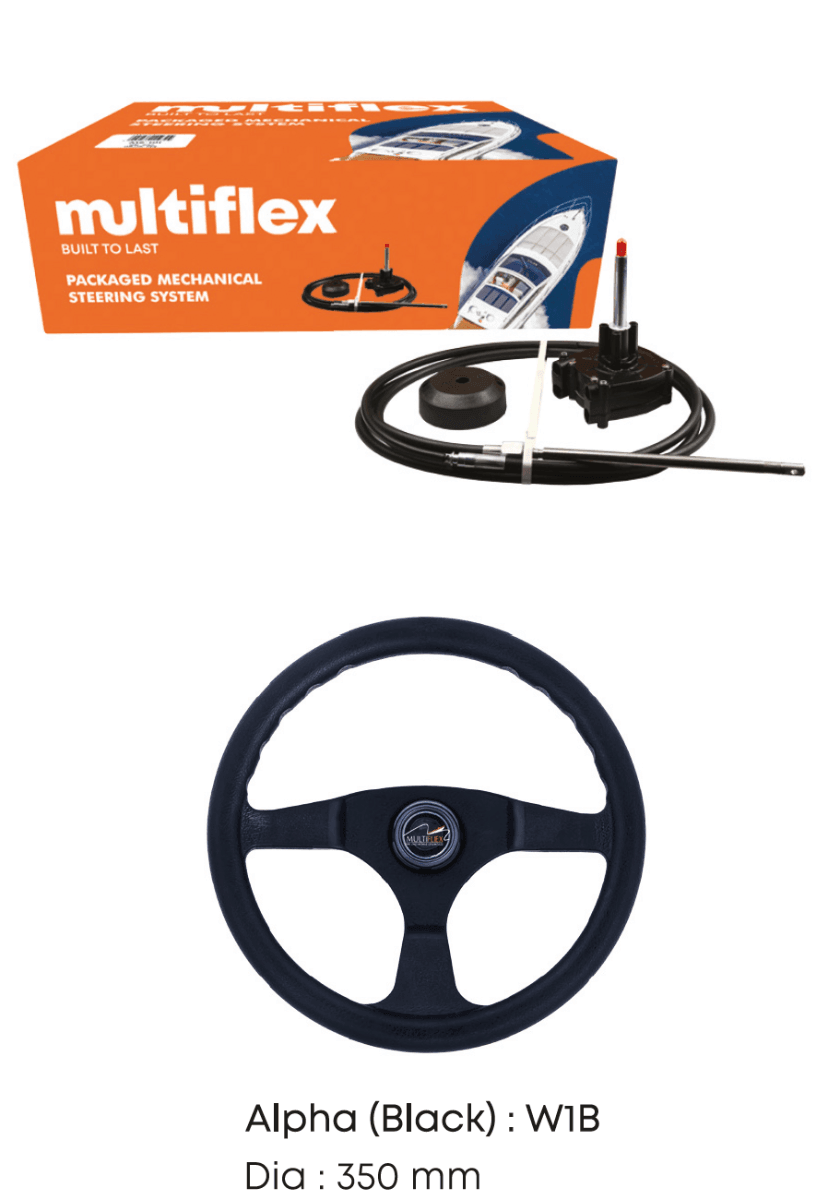

What's In The Box?
- β Mechanical Rotary Helm (LM-H-201A)
- β 19ft Quick Connect Steering Cable
- β 90Β° Dashboard Bezel Kit
- β Marine Steering Wheel (Standard Black)
Technical Specs
| Cable Length: | 19 Feet (5.79m) |
| Max Engine Power: | 55 HP |
| Shaft Size: | 3/4" Tapered |
| Stroke Length: | 228mm (9") |
| Min Bend Radius: | 200mm (8") |
| Lock-to-Lock: | Approx 2.5 Turns |
Compatibility / Fitment Guide
| Application | Engine Range | Installation Notes |
|---|---|---|
| Outboard Engines | Up to 55HP | Compatible with all popular brands (Yamaha, Suzuki, Mercury, etc.) |
| Steering Wheels | Max 16" (400mm) Dia | Uses standard 3/4" tapered shaft fitment |
OEM Cross Reference
| Brand | Reference Part Number |
| Teleflex / SeaStar | Compac-T / SSC1300 |
| Ultraflex | T67 / M58 |
| Multiflex Cable | SC-18-19 |
Questions & Answers
Is this a genuine original part?
This is a high-quality Multiflex system, engineered to provide equivalent or superior performance to standard light-duty steering systems from Teleflex and Ultraflex.
How do I know if it is compatible?
Check the length of your current steering cable (usually printed on the outer conduit). If it measures 19ft and your outboard is 55HP or less, this kit is the correct replacement.
Can I use this for a 60HP or 70HP engine?
No, this specific SC-18 system is strictly rated for engines up to 55HP. For higher horsepower, we recommend the Multiflex SC-16 series or hydraulic steering options available on 4boats.co.uk.
Note: Please verify your cable length requirement before purchasing. Measure from the helm through the cable path to the engine center-line.
