Multiflex 55HP Mechanical Boat Steering Kit - 18ft Cable Helm Wheel & Bezel
SC-18-18KIT
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 2 items left
- Backordered, shipping soon
Multiflex 55HP Steering Kit - 18ft
Premium Quality Rotary Mechanical System
The Multiflex Lite 55 (MS2 series) is a complete mechanical steering solution specifically engineered for small outboard engines up to 55HP (40kW). This all-in-one kit provides a smooth, responsive steering experience for tenders, RIBs, and small runabouts. Designed for longevity in harsh marine environments, it features non-corrosive materials and high-grade stainless steel cable ends.

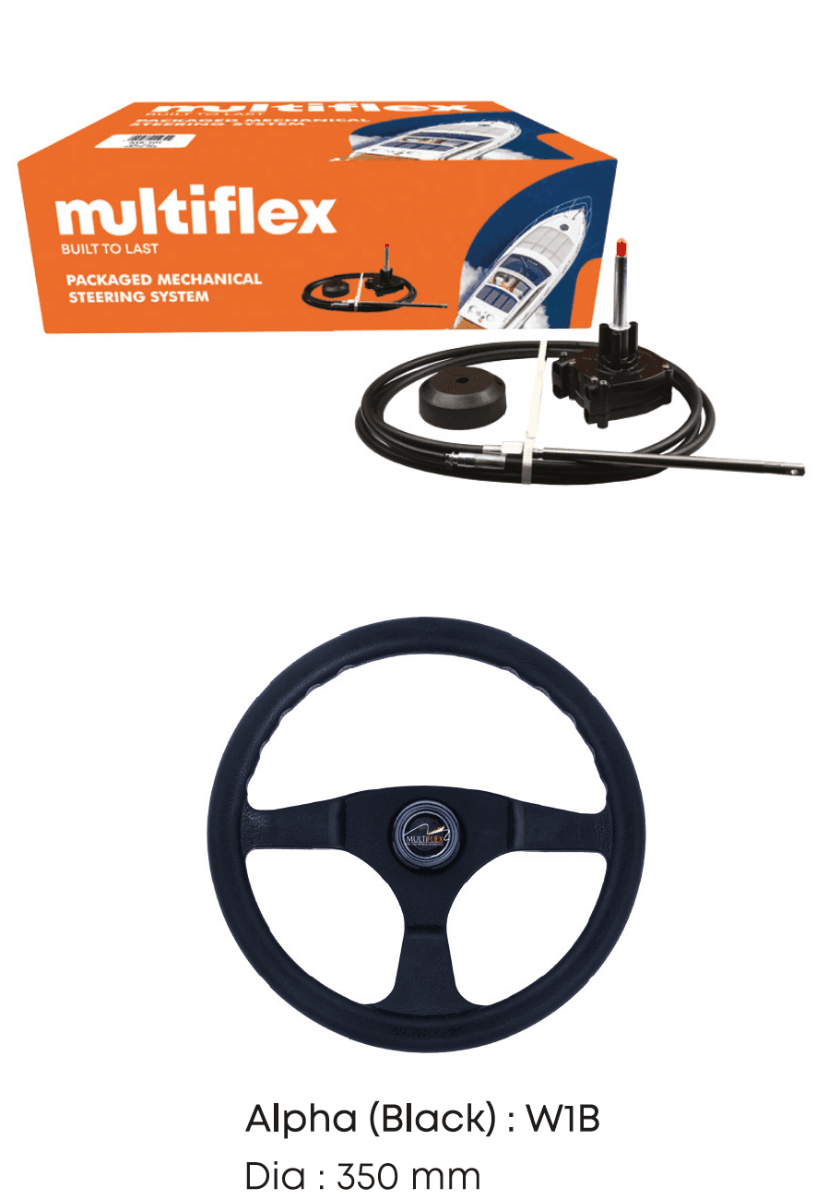

What's in the Box?
- β LM-H-201 Helm: Compact rotary reduction gear
- β SC-18-18 Cable: 18ft (5.49m) length
- β Mounting Bezel: 90-degree black finish

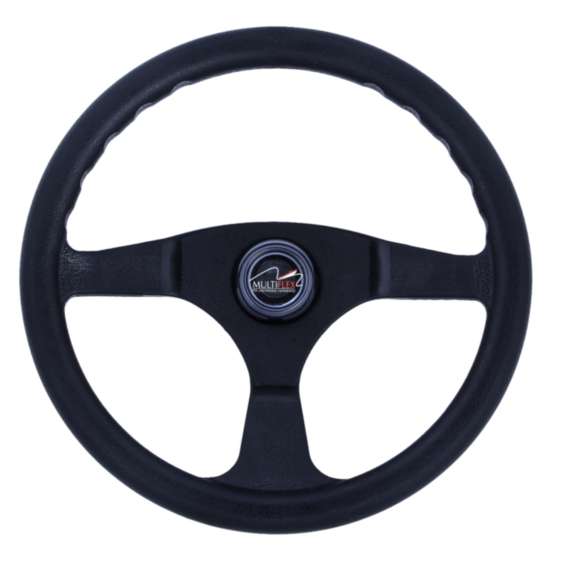

- β Steering Wheel: 13.5" (350mm) diameter
Technical Specs
| Max Horsepower | 55 HP (40kW) |
| Turns Lock-to-Lock | 2.5 Approx |
| Cable Length | 18 Feet (5.49m) |
| Cable Stroke | 230 mm (9") |
| Min. Bend Radius | 200 mm (8") |
| Shaft Diameter | 3/4" Tapered |
Compatibility / Fitment Guide
| Application | Engine Range | Notes |
|---|---|---|
| Outboard Engines | Up to 55HP (All Brands) | Yamaha, Suzuki, Mercury, Tohatsu, etc. |
| Boat Types | Small RIBs, Tenders, Runabouts | Not for high-speed racing apps. |
| Dash Thickness | 12.7mm to 54mm | Fits standard console mounting holes. |
OEM Cross Reference
| Teleflex / SeaStar | Compac-T / SSC 1300 series |
| Ultraflex | T67 Helm / M-58 Cable |
| Multiflex Component Parts | LM-H-201 (Helm), SC-18-18 (Cable) |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Multiflex Lite 55 steering kit. Multiflex is a global leader in marine steering systems, often used as OEM equipment by major boat manufacturers.
How do I know if it is compatible?
This system is designed specifically for outboards up to 55HP. Check that your current cable is a standard helical light-duty type (similar to Teleflex SSC 1300). If your engine exceeds 55HP, please look for the Multiflex 150HP planetary system.
How do I measure the steering cable length?
Measure from the center of the steering wheel to the side of the boat (A), from the side to the transom corner (B), and from the transom corner to the center of the engine tilt tube (C). Add A+B+C and deduct for 90-degree bends to find your total length in feet.
Note: Please verify your outboard's horsepower and required cable length before purchasing. For expert assistance, contact the team at 4boats.co.uk.
