Multiflex Mechanical Steering Kit 150HP 9ft Cable Helm Wheel SC-16-09KIT
SC-16-09KIT
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon
Multiflex SC-16-09KIT Steering System
9ft Complete Mechanical Kit for Engines up to 150HP
The Multiflex SC-16-09KIT is a comprehensive, high-performance mechanical steering solution designed for power-assisted and non-power-assisted outboard engines. This "all-in-one" boxed kit provides smooth, responsive control for trailer boats and marine vessels, ensuring safety and reliability on the water.

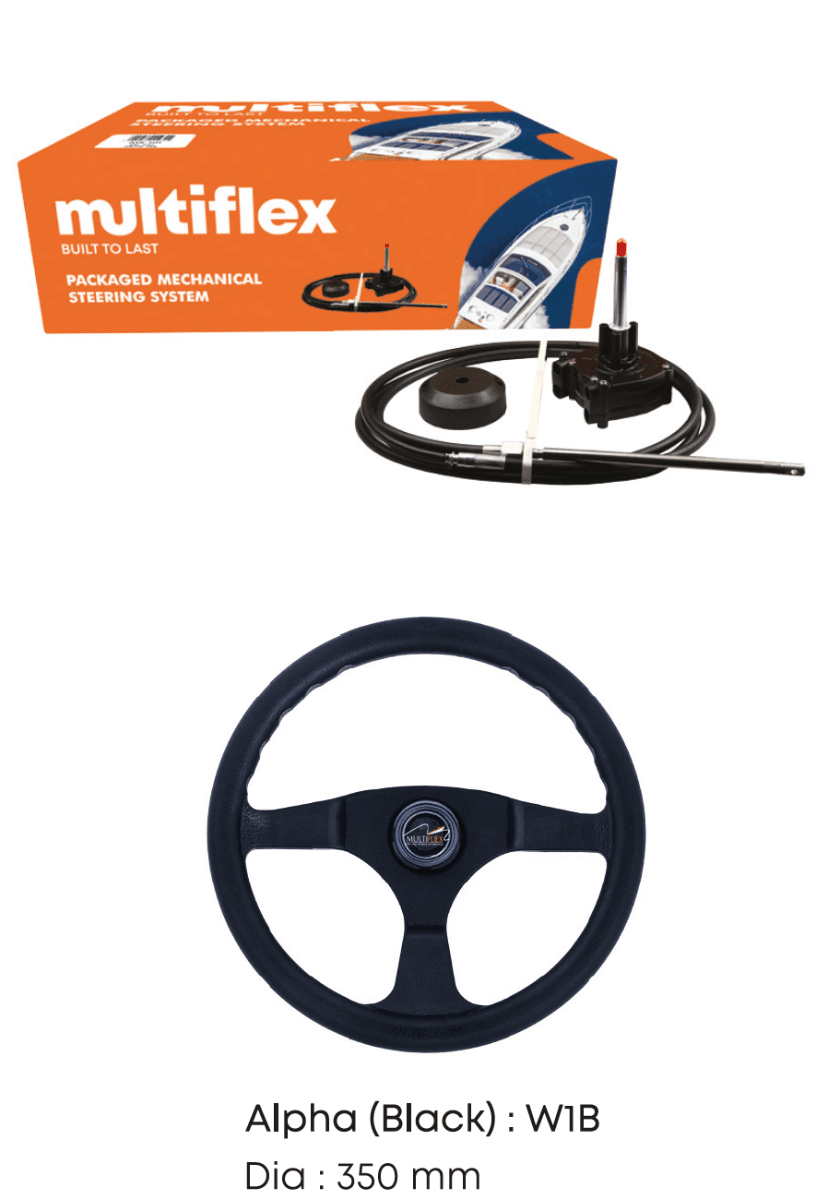

What's in the Box?
- ✔ LM-H-101 Helm: Easy connect rotary helm
- ✔ SC-16-09 Cable: 9ft High-tensile steering cable
- ✔ LM-B-1 Bezel: 90-degree mounting kit
- ✔ LM-W-B1 Wheel: 350mm Alpha Black Steering Wheel
Technical Specs
| Max Horsepower | 150 HP |
| Cable Length | 9 Feet (2.74m) |
| Steering Turns | 3.8 Lock-to-Lock |
| Stroke Length | 230mm (9") |
| Bend Radius | 200mm (8") |
| Shaft Size | Standard 3/4" Tapered |
Compatibility / Fitment Guide
| Application | Engine Type | Max Speed |
|---|---|---|
| Outboard Power | Single Engine up to 150HP | Below 40 Knots |
| Inboard / Sterndrive | Power Assisted up to 150HP | General Purpose |
OEM Cross Reference
| Manufacturer | Equivalent Part Number |
|---|---|
| Teleflex / SeaStar | SSC62 / SSC92 / SS137 |
| Ultraflex | M66 / Rotech |
| Morse | D345 |
Questions & Answers
Is this a genuine original part?
This is a premium quality Multiflex mechanical steering kit, designed as a direct universal replacement for common Teleflex and Ultraflex systems.
How do I know if it is compatible?
We recommend checking your current cable for an "SSC62" or "M66" designation. If your boat requires a 9ft cable and your engine is 150HP or less, this kit is a guaranteed fit.
Does the kit include the steering wheel?
Yes, this SC-16-09KIT is the boxed version which includes the 350mm Alpha Black steering wheel with a pre-installed hub.
Note: At 4boats.co.uk, we recommend professional installation for all steering components to ensure vessel safety.
