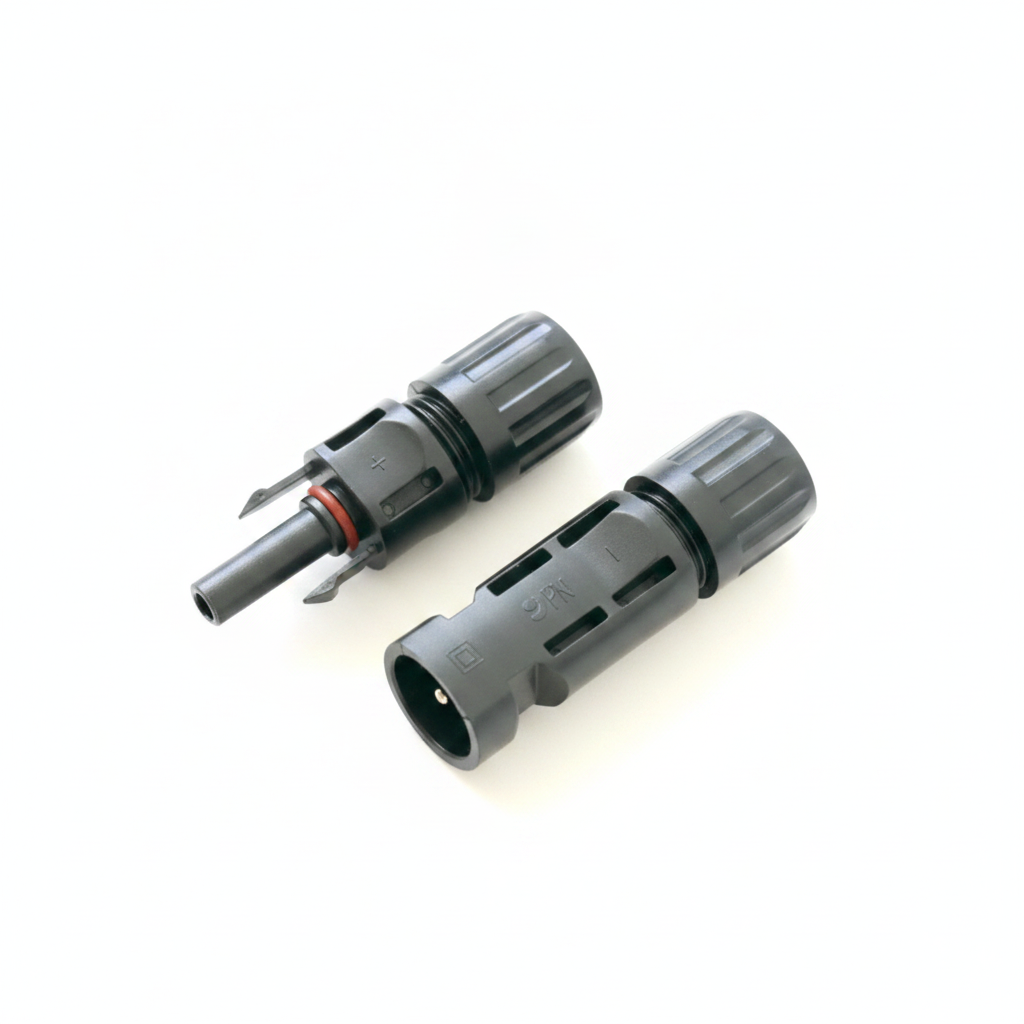

Connector Male MC4 Male/Female Pair 30A 1000V | 4Boats - Alternative angle image 2

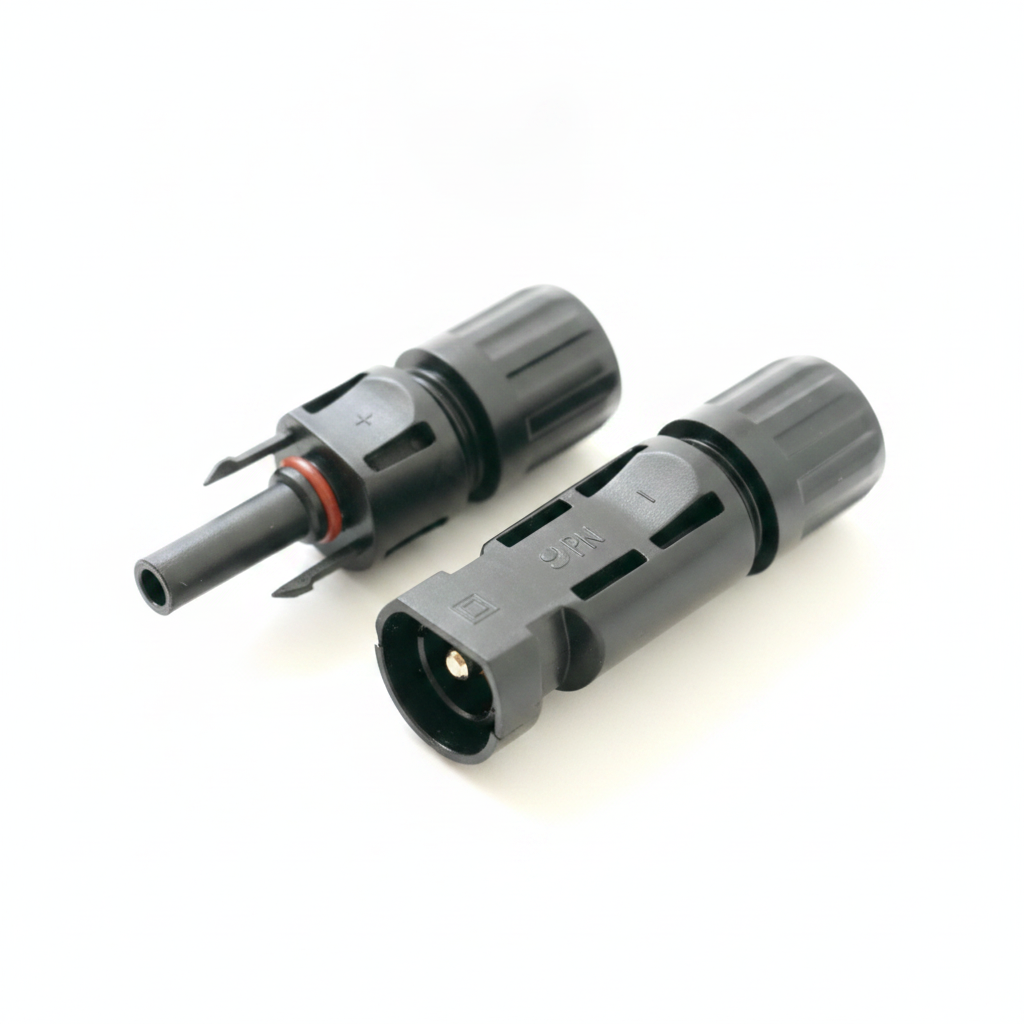

Connector Male MC4 Male/Female Pair 30A 1000V | 4Boats - Product detail image 3

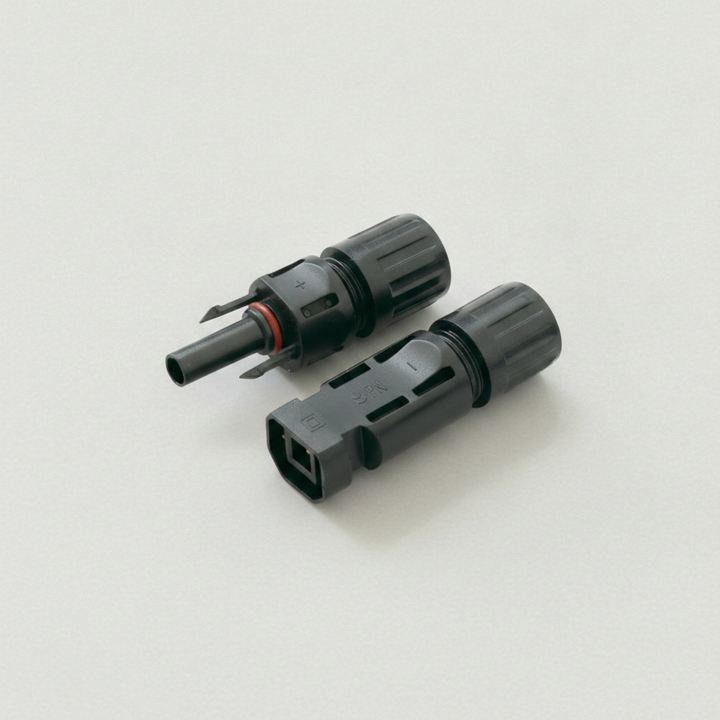

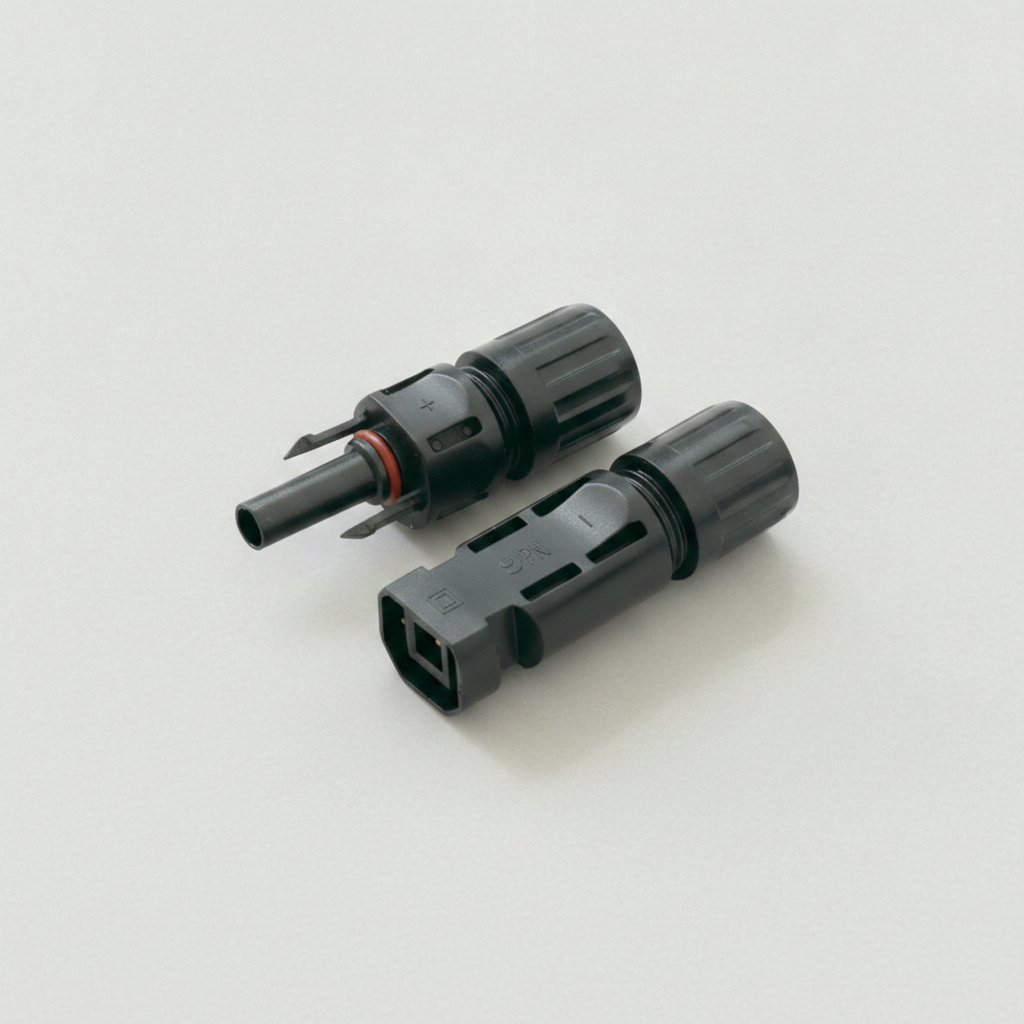

Connector Male MC4 Male/Female Pair 30A 1000V | 4Boats - Catalogue image 4

Dispatched in 2-3 days

30 Day Return Policy

In stock, ready to ship
Backordered, shipping soon

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

£3.99

Tax included.

MC4 Solar Connector Pair (M/F)

IP67 Waterproof Marine & Solar PV Connection Kit

This MC4 Solar Connector Pair is the industry-standard solution for creating secure, weather-sealed electrical connections between solar panels and PV cables. Engineered for the harsh marine environment, these connectors feature a robust locking mechanism and high-grade seals to prevent moisture ingress and oxidation, ensuring long-term efficiency for your solar array on 4boats.co.uk.

DURABILITY: Constructed from UV-resistant PPO material with tin-plated copper contacts for maximum conductivity and resistance to salt-air corrosion.

Key Features

✔ Snap-in "Quick-Lock" safety system
✔ IP67 Waterproof rating (when mated)
✔ UV & Ozone resistant housing
✔ High current & voltage capacity
✔ Compatible with standard PV crimping tools

Technical Specs

Rated Voltage:	1000V DC
Rated Current:	30A
Protection Class:	IP67
Contact Material:	Copper, Tin Plated
Cable Compatibility:	2.5mm² / 4mm² / 6mm²
Temperature Range:	-40°C to +85°C

Compatibility / Fitment Guide

System Type	Compatible Brands	Application Notes
Marine Solar	Victron, Renogy, Solara	Standard for most 12V/24V yacht systems.
Residential PV	Panasonic, LG, Trina	Universal MC4 standard fitment.
RV/Off-Grid	Generic 100W-400W Panels	Ideal for extension leads and array series connections.

OEM Cross Reference

Multi-Contact (Stäubli)	PV-KBT4 / PV-KST4 Series
Renogy	RNG-CONN-MC4
Victron Energy	SCA000100000

Questions & Answers

Is this a genuine original part?

This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for MC4 intermateability and weather sealing.

How do I know if it is compatible?

If your solar panels use standard 4mm pin connectors (MC4 type), these are a direct fit. They are compatible with 2.5mm, 4mm, and 6mm PV cables.

Do I need a special tool for installation?

While they can be connected by hand, a standard MC4 crimping tool is required to attach the metal terminals to your cable, and an MC4 spanner tool is recommended for tightening the glands to ensure an IP67 seal.

Note: Please verify your existing connector type matches the "MC4" standard (4mm pin) before purchasing. Available at 4boats.co.uk.
