Johnson CM90 24V D38 Magnetic Drive Circulation Pump 90L/min
10-24898-02
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 1 item left
- Backordered, shipping soon

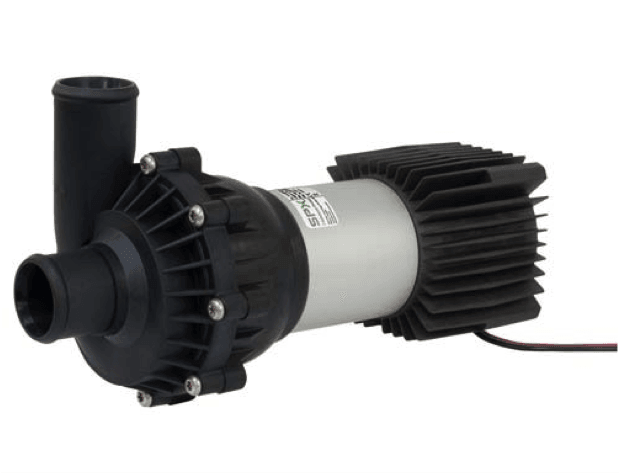

Johnson Pump CM90 Circulation Pump
24V DC | Seal-Less Magnetic Drive | Up to 90L/min
The Johnson Pump CM90 is a heavy-duty centrifugal circulation pump designed for continuous water or water/glycol circulation. Its seal-less magnetic drive separates the motor from the liquid circuit, while the IP67 enclosed permanent-magnet motor includes thermal-overload protection.
Key Features
- ✔ Seal-less magnetic drive for continuous service
- ✔ 24V DC enclosed IP67 motor
- ✔ Maximum 125W input power
- ✔ Thermal-overload protection
- ✔ Universal flat-surface mounting bracket
Technical Specs
| Model | CM90 high-flow 24V variant |
| 4Boats SKU | 10-24898-02 |
| Voltage range | 24V nominal / approximately 20–32V DC |
| Maximum published flow | 90L/min at 0.1 bar |
| Maximum input power | 125W |
| Liquid | Fresh water or water/glycol mix up to 60% glycol |
| Liquid temperature | −40°C to +100°C |
| Ambient range | −40°C to +90°C |
| Port size | 38mm / 1-1/2in hose (D38) |
| Dimensions / weight | Approx. 253 × 120 × 149.5mm / 3.9kg |
Compatibility / Fitment Guide
| Check | Required specification | Decision |
|---|---|---|
| Supply | 24V DC system within approximately 20–32V | Use correctly rated cable, switching and over-current protection. |
| Hydraulic arrangement | Flooded inlet / non-self-priming circulation loop | Mount below liquid level or otherwise maintain a fully flooded inlet. |
| Fluid | Fresh water or water/glycol mixture up to 60% glycol | Not specified for fuel, oil, sewage or abrasive liquids. |
| Ports | 38mm / 1-1/2in hose tails (D38 configuration) | Do not order hose/fittings from the model name alone; verify the physical SKU/label. |
| Performance | Required flow checked against the pump curve at actual system head | 90L/min is quoted at only 0.1 bar and will decrease with restriction. |
Not suitable for: self-priming or bilge duty, fuel/oil/sewage, dry suction lift, 12V supply, or designs based on 90L/min without a head-loss calculation.
Part Number Cross Reference
| Manufacturer | SPX FLOW Johnson Pump |
| Family | CM90 magnetic-drive circulation pump |
| 4Boats / Aquafax SKU | 10-24898-02 |
| Voltage | 24V version |
| Important verification | Current D38 family reference: 10-24664-10; compare with supplied item label |
Frequently Asked Questions
Is it self-priming?
No. It is a centrifugal circulation pump and requires a flooded inlet.
Will it always deliver 90L/min?
No. That figure is at 0.1 bar; actual flow depends on system head and restriction.
Can it circulate antifreeze?
It is specified for water/glycol mixtures up to 60% glycol.
Can it replace a 12V CM90?
No. This listing is the 24V variant; voltage and exact port configuration must match.
Before ordering: Verify the 10-24898-02 item label against the current D38 specification, 24V supply and 38mm ports, fluid/glycol concentration, flooded inlet and duty point on the pump curve.
