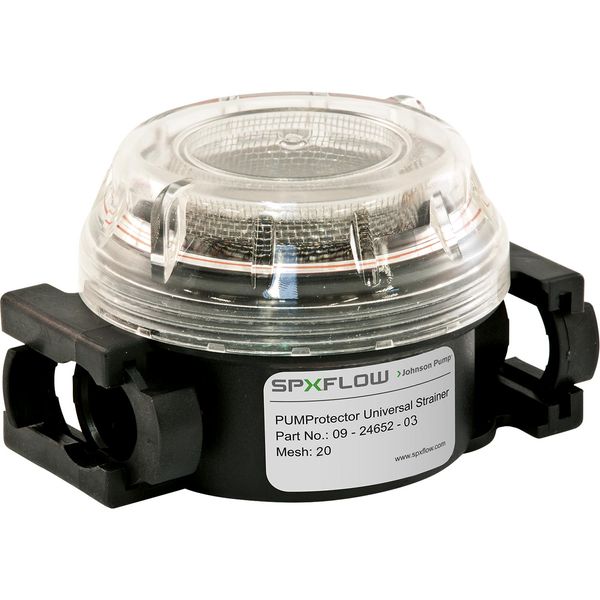

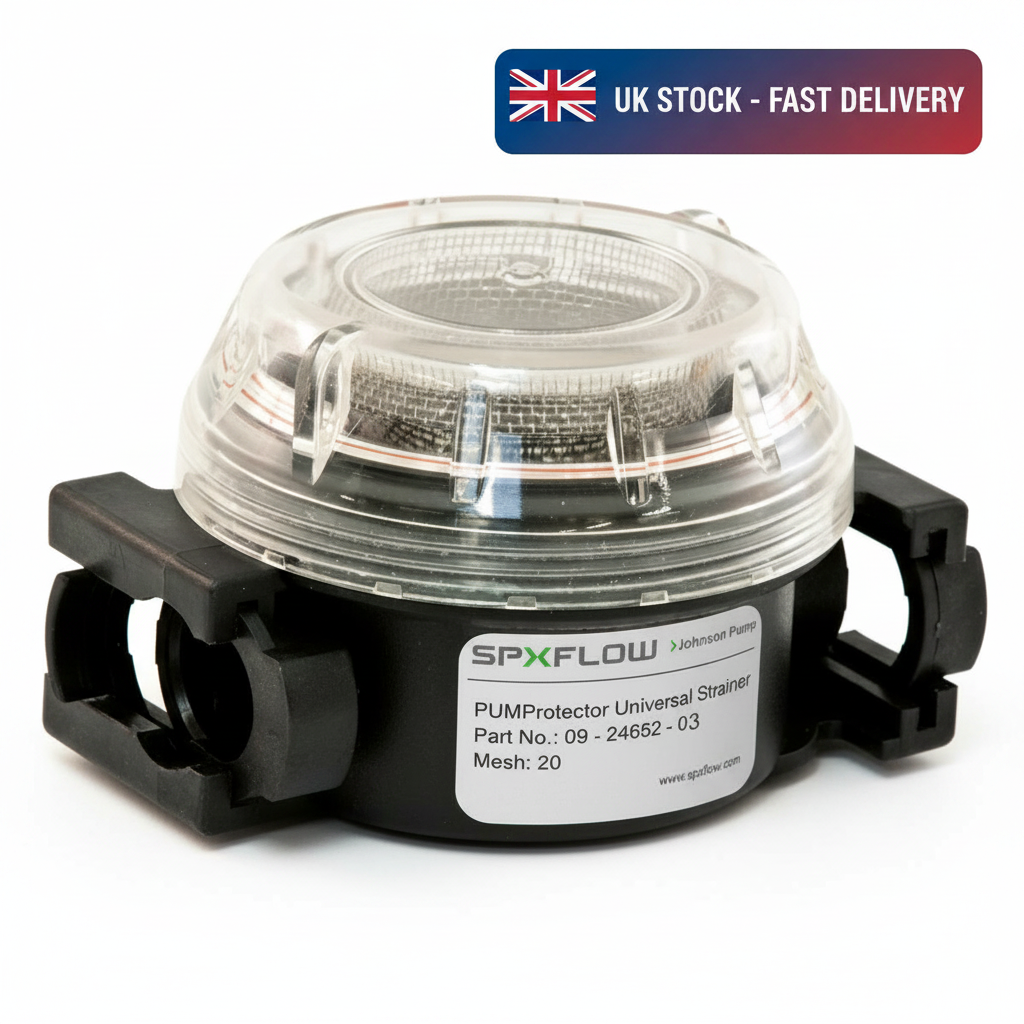

Johnson Pump PUMProtector Universal Strainer 20 Mesh 09-24652-03

Genuine SPX FLOW Johnson Pump PUMProtector universal strainer for general-purpose marine and mobile water systems. The removable 20-mesh screen helps stop debris before it reaches the pump.

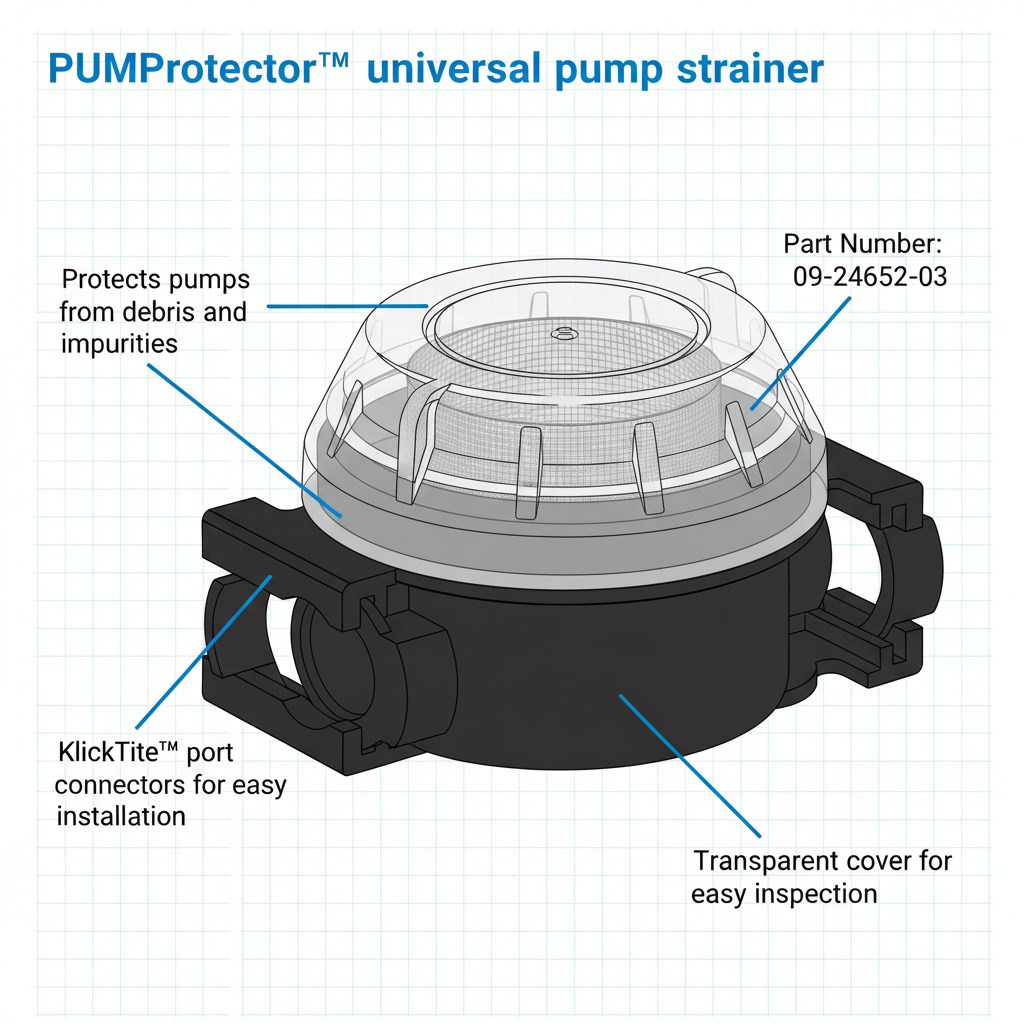

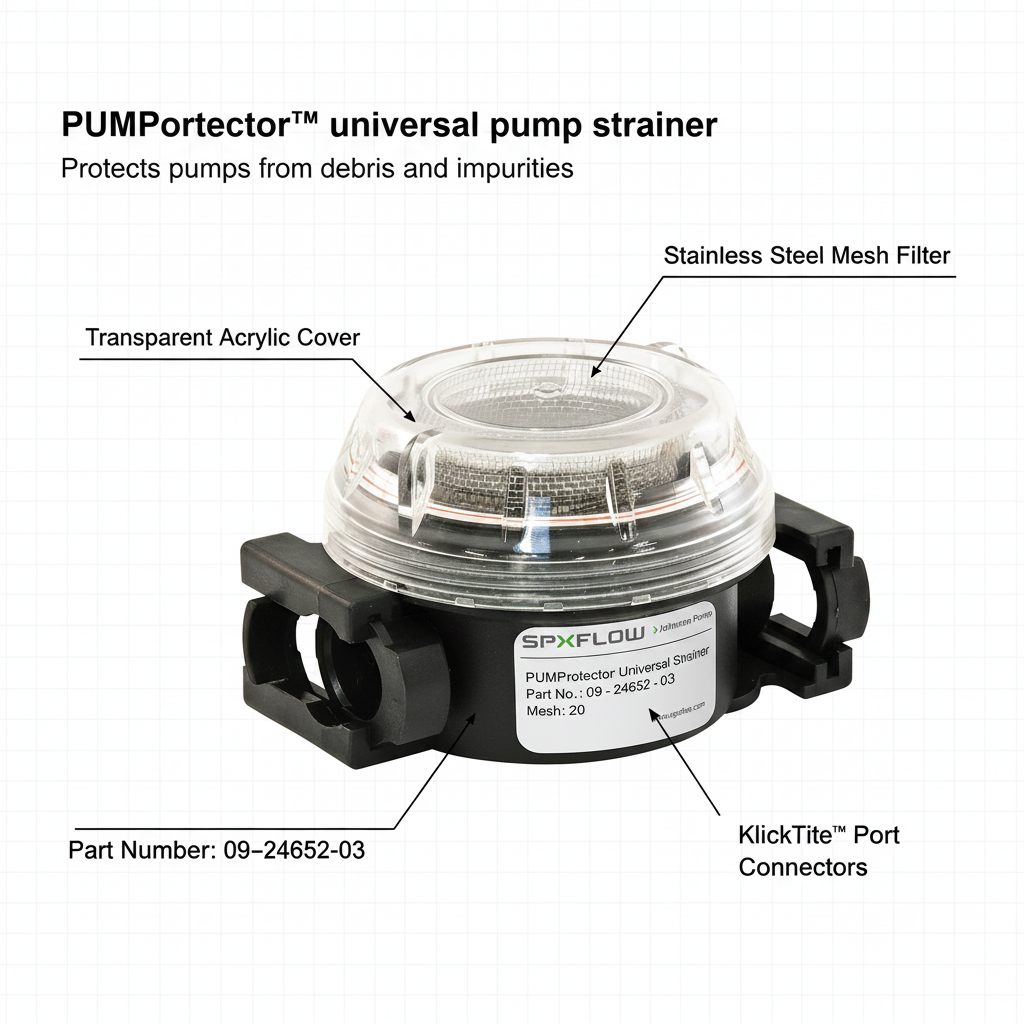

Key Features

• Genuine Johnson Pump PUMProtector
• Transparent cover for quick visual inspection
• Removable and washable 20-mesh screen
• KlickTite port system for tool-free servicing
• Suited to general-purpose pump protection where a coarser screen is required

Technical Specs

• Screen: 20 mesh
• Maximum liquid temperature: 50°C / 120°F
• Maximum drinking-water temperature: 30°C / 85°F
• Connection standard: BSP
• Included connection options: two 1/2 in hose / 3/8 in BSP and two 3/4 in hose / 1/2 in BSP fittings
• Manufacturer part number: 09-24652-03

Compatibility / Fitment Guide

Install on the pump inlet in a compatible marine, caravan or general-purpose water system. The 20-mesh version is recommended by Johnson Pump for general-purpose pumps; 40-mesh strainers are generally preferred for water-pressure and washdown pumps. Confirm hose size, BSP thread and available installation space.

Part Number Cross Reference

• Johnson Pump BSP version: 09-24652-03
• Related NPT version: 09-24652-04 / 09-24652-04-CN
• Do not substitute the NPT version where BSP fittings are required.

Frequently Asked Questions

Is this a genuine Johnson Pump product?
Yes, it is a genuine SPX FLOW Johnson Pump strainer.

Is 20 mesh finer than 40 mesh?
No. A 20-mesh screen is coarser and allows larger particles through than a 40-mesh screen.

Can the screen be cleaned?
Yes. Isolate and depressurise the system, remove the strainer and clean the screen as instructed.
