Name: Haswing Protruar 5.0 24V 160lbs Electric Outboard Motor - 5HP Equivalent 50719
Brand: MidMarine
SKU: MD1245
Price: 697.0 GBP
Availability: OutOfStock
Rating: 5.0 (1 reviews)

HASWING Protruar 5HP Electric Outboard 24V with Digimax Controller - 4Boats

Dispatched in 2-3 days

30 Day Return Policy

In stock, ready to ship
Backordered, shipping soon

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

£889.00 £697.00 Save £192.00

Tax included.

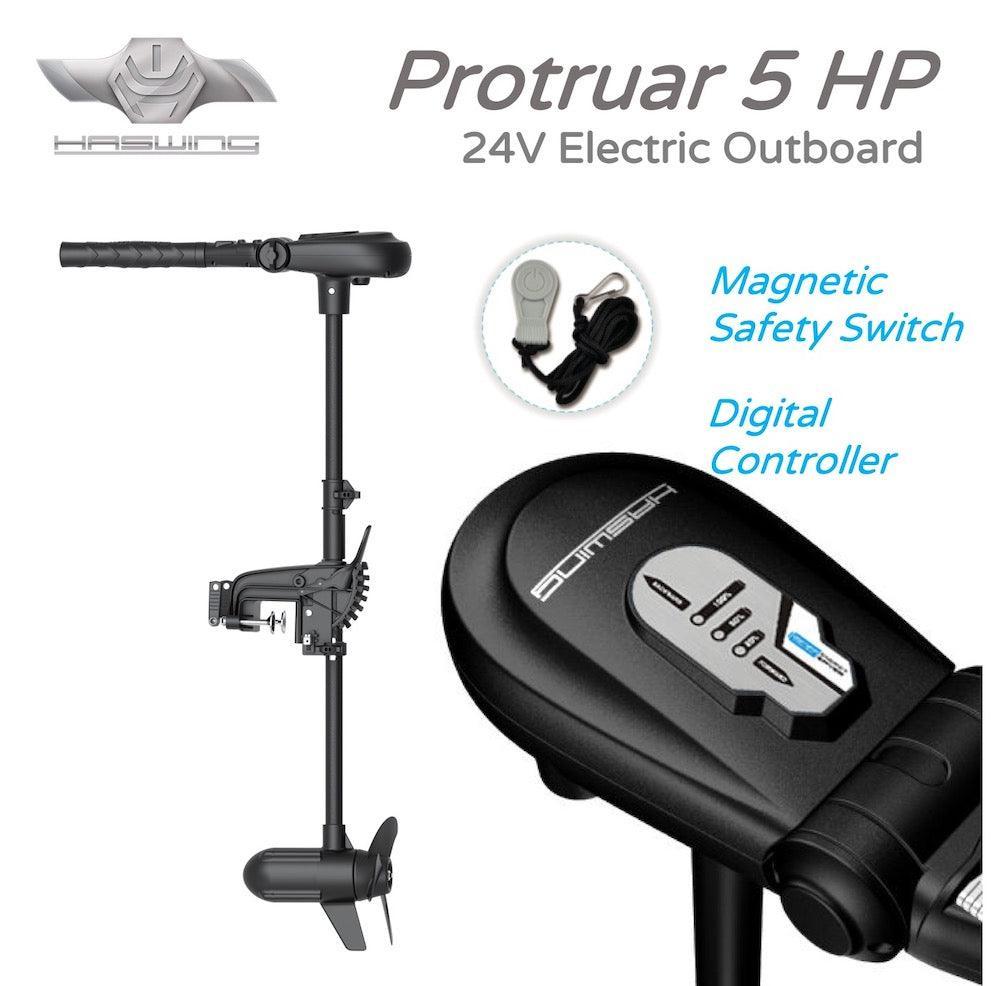

Haswing Protruar 5HP (24V)

Electric Outboard – Thrust Equivalent to a 6HP Petrol Engine

The Haswing Protruar 5HP electric outboard produces thrust equivalent to a 6HP petrol engine, without the pollution, noise and regular servicing. Its built-in heavy-duty 24V brushless motor delivers efficient power conversion with zero maintenance, and it is suitable for fresh and salt water use on boats up to 8m in length.

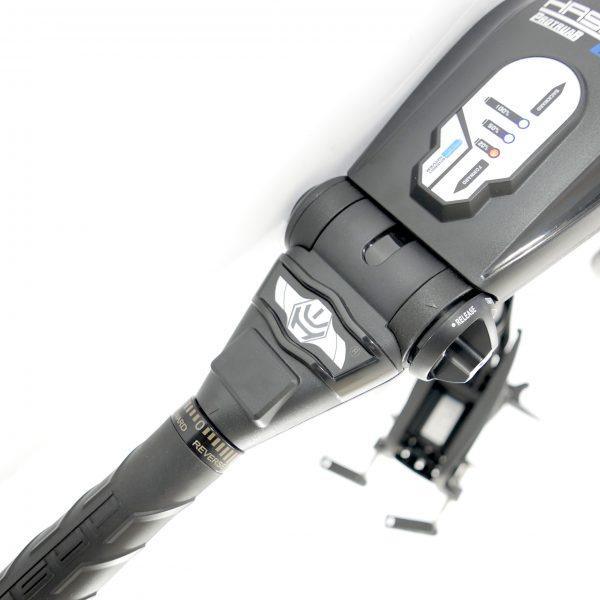

DIGIMAX TECHNOLOGY: The Digimax digital controller maximises runtime and conserves battery at any power setting, provides smooth stepless forward and reverse speeds, and prevents false starts when first connected to the battery.

Key Features

✔ Brushless Motor: Efficient and zero maintenance.

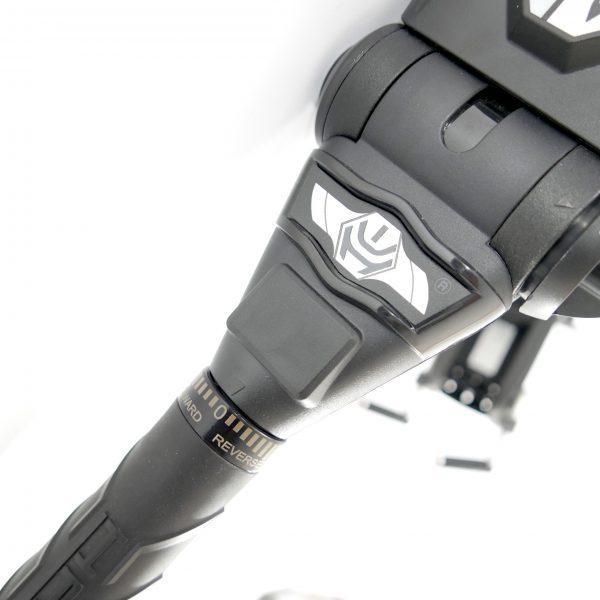

✔ Stepless Speed: Twist-grip Digimax throttle control, forward and reverse.

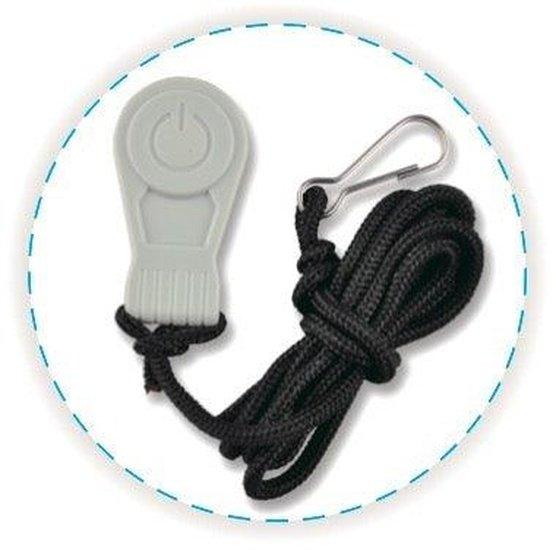

✔ Safety: Magnetic safety switch.

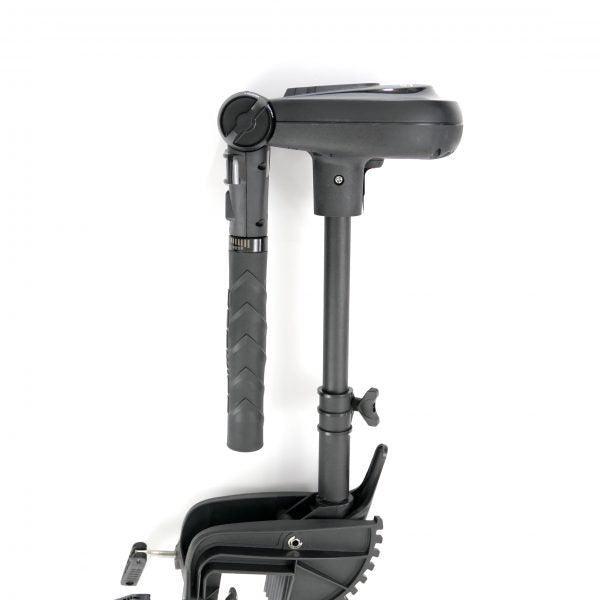

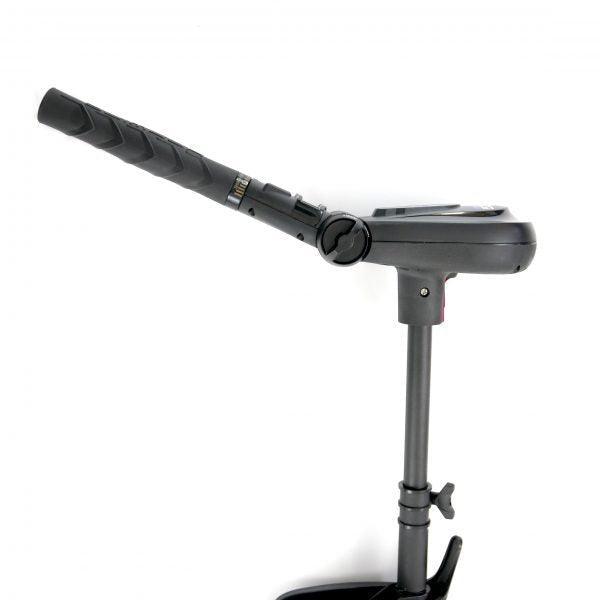

✔ Adjustable Tiller: Telescopic up to 400mm and swivels vertically through 180°.
✔ Salt & Fresh Water: Supplied with sacrificial anodes (and spares); IP67 waterproof rating.
✔ Practical Details: 3-level LED battery indicator, integral motor fin, depth collar, steering lock (360° steering when released), 10-level tilt bracket, lockable clamp screws.

Technical Specs

Shaft Power	5HP
Petrol Equivalent	6HP (thrust)
Battery Voltage	24V
Rated Current	105A (max)
Shaft	Stainless steel, 1000mm

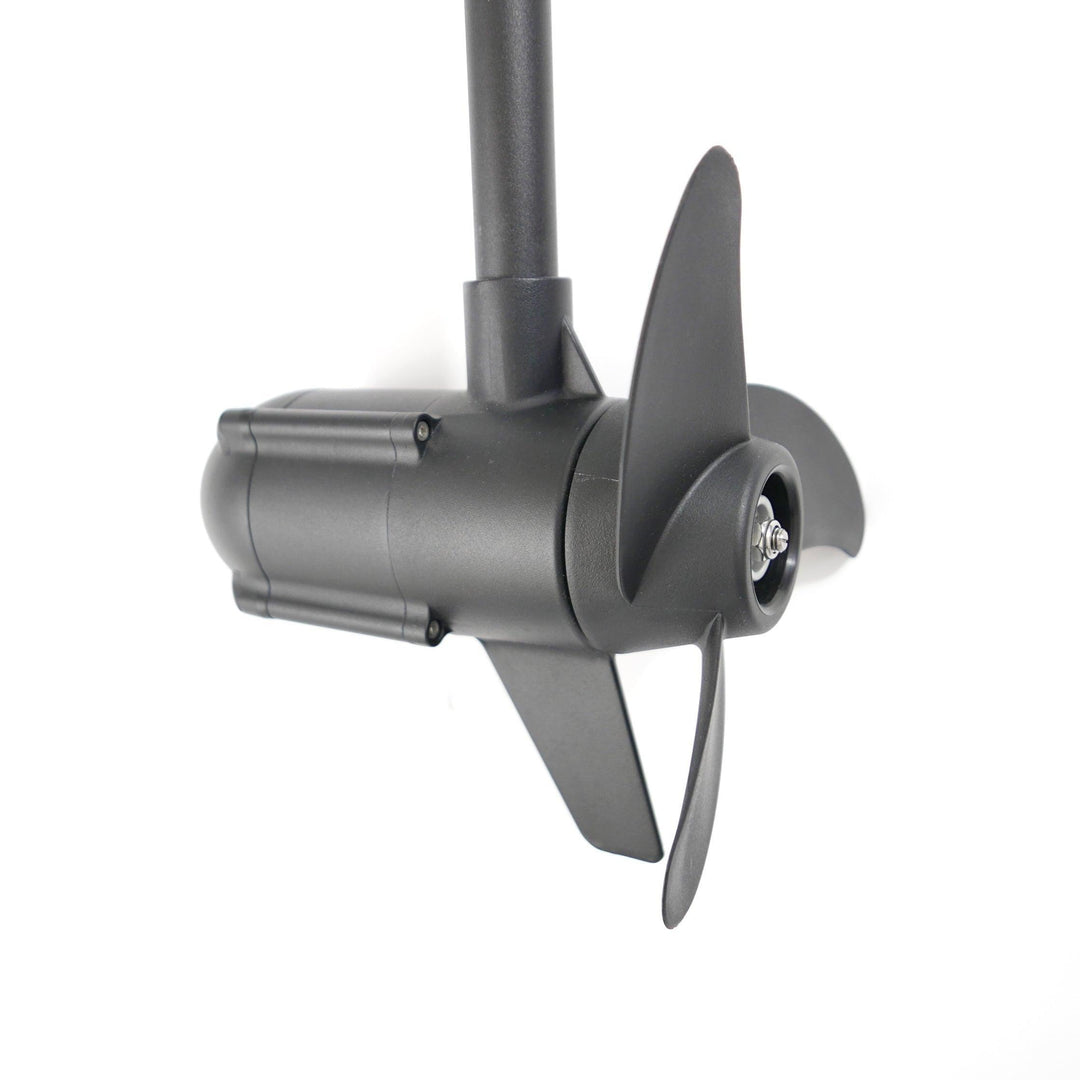

Propeller	3-Blade (10.7")
Prop Speed	1450 RPM at full power
Waterproof Rating	IP67
Weight	14 kg
Sound Level	< 55dB
Recommended Battery	24V, 2 x 120Ah deep cycle or higher (not included)
Certification	CE
Included	User manual, propeller fixing kit
4Boats SKU	MD1245

Compatibility / Fitment Guide

Application	Recommended Size	Notes
Inflatables / Dinghies / Day Boats	Up to 8m boat length	Transom mount.
Petrol Replacement	Up to 6HP petrol outboards	Equivalent thrust.
Fresh & Salt Water	All environments	Supplied with sacrificial anodes.

OEM Cross Reference

4Boats SKU	MD1245
Model	Haswing Protruar 5HP (24V)

Questions & Answers

Is this a Haswing motor?

Yes, this is a Haswing Protruar 5HP electric outboard, supplied with user manual and propeller fixing kit.

How do I know if it is compatible?

This motor is designed for boats up to 8 metres. It requires a 24V battery supply – 2 x 120Ah deep cycle (leisure) batteries or higher are recommended.

Does it come with the Digimax Controller?

Yes, the Protruar 5HP has the Digimax digital speed controller for stepless forward and reverse operation and improved power efficiency.

Note: Batteries and circuit breakers are sold separately. We recommend 2 x 120Ah Deep Cycle batteries or higher. Visit 4boats.co.uk for further technical assistance.
