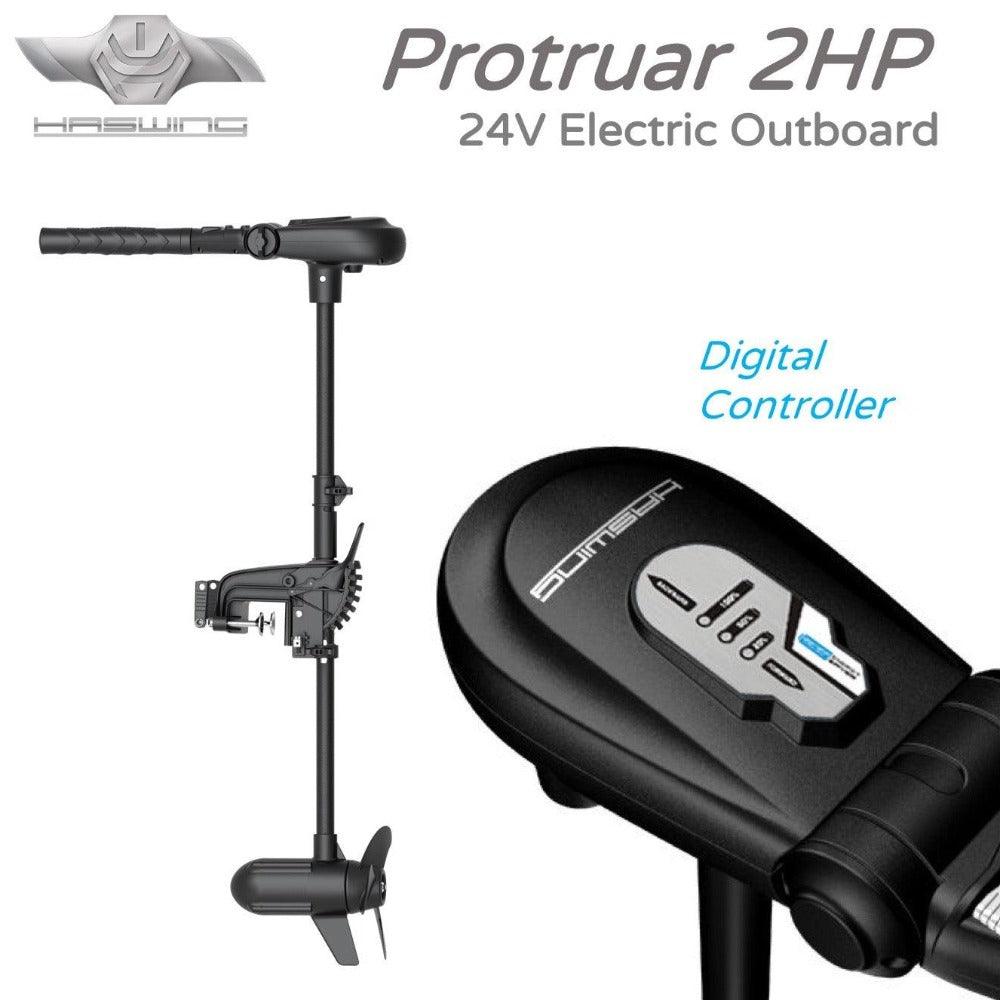

HASWING Protruar 2HP Electric Outboard 24V with Digimax Controller

Equivalent thrust to replace 3HP petrol outboards.

Suitable for freshwater and saltwater use on boats up to 6.5m.

Requires 24V battery.

Includes warranty and UK after-sales service support.

CE Compliant

Protruar 2HP Electric Outboard

Clean Power and Zero-Maintenance

• Producing equivalent thrust to a 3HP petrol engine without the pollution, noise and regular service needs.
• Builtin heavy duty brushless motor ensures efficient power conversion and zero maintenance.

Premium Build Quality & Reliability

• HASWING Electric Outboards incorporate premium build quality without the big price tag.
• A reliable and proven product from HASWING sold over many years in Europe, Canada, Australia and New Zealand.

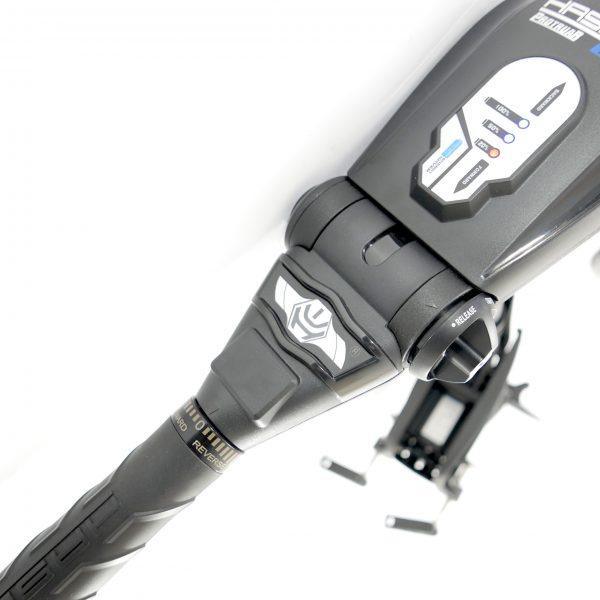

DIGIMAX Digital Speed Controller

• Digimax digital controller maximises runtime in water and conserves battery use at any power setting.
• Enables higher power conversion efficiency than trolling motors.
• Digital controller provides smooth stepless forward and reverse speeds, and as a safety feature prevents false starts when initially connected to battery.

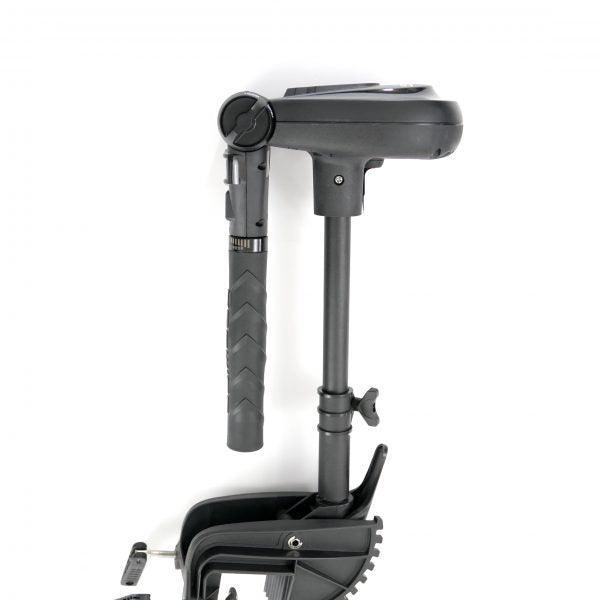

Designed for Comfort, Lightweight and Secure

• Durable contoured rubber handle provides a comfortable grip.

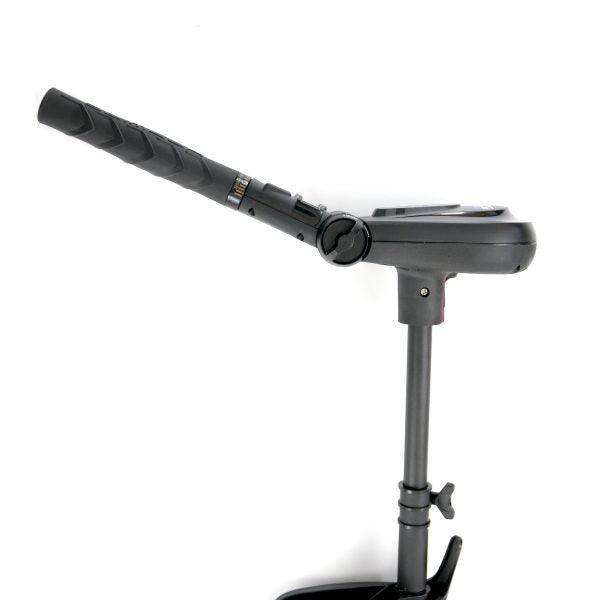

• Telescopic handle extends for comfortable reach up to 400mm.
• Handle swivels vertically through 180 degrees.
• Durable cast aluminium shaft, 35″ length, and weighs only 6.7kg.
• Secure the outboard with locking padlocks to clamp screws while fitted to transom.

Go Anywhere

• Supplied with sacrificial anodes (and spares) suitable for both salt and fresh water use.
• An electronic 3 level LED battery indicator to monitor reserve power.

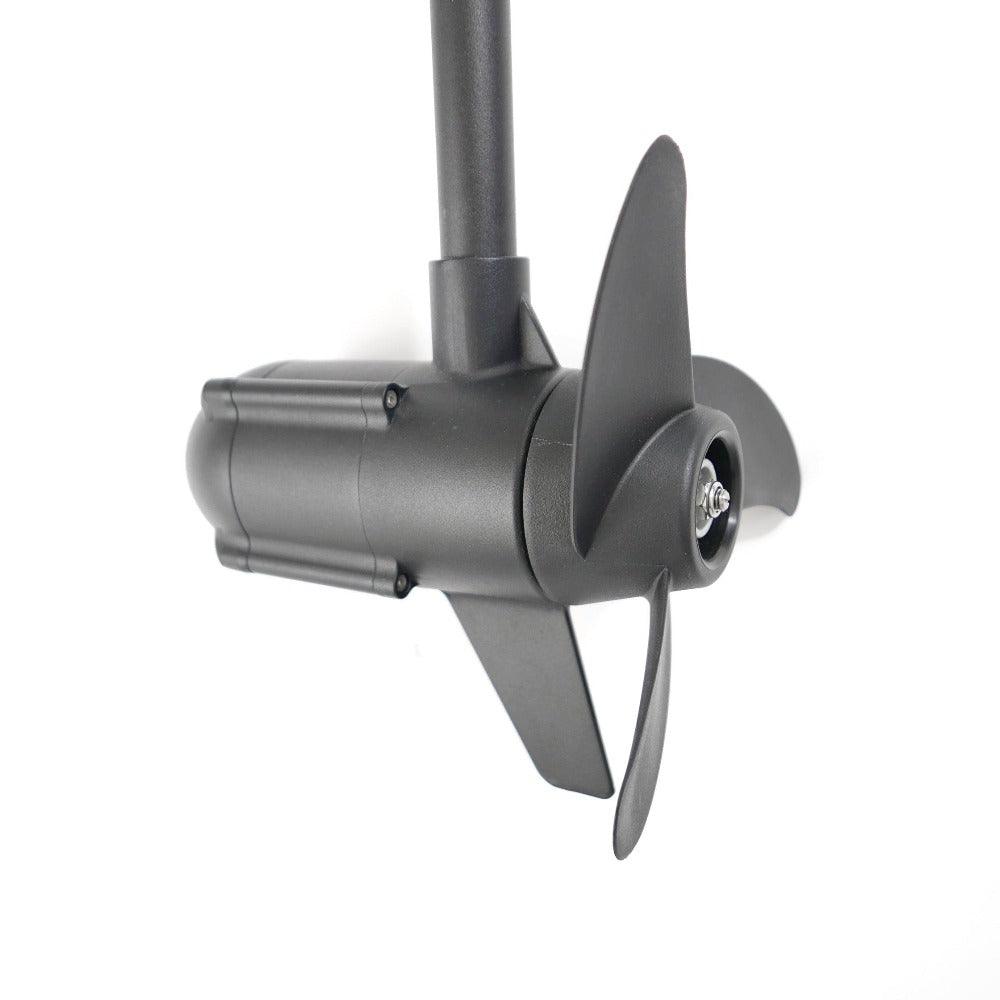

• Integral motor fin prevents prop and motor from underwater impact.
• Waterproof rating to IP67

UK Warranty

• Warranty, with all serviceable parts stocked in our UK distribution centre to support after-sales service.

Certification

• CE Certification.

Operation

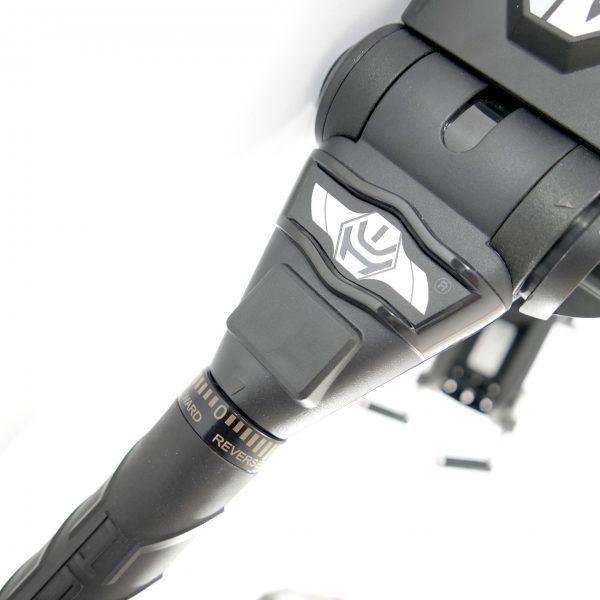

• Twist the handle to achieve smooth stepless forward and reverse speeds.
• Immersion height adjusted with depth collar, enabling use in variable water depths.
• Battery level monitored by 3 level LED indicators.
• Steering lock prevents free wheeling. When lock is released can steer through 360°.
• Tilt bracket allows the motor to tilt through 10 levels.
• User manual and propeller fixing kit included.

Specification

• Shaft Power: 2HP
• Battery Voltage: 24V
• Rated Amp: 50A (Max)
• Waterproof to IP67
• Shaft : Cast Aluminium
• Shaft Length: 35inch / 900mm
• Propeller: 3 blade, 9.3 inch (Diameter)
• Prop Speed Underwater: 1350 RPM at full power.
• Sound Level: < 50db
• Weight: 6.7 kg
• Dimensions: Height 1190mm.

Recommended usage

• 24V, 2 x 105AH Deep Cycle (Leisure) Battery or higher. Battery not included.
• Up to 6.5m boat length.

Customer Reviews

• For customer reviews and videos search the web for ‘Haswing video reviews’.
