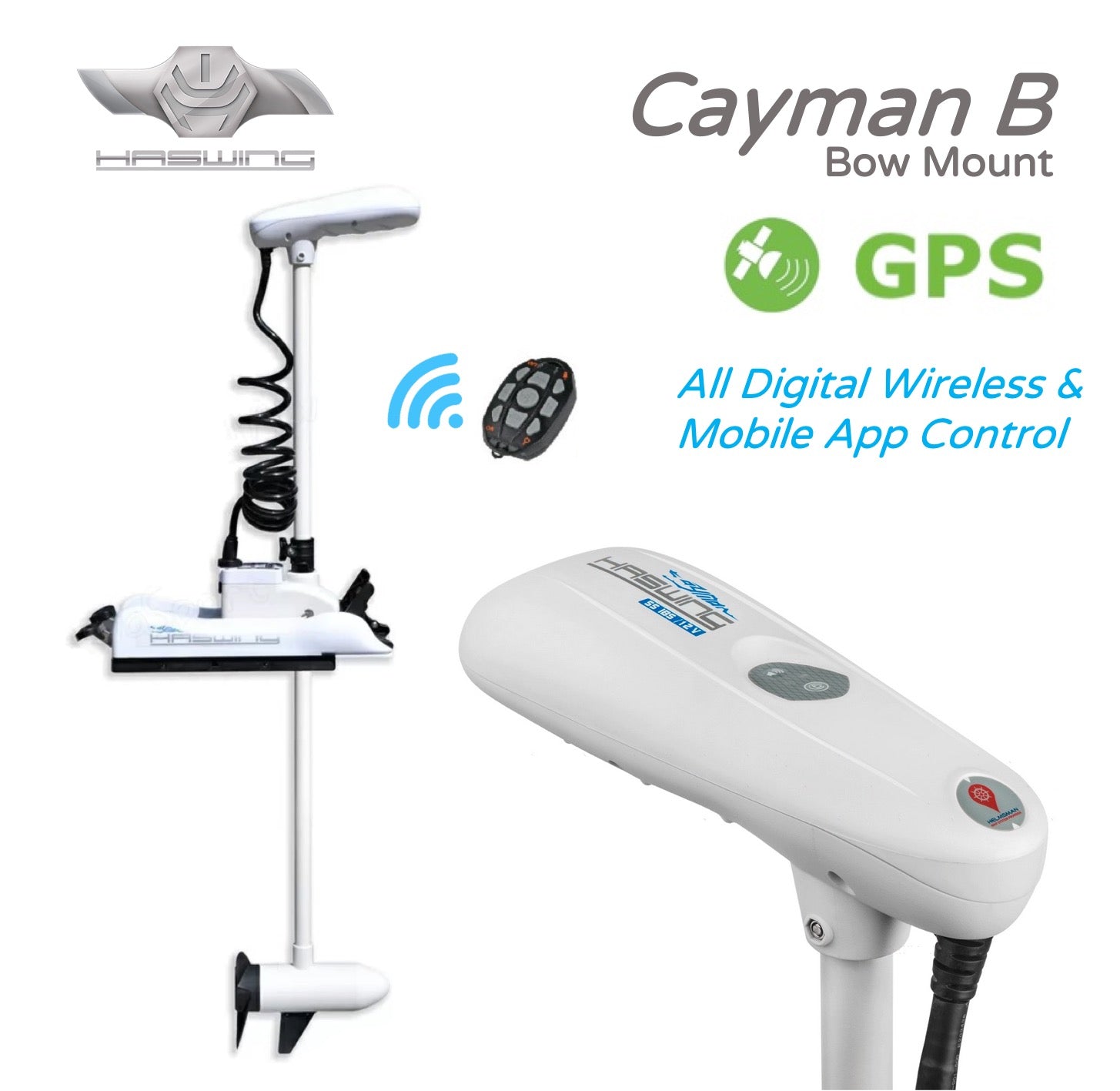

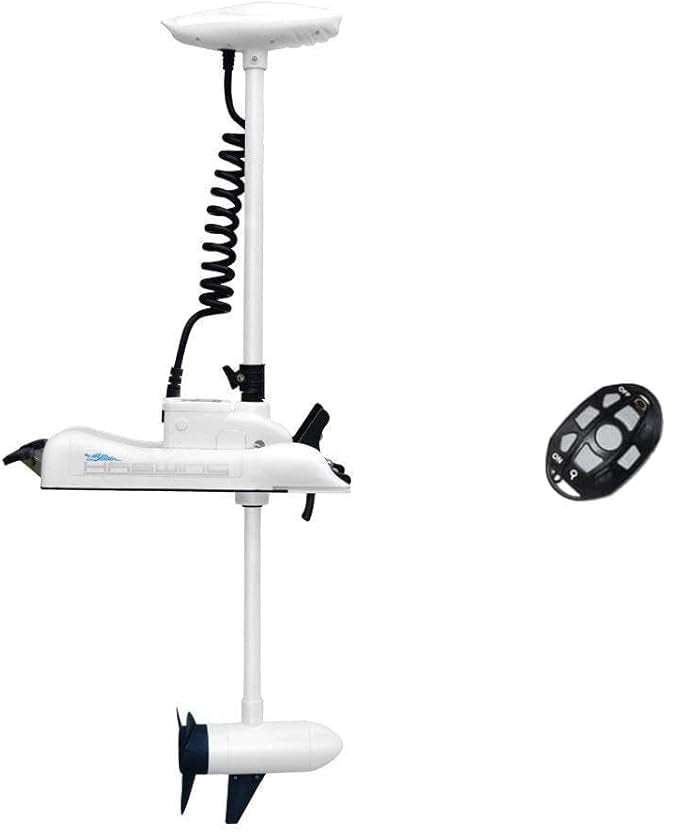

Haswing Cayman B GPS 55lb 12V Bow Motor 54in Shaft White

Genuine Haswing Cayman B GPS bow-mount trolling motor in white, with 55 lb thrust, 12 V operation and a 54-inch shaft. Remote Anchor, wireless control and app-based GPS navigation make it suitable for precise low-speed boat positioning.

Key Features

• Remote Anchor function helps hold the boat at a chosen position

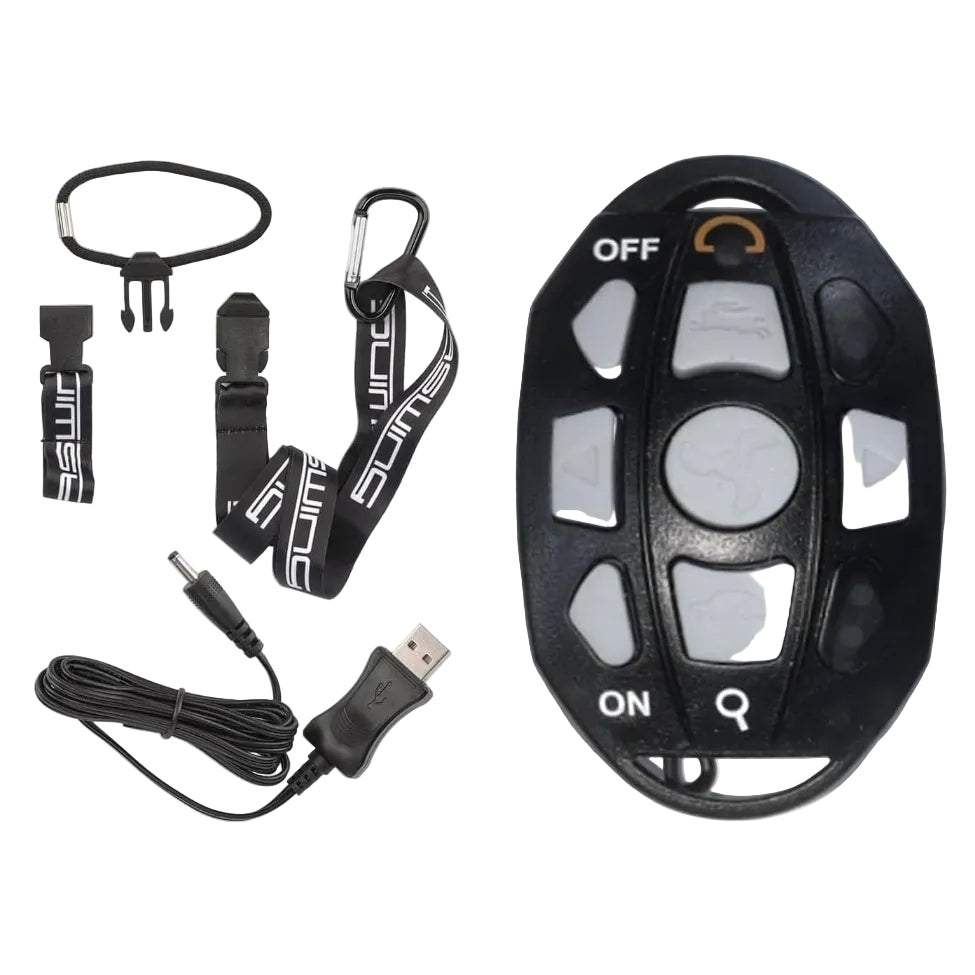

• Wireless handheld remote included

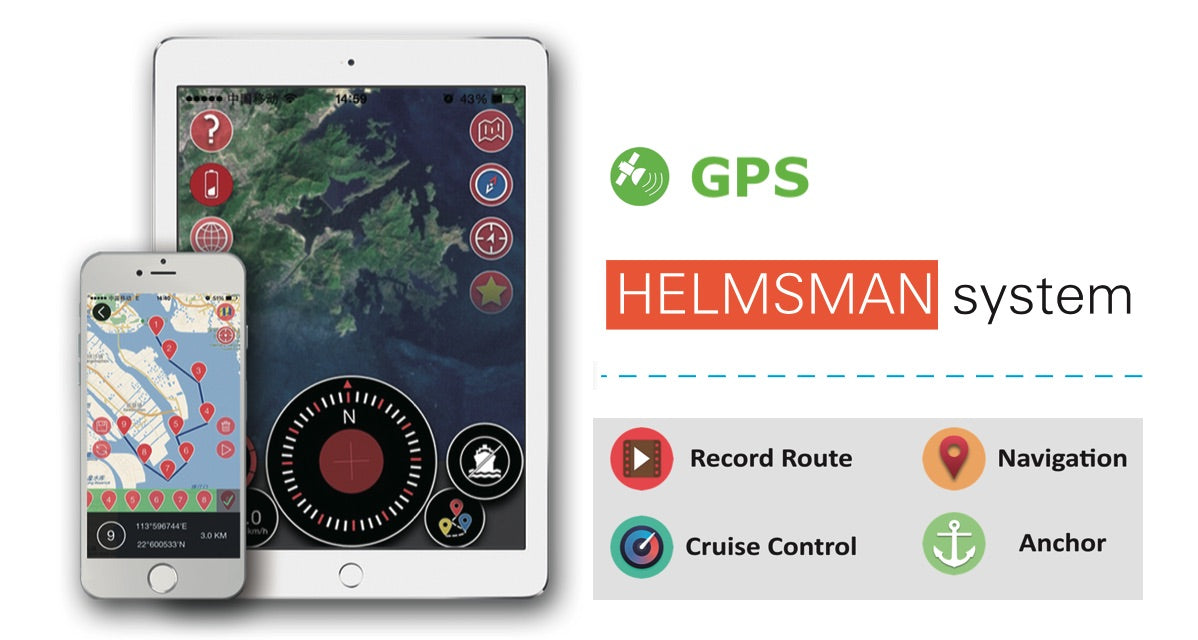

• Helmsman app control for Android and iOS devices, plus Apple Watch
• Route recording, cruise control and GPS smart navigation (autopilot) functions
• DIGIMAX stepless digital speed control to conserve battery power

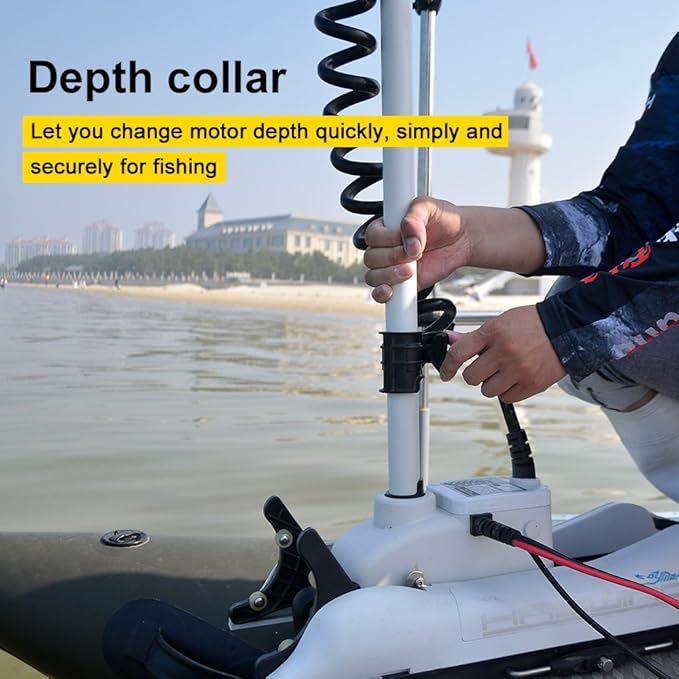

• 360° steering, foot-pedal release deployment and depth collar for immersion adjustment
• Integral motor fin protects the prop and motor from underwater impact
• Sacrificial anode supplied; suitable for fresh and salt water

Technical Specs

• Voltage: 12 V DC
• Maximum thrust: 55 lb
• Rated power: 600 W
• Maximum current draw: 50 A

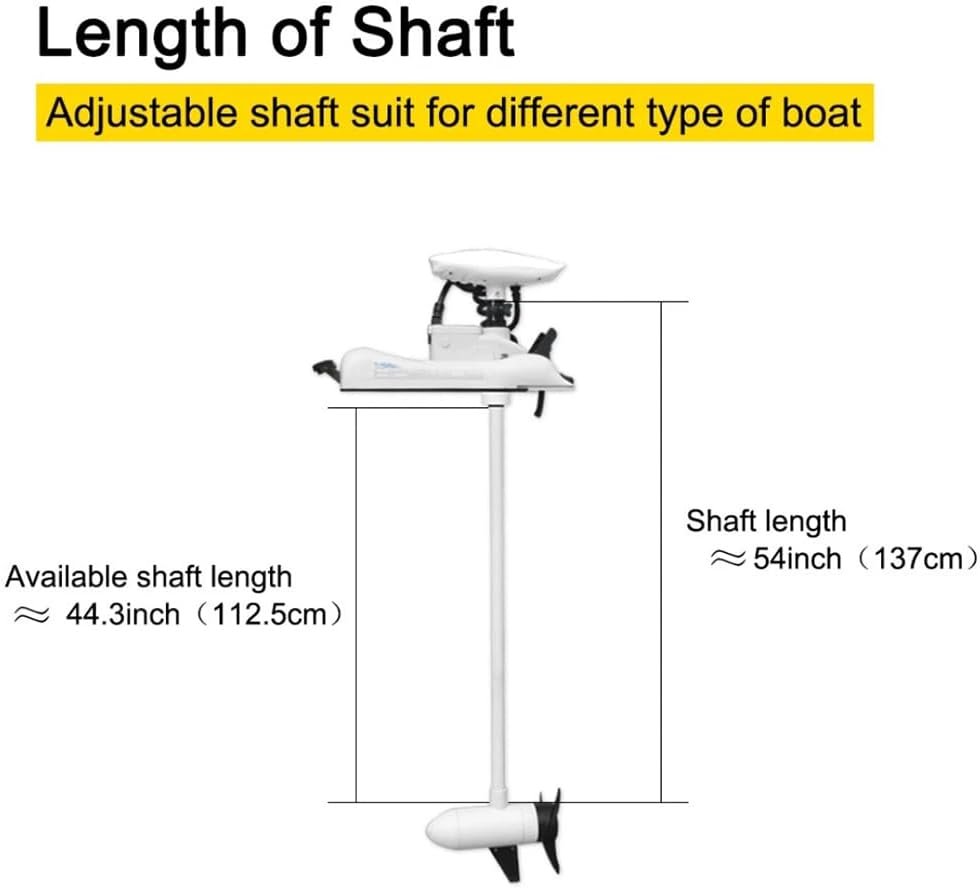

• Shaft length: 54 in / 1370 mm
• Shaft material: cast aluminium
• Propeller: 3 blade, 9.3 in diameter
• Prop speed: 1250 RPM at max speed (underwater)

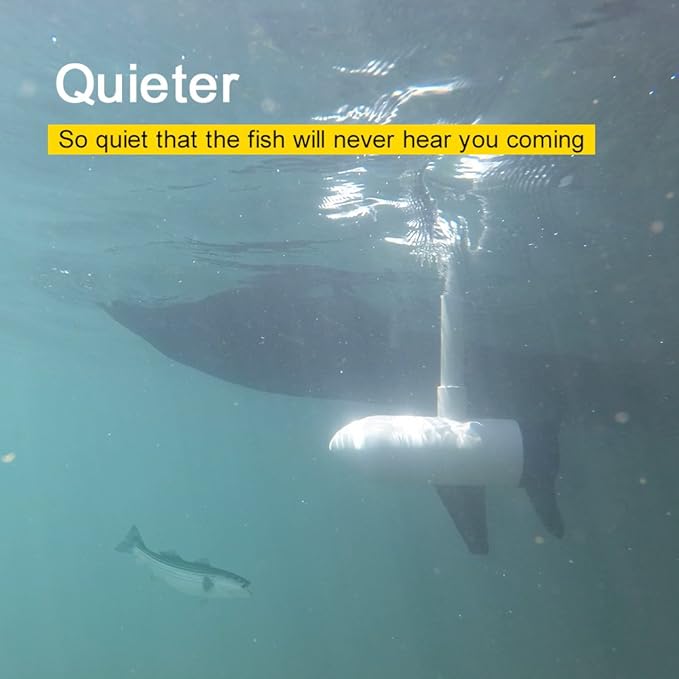

• Sound level: under 50 dB
• Motor weight: 14.3 kg
• Bow mounting footprint: 120 mm x 200 mm
• Recommended battery: 12 V 105 Ah deep-cycle (leisure), not included
• Colour: white

Compatibility / Fitment Guide

Bow-mount installation for boats up to approximately 5.5 m in length suited to a 55 lb, 12 V trolling motor and a 54-inch shaft. Allow a 120 mm x 200 mm mounting footprint on the bow. Confirm shaft immersion, bow height, mounting space and battery capacity before purchase. The wireless foot controller and the anti-theft locking feature for the quick-release bracket are optional accessories unless explicitly selected.

OEM Cross Reference

• 4Boats SKU: MD1242/GPS/W
• Haswing model: Cayman B GPS, bow mount, 55 lb, 12 V

Questions & Answers

Is the handheld remote included?
Yes, a wireless handheld remote is included with the base package, together with the fixing kit, user manual and propeller fixing kit.

Does it include a battery?
No. A 12 V deep-cycle battery (105 Ah recommended; larger for longer running time) is required separately.

Is the foot controller included?
No. The wireless digital foot controller with backlit LCD is an optional accessory unless the selected package specifically states otherwise.

Is this the white 54-inch version?
Yes. This listing is for the white motor with a 54-inch (1370 mm) shaft.
