Garmin 6-Pin Dual-Beam Transducer to 4-Pin Sounder Adapter 010-11615-00
230-0101161500
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 2 items left
- Backordered, shipping soon

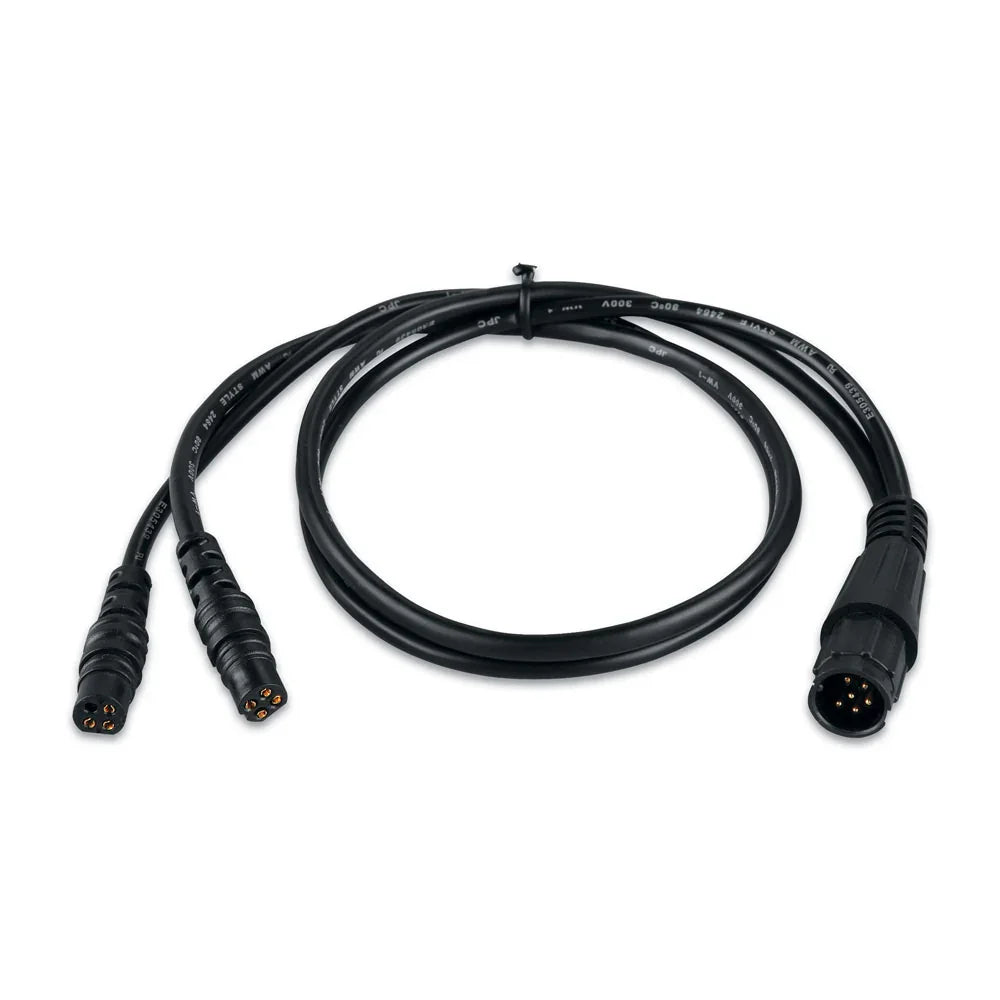

Garmin 6-Pin to 4-Pin Sonar Adapter
For compatible legacy dual-beam transducers and 4-pin echo displays
Genuine Garmin adapter that connects a compatible existing 6-pin dual-beam transducer to a Garmin echo-series fishfinder with a 4-pin transducer input.
Key Features
- ✔ Reuses a compatible 6-pin dual-beam transducer
- ✔ Connects to selected 4-pin Garmin echo-series fishfinders
- ✔ Moulded plug-and-play connectors
- ✔ No transducer cable cutting or splicing
- ✔ Genuine Garmin part 010-11615-00
Technical Specs
| Part type | Transducer adapter cable |
| Transducer side | Garmin 6-pin dual-beam |
| Sounder side | Garmin 4-pin echo-series |
| Signal type | Traditional dual-beam sonar |
| Feature conversion | None |
Compatibility / Fitment Guide
| Connection | Compatible use | Important exclusions |
|---|---|---|
| 6-pin dual-beam → 4-pin echo | Existing Garmin 6-pin dual-beam transducer to a compatible 4-pin echo-series fishfinder | Confirm that Garmin lists the receiving echo model for this adapter and the transducer's frequencies are supported. |
| Legacy transducer retention | Boat already has an installed 6-pin dual-beam transducer that is otherwise compatible with the replacement sounder | Adapter does not repair a damaged transducer or cable. |
| Not compatible | 6-pin transducers using an unsupported signal set; 8-pin or 12-pin sonar ports; power/data sockets | Does not add CHIRP, ClearVü, SideVü or temperature if the original transducer does not provide it. |
Identification: find the part number on the transducer cable tag and compare it with the sounder's transducer-support table. A physical 6-pin match is insufficient if the transducer technology or frequency is unsupported.
Part Number Cross Reference
| Garmin part number | 010-11615-00 |
| 4Boats SKU | 230-0101161500 |
| Brand / supply | Genuine Garmin accessory |
Frequently Asked Questions
Does it work with every 6-pin Garmin transducer?
No. Garmin describes it for an existing 6-pin dual-beam transducer.
Will it convert the signal to CHIRP?
No. It only adapts the connector.
Is it a power lead?
No. It connects the sonar transducer to the fishfinder.
Before ordering: compare the Garmin part number, connector pin count, keying and device documentation. Pin count alone is not a complete fitment check.
