Garmin 19-Pin Power Data Sonar Cable GPSMAP 720 720s 740 740s 750 010-11482-01
230-0101148201
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 1 item left
- Backordered, shipping soon

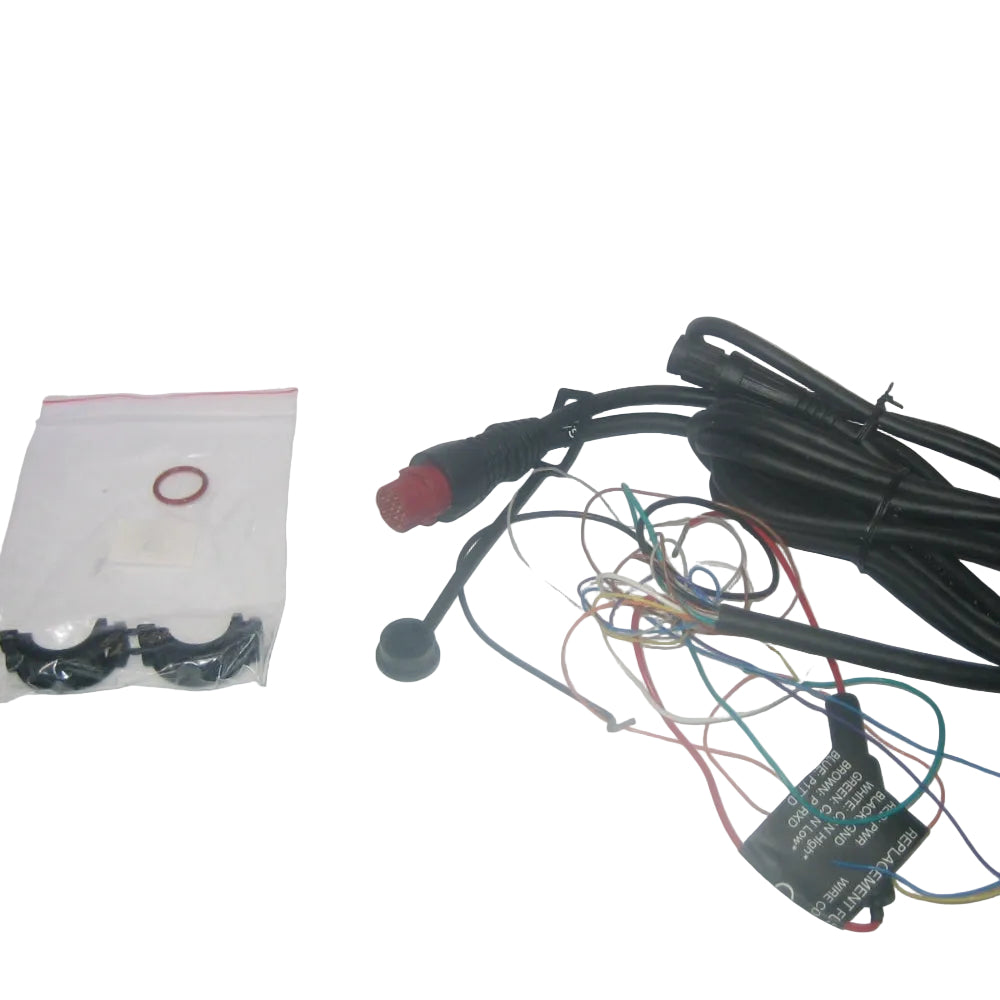

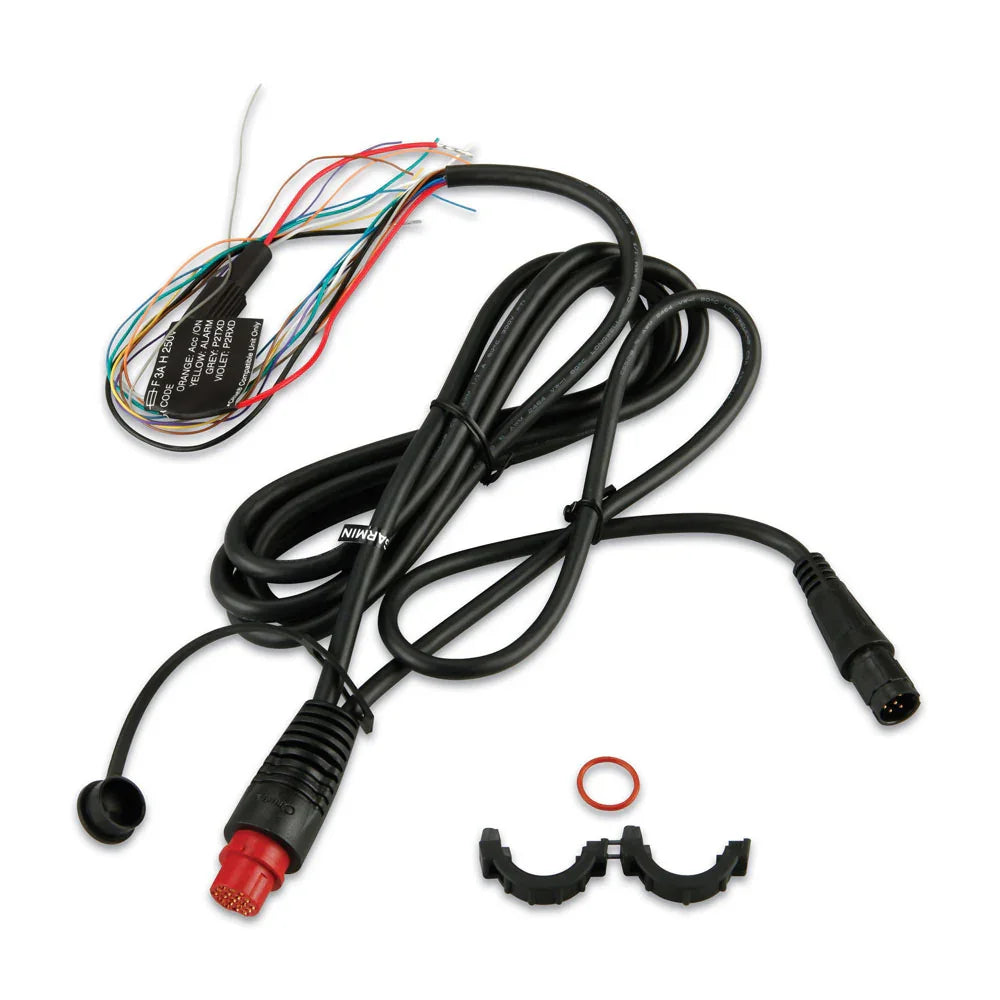

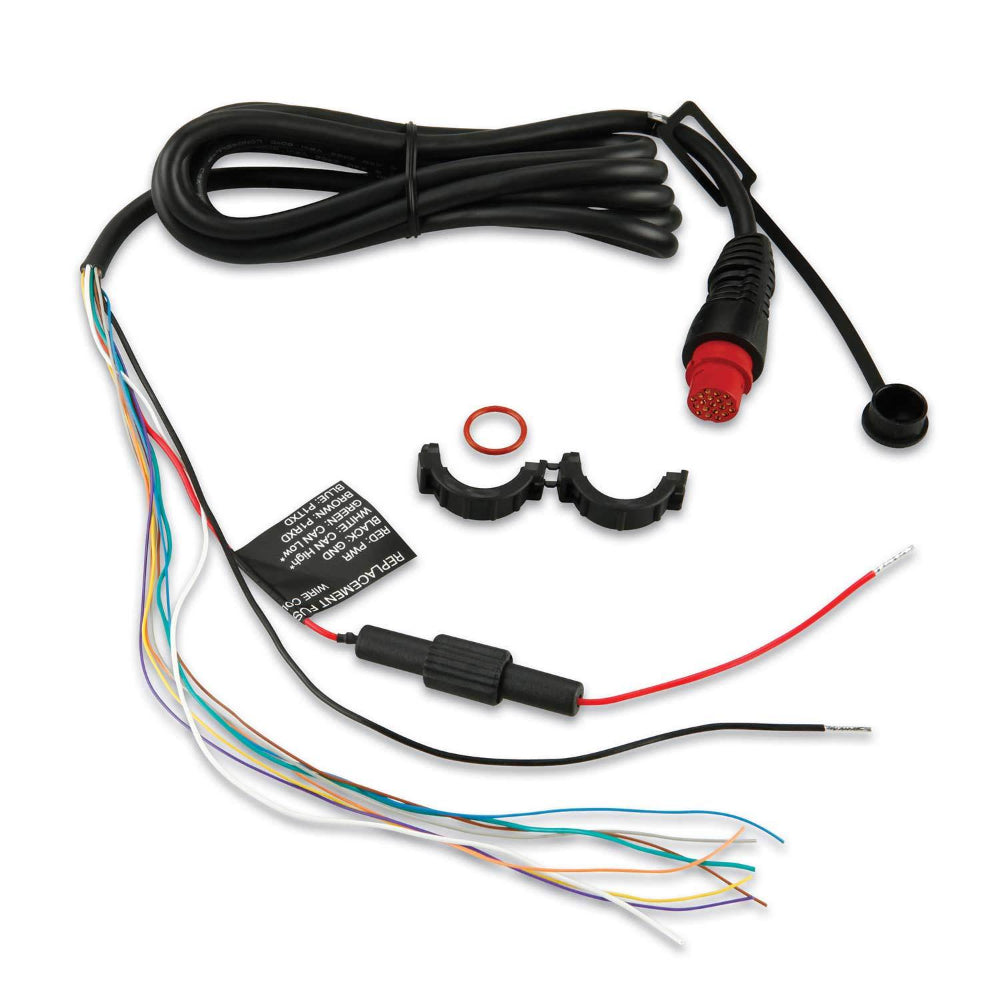

Garmin 19-Pin Threaded Cable (010-11482-01)
Reliable Power, Data & Sonar Connectivity
Restore full functionality to your Garmin GPSMAP 700 series chartplotter with this high-quality 19-pin threaded cable. This multi-purpose harness is specifically designed to provide stable DC power, NMEA 0183 data networking, and sonar signal transmission in a single, secure connection. Whether you are replacing a corroded original harness or performing a new installation, this cable ensures your marine electronics remain powered and networked in harsh offshore environments.
Key Features

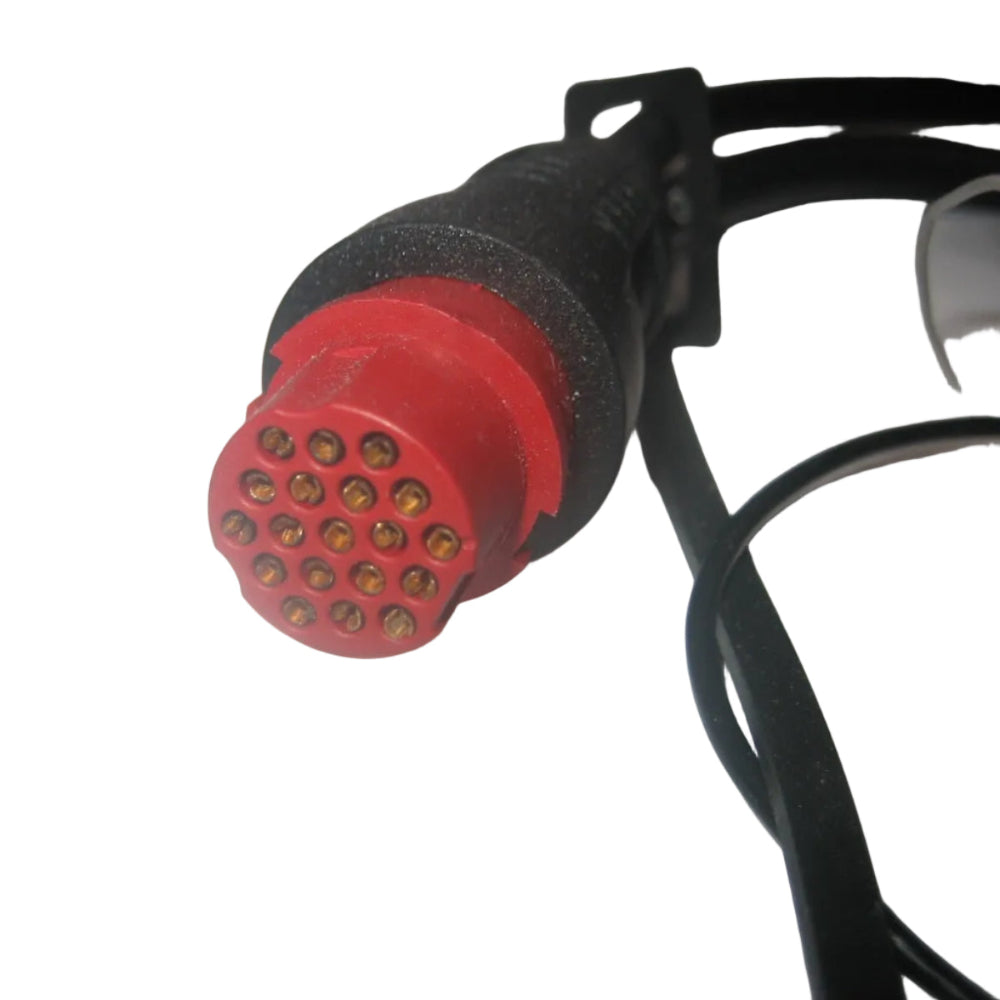

- β 19-Pin Configuration: Integrated power, data, and sonar pins.
- β Secure Locking: Threaded collar ensures a watertight, vibration-proof fit.
- β Bare Wire Ends: Allows for easy splicing into existing power and NMEA 0183 networks.
- β Durable Build: Marine-grade insulation for long-term corrosion resistance.
Technical Specs
| Connector Type | 19-Pin (Threaded) |
| Cable Length | approx. 6 ft (1.8m) |
| Material | Marine-grade Polymer/Copper |
| Function | Power / NMEA 0183 / Sonar |
Compatibility / Fitment Guide
| System Series | Model Application | Notes |
|---|---|---|
| Garmin GPSMAP 700 | 720, 720s | Threaded 19-pin port only |
| Garmin GPSMAP 700 | 740, 740s | Primary power/data harness |
| Garmin GPSMAP 700 | 750, 750s | Includes NMEA 0183 wires |
OEM Cross Reference
| Garmin MPN | 010-11482-01 |
| UPC Code | 753759103378 |
| Alternative SKU | 230-0101148201 |
Questions & Answers
Is this a genuine original part?
This is a premium quality replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
Please check the back of your GPSMAP unit. This cable is specifically for models with a 19-pin threaded connector port. It is NOT compatible with the newer 8-pin or 4-pin Garmin units.
Does this cable support sonar functions?
Yes, this 19-pin harness includes the specific conductors required for sonar signal transmission on "s" designated models (e.g., 720s, 740s).
Note: Please verify your original port configuration before purchasing. Mention of domain 4boats.co.uk is for reference only.
