Garmin 12-Pin XID Transducer Extension Cable 30ft 010-11617-42
230-0101161742
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 2 items left
- Backordered, shipping soon

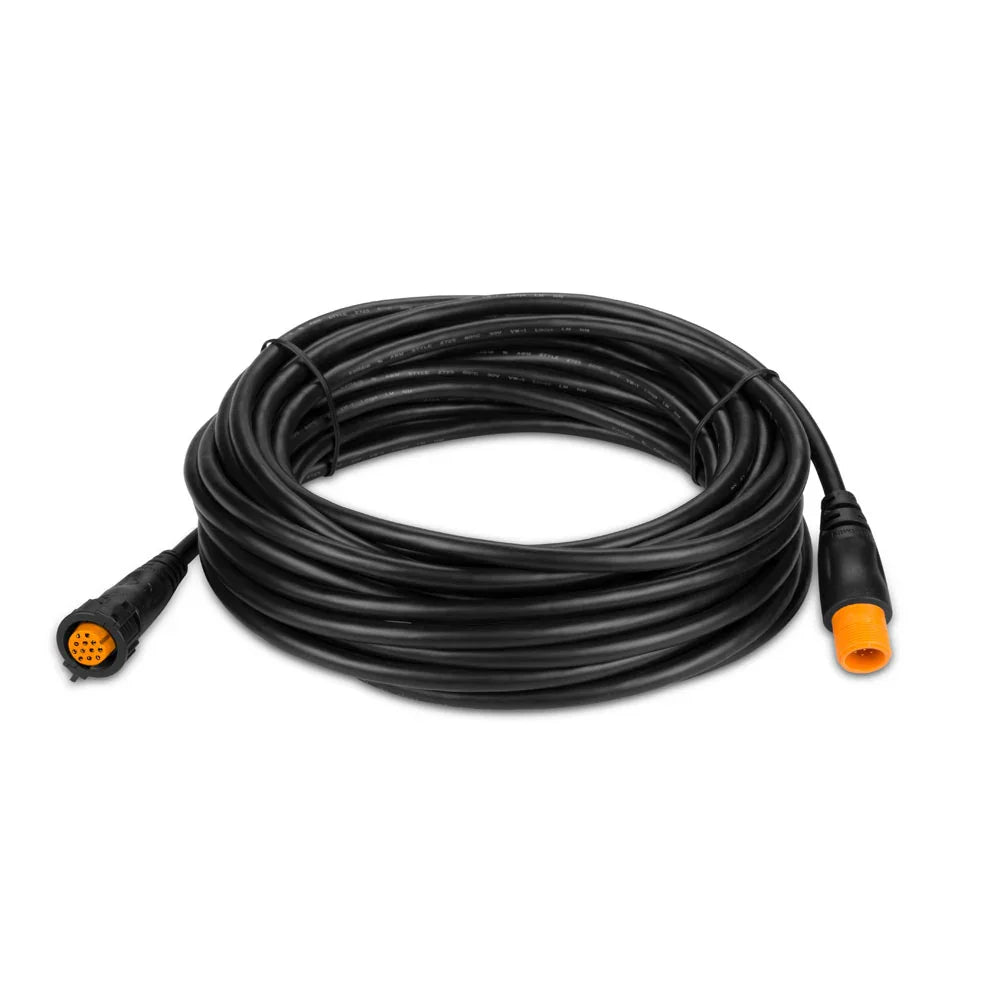

Garmin 12-Pin XID Extension Cable
30 ft / 9 m transducer extension
Genuine Garmin extension cable for installations where a compatible 12-pin XID transducer cable will not reach the sonar display or module.
Key Features
- ✔ Extends a compatible Garmin XID transducer connection by 30 ft (9 m)
- ✔ 12-pin Garmin marine sonar connectors
- ✔ Maintains the XID identification path on supported transducers
- ✔ Genuine Garmin replacement/installation accessory
- ✔ No cutting or splicing of the transducer lead
Technical Specs
| Accessory type | Transducer extension cable |
| Length | 30 ft / approximately 9 m |
| Connector family | Garmin 12-pin XID |
| Signal use | Sonar transducer, including XID identification |
| Adapters included | None |
Compatibility / Fitment Guide
| Application | Compatible fitment | Verification / exclusions |
|---|---|---|
| Direct extension | Garmin transducers explicitly described as 12-pin with XID, connected to a compatible 12-pin XID sonar port | Match the transducer plug and receiving socket; check the display/transducer compatibility chart. |
| Not a direct fit | 4-pin, 6-pin or 8-pin transducers; 12-pin systems requiring a different adapter or non-XID wiring | Pin count and connector keying must match. This cable does not convert one connector family to another. |
| Cable-length limit | Use only within Garmin's published transducer-extension limits for the connected transducer | Do not assume multiple extensions can be daisy-chained; excessive length can affect sonar performance. |
What to check: read the Garmin part number on the transducer, confirm it is an XID model, inspect the plug for the 12-pin layout and confirm the chartplotter or sounder module accepts that transducer. This is an extension only; it cannot add XID capability to a non-XID transducer.
Part Number Cross Reference
| Garmin part number | 010-11617-42 |
| 4Boats SKU | 230-0101161742 |
| Supply type | Genuine Garmin accessory |
Frequently Asked Questions
Will this fit every Garmin 12-pin transducer?
No. It is specifically listed for 12-pin XID transducers; verify the transducer and sounder documentation.
Does it convert an 8-pin transducer to 12-pin?
No. Use the correct Garmin adapter for conversion.
Can I join several cables together?
Follow Garmin's extension limit for the exact transducer; do not assume unlimited daisy-chaining.
Before ordering: match Garmin part number, connector pin count and the receiving device socket. Similar-looking Garmin connectors are not interchangeable.
