Fusion SG-VREGLED Signature LED Voltage Regulator Dimmer 010-12276-00
233-0101227600
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon

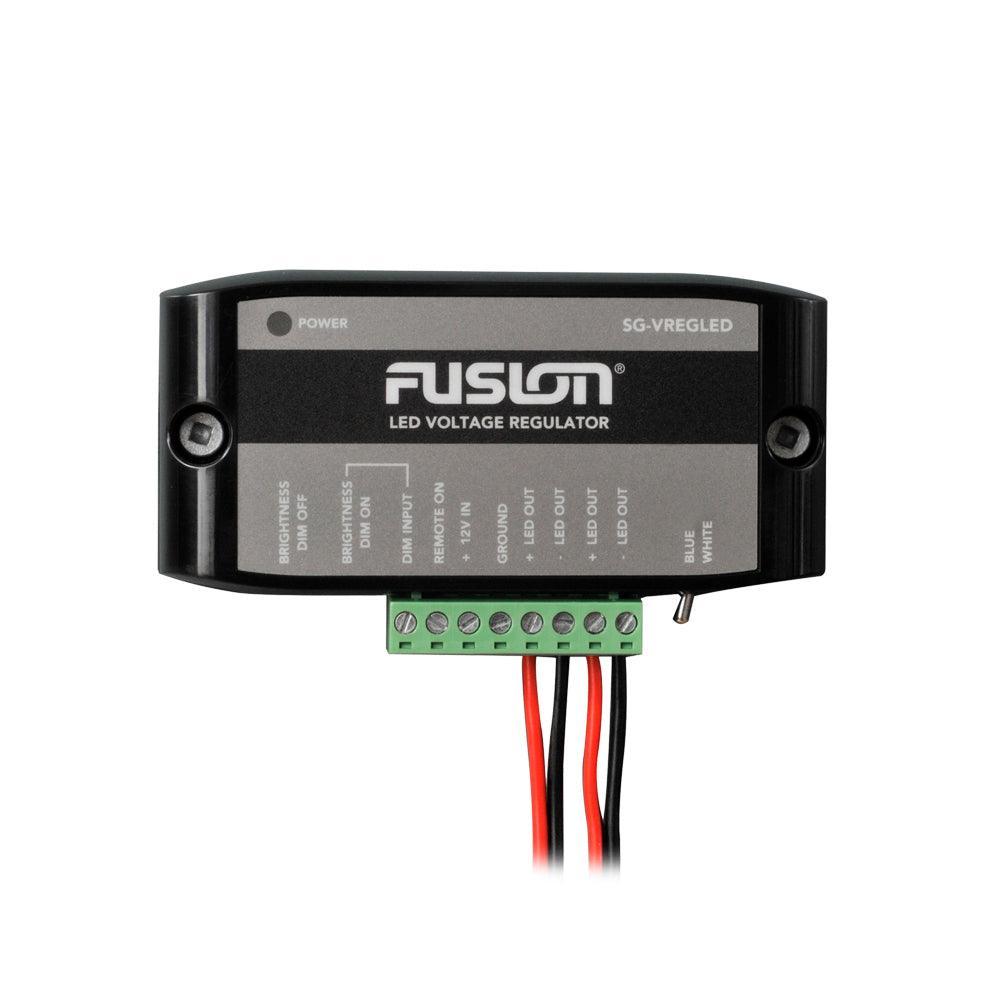

Fusion SG-VREGLED LED Voltage Regulator
Signature Series Speaker / Subwoofer LED Control
The Fusion SG-VREGLED stabilises and adjusts the LED supply for compatible Fusion Signature Series speakers and subwoofers. It helps prevent brightness changes as a 12 V charging system moves between battery and alternator voltage, and can serve up to ten compatible LED-equipped speakers/subwoofers within its output-current limit.
Key Features
- Stable adjustable LED supply
- Supports up to 10 compatible Signature speakers/subwoofers
- Dimmer control and supported blue/white colour switching
- Short-circuit and input over-voltage protection
- Pluggable terminal block for installation
Technical Specs
| Model | SG-VREGLED |
| Fusion part number | 010-12276-00 |
| 4Boats / supplier SKU | 233-0101227600 |
| Input | 10.8–16 V DC, 3 A maximum |
| Output | Adjustable 5–15 V DC, 1.5 A maximum |
| Water resistance | IPX2 when correctly mounted |
| Dimensions | 110 × 62.4 × 23.5 mm |
| Maximum stated light count | Up to 10 compatible Signature speakers/subwoofers |
Compatibility / Fitment Guide
Compatibility is electrical and connector/control based. Use on a nominal 12 V DC installation with compatible Fusion Signature LED lighting.
| Compatible product family | Fusion Signature Series speakers and subwoofers that specify SG-VREGLED as the optional regulator |
| System voltage | 10.8–16 V DC input; do not connect directly to a 24 V battery system |
| Load limit | Maximum 1.5 A total LED output and no more than 10 compatible illuminated speakers/subwoofers |
| Control type | For the supported blue/white LED switching and dimming arrangement described in the product instructions |
| Mounting | IPX2 applies only when mounted correctly; install in a sheltered location with terminals protected |
| Wiring check | Fuse and cable size must follow the Fusion installation instructions; observe polarity and isolate power before wiring |
Exclusions: Not an RGB/CRGBW lighting controller, not an audio amplifier and not suitable for arbitrary 24 V or high-current LED loads.
Part Number Cross Reference
| Fusion model | SG-VREGLED |
| Fusion / Garmin part number | 010-12276-00 |
| Supplier / 4Boats SKU | 233-0101227600 |
Match the model number rather than relying only on the appearance of the regulator.
Frequently Asked Questions
Can it power the audio speakers?
No. It supplies and controls only the LED lighting circuit.
Can I connect ten speakers regardless of load?
No. Ten is the stated device-count maximum, but the combined LED current must also remain within 1.5 A.
Will it work on 24 V?
Not directly; the specified input range is 10.8–16 V DC.
Does IPX2 mean it can be mounted outside?
IPX2 is limited dripping-water protection when correctly mounted. Use a sheltered installation location.
Follow Fusion's wiring diagram and fit appropriate circuit protection. Disconnect the battery supply before installation.
