Fusion SG-DA41400 Signature Series 4 Channel 1400W Marine Amplifier 010-01969-00
233-0100196900
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 2 items left
- Backordered, shipping soon

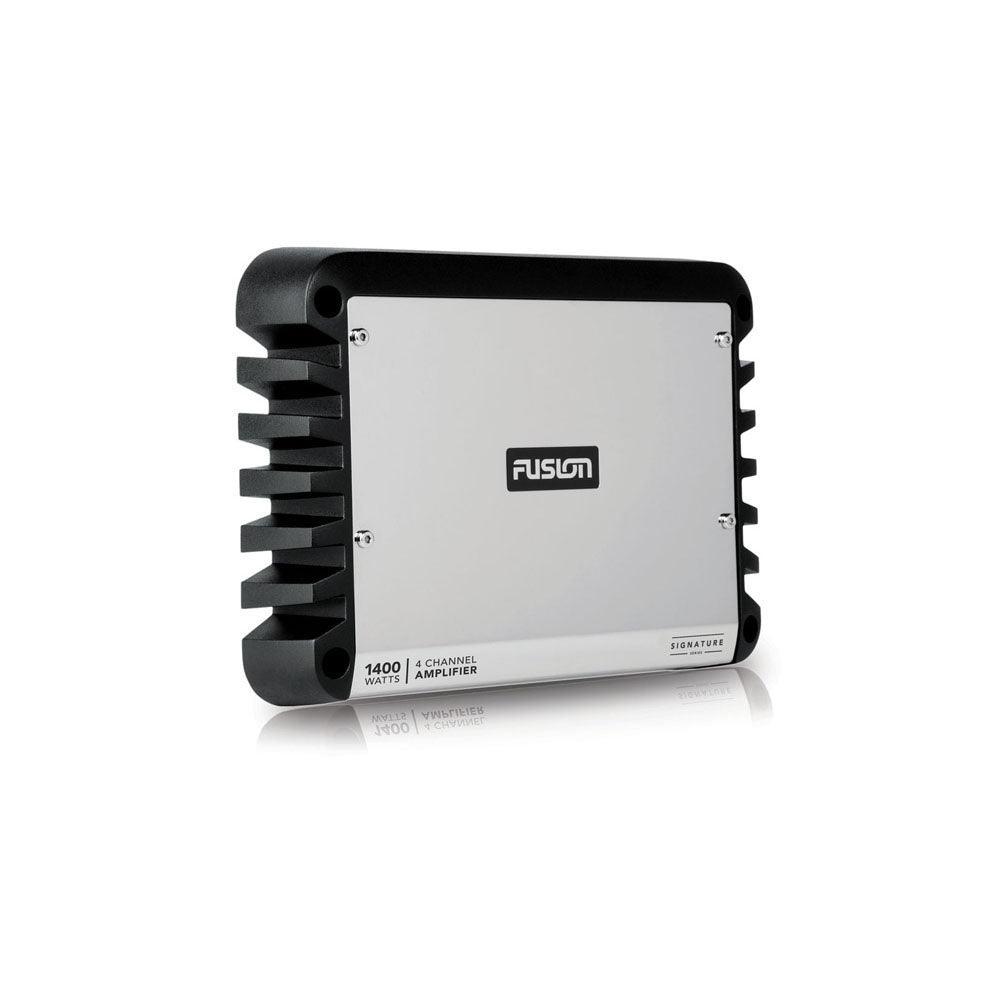

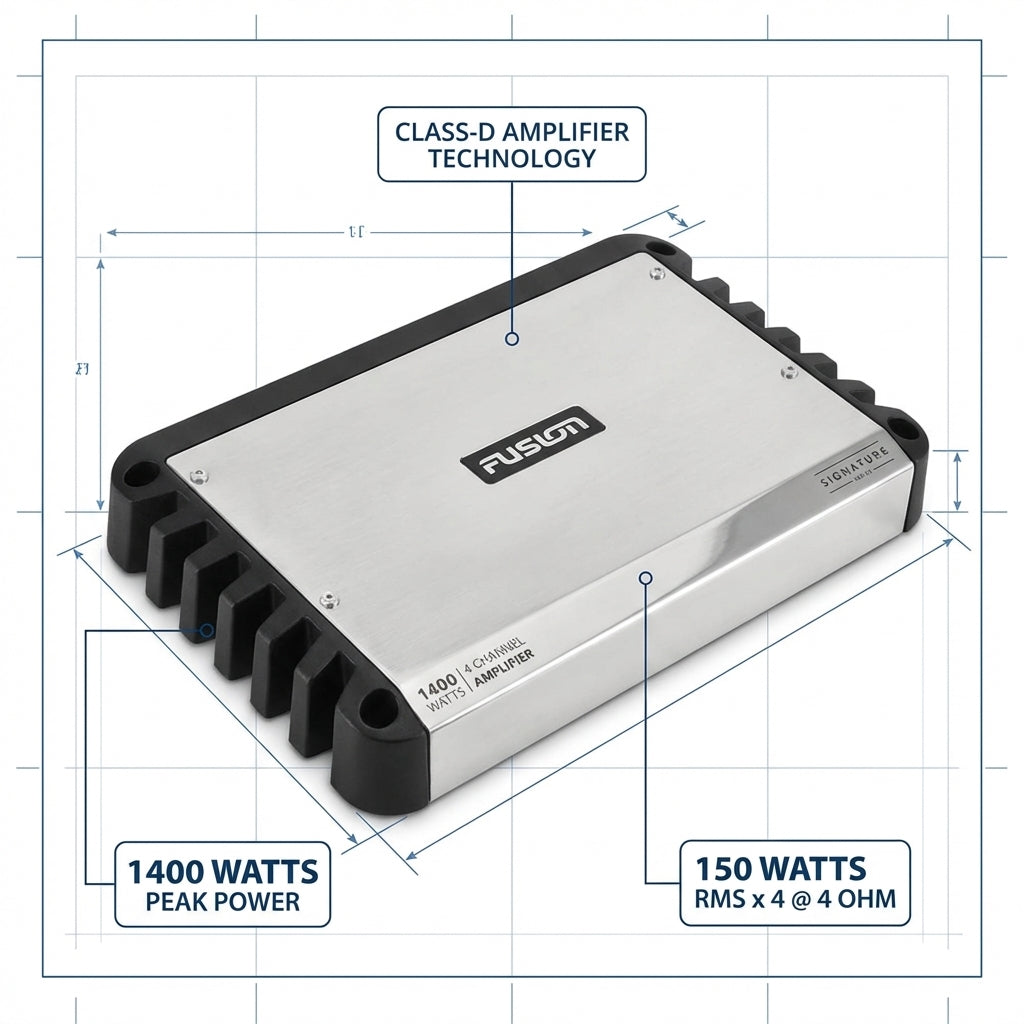

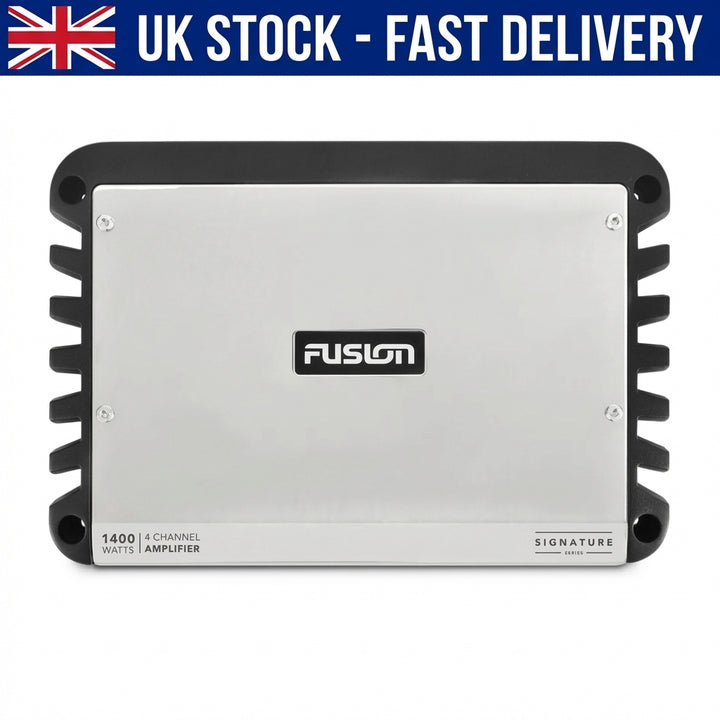

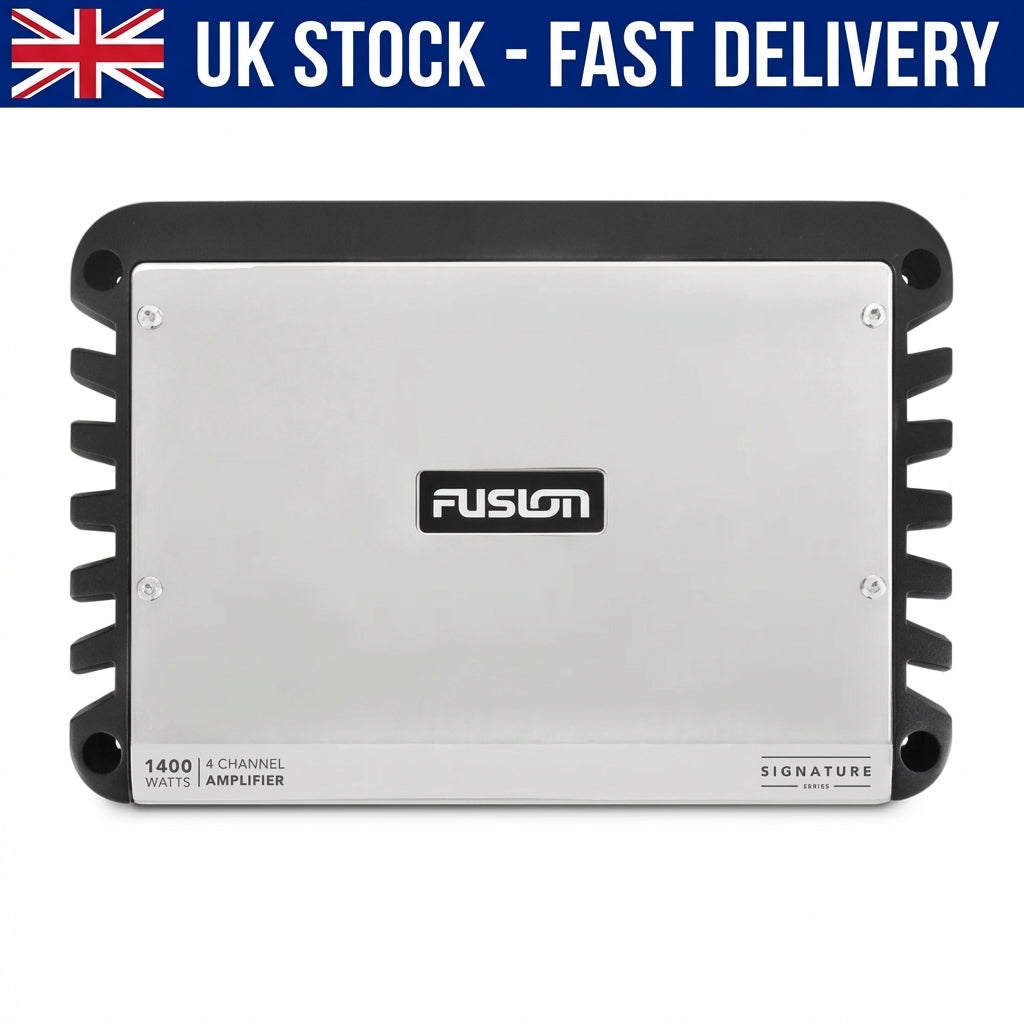

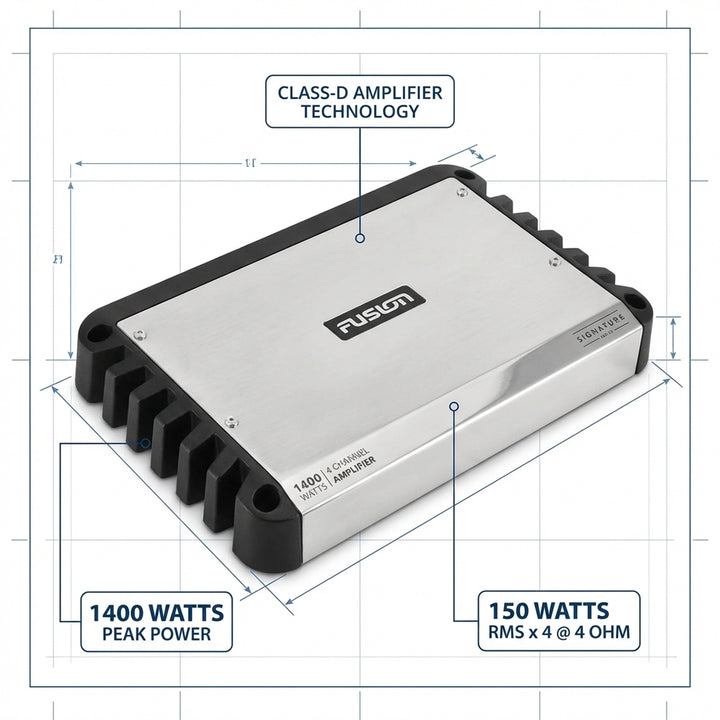

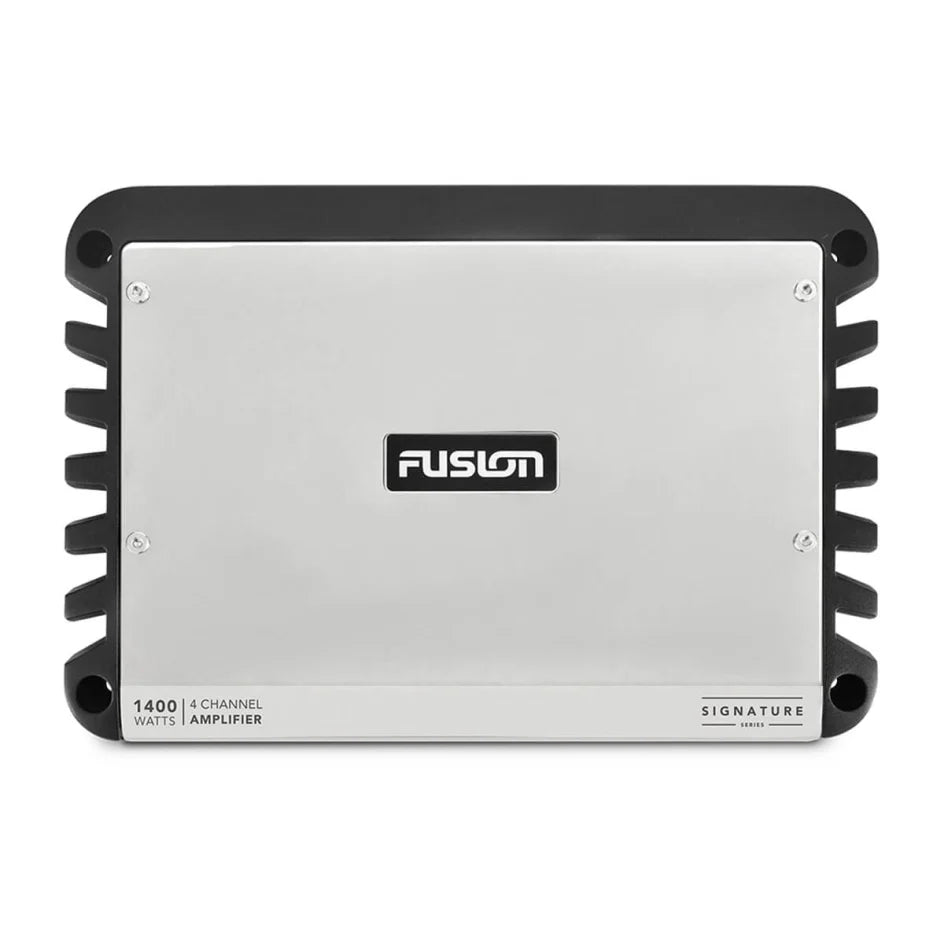

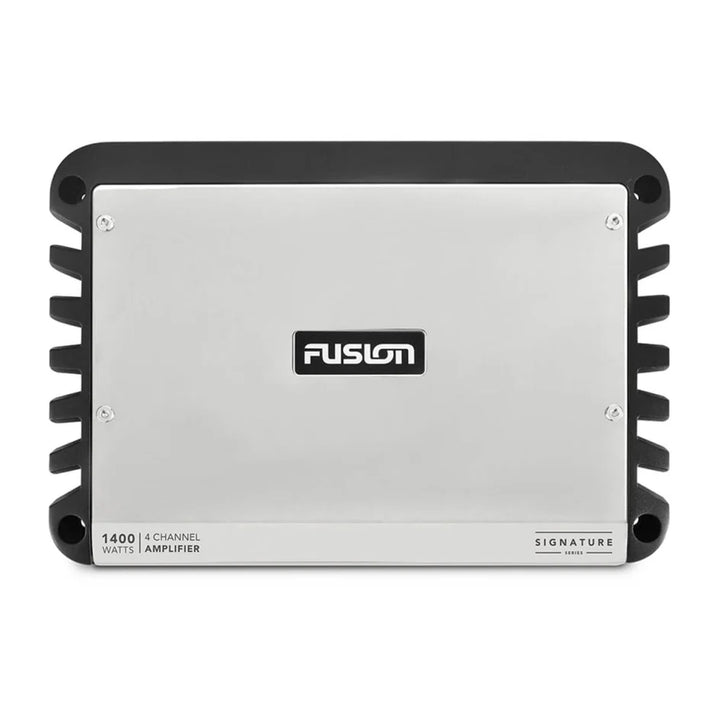

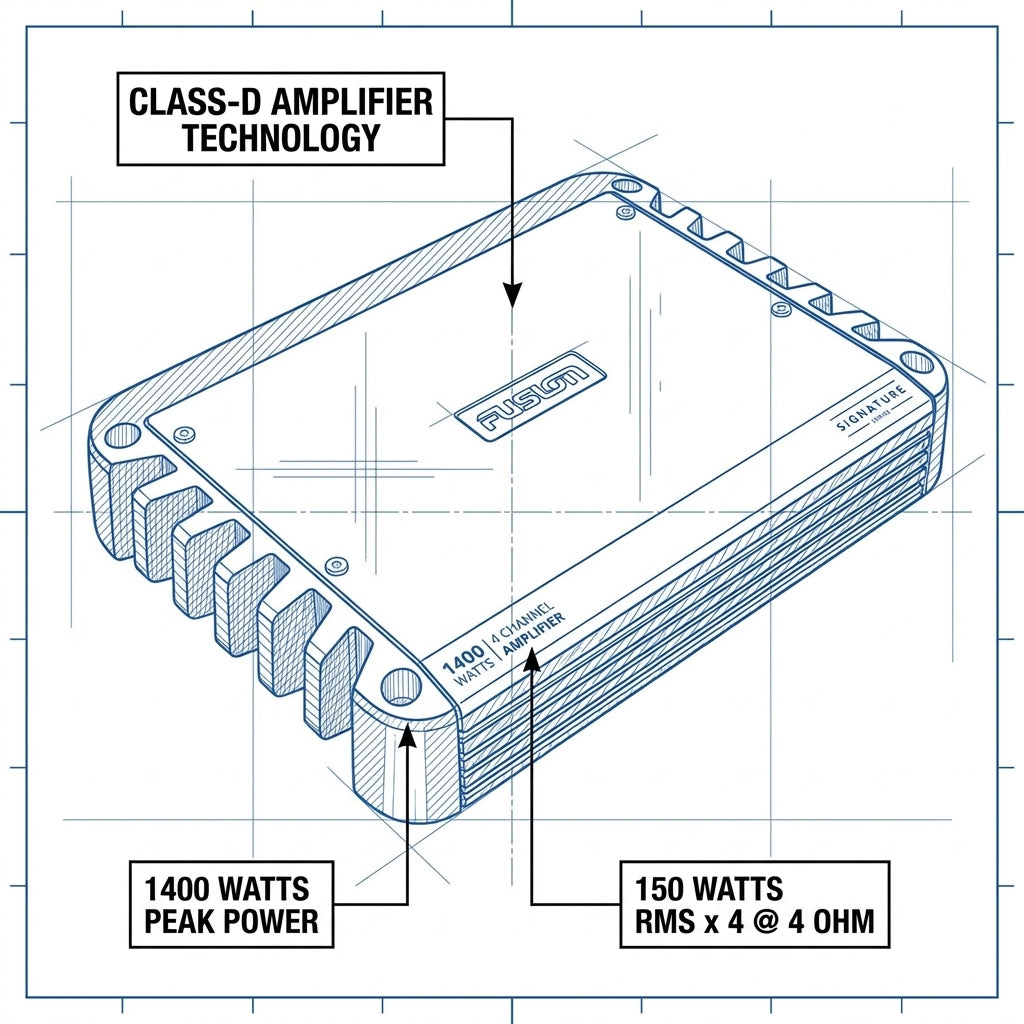

Fusion SG-DA41400 Signature Series Amp
SKU: 010-01969-00 | 1400W 4-Channel Marine Power
Elevate your on-water audio experience with the Fusion SG-DA41400 Signature Series Marine Amplifier. This highly efficient Class-D amplifier is purpose-built for the harsh marine environment, delivering a massive 1400 Watts of peak power while maintaining low battery drainβperfect for extended sessions on the water.
Key Features
- β Class-D Technology: Higher output with lower current draw.
- β Conformal Coated PCBs: Moisture and corrosion resistance.
- β Rigid Aluminum Heat Sink: Superior thermal dissipation.
- β Flexible Config: Power 4 speakers or 2 speakers + 1 sub (bridged).
Technical Specs
| Peak Power: | 1400 Watts |
| RMS Power (4 Ohm): | 150W x 4 @ 14.4V |
| RMS Power (2 Ohm): | 220W x 4 @ 14.4V |
| RMS Bridged (4 Ohm): | 440W x 2 @ 14.4V |
| Frequency Response: | 10Hz - 65kHz |
| Voltage: | 10.8V - 16.0V DC |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| 12V Marine Audio | Boats, Yachts, Marine Vessels | Compatible with all RCA head units |
| Speaker Setup | 4-Channel Mode | Powers up to 8 speakers (wired in parallel) |
| Subwoofer Setup | 3-Channel / Bridged Mode | Perfect for 2 speakers + 1 subwoofer |
OEM Cross Reference
| Garmin/Fusion SKU: | 010-01969-00 |
| Model Number: | SG-DA41400 (Signature Series) |
| EAN/UPC: | 753759152994 / 075375915297 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Fusion (Garmin) Signature Series marine amplifier, factory-sealed and brand new.
Why is Class-D better for marine use?
Class-D amplifiers are more efficient, producing less heat and drawing significantly less current from your boat's battery compared to traditional Class-AB amplifiers.
Can I bridge this to power a subwoofer?
Absolutely. You can bridge two channels to deliver 440W RMS @ 4 Ohms, making it ideal for a high-performance marine subwoofer.
Note: Professional installation is recommended. Ensure 4 AWG power and ground cables are used for optimum performance. Sold via 4boats.co.uk.
