Fixed Motor Bracket Wood for 22–25 mm Pipe | 4Boats
WL-1014
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon

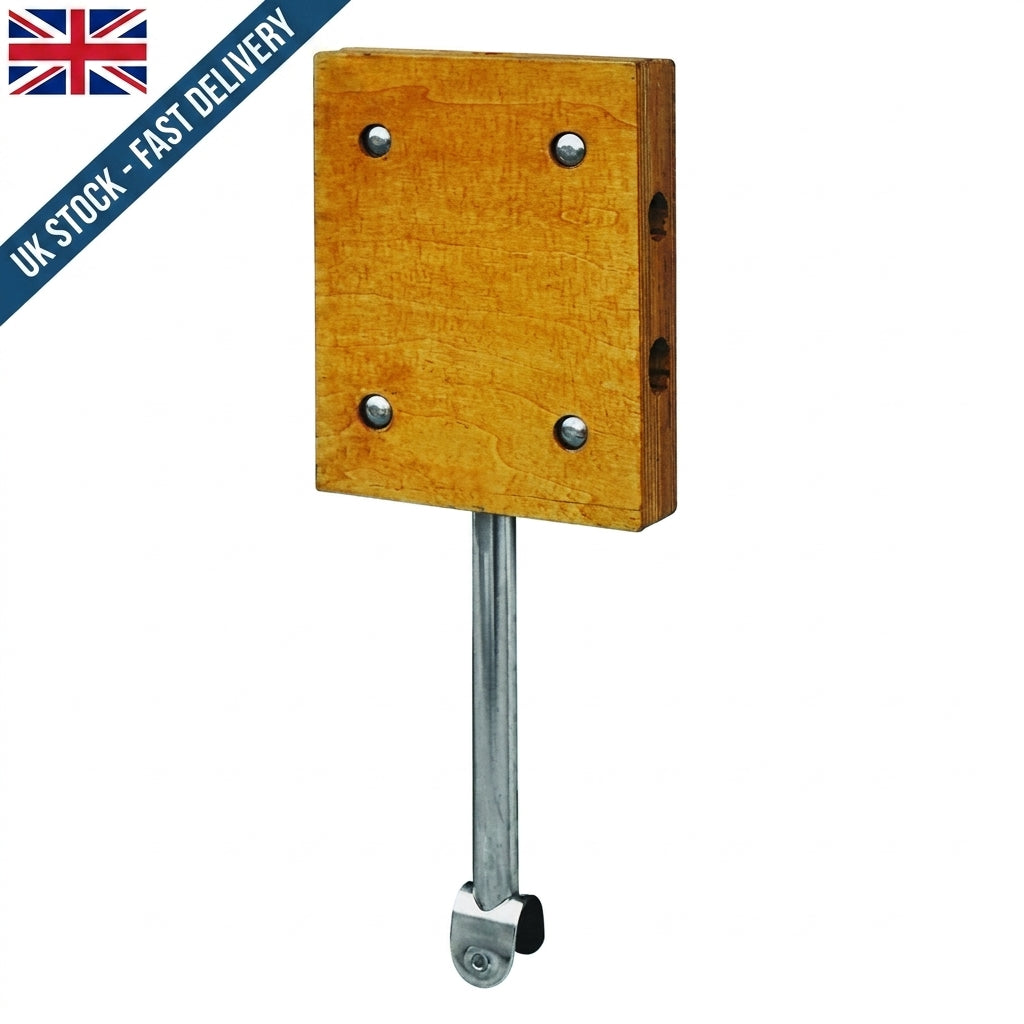

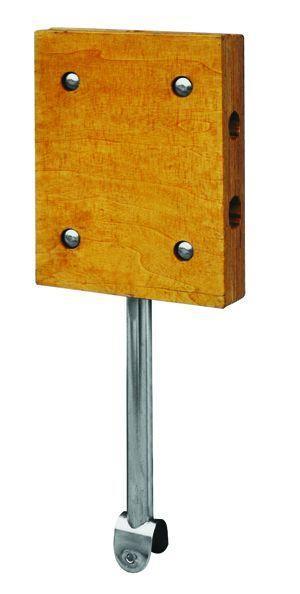

Fixed Motor Bracket (Wood Pad)
Heavy-Duty Stainless Steel Auxiliary Mount
This 4Boats heavy-duty fixed outboard bracket is engineered for boaters who require a permanent, ultra-stable mounting solution for auxiliary engines and kicker motors. Unlike spring-loaded adjustable brackets, the fixed design eliminates mechanical movement, providing a rock-solid platform for sailboats, fishing boats, and tenders.
Key Features
- ✔ Fixed position for maximum stability
- ✔ Marine-grade AISI 304 Stainless Steel
- ✔ Toughened birch plywood mounting pad
- ✔ Universal 4-bolt transom pattern
- ✔ Predrilled for easy installation

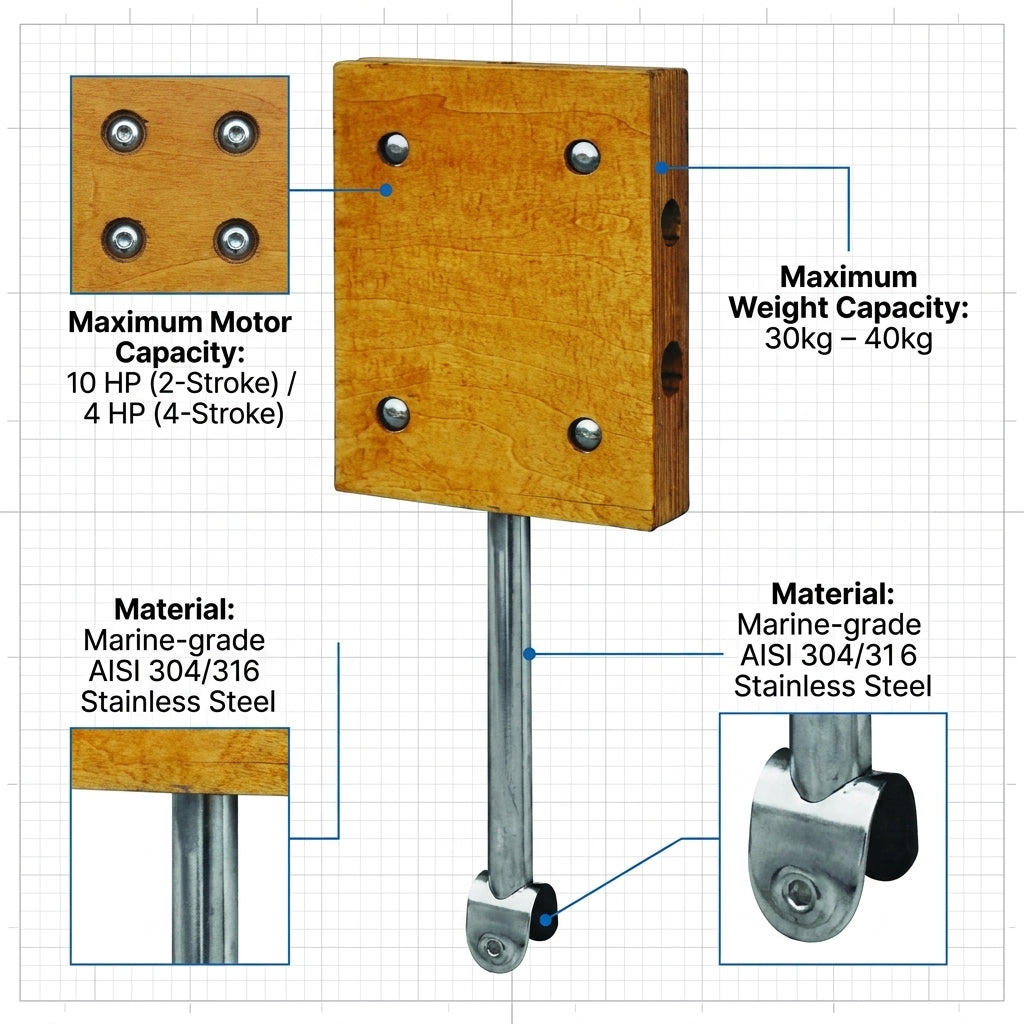

Technical Specs
| Max Power (2-Stroke) | 10 HP |
| Max Power (4-Stroke) | 4 HP |
| Max Weight Capacity | 35 kg |
| Frame Material | AISI 304 Stainless |
| Pad Material | Birch Plywood |
| Mounting Type | Transom (Flat) |
Compatibility / Fitment Guide
| Vessel Type | Application | Notes |
|---|---|---|
| Sailboats / Yachts | Auxiliary Outboard | Ideal for backup propulsion |
| Fishing Boats | Kicker / Trolling Motor | Fits most small petrol outboards |
| Tenders / Dinghies | Primary Engine Mount | Requires a flat vertical transom |
OEM Cross Reference
| 4Boats SKU | 10-HP-FIXED |
| Seachoice Ref | 71008 |
| Waveline Ref | WL-1014 |
| Industry Standard | Stainless Fixed Bracket Series |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance in marine environments.
How do I know if it is compatible?
This is a universal transom-mount bracket designed to fit any flat vertical transom or stern. Please verify that your engine's weight does not exceed 35kg.
Why is the 4-stroke HP rating lower than the 2-stroke rating?
4-stroke engines are significantly heavier and produce higher torque for the same horsepower compared to 2-stroke units. To ensure structural safety and prevent transom stress, this bracket is rated for 4hp max for 4-stroke units.
Note: Mounting hardware (bolts/nuts) is typically not included as transom thickness varies by boat. Please verify your requirements before purchasing.
