Multiflex Easy Connect Single Steering Helm for SC-16 Cable LM-H-301
LM-H-301
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 3 items left
- Backordered, shipping soon

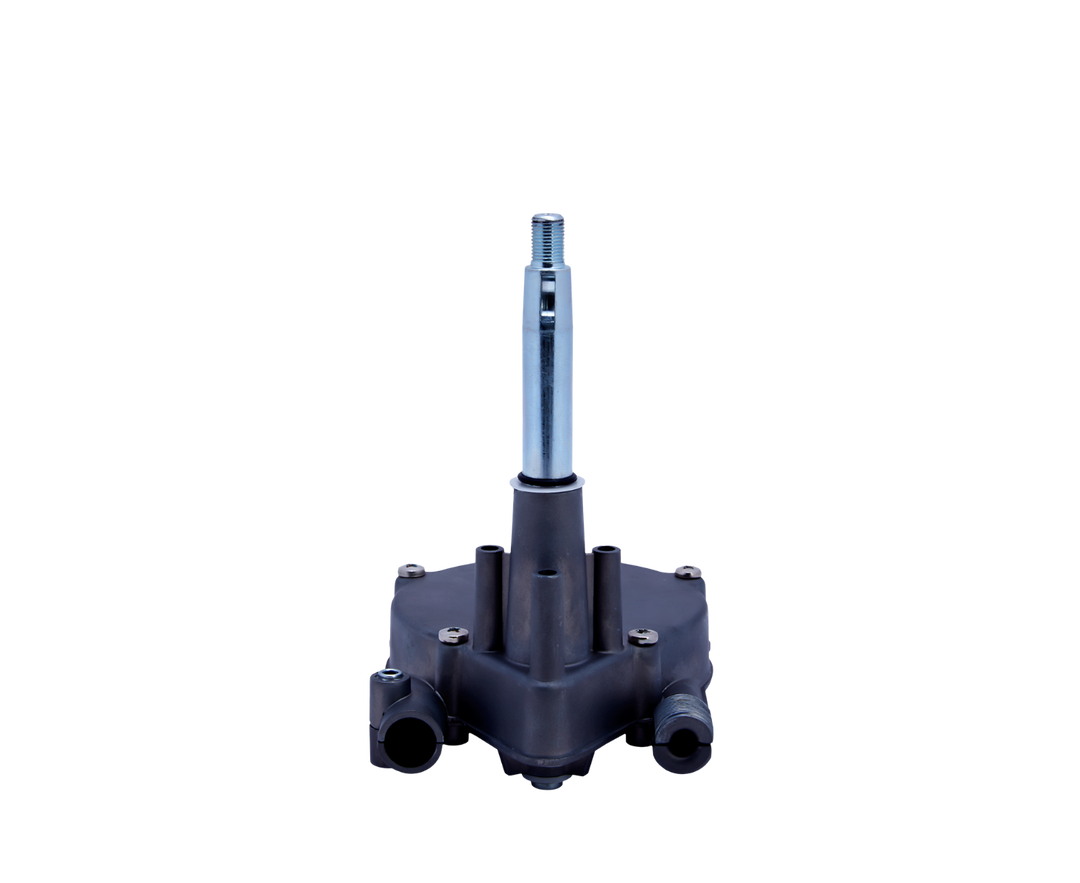

Multiflex Easy Connect Single Steering Helm
Multiflex Marine Component | Part LM-H-301
LM-H-301 is a single-cable Multiflex Easy Connect planetary mechanical helm for compatible outboard and inboard steering installations. Its quick cable interface is designed specifically for one SC-16 Easy Connect steering cable.
Key Features
- ✔ Single-cable Easy Connect planetary helm
- ✔ Quick connection for one SC-16 cable
- ✔ Approximately four wheel turns lock-to-lock
- ✔ Low-backlash planetary gear arrangement
- ✔ Standard 3/4 in tapered steering-wheel shaft
- ✔ Supports steering wheels up to 400 mm diameter
Technical Specs
| Helm type | Mechanical planetary, single cable |
| Compatible steering cable | 1 × Multiflex SC-16 |
| Wheel turns | Approx. 4 lock-to-lock |
| Maximum wheel diameter | 400 mm |
| Wheel shaft | 3/4 in tapered |
| Shaft length | Approx. 125 mm |
| Typical maximum boat length | 9 m outboard / 10.5 m inboard |
| Part number | LM-H-301 |
Compatibility / Fitment Guide
Confirmed cable interface: one Multiflex SC-16 Easy Connect steering cable. Select cable length from the actual boat routing, allowing broad bends and full engine movement without tension.
Applications: compatible single-engine outboard installations and appropriate inboard/rudder layouts using the corresponding link hardware. The catalogue lists typical maximum boat lengths of 9 m for outboard and 10.5 m for inboard installations.
System selection: boat length alone does not establish suitability. Check engine power, maximum speed, hull type, propeller torque and steering geometry. High-performance or higher-load craft may require non-feedback or hydraulic steering.
Not compatible: SC-11 thread-connect cables, rack cables and other proprietary quick-connect systems are not confirmed. The wheel must use a 3/4 in tapered hub and be no larger than 400 mm.
Part Number Cross Reference
| Multiflex helm | LM-H-301 |
| Required cable reference | SC-16 Easy Connect |
| Wheel interface | 3/4 in tapered shaft |
Frequently Asked Questions
Does it fit an SC-11 cable?
No. LM-H-301 is specified for the SC-16 Easy Connect cable.
Can I choose the cable by boat length alone?
No. Measure the actual routing and account for bends, engine movement and the steering-system limits.
Is it suitable for twin engines?
This is a single-cable helm. A twin-engine layout requires the correct approved helm, cables and tie-bar arrangement.
What is included?
This listing is for the helm. Wheel, bezel, SC-16 cable and engine connection hardware may be separate.
Compare the part number and all connection dimensions with the existing installation before purchase. Steering and control components should be installed and inspected by a competent marine technician.
