Multiflex Easy Connect Double Steering Helm
Multiflex Marine Component | Part LM-H-102

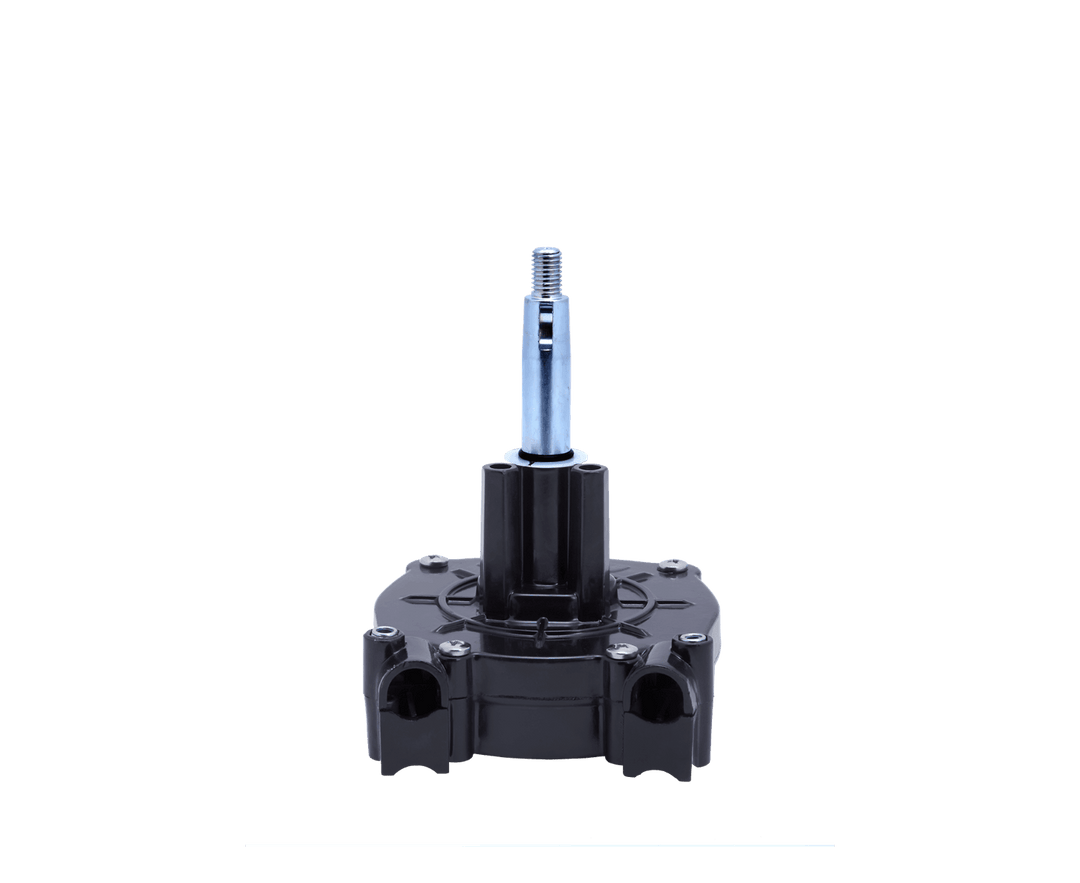

LM-H-102 is the double-cable version of the Multiflex Easy Connect planetary mechanical helm. It is designed for installations using two SC-16 steering cables, typically to operate a correctly linked twin-engine arrangement.
Key Features
- ✔ Double-cable Easy Connect planetary helm
- ✔ Designed for two SC-16 steering cables
- ✔ Approximately four wheel turns lock-to-lock
- ✔ Low-backlash planetary gear arrangement
- ✔ Standard 3/4 in tapered steering-wheel shaft
- ✔ Supports steering wheels up to 400 mm diameter
Technical Specs
| Helm type | Mechanical planetary, double cable |
| Compatible steering cable | 2 × Multiflex SC-16 |
| Wheel turns | Approx. 4 lock-to-lock |
| Maximum wheel diameter | 400 mm |
| Wheel shaft | 3/4 in tapered |
| Shaft length | Approx. 125 mm |
| Typical maximum boat length | 9 m outboard / 10.5 m inboard |
| Part number | LM-H-102 |
Compatibility / Fitment Guide
Confirmed cable interface: two Multiflex SC-16 Easy Connect steering cables. Both cables must be the correct measured length and routed with the manufacturer’s minimum bend radius.
Typical application: double-engine installations where the engines are joined by a correctly specified tie bar/link system. The helm does not itself synchronise two engines; engine spacing, tie-rod travel and steering stops must be engineered as a complete system.
Installation limits: the catalogue lists typical maximum boat lengths of 9 m for outboard and 10.5 m for inboard layouts. Engine power, hull speed, propeller torque and steering geometry can require a different system, including hydraulic steering.
Not compatible: SC-11 thread-connect cables, rack cables or other brands/interfaces are not confirmed. Use a steering wheel with a 3/4 in tapered hub and no more than 400 mm diameter.
Part Number Cross Reference
| Multiflex helm | LM-H-102 |
| Required cable reference | 2 × SC-16 Easy Connect |
| Wheel interface | 3/4 in tapered shaft |
Frequently Asked Questions
Is this a twin-station helm?
No. “Double” refers to two steering cables at the helm, not two separate driving stations.
Can I use one SC-16 cable?
No. Use LM-H-102 only in the intended double-cable arrangement.
Is it automatically suitable for any twin outboards?
No. Engine torque, boat speed, cable travel, spacing and the tie-bar system must all be verified.
Are wheel, bezel and cables included?
This listing is for the helm. Assume the wheel, bezel, two SC-16 cables and engine-link hardware are separate unless shown otherwise.
Compare the part number and all connection dimensions with the existing installation before purchase. Steering and control components should be installed and inspected by a competent marine technician.
