Waveline 8mm Calibrated Hot Dip Galvanised Anchor Chain 30m DIN766 WL-0814-0708
WL-0814-0708
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon

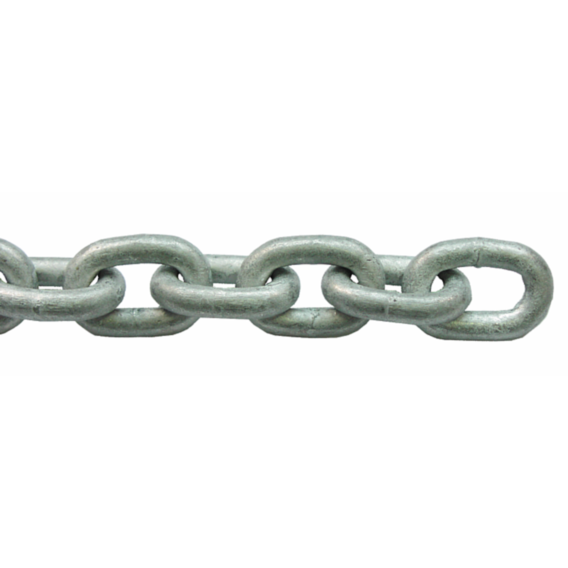

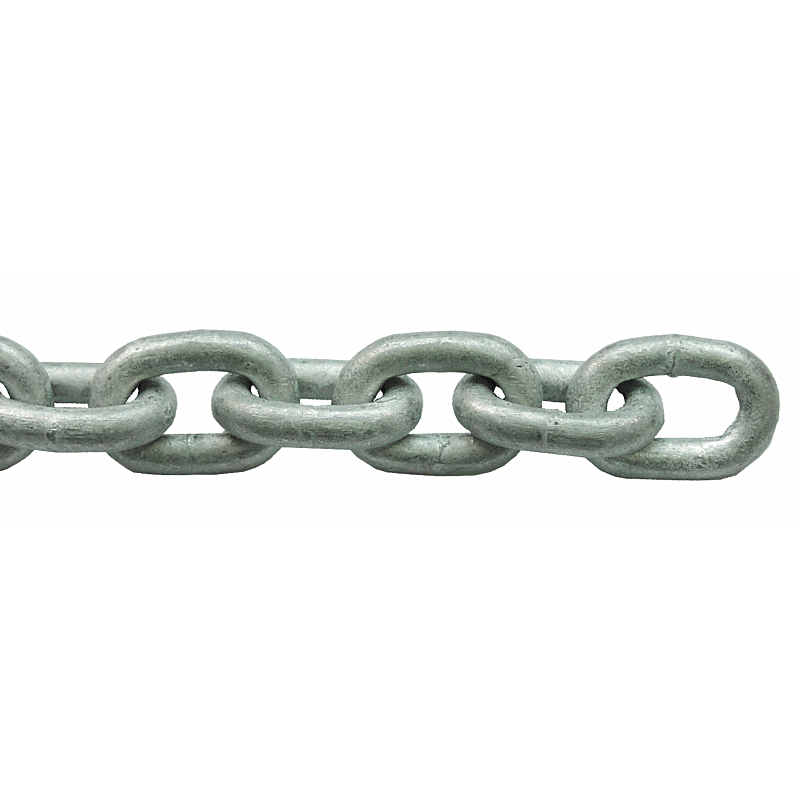

Waveline 8mm Calibrated Chain (30m)
SKU: WL-0814-0708 | DIN 766 Specification
Please contact us before placing your order to confirm the shipping cost.
This item is shipped on a pallet, and the delivery price depends on your location and delivery address. Once we receive your postcode, we will provide the exact shipping quote.
This Waveline 8mm Calibrated Hot Dip Galvanised Chain is engineered specifically for marine anchoring and windlass applications. Calibrated to the strict DIN 766 standard, each link is precision-measured to ensure smooth, jam-free operation through your boat's windlass gypsy. The hot-dip galvanisation process provides a heavy-duty zinc coating that protects the steel from the harsh saltwater environment, preventing premature rust and corrosion.
Key Features
- β Hot Dip Galvanised for maximum durability
- β Calibrated links for windlass compatibility
- β Short link design (DIN 766)
- β Supplied in a 30-meter length
Technical Specs
| Diameter: | 8mm |
| Length: | 30 Metres |
| Standard: | DIN 766 |
| Pitch (P): | 24mm |
| Outside Width: | 27.2mm |
| Breaking Load: | 2,500kg |
| Weight per Metre: | ~1.45kg |
Compatibility / Fitment Guide
| Windlass Brand | Model Compatibility | Notes |
|---|---|---|
| Lewmar | V1, V2, V3, Pro-Series 700/1000 | 8mm DIN Gypsy Required |
| Lofrans | Project 1000, Dorado, Kobra, Royal | Fits standard 8mm DIN gypsies |
| Quick | Prince, Antares, Hector | Standard 8mm calibration |
| Maxwell | RC8, HRC8, VW8 | Check gypsy for DIN 766 stamp |
OEM Cross Reference
| Waveline MPN | WL-0814-0708 |
| Marathon Leisure | 0814-0708 |
| Standard Ref | 8mm DIN 766 G30 Galvanised |
Questions & Answers
Is this a genuine original part?
This is a premium Waveline product, which is a leading brand in the UK marine industry, manufactured to meet official DIN 766 technical standards for marine anchoring.
How do I know if it is compatible?
Most European windlasses use 8mm DIN 766. You can identify this by checking your windlass gypsy (the wheel that pulls the chain); it should be stamped with "8mm DIN". If your windlass requires "ISO" 8mm, please note the pitch is nearly identical for 8mm, making this chain compatible with most dual-gypsy setups.
What is the total weight of this 30m length?
The approximate weight for the full 30-meter length is 43.5kg. This should be considered when calculating your boat's bow weight and windlass capacity.
Note: Please verify your windlass gypsy requirements against the DIN 766 specification above before purchasing. Available at 4boats.co.uk.
