Ultraflex S39-1 Swivel Steering Cable Support Bracket Transom Mount Clamp Block
45.595.13
- Dispatched in 2-3 days
- 30 Day Return Policy
- Low stock - 2 items left
- Backordered, shipping soon

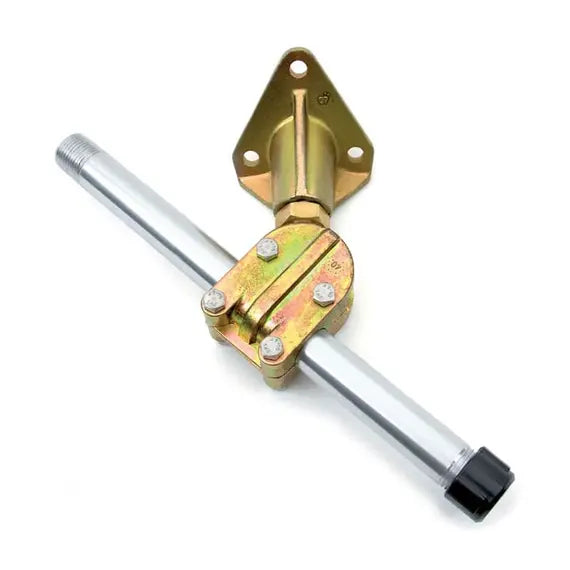

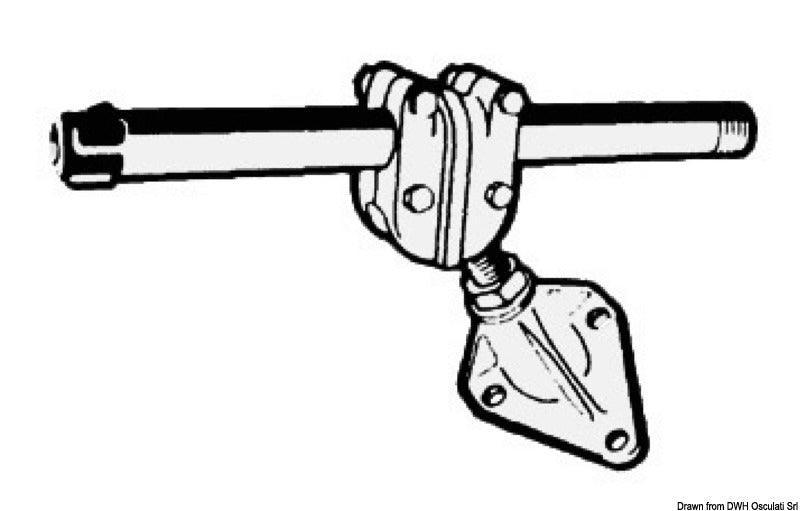

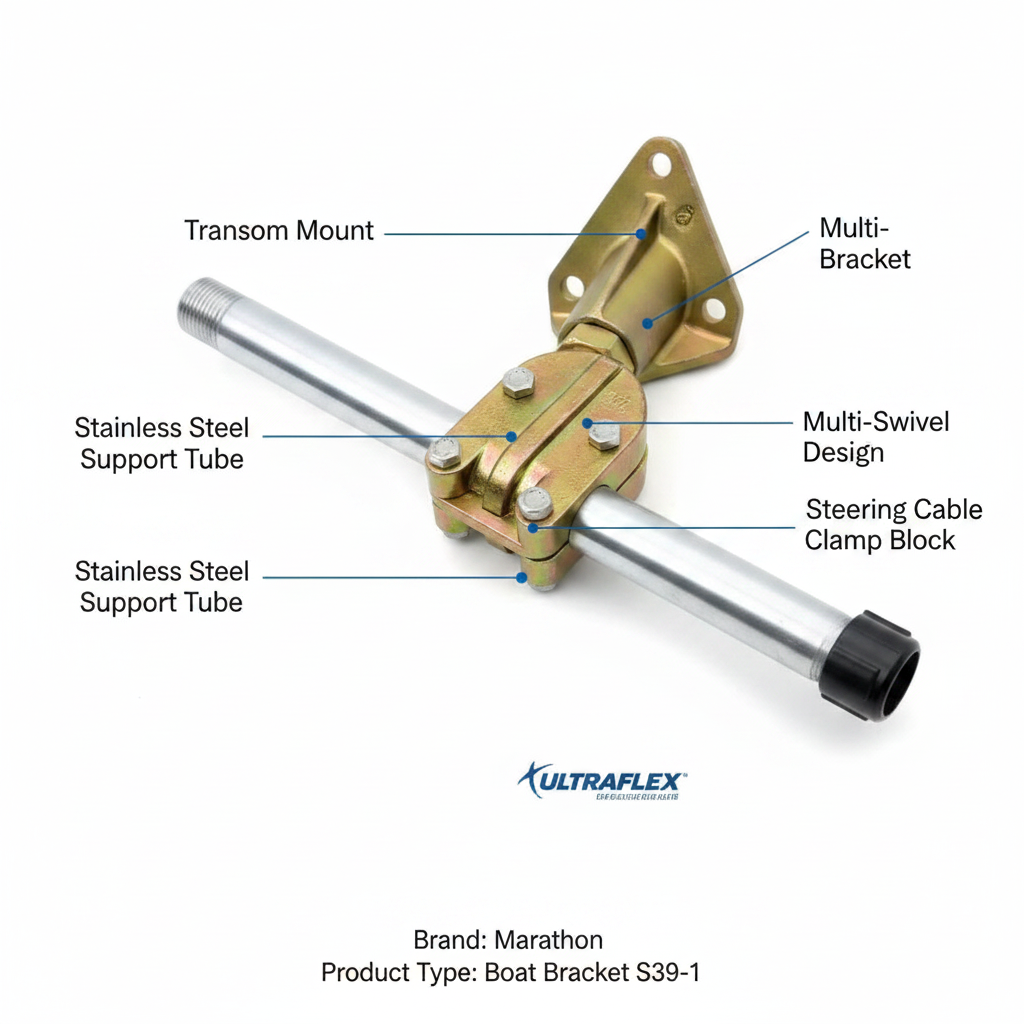

Ultraflex S39-1 Steering Bracket
Swivel Clamp Block & Support Tube Kit

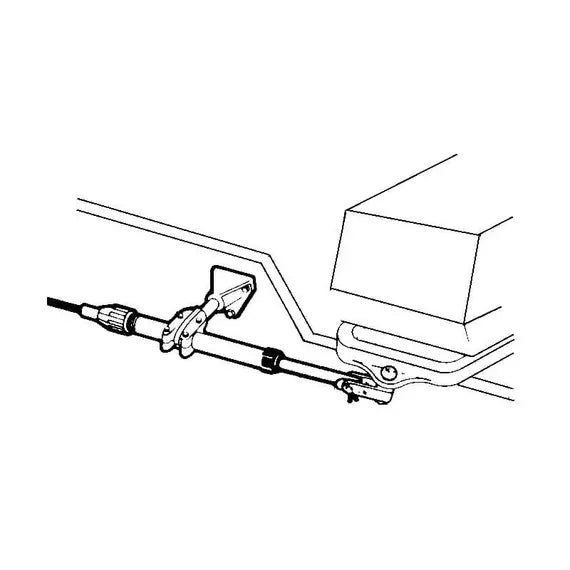

The Ultraflex S39-1 (also known as the S39 Swivel Support) is a critical component for boat owners whose outboard engines are not equipped with a standard internal tilt tube. This multi-swivelling clamp block allows for the secure mounting of mechanical steering cables directly to the transom or gunnel, ensuring smooth and responsive handling even in awkward mounting positions.
Key Features
- β Multi-Swivel Design: Adapts to various transom angles.
- β Direct Transom Fit: Ideal for engines without tilt tubes.
- β Heavy Duty: Stainless steel tube for maximum rigidity.
- β Universal Threading: Fits all 7/8" UNF cable ends.
Technical Specs
| Tube Length: | 270mm (10.6") |
| Tube Diameter: | 22mm |
| Cable Thread: | 7/8" - 14 UNF |
| Weight: | 0.64 kg (1.4 lbs) |
| Material: | Alu / 316 Stainless |
Compatibility / Fitment Guide
| Cable System | Cable Models | Notes |
|---|---|---|
| Ultraflex | M58 / M66 | Direct fit for standard rotary cables. |
| Teleflex / SeaStar | SSC131 / SSC62 | Standard 7/8" UNF connection. |
| Multiflex | SC-16 Series | Standard mechanical cable fitment. |
| Outboard Engines | Universal (No Tilt Tube) | Required for engines lacking tilt tube mounts. |
OEM Cross Reference
| Ultraflex MPN: | 31916F / S39 |
| Uflex USA SKU: | S39 / S39-1 |
| UPC: | 8031164319167 |
Questions & Answers
Is this a genuine original part?
This is a premium quality genuine Ultraflex part, manufactured in Italy to the highest marine standards for safety and performance.
How do I know if it is compatible?
If your steering cable has a 7/8" threaded nut at the engine end and your engine does not have a tube through the tilt hinge, this bracket is the correct solution for mounting your cable.
What else do I need for a complete installation?
In addition to this bracket, you will typically require a Clevis Kit (Ultraflex A75) and a Drag Link / Tiller Arm to connect the steering cable ram to the engine's steering arm.
Note: Please verify your mounting clearance and cable model against the references above before purchasing. Professional installation is recommended for steering components.
