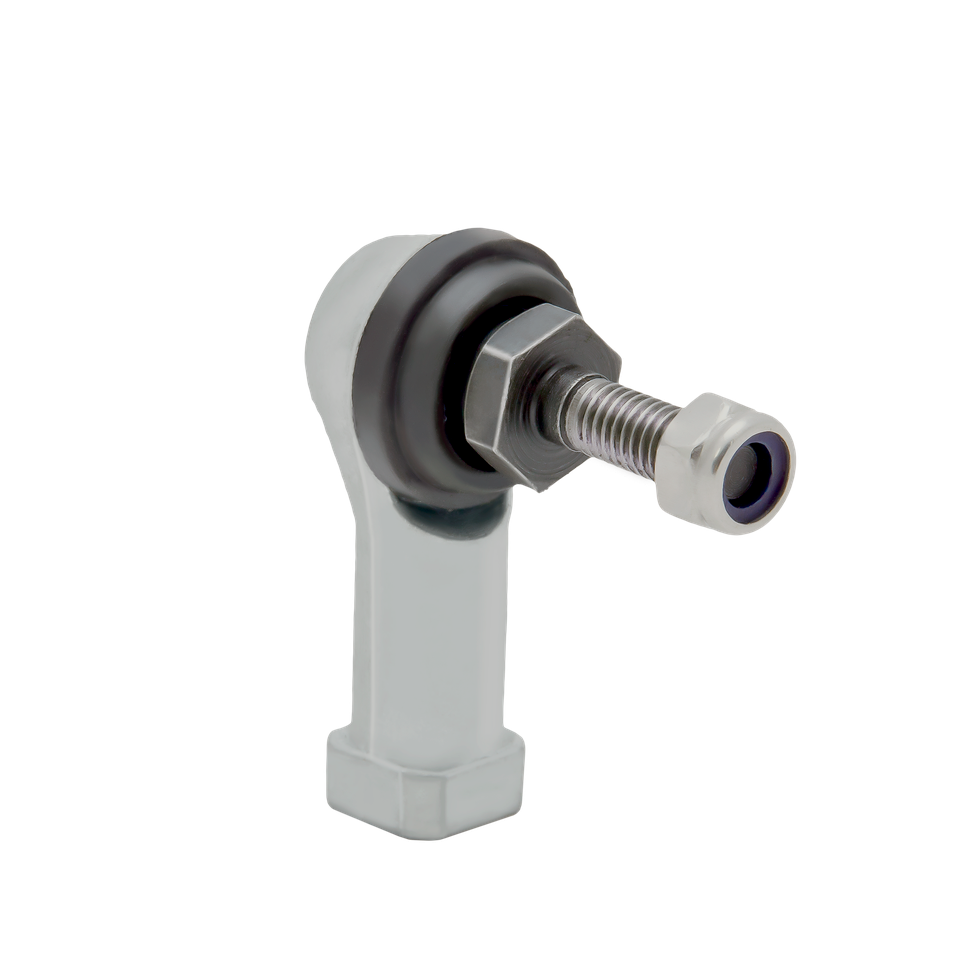

Multiflex Control Cable Ball Joint
Multiflex Marine Component | Part LM-K-14
LM-K-14 is a threaded ball-joint terminal used to connect a compatible universal marine push-pull control cable to an engine or control mechanism while allowing the small angular movement needed through the operating stroke.
Key Features
- ✔ Provides an articulated terminal connection
- ✔ 10-32 UNF threaded cable interface
- ✔ For compatible universal throttle or shift cable installations
- ✔ Helps avoid side-loading when the linkage moves through an arc
- ✔ Service replacement for the exact Multiflex part number
Technical Specs
| Component type | Control-cable ball joint |
| Cable-end thread | 10-32 UNF |
| Application | Marine engine throttle / shift linkage |
| Compatible cable family | Universal 3300/33C-type cables with matching threaded end |
| Part number | LM-K-14 |
Compatibility / Fitment Guide
Cable side: use only on a push-pull control cable with a 10-32 UNF threaded terminal. Multiflex universal families commonly using this thread include EC-033 and EC-133, subject to the installation arrangement.
Engine side: the mating ball stud, available clearance and required cable travel must match the engine or control linkage. Verify that the joint can articulate freely at full throttle, idle, forward, neutral and reverse without binding.
Not suitable: it is not a substitute for manufacturer-specific snap-on, clevis or metric cable ends, and it does not convert an incompatible cable travel or control box.
Part Number Cross Reference
| Multiflex part number | LM-K-14 |
| Thread reference | 10-32 UNF |
| Cable family reference | Universal 3300 / 33C type with matching end |
Frequently Asked Questions
Will it fit by engine horsepower?
No. Fitment is determined by thread, ball-stud size, linkage geometry and cable travel.
Can it be used for throttle and shift?
It can be used where the relevant throttle or shift linkage is designed for this ball-joint terminal and has matching travel.
Does it fit metric cable ends?
No. The listed cable-end thread is 10-32 UNF.
What should be checked after installation?
Operate the control through its complete range with the engine off and confirm free movement, correct detents and no binding.
Compare the part number and all connection dimensions with the existing installation before purchase. Steering and control components should be installed and inspected by a competent marine technician.
