Name: Talamex CQR Style Galvanized Plough Anchor 7-22kg Boat Sizes
Brand: BARRUS
SKU: 77.136.045
Price: 239.0 GBP
Availability: InStock

Talamex CQR Style Galvanized Plough Anchor 7-22kg Boat Sizes

Dispatched in 2-3 days

30 Day Return Policy

Low stock - 1 item left
Backordered, shipping soon

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

Select

Kg 22 ± Max. Length boat mtr 13,0 A mm 310 B mm 190

Kg 15 ± Max. Length boat mtr 11,0 A mm 310 B mm 160

Kg 12 ± Max. Length boat mtr 9,0 A mm 295 B mm 150

Kg 9 ± Max. Length boat mtr 8,0 A mm 260 B mm 140

Kg 7 ± Max. Length boat mtr 6,5 A mm 230 B mm 130

£239.32 £239.00 Save £0.32

Tax included.

Talamex galvanized CQR-style plough anchor range

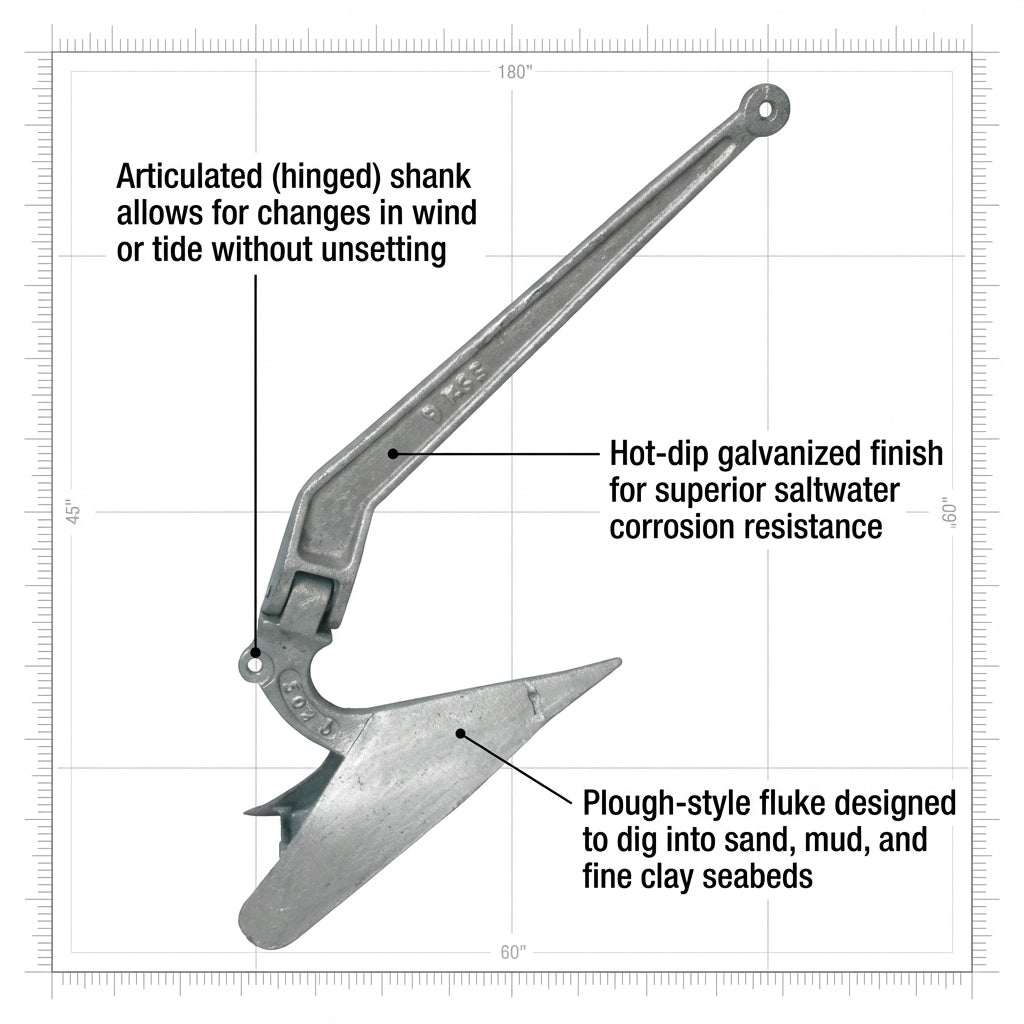

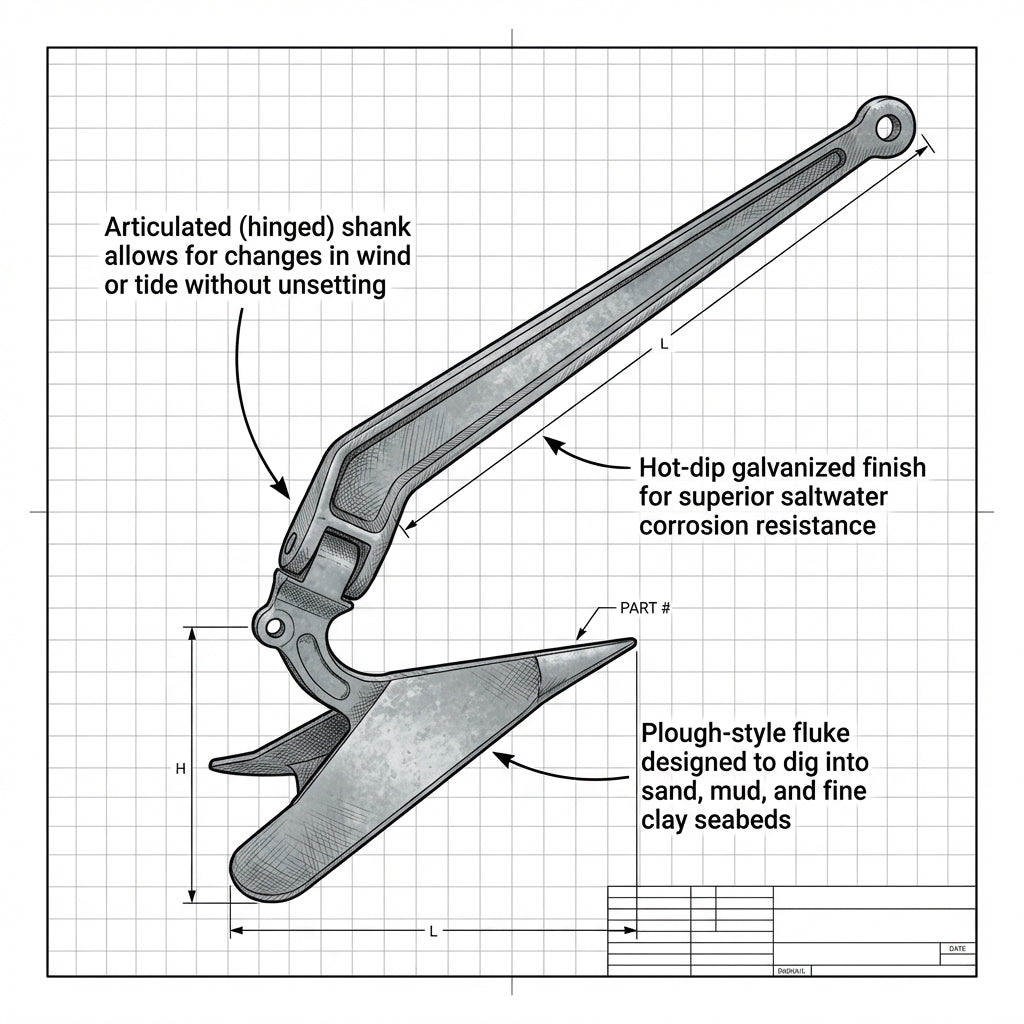

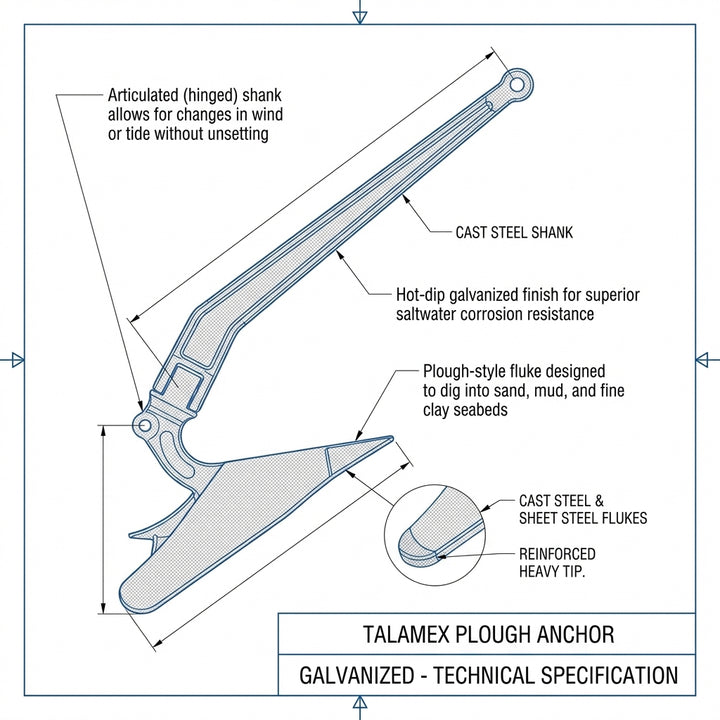

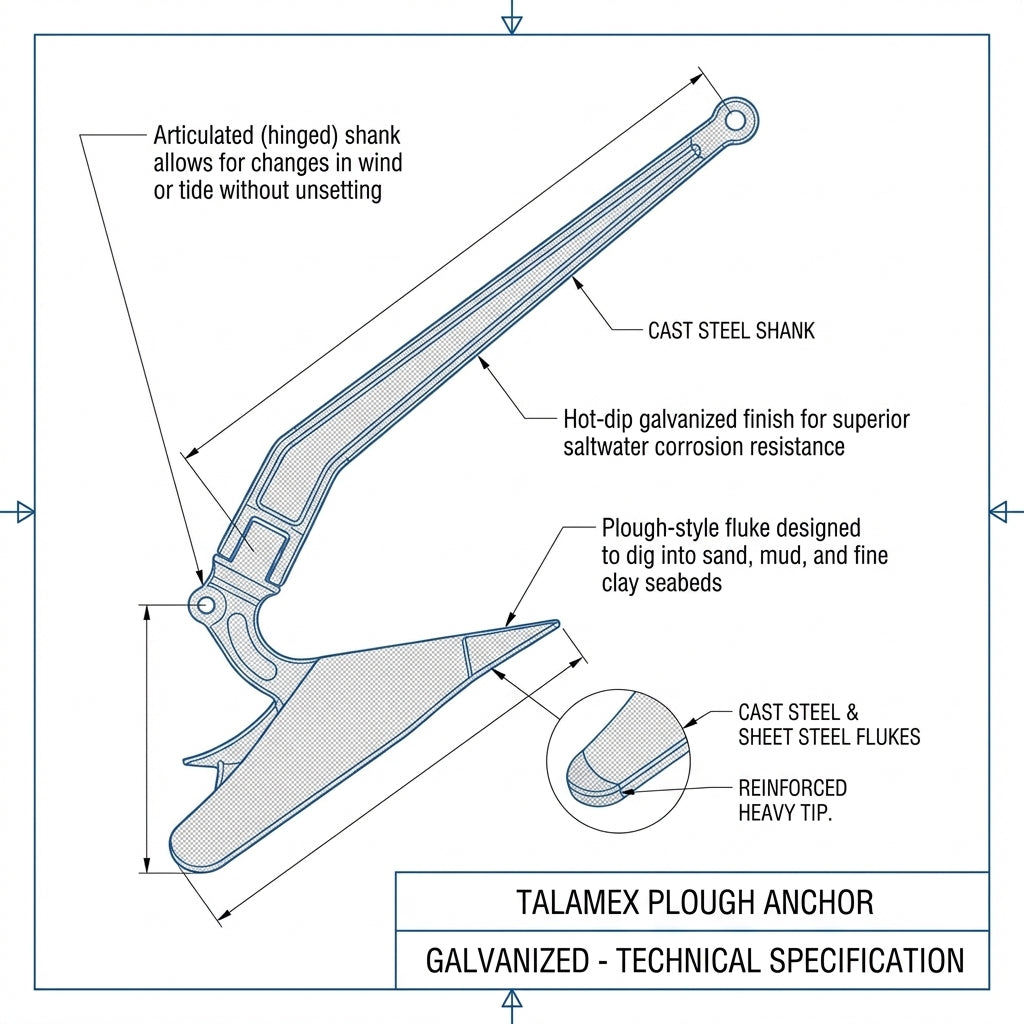

A traditional articulated plough-anchor family with galvanized steel construction, cast-steel shank and cast fluke with steel sheet. Five weights allow selection for compatible yachts and motorboats.

Suitable for: general leisure anchoring where a plough design suits the vessel, bow arrangement, seabed and complete rode system.

Technical specification and options

Material	Galvanized steel
Design	CQR-style articulated plough
7kg option	Guide up to 6.5m boat; A 230mm, B 130mm
9kg option	Guide up to 8.0m boat; A 260mm, B 140mm
12kg option	Guide up to 9.0m boat; A 295mm, B 150mm
15kg option	Guide up to 11.0m boat; A 310mm, B 160mm
22kg option	Guide up to 13.0m boat; A 310mm, B 190mm
Construction	Cast-steel shaft and fluke components with steel sheet
Quantity	One selected anchor

Selection and compatibility

Boat-length ranges are approximate manufacturer guides and must not be the only sizing method.
Consider displacement, windage, anchorage exposure, current, seabed, cruising area and storm/security margin.
Check anchor length, hinge movement, fluke width and shank against the bow roller and locker.
Match rode type, chain size, connector working load and windlass gypsy to the complete system.
Articulated plough anchors contain a moving joint that must remain free and undamaged.

Installation, operation and package

Choose a rated connector that passes freely through the shank eye and bow equipment.
Inspect the hinge, casting, galvanizing and shank before use and after grounding or impact.
Deploy suitable scope and reverse-load progressively to confirm a firm set.
Monitor position and be prepared to reset or change anchor if the bottom is unsuitable.
Rinse after use and repair damaged galvanizing appropriately.

Package contents: one Talamex plough anchor in the selected 7, 9, 12, 15 or 22kg size; rode and connectors are separate.

Frequently asked questions

Which weight should I choose?

Use the manufacturer guide only as a starting point, then account for displacement, windage, seabed and expected weather.

Is a shackle or swivel included?

No. Select a properly rated compatible connector separately.

Will it fit every bow roller?

No. Measure the chosen anchor and confirm hinge, fluke and shank clearances.

Is a heavier anchor always enough for worse weather?

Not by itself. Rode size, scope, seabed, setting technique and the whole system determine security.

Safety: Use conservative sizing and professional advice for exposed, tidal, commercial or unattended moorings.

For the products under £150 the shipping is £6.99.

Free delivery for most items over £150.
