6" Boat Deck Plate Inspection Port UV Resistant Anti-Skid Screw-Out Hatch White
MD1312/6W
- Dispatched in 2-3 days
- 30 Day Return Policy
- In stock, ready to ship
- Backordered, shipping soon

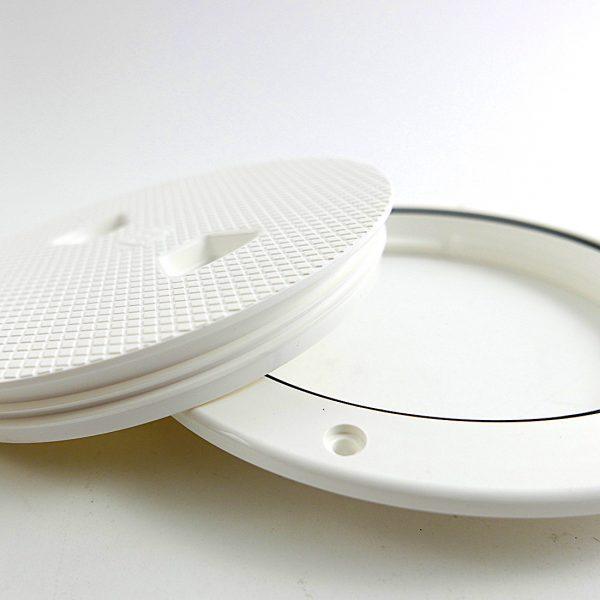

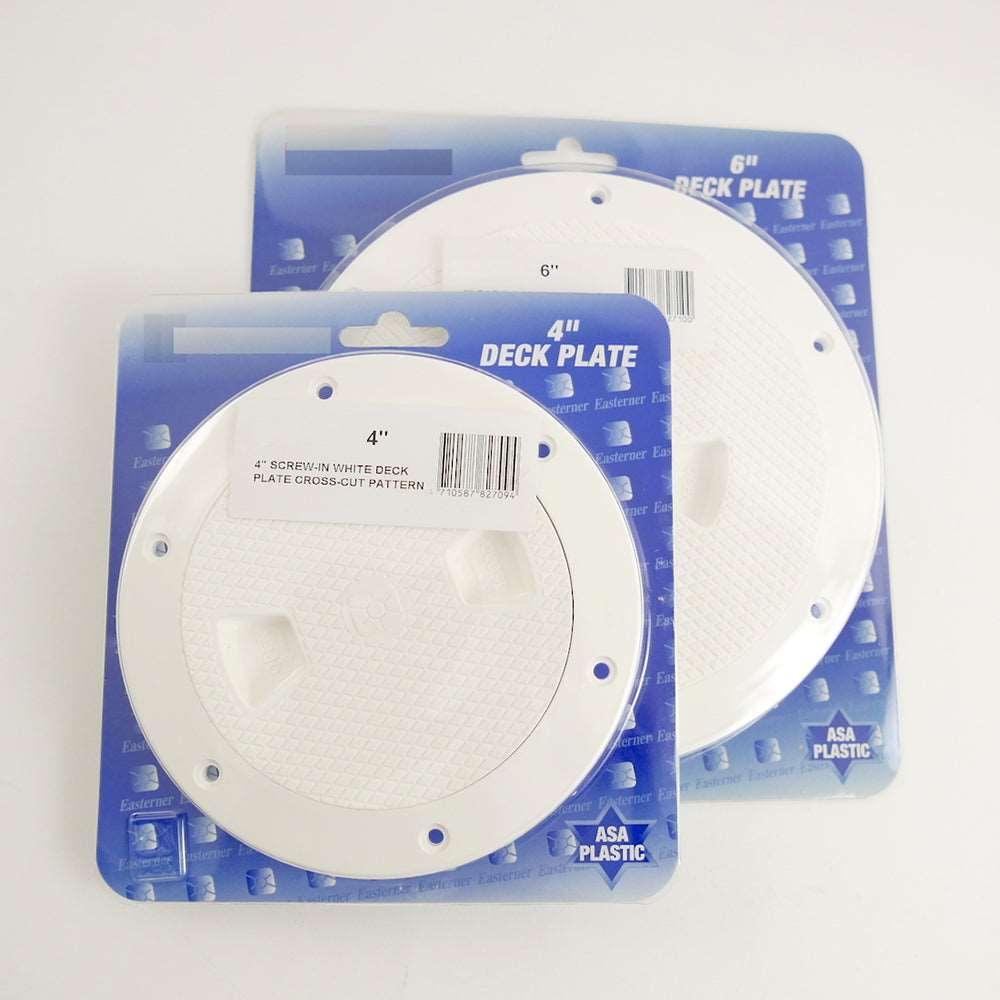

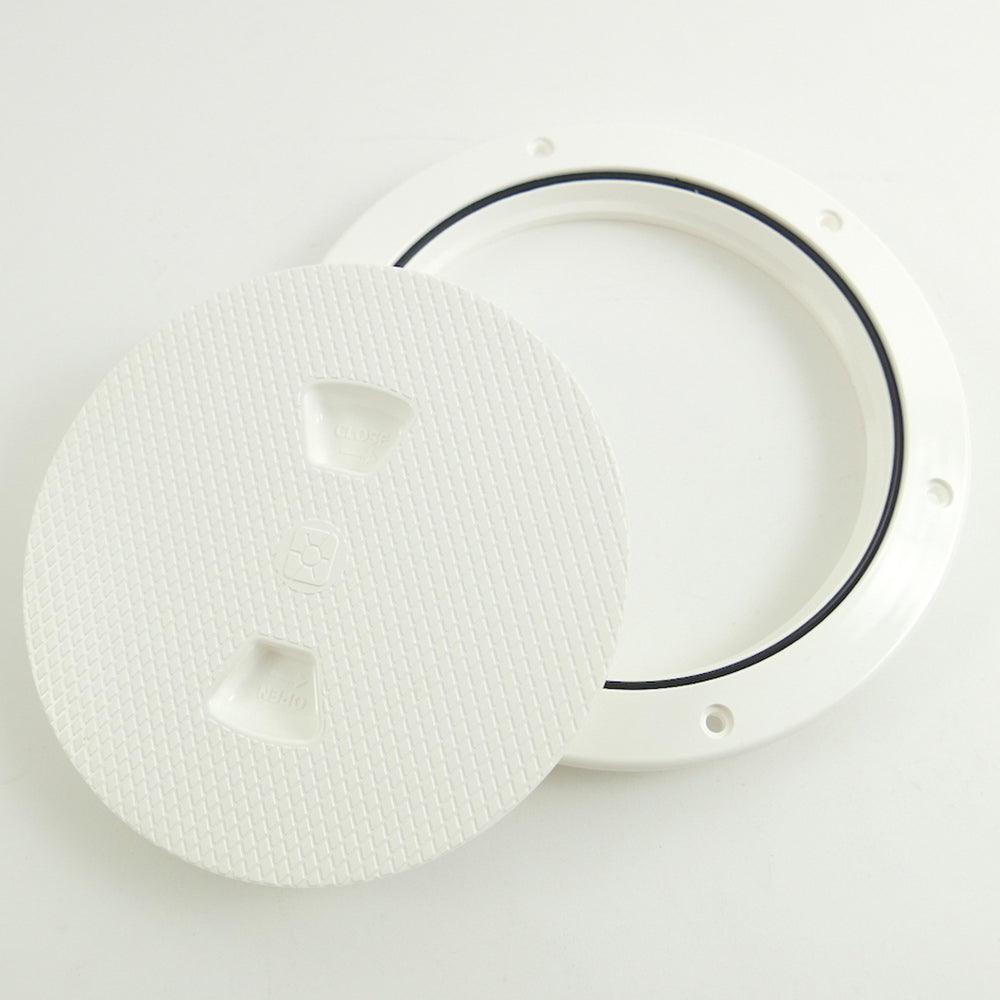

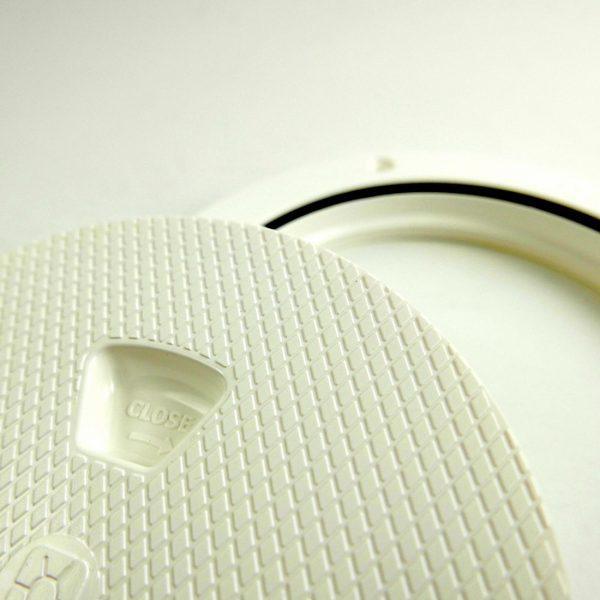

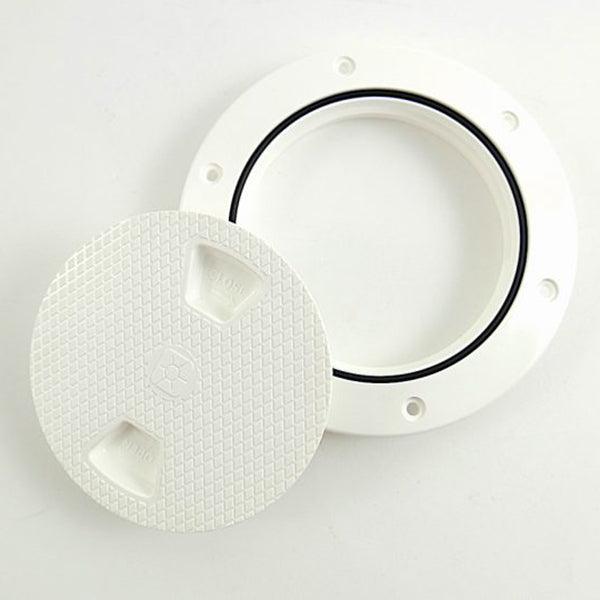

6" Deck Plate Inspection Port
UV-Resistant ASA Construction | Anti-Skid Surface
This premium 6-inch Deck Plate is engineered for harsh marine environments, providing reliable access to fuel tanks, valves, and electrical compartments. Unlike standard ABS plates, this unit is constructed from High-Grade ASA Plastic, offering superior resistance to UV radiation, impact, and chemical degradation. The screw-out design allows for tool-free entry, while the integrated rubber O-ring ensures a completely watertight seal when closed.
Key Features
- ✔ Premium ASA Material: Better UV protection than ABS.
- ✔ Watertight Seal: Includes durable rubber O-ring.
- ✔ Anti-Skid Texture: Diamond cross-cut safety surface.
- ✔ Tool-Free Access: Easy screw-out threaded cover.
- ✔ Low Profile: Sleek finish with countersunk mounting holes.
Technical Specs
| Inside Diameter (Opening) | 152mm (6") |
| Outside Diameter (Flange) | 206mm (8.11") |
| Cutout Diameter | 165mm (6.5") |
| Material | ASA Plastic |
| Color | White |
Compatibility / Fitment Guide
| Application | Mounting Position | Notes |
|---|---|---|
| Marine Vessels | Decks & Bulkheads | Access to fuel/water tanks |
| Kayaks / Canoes | Hull Topside | Watertight gear storage access |
| RV & Caravans | External Panels | Utility & plumbing inspection |
OEM Cross Reference
| SEAFLO | SFRH1-006-01 |
| Beckson | DP62-W / DP60-W |
| Tempress | 44460 |
| Nuova Rade | 44445 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured using high-grade ASA plastic to exceed original equipment standards for UV durability and strength.
How do I know if it is compatible?
Please measure your existing cutout diameter. This port requires a 165mm (6.5") hole for installation. If your original part matches the dimensions or cross-reference numbers above, it will fit perfectly.
Can it be mounted on a vertical surface?
Yes. The screw-in threaded design combined with the rubber O-ring seal ensures it remains watertight even when mounted on vertical bulkheads or consoles.
Note: Mounting hardware (screws) is not included. 4boats.co.uk recommends marine-grade stainless steel fasteners for installation.
