Name: BlueFusion 6 Gang 12V Marine Toggle Switch Panel IP65 Waterproof Glow Red LED
Brand: MidMarine
SKU: MD1251/6S
Price: 44.0 GBP
Availability: InStock

12V Switch Panel with Glow RED Toggles, 6 Gang, IP65 Rated – BlueFusion - 4Boats

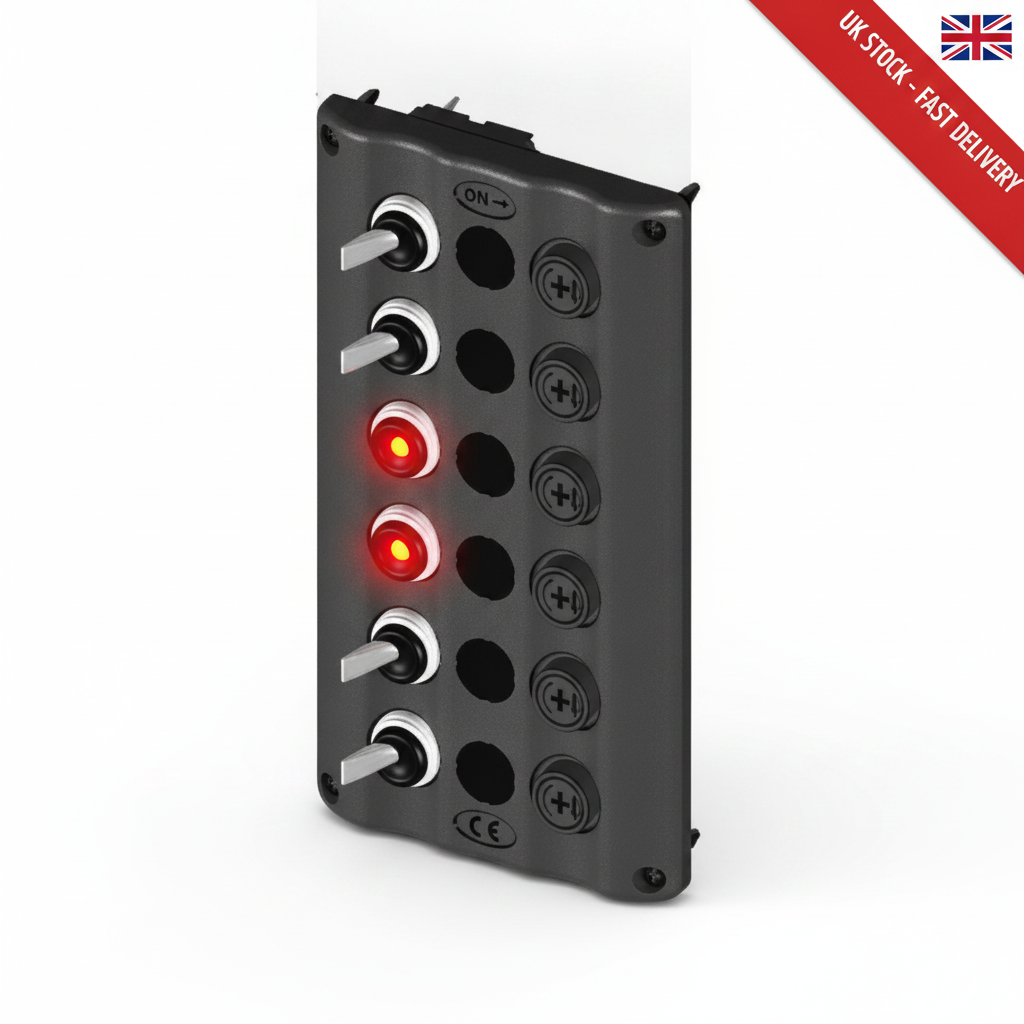

BlueFusion 6 Gang 12V Marine Toggle Switch Panel IP65 Waterproof Glow Red LED - UK Stock image 1

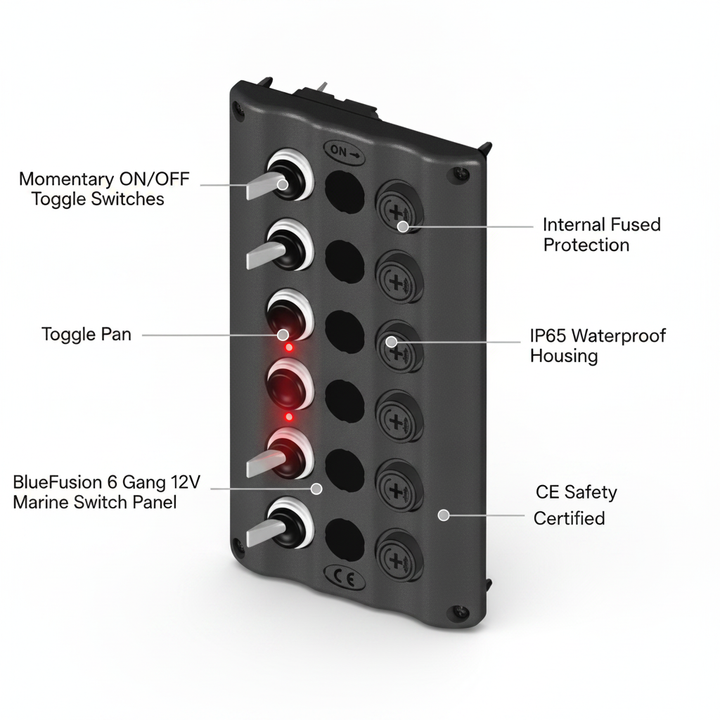

BlueFusion 6 Gang 12V Marine Toggle Switch Panel IP65 Waterproof Glow Red LED - Technical specification image 2

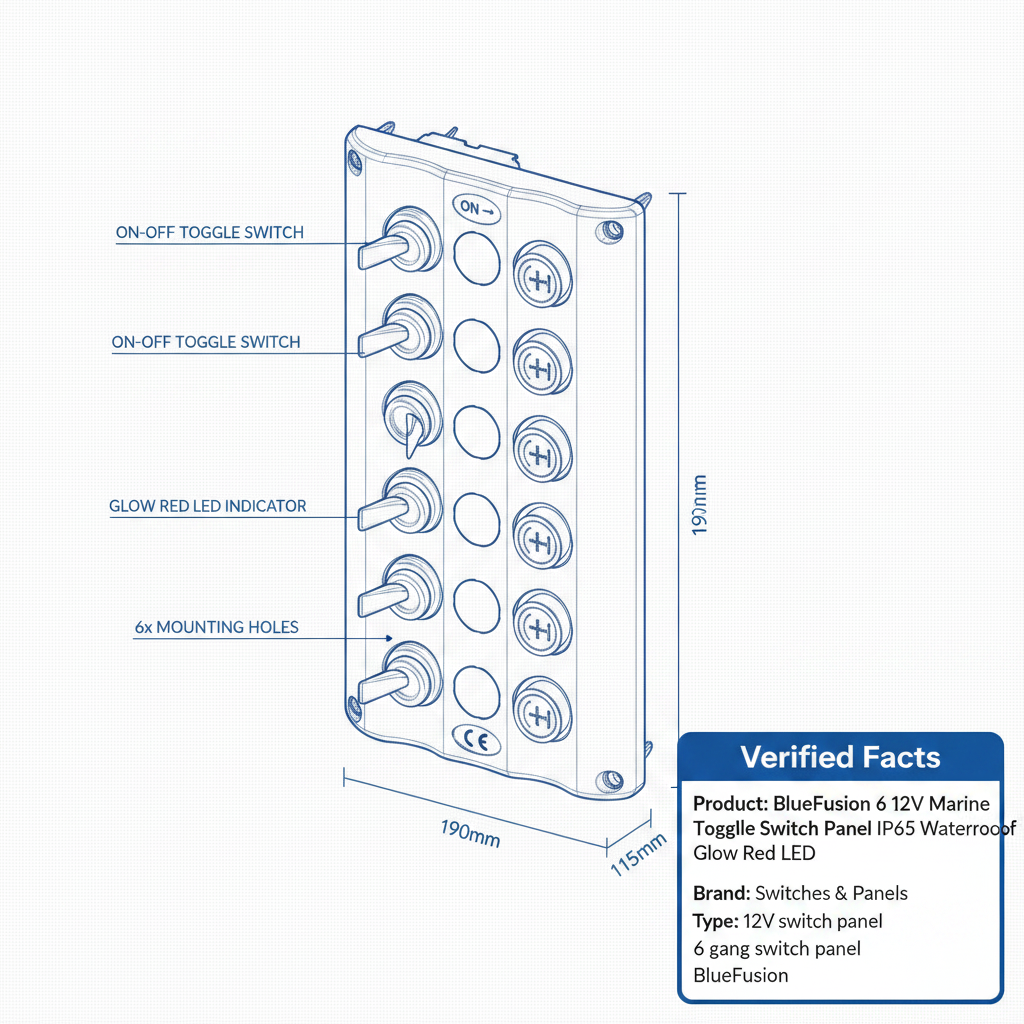

BlueFusion 6 Gang 12V Marine Toggle Switch Panel IP65 Waterproof Glow Red LED - Technical specification image 3

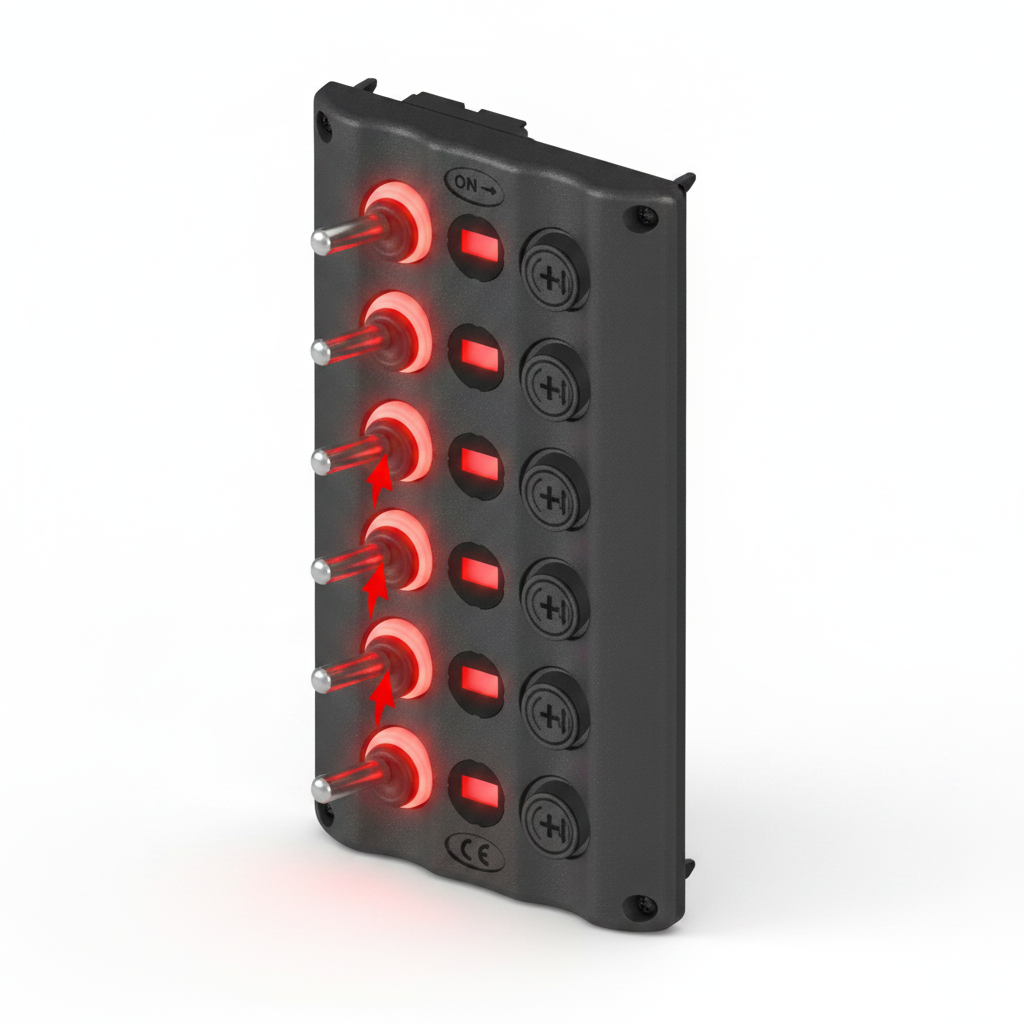

BlueFusion 6 Gang 12V Marine Toggle Switch Panel IP65 Waterproof Glow Red LED - Technical specification image 4

Dispatched in 2-3 days

30 Day Return Policy

In stock, ready to ship
Backordered, shipping soon

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

£44.00

Tax included.

BlueFusion 6-Gang 12V Switch Panel

Glow Red Toggles | IP65 Waterproof | Fused Protection

Upgrade your vessel or vehicle's electrical control with the BlueFusion 6-Gang Toggle Switch Panel. Designed specifically for demanding marine environments, this panel features high-visibility "Glow Red" toggle switches that illuminate clearly when power is active in the circuit, ensuring safe operation at night or in low-light conditions.

RELIABILITY: Built with high-grade UV-stabilized materials and IP65-rated waterproofing, this panel is engineered to withstand salt spray, rain, and harsh marine environments while meeting CE safety certifications.

Key Features

✔ 6 SPST ON-OFF Toggle Switches
✔ Glow Red LED Active Indicators
✔ Pre-wired with internal fuse holders
✔ Heavy-duty black finish with Nitrile gasket
✔ Includes 40 x identification sticker labels

Technical Specs

Operating Voltage:	12V DC
Switch Rating:	10A per switch
Max Cumulative Load:	40 Amps
Panel Dimensions:	180mm x 100mm
Cutout Required:	160mm x 82mm
Wiring Type:	UL/1015 Standard

Compatibility / Fitment Guide

System Type	Typical Application	Notes
Marine	Boats, Yachts, RIBs	Dash mount / Console control
Automotive	Campers, RVs, 4x4, Trucks	Secondary accessory panel
General 12V	Custom 12V DC Projects	Ensure max 40A total draw

OEM Cross Reference

Manufacturer	BlueFusion
Part Number (MPN)	MD1251/6S
EAN (Barcode)	5060580882767

Questions & Answers

Is this a genuine original part?

This is a premium quality aftermarket replacement part from BlueFusion, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.

How do I know if it is compatible?

We recommend checking the dimensions and the MPN (MD1251/6S). This panel fits any flat surface with the required cutout of 160mm x 82mm and operates on standard 12V DC systems.

What fuses are included with this panel?

This panel is pre-fitted with internal fuse holders containing 3 x 5A, 2 x 10A, and 1 x 15A fuses, offering tiered protection for different circuit loads.

Note: Professional installation is recommended. Always verify your total current draw does not exceed 40A cumulative across the panel.
